Product Details
Introduction

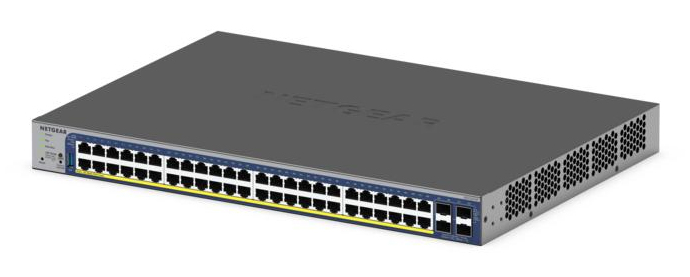

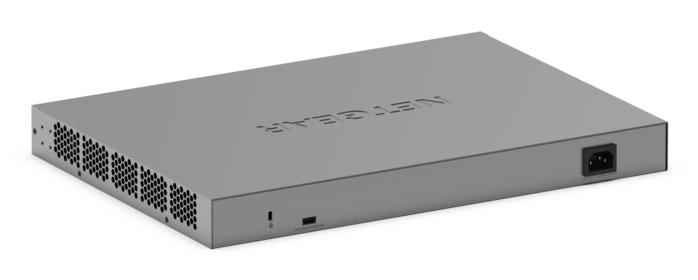

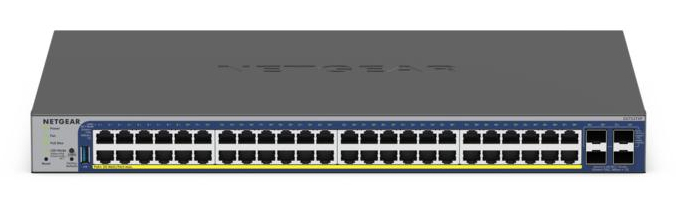

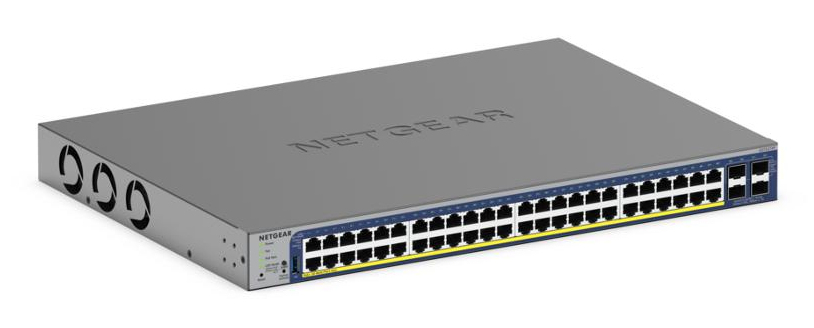

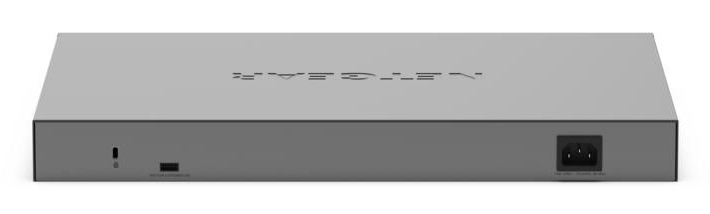

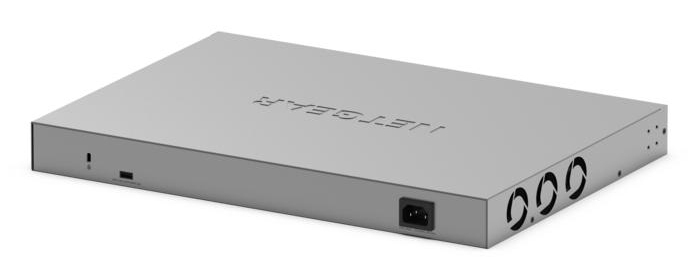

48-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 4 SFP+ Ports (380W)
Standalone Smart Switch designed for converged networks, big or small. 1-Year Insight subscription included.
Management features
Switch type
Managed
Switch layer
L2/L3/L4
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
SFP+ module slots quantity
4
Network
Networking standards
IEEE 802.1ab, IEEE 802.1as, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
Yes
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Voice VLAN
Data transmission
MAC address table
16000 entries
Latency (10 Gbps)
4.107 µs
Static route
Yes
Number of static routes
32
Packet buffer memory
16 MB
Security
DHCP features
DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
MAC address filtering
Yes
SSH/SSL support
Yes
Design
Rack mounting
Yes
Stackable
Yes
Product colour
Black
Performance
Built-in processor
Yes
Flash memory
64 MB
Noise level
36.6 dB
Mean time between failures (MTBF)
1296949 h
Power
Power source
AC
Power supply included
Yes
Power consumption (max)
51 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
48
Total Power over Ethernet (PoE) budget
380 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Heat dissipation
2944.6 BTU/h
Weight & dimensions
Width
440 mm
Depth
345 mm
Height
43 mm
Weight
5.54 kg
Information
| Part Number: | GS752TXP-300EUS |
