Introduction

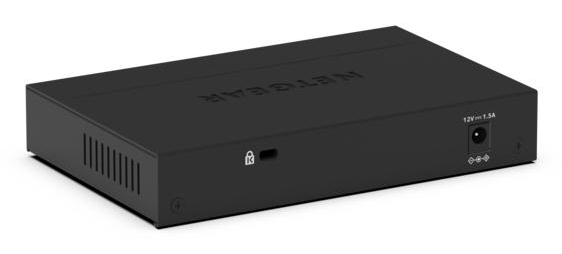

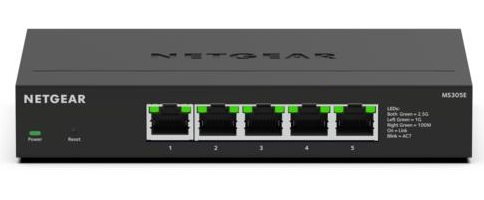

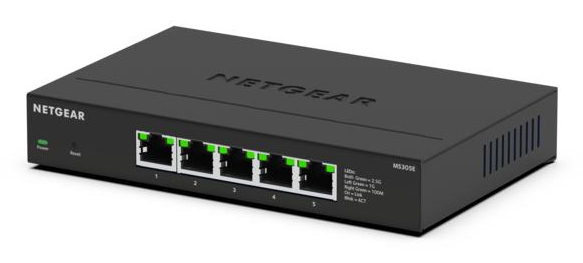

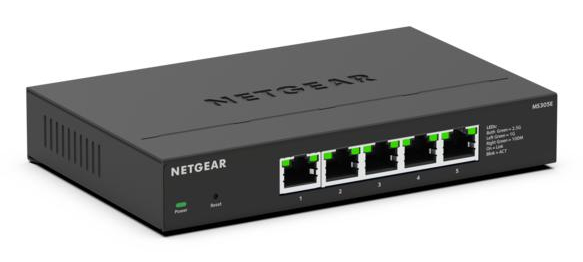

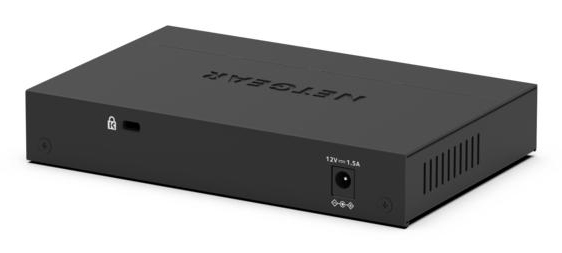

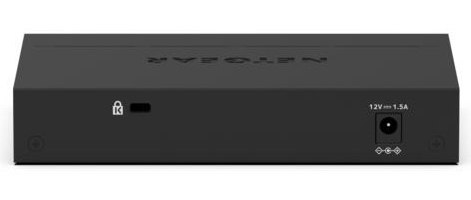

NETGEAR 5-port 2.5G Multi-Gigabit Ethernet Plus Switch
MULTI-GIGABIT ETHERNET
5 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
NON-BLOCKING SWITCHING
25Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Network
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Half duplex
Yes
Auto MDI/MDI-X
Yes
Head-of-line (HOL) blocking
Yes
Ethernet LAN data rates
100,1000,2500 Mbit/s
Cable length detection
Yes
Data transmission
Switching capacity
40 Gbit/s
Forwarding rate
3.72 Mpps
MAC address table
16000 entries
Latency (1 Gbps)
4.9 µs
Jumbo frames support
Yes
Jumbo frames
12288
Packet buffer memory
1 MB
Design
Rack mounting
No
Stackable
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
Wall mountable
Yes
Performance
Fanless
Yes
Mean time between failures (MTBF)
4273003 h
Power
Power source
DC
Power supply included
Yes
DC input voltage
12 V
Input current
1 A
Input voltage
12 V
Power consumption (max)
5.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Other features
Warranty period
5 year(s)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Weight & dimensions
Width
158 mm
Depth
101 mm
Height
27 mm
Weight
450 g
Certificates
Compliance certificates
CCC, Low Voltage Directive (LVD)
