Introduction

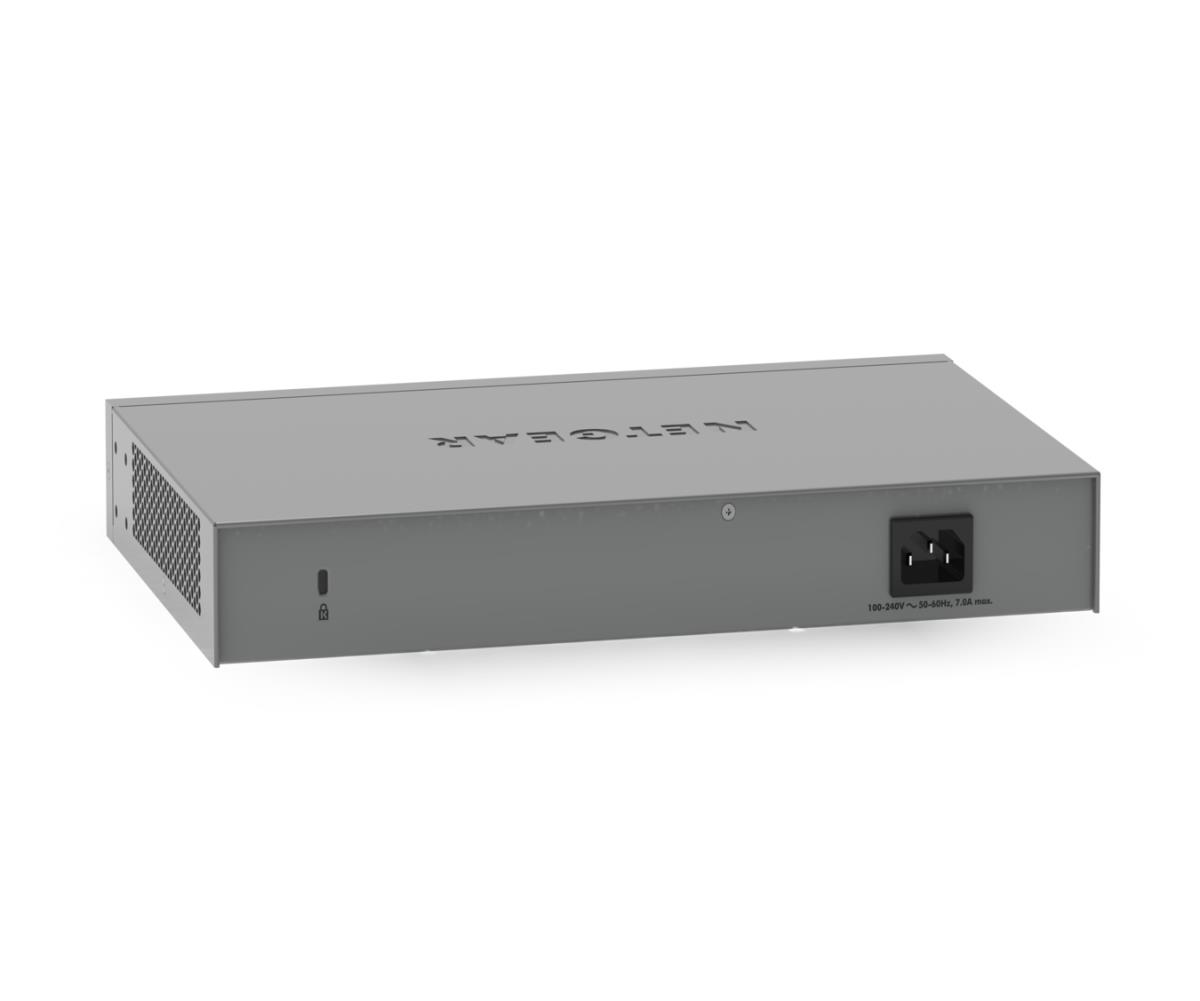

The NETGEARŪ MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch comes with 2 fiber 10G uplinks. Organizations that buy infrastructure for the long term and want future proofing can now deploy denser PoE+ and even PoE++ devices with 295W power budget and 2.5G / 5G /10G speeds. The ideal companion to the MS510TXUP is the NETGEAR WAX610 WiFi 6 Access Point that features a 2.5G Ethernet port.
MS510TXUP provides a total PoE budget of 295W and advanced PoE features such as uninterrupted PoE for powerful PoE applications. The switch provides four auto-adapt multispeed Gigabit PoE+/PoE++ RJ-45 ports that support 2.5G, and 1G; another four multi-speed Gigabit PoE+/PoE++ RJ-45 ports that support 10G, 5G, 2.5G and 1G, and two dedicated SFP+ fiber uplink port that supports 10G and 1G. Each of the 5 multi-Gig Ethernet ports automatically detects which speed is needed by the connected device and provides the adequate connection speed.
Ports & interfaces
SFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity
2
Logistics data
Harmonized System (HS) code
85176990
Management features
Switch type
Managed
Switch layer
L2/L3/L4
Quality of Service (QoS) support
Y
Web-based management
Y
Cloud-managed
Y
Network
Networking standards
IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3x
10G support
Y
Copper ethernet cabling technology
1000BASE-T
Port mirroring
Y
Full duplex
Y
Flow control support
Y
Link aggregation
Y
Broadcast storm control
Y
Spanning tree protocol
Y
Ethernet LAN data rates
100,1000,2500,5000,10000 Mbit/s
VLAN support
Y
Number of VLANs
256
Data transmission
Switching capacity
140 Gbit/s
MAC address table
32000 entries
Jumbo frames support
Y
Jumbo frames
10000
Security
DHCP features
DHCP client,DHCP server
Access Control List (ACL)
Y
Access Control List (ACL) ingress
100
IGMP snooping
Y
Security algorithms
HTTPS,SSL/TLS
Loop protection
Y
Multicast features
Protocols
Management protocols
SNMP v1/v2c,SNMP v3
Design
Rack mounting
Y
Product colour
Grey, Blue
LED indicators
Activity, Power, Speed
Performance
Built-in processor
Y
Processor frequency
1000 MHz
Internal memory
256 MB
Flash memory
64 MB
Power
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) power per port
60 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Weight & dimensions
Width
330 mm
Depth
206 mm
Height
43 mm
