Introduction

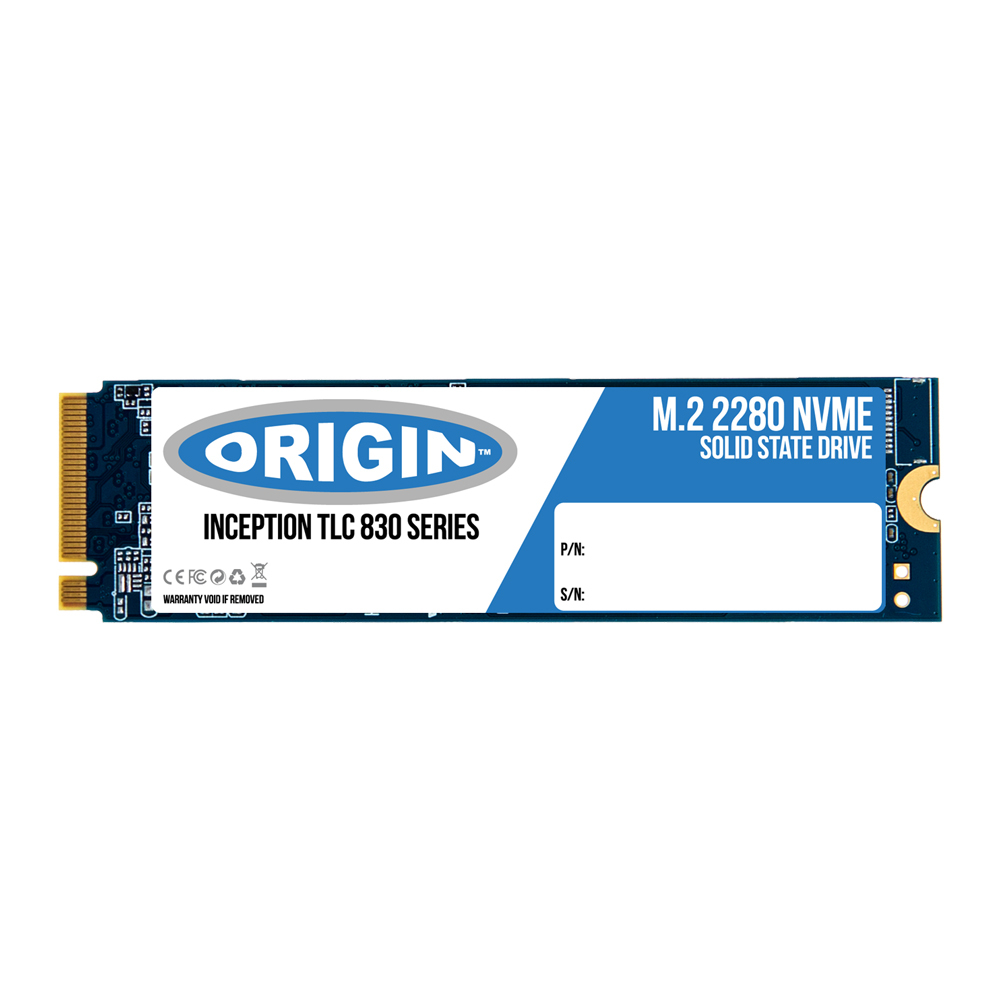

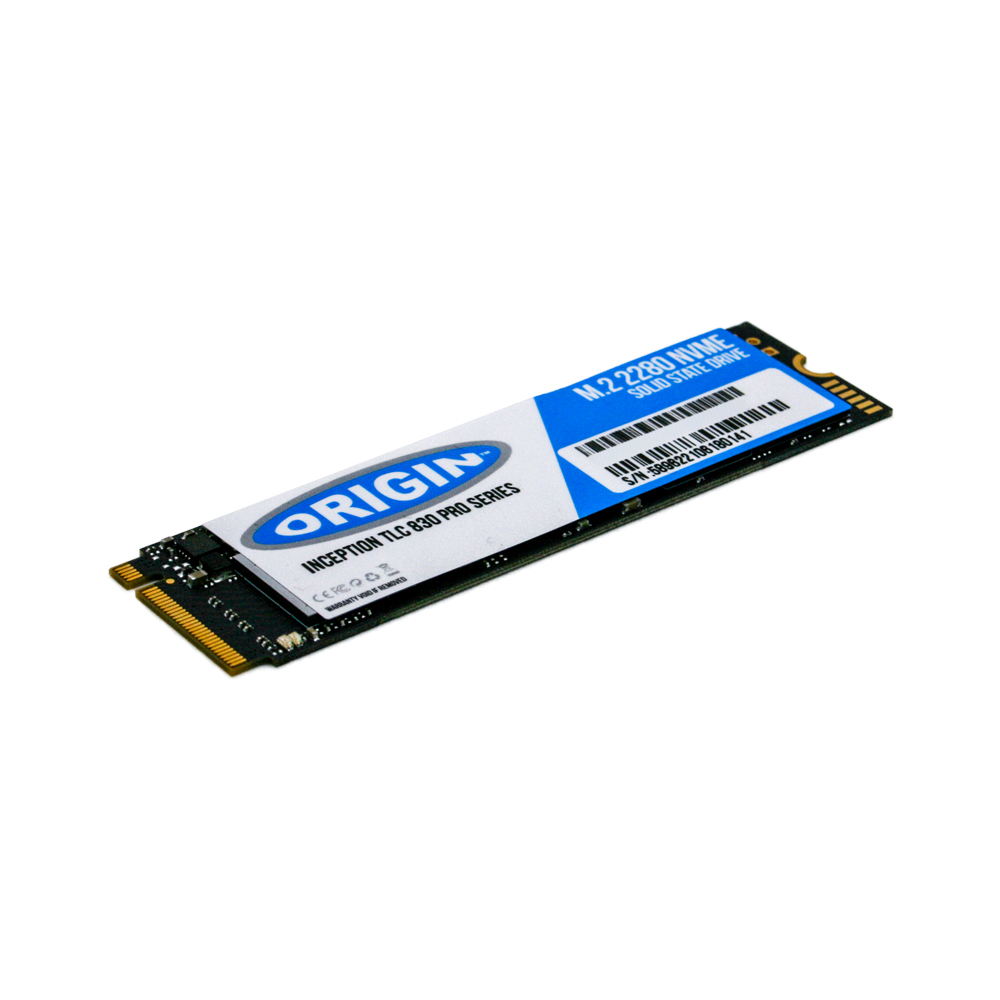

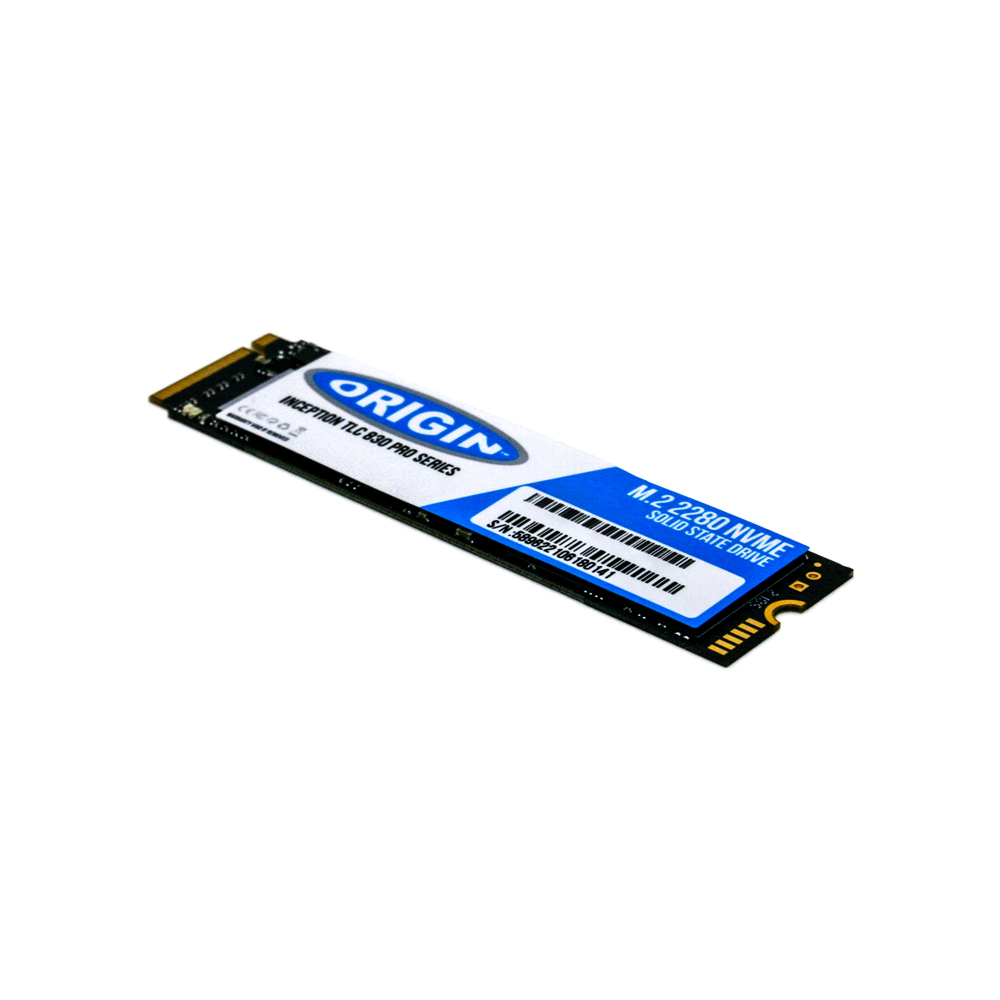

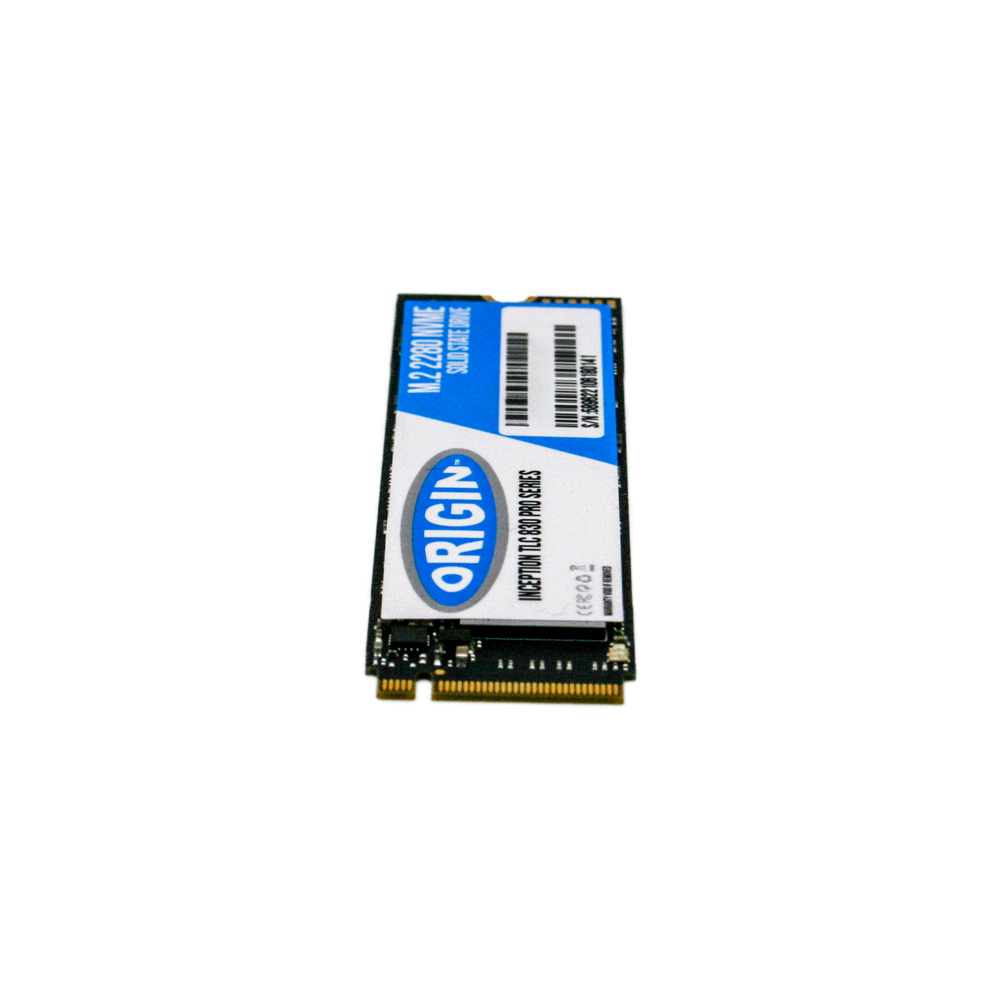

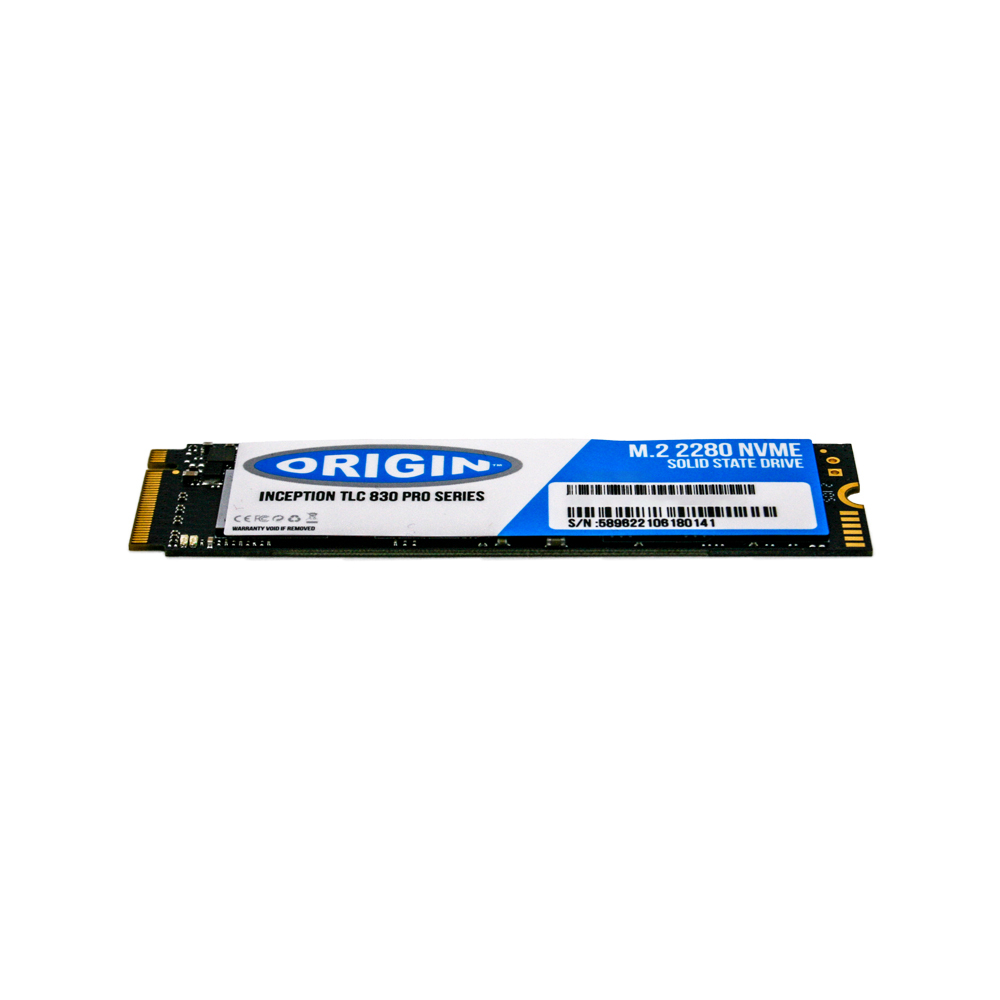

The Inception TLC830 Pro range of SSD Solutions are manufactured by Origin using the highest quality Tier 1 NAND and the latest generation of controllers which enables us to provide both high performance and strong reliability. All of our Inception SSDs come with 3 years advanced replacement warranty alongside free, in -house pre and post sales technical support. We can supply the TLC830 Pro in form factors of 2.5", 3.5" & M.2 with either SATA or NVME interfaces, whilst being available in a range of capacities designed to increase the performance & extend the lifecycle of any laptop or desktop.
Features
SSD form factor
M.2
SSD capacity
512 GB
Interface
PCI Express 3.0
Memory type
3D TLC
NVMe
Y
Component for
PC/notebook
Hardware encryption
N
Read speed
1600 MB/s
Write speed
1000 MB/s
Hot-swap
N
Windows operating systems supported
Y
Linux operating systems supported
Y
Data transfer rate
640 Gbit/s
Random read (4KB)
179000 IOPS
Random write (4KB)
102000 IOPS
Access time
0.2 ms
S.M.A.R.T. support
Yes
TRIM support
Yes
Mean time between failures (MTBF)
1000000 h
TBW rating
100
Compatible products
Universal
Seek time
0 ms
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 98%
Storage relative humidity (H-H)
5 - 98%
Operating vibration
16 G
Operating shock
1500 G
Maximum operating altitude
36576 m
Technical details
Sustainability certificates
RoHS
Compliance certificates
RoHS
Packaging data
Storage drive adapter included
N
Package type
Blister
Screws included
No
Logistics data
Harmonized System (HS) code
84717070
Power
Operating voltage
3.3 V
Power consumption (read)
2.84 W
Power consumption (write)
3.22 W
Power consumption (max)
3.22 W
Power consumption (average)
3.03 W
Power consumption (idle)
0.47 W
Other features
Warranty period
3 year(s)
Information
| Part Number: | NB-5123DM.2/NVME |
