Introduction

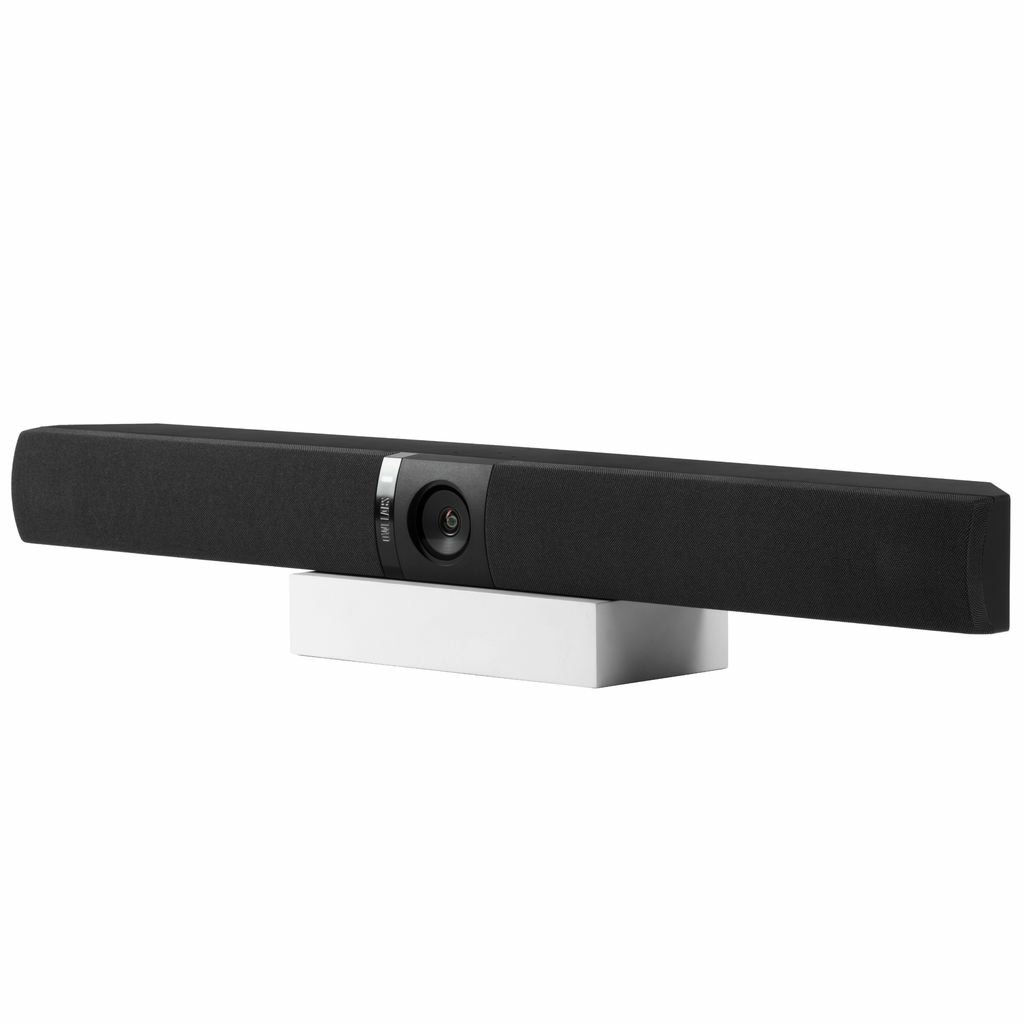

Our intelligent 114° 4K front-of-room camera, mic, and speaker device. Featuring a 4K, 30MP camera lens, 4 omnidirectional microphones, and an integrated speaker. Pairs with the Meeting Owl 3 or Pro (sold separately) to automatically focus on whoever is speaking and switch between cameras to always share the best perspective of the room for remote participants.
Front and center room coverage with intelligent camera-switching and automatic speaker focus to capture every angle
Clear video and audio with 4K 30MP camera, 4 omnidrectional mics, and high-fidelity speaker
Pairs seamlessly with other Owl Labs solutions, including the Meeting Owl, the Whiteboard Owl and the Expansion Mic, to foster active collaboration and increased participation
Performance
Number of cameras
1
Product colour
Charcoal
Product type
Video collaboration bar
Video
HD type
4K Ultra HD
Maximum video resolution
3840 x 2160 pixels
Supported video modes
360p, 1080p, 1440p, 2160p
Supported graphics resolutions
640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
Maximum frame rate
30 fps
Video formats supported
MJPG, NV12
Audio
Built-in speaker(s)
Yes
Number of speakers
1
Output level
79/1 dB
RMS rated power
5 W
Microphone pick-up range
2.5 m
Ports & interfaces
HDMI ports quantity
1
USB connector type
USB Type-C
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Security algorithms
WPA2, WPA3
Camera
Megapixel (approx.)
30 MP
Camera type
Single camera
Effective sensor resolution
48 MP
Sensor type
CMOS
Focal length range
500 - 5000 mm
Horizontal field of view
114°
Vertical field of view
73°
Microphone
Microphone sensitivity
69 dB
Microphone frequency
100 - 10000 Hz
Microphone direction type
Omnidirectional
Number of microphones
4
Logistics data
Country of origin
Vietnam
Harmonized System (HS) code
8525.5000.00
Computer system
Processor family
Qualcomm Snapdragon
Processor model
QCS8250
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Other operating systems supported
ChromeOS, Linux
Power
Power source type
DC
DC output voltage
19 V
Certificates
Certified for Microsoft Teams
Yes
Weight & dimensions
Width
97 mm
Depth
769 mm
Height
76 mm
Weight
1.88 kg
Package width
149 mm
Package depth
820 mm
Package height
162 mm
Package weight
5 kg
Packaging content
Cables included
AC, USB Type-C
Wall mounting kit
Yes
Warranty card
Yes
Quick start guide
Yes
Packaging content
Owl Bar
Table / Wall mount
6' USB Type C Cable
Power supply
AC line cord
QSG
Table card english
Table card french
Safety/regulatory/warranty slipsheet
Owl card holder
Room Solution card
Owl Labs sticker
