Product Details
Introduction

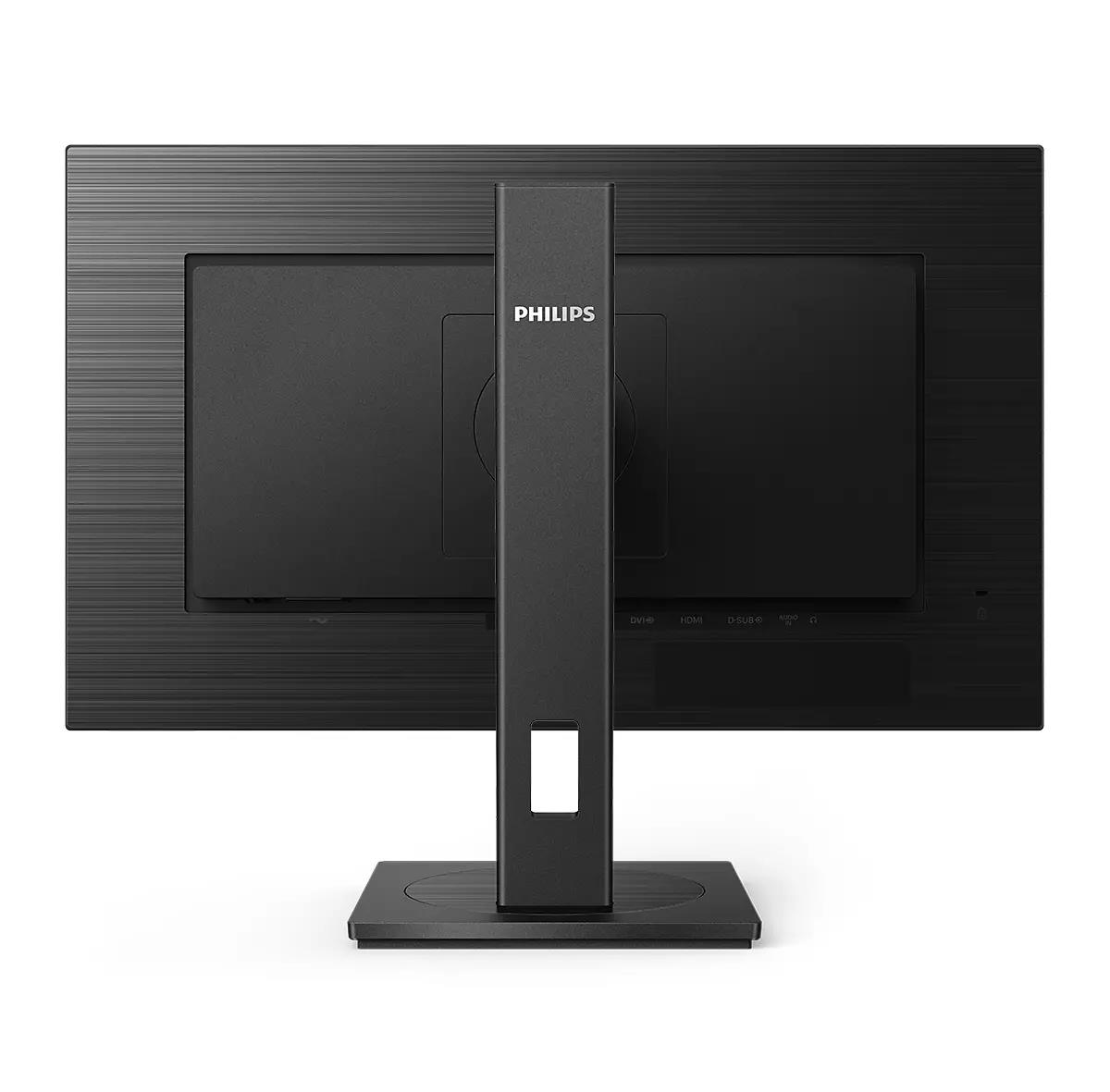

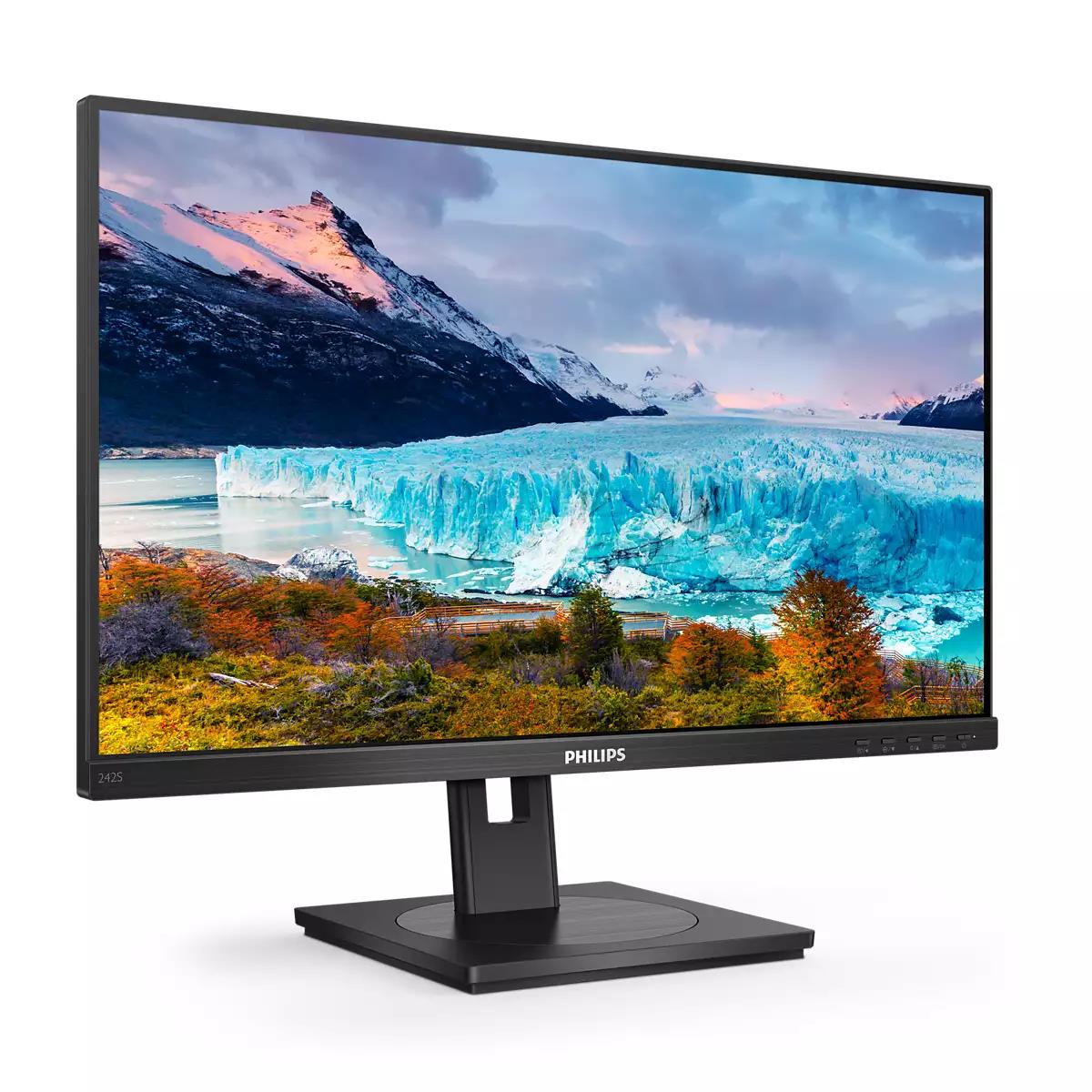

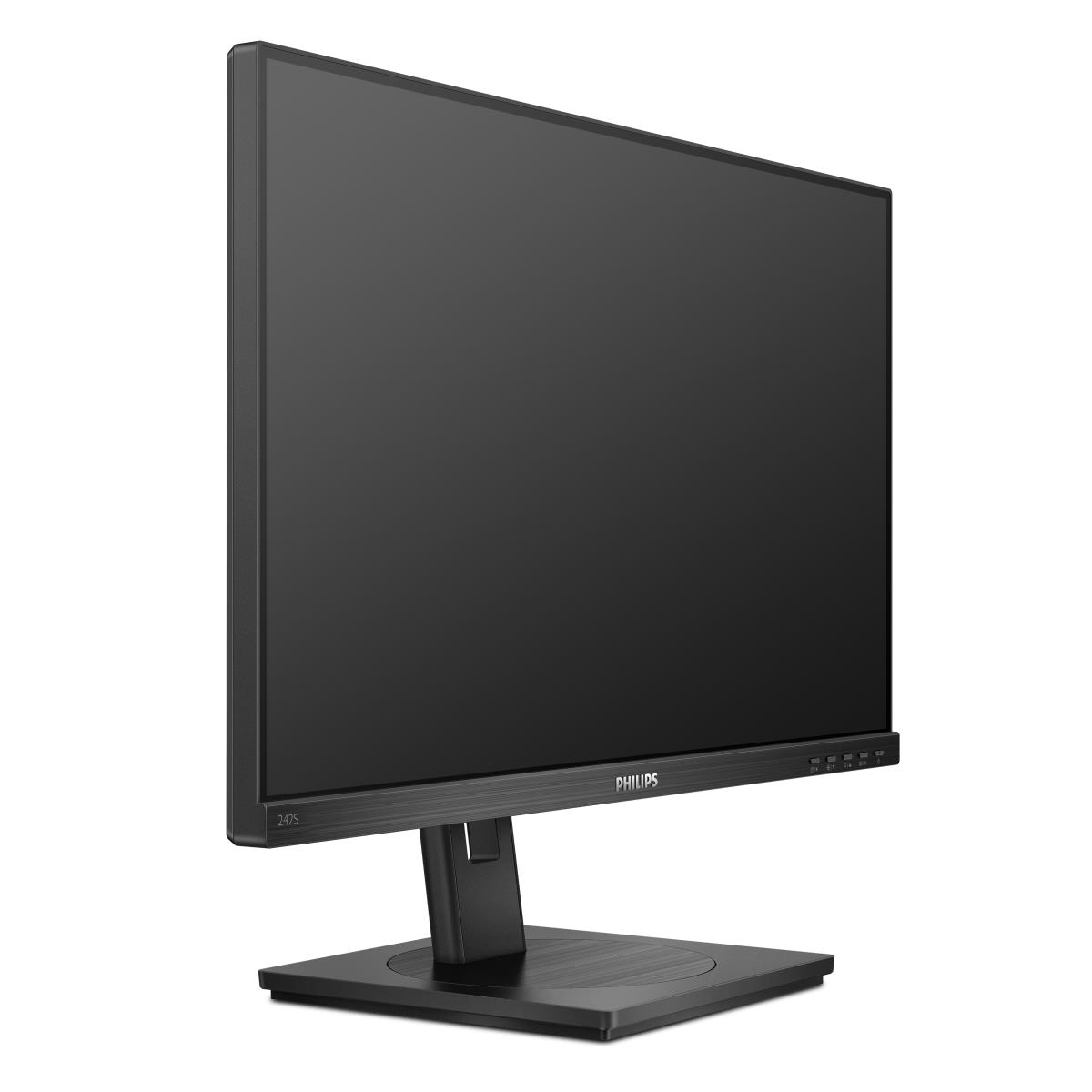

Philips S Line monitor gives essential features for daily productivity and work comfortably. Virtually frameless with crisp FHD for an extended and clear view. EasyRead and Eye comfort with TUV certified to reduce eye fatigue.
Display
Anti-glare screen
Yes
Dynamic contrast ratio marketing name
SmartContrast
Display diagonal (metric)
60.5 cm
Display sRGB
Yes
DDC/CI
Yes
Haze rate
25%
Surface hardness
3H
LED backlight
Yes
Display panel size
23.8 inch / 60.5 cm
Touchscreen
No
Display diagonal
60.5 cm (23.8")
Display brightness (typical)
250 cd/m²
Display resolution
1920 x 1080 pixels
Native aspect ratio
16:9
Response time
4 ms
HD type
Full HD
Display technology
LED
Backlight type
W-LED
Screen shape
Flat
Supported graphics resolutions
1920 x 1080 (HD 1080)
Aspect ratio
16:9
Contrast ratio (typical)
1000:1
Contrast ratio (dynamic)
50000000:1
Maximum refresh rate
75 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.78 million colours
Panel type
IPS
Pixel pitch
0.2745 x 0.2745 mm
Pixel density
93 ppi
Horizontal scan range
30 - 85 kHz
Vertical scan range
48 - 75 Hz
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
Digital horizontal frequency
30 - 85 kHz
Digital vertical frequency
48 - 75 Hz
Sync-on-green (SOG)
Y
RGB colour space
sRGB
Colour gamut
91%
sRGB coverage (typical)
107%
NTSC coverage (typical)
91%
Ports & interfaces
HDCP version
1.4
Built-in USB hub
N
VGA (D-Sub) ports quantity
1
DVI port
Y
DVI-D ports quantity
1
HDMI
Y
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.2
Audio input
N
Headphone out
Y
Headphone outputs
1
Headphone connectivity
3.5 mm
PC Audio in
Y
HDCP
Y
AC (power) in
Y
Power
Power supply type
Internal
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
16 kWh
Power consumption (typical)
13.6 W
Power consumption (standby)
0.3 W
Power consumption (off)
0.3 W
Power consumption (PowerSave)
10.4 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Sustainability
Doesn't contain
PVC/BFR, Mercury
European Product Registry for Energy Labelling (EPREL) code
405224
Sustainability certificates
RoHS, ENERGY STAR
Other features
Exterior finish type
Textured
Picture enhancement
SmartImage
Regulatory Approvals
CB; FCC Class B; ICES-003; CE Mark; TUV/GS; TUV Ergo; CU-EAC; UKRAINIAN; CCC; CEL; CECP; TUV Eye Comfort certified
LowBlue mode
Yes
Compatible operating systems
Mac OS X; Windows 10 / 8.1 / 8 / 7
Monitor sync input signal
Separate Sync; Sync on Green
User controls
SmartImage; Input; Brightness; Menu; Power On/Off
Signal input
VGA (Analog ); DVI-D (digital, HDCP); DisplayPort 1.2; HDMI 1.4
Package weight
7910 kg
Manual
Y
Recyclable packaging material
100%
EasyRead mode
Y
Energy efficiency class (old)
E
Mean time between failures (MTBF)
70000 h
Technical details
Compliance certificates
RoHS
Performance
VESA Adaptive Sync support
Y
Component video sync
Separate sync,Sync-on-green (SOG)
Flicker-free technology
Y
Low Blue Light technology
Y
Multimedia
Built-in speaker(s)
Y
Number of speakers
2
RMS rated power
2 W
Built-in camera
N
Design
Market positioning
Business
Product colour
Black
Front bezel colour
Black
Detachable stand
Y
Feet colour
Black
Heavy metals free
Hg (mercury)
Certification
CB, EPA, FCC Class B, ICES-003, CE Mark, TUV/GS, TUV Ergo, SEMKO, CU-EAC, UKRAINIAN, CCC, CEL, CECP, TUV Eye Comfort certified
Logistics data
Harmonized System (HS) code
85285210
Ergonomics
Panel mounting interface
100 x 100 mm
Cable lock slot
Y
Cable lock slot type
Kensington
VESA mounting
Y
Height adjustment
Y
Height adjustment
13 cm
Pivot
Y
Pivot angle
90 - 90°
Swivelling
Y
Swivel angle range
-180 - 180°
Tiltable
Y
Tilt angle range
-5 - 25°
On Screen Display (OSD)
Y
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Number of OSD languages
21
Plug and Play
Y
LED indicators
Operation, Stand-by
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 80%
Operating altitude
0 - 3658 m
Non-operating altitude
0 - 12192 m
Weight & dimensions
Width (with stand)
540 mm
Depth (with stand)
205 mm
Height (with stand)
482 mm
Weight (with stand)
4.83 kg
Width (without stand)
54 cm
Depth (without stand)
5.1 cm
Height (without stand)
32.3 cm
Weight (without stand)
2.98 kg
Packaging data
Stand included
Y
Cables included
AC, Audio (3.5mm), DisplayPort, HDMI, VGA
Package width
625 mm
Package depth
180 mm
Package height
435 mm
Package weight
7.91 kg
Package type
Box
Bundled software
SmartControl
Recycling data
Post-consumer recycled plastic
85%
Information
| Part Number: | 242S1AE/00 |
