Product Details
Introduction
With the Smart KVM switch, it is ideal for switching between sources without compromising on picture quality. Features like USB-C and pop-up webcam with Windows Hello deliver the performance and convenience you expect.
Display
Display diagonal
86.4 cm (34")
Display resolution
3440 x 1440 pixels
HD type
Wide Quad HD
Native aspect ratio
21:9
Display technology
LCD
Panel type
VA
LED backlight
Yes
Backlight type
W-LED
Touchscreen
No
Display brightness (typical)
300 cd/m²
Response time
4 ms
Anti-glare screen
Yes
Screen shape
Curved
Screen curvature rating
1500R
Supported graphics resolutions
3440 x 1440
Contrast ratio (typical)
3500:1
Contrast ratio (dynamic)
50000000:1
Dynamic contrast ratio marketing name
SmartContrast
Maximum refresh rate
120 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.23175 x 0.23175 mm
Pixel density
110 ppi
Viewable size, horizontal
79.7 cm
Viewable size, vertical
33.4 cm
Digital horizontal frequency
30 - 190 kHz
Digital vertical frequency
48 - 120 Hz
Display diagonal (metric)
86.36 cm
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10)
DDC/CI
Yes
Haze rate
25%
Surface hardness
3H
Colour depth
10 bit
sRGB coverage (typical)
120%
NTSC coverage (typical)
104%
Display sRGB
Yes
Vertical scan range
48 - 100 Hz
Colour gamut standard
sRGB, NTSC
Display panel size
34 inch / 86.36 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
VESA Adaptive Sync support
Yes
Flicker-free technology
Yes
Windows operating systems supported
Windows 10, Windows 11
Mac operating systems supported
Yes
Multimedia
Number of speakers
2
RMS rated power
10 W
Built-in speaker(s)
Yes
Built-in camera
No
Megapixel (approx.)
5 MP
Built-in microphone
Yes
Design
Market positioning
Office
Product colour
Black
Feet colour
Black
Front bezel colour
Black

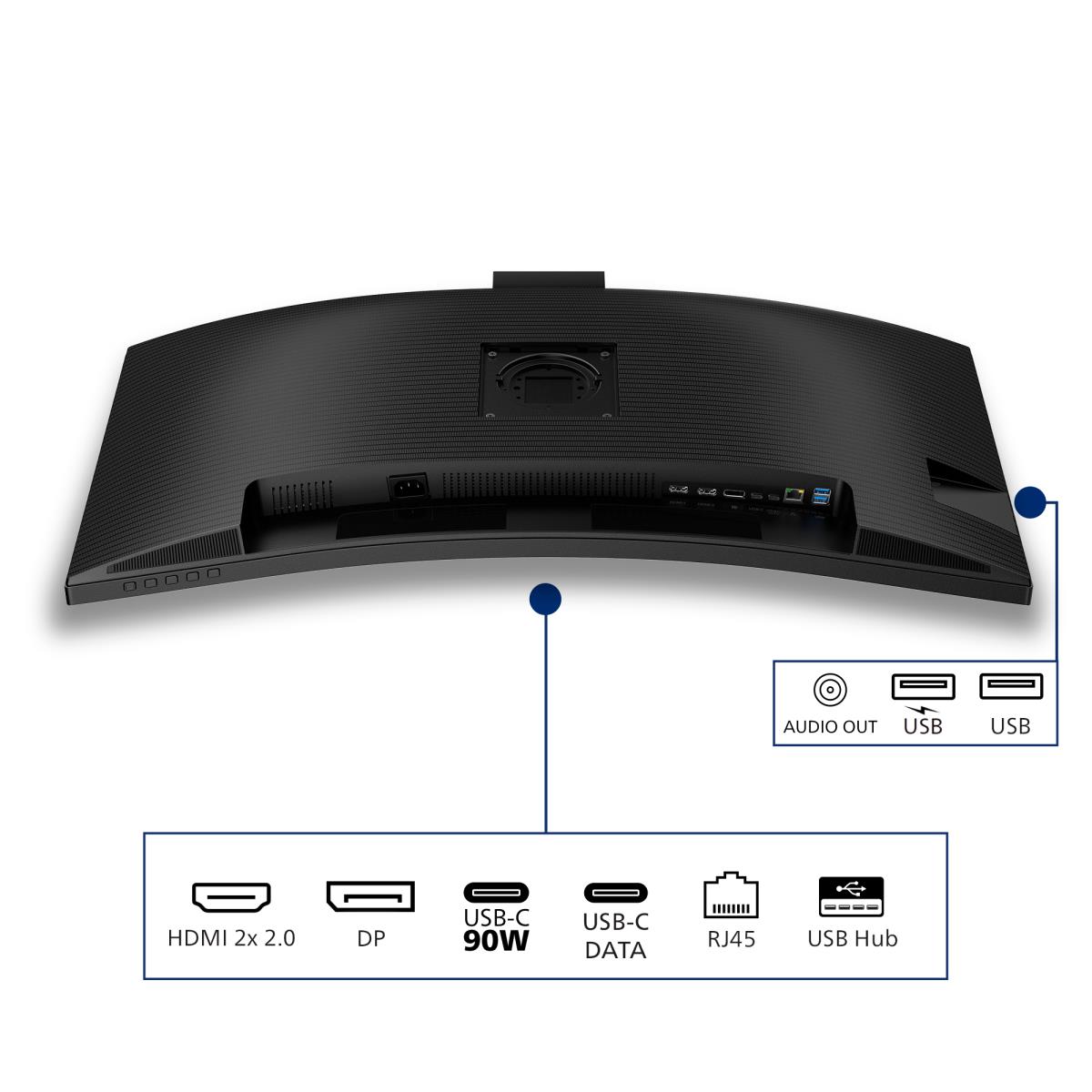

Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-C
Number of USB Type-B upstream ports quantity
1
Number of USB Type-C upstream ports quantity
1
USB Type-A downstream ports quantity
4
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
90 W
HDMI
Yes
HDMI ports quantity
1
HDMI version
2.0
DisplayPorts quantity
1
DisplayPort version
1.4
Audio output
Yes
Built-in KVM switch
Yes
HDCP
Yes
HDCP version
1.4/2.2
Network
Ethernet LAN
Yes
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable lock slot
Yes
Cable lock slot type
Kensington

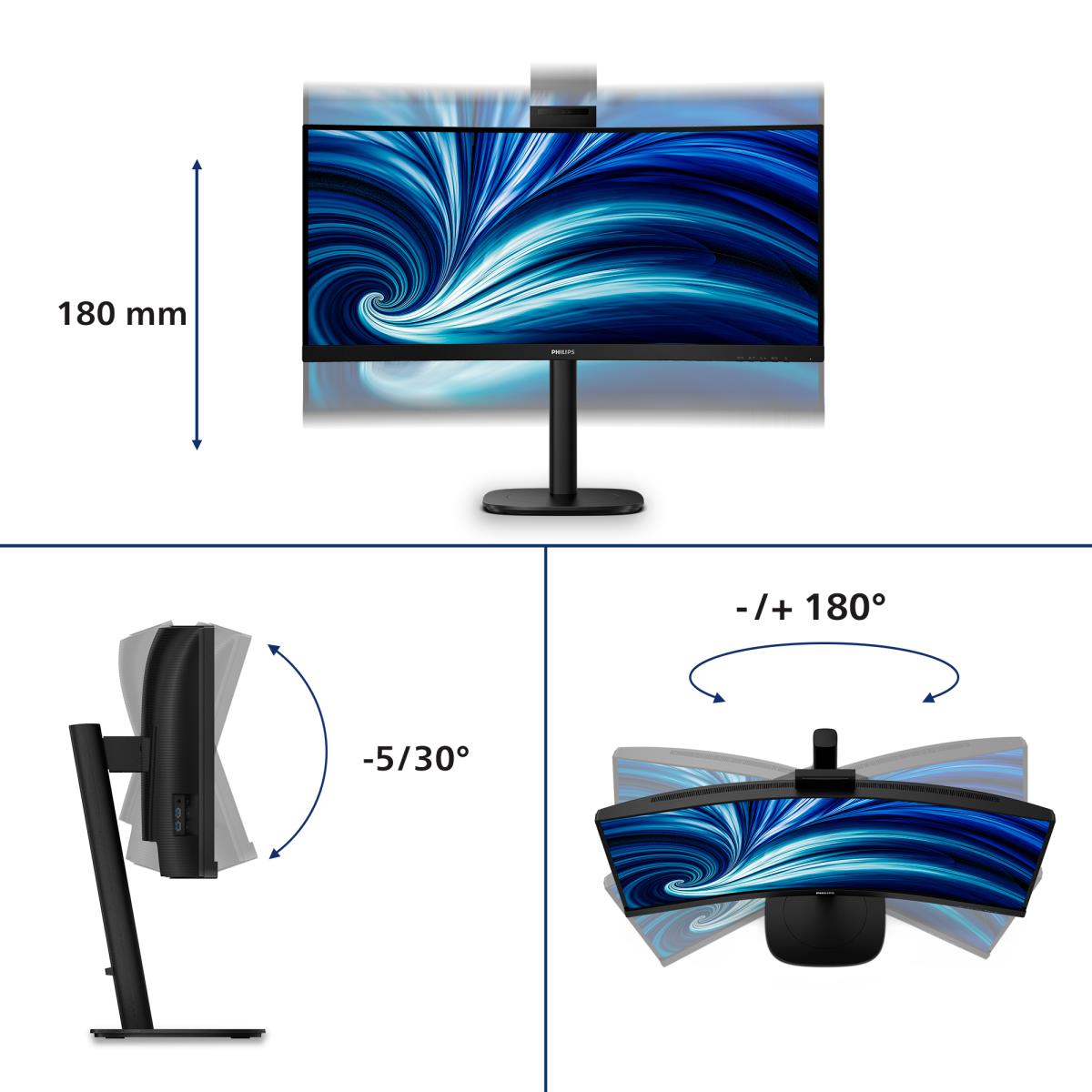

Height adjustment
Yes
Adjustable height (max)
18 cm
Swivelling
Yes
Swivel angle range
-180 - 180°
Tilt adjustment
Yes
Tilt angle range
-5 - 30°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
LED indicators
Yes
Picture-in-Picture
Yes
Power
Energy efficiency class (SDR)
D
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
20 kWh
Energy consumption (HDR) per 1000 hours
45 kWh
Power consumption (typical)
28.26 W
Power consumption (standby)
0.3 W
Power consumption (off)
0.3 W
Power consumption (PowerSave)
21.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Operating altitude
0 - 3658 m
Non-operating altitude
3658 - 12192 m
Weight & dimensions
Width (with stand)
807 mm
Depth (with stand)
287 mm
Height (with stand)
602 mm
Weight (with stand)
10.4 kg
Width (without stand)
807 mm
Depth (without stand)
107 mm
Height (without stand)
369 mm
Weight (without stand)
7.82 kg
Packaging data
Package width
930 mm
Package depth
188 mm
Package height
525 mm
Package weight
15.3 kg
Packaging content
Stand included
Yes
Cables included
DisplayPort, HDMI, Power, USB Type-A to USB Type-C, USB Type-C to USB Type-C
Manual
Yes
Bundled software
SmartControl
Sustainability
Sustainability certificates
ENERGY STAR
Doesn't contain
Mercury, PVC/BFR
Other features
HBR3 support
Yes
On/off switch
Yes
USB Power Delivery revision
3.0
Monitor sync input signal
Separate Sync, Sync on Green
Recyclable packaging material
100%
MultiView
2 x devices, PIP/PBP mode
Regulatory Approvals
CB CE Mark EPA TUV/GS TUV Ergo TCO Certified TCO Certified Edge EAC EAC ROHS MEPS CEL CCC CECP UKCA EMF FCC ICES-003 eyesafe® CERTIFIED 2.0 TÜV Rheinland Low Blue Light (Hardware Solution
SmartImage
Y
SoftBlue
Yes
EasyRead mode
Yes
Compliance certificates
RoHS
Ethernet LAN (RJ-45) ports
1
Compatible operating systems
Mac OS; Windows 11 / 10
Picture-by-Picture (PbP)
Yes
Exterior finish type
Textured
User controls
SmartImage; Input; Brightness; Menu; Power On/Off
Picture enhancement
SmartImage
Recycling data
Product post-consumer recycled plastic
85%
Information
| Part Number: | 34B2U3600CH/00 |
