Product Details
Display
Panel type
VA
Touchscreen
No
Dynamic contrast ratio marketing name
Mega Contrast
Horizontal scan range
30 - 81 kHz
Vertical scan range
48 - 75 Hz
Pixel frequency (max)
594 MHz
Colour gamut
72%
LED backlight
Y
LED backlighting type
Edge-LED
Display diagonal
109.2 cm (43")
Display technology
LED
Display resolution
3840 x 2160 pixels
Display brightness
700 cd/m²
HD type
4K Ultra HD
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
4000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.245 x 0.245 mm
Active display area (W x H)
941.184 x 529.416 mm
Display diagonal (metric)
108 cm
Frame width
11.5 mm
Haze rate
25%

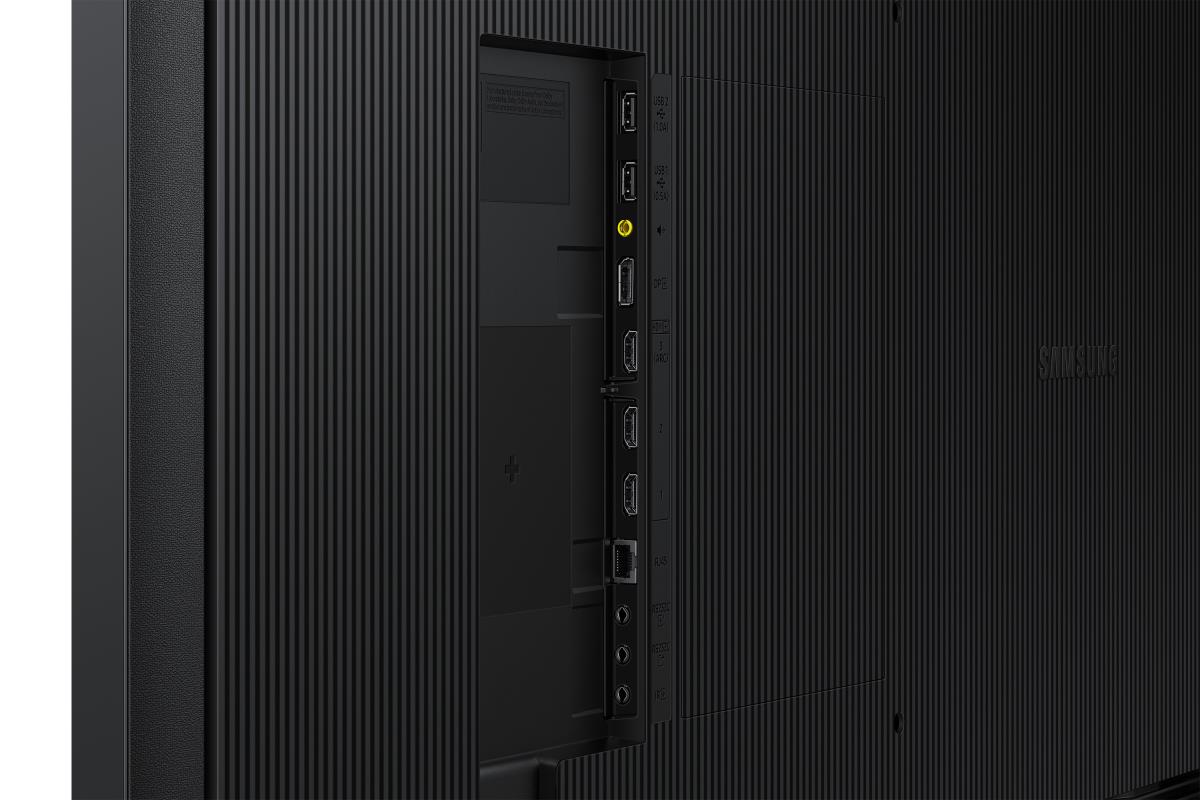

Ports & interfaces
HDMI input ports quantity
3
DVI port
No
DisplayPorts in
1
DisplayPort version
1.2
Ethernet LAN
Yes
RS-232 interface
Yes
Infrared data port
Yes
Remote (IR) input
1
HDMI ports quantity
3
HDMI version
2.2
DisplayPorts quantity
1
USB port
Y
USB ports quantity
2
USB version
2.0
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Y
RS-232C
Y
Design
Placement supported
Indoor
Panel mounting interface
200 x 200 mm
Bezel width (bottom)
1.15 cm
Bezel width (side)
1.15 cm
Bezel width (top)
1.15 cm
Bezel colour
Charcoal Black
Mounting type
Wall
Product design
Digital signage flat panel
Product colour
Black
Screen shape
Flat
VESA mounting
Y
Performance
Purpose
Universal
HDCP
Yes
HDCP version
2.2
Operating hours (hours/days)
24/7
Power
Power consumption (sleep)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
84 W
Power consumption (standby)
0.5 W
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
84 kWh
Energy efficiency scale
A to G
Audio
Built-in speaker(s)
Y
RMS rated power
10 W
Computer system
Computer system
Y
Computer system type
System on Chip (SoC)
Built-in processor
Y
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor model
A73
Processor cores
4
Internal memory
16 GB
Operating system installed
Tizen
Operating system version
Tizen 7.0
Operating system version
7.0
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Certificates
Certification
Class B
60950-1, 62368-1
Weight & dimensions
Display width
969.5 mm
Display depth
28.5 mm
Display height
557.8 mm
Display weight
9.3 kg
Technical details
Audio out (mini jack)
1
Other features
Bluetooth
Yes
Flash memory
16000 MB
RS-232 input ports
1
RS-232 output ports
1
RJ-45 input ports
1
Optional features
WMN-B50SC
STN-L4355C
Packaging data
Package width
1093 mm
Package depth
126 mm
Package height
667 mm
Package weight
11.8 kg
Information
| Part Number: | LH43QHCEBGCXEN |
