Introduction
Upgrade your business with efficient digital displays
Samsung’s QET series features intelligent upscaling technology that displays all content in eye-catching UHD resolution along with a boundless design and simple content management features.
Incredible UHD picture quality
Samsung’s QET series is able to capture customer attention by providing an incredibly clear picture, showcasing lifelike images in advanced picture quality than ever before.
Crystal Display
Samsung’s QET series features a Crystal Display which optimizes color tones without distortion, ensuring each backlight unit is fine-tuned to match each color filter and create a clear native white.
Crystal Processor 4K
Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.
Boundless design for an immersive experience
The boundless design of the display is optimized to allow the viewer to be completely immersed by content and the display seamlessly integrates into any business environment.
Integrated content management solution
With a range of on-demand images and videos, MagicINFO Lite Player makes content management easier than ever before. New content can be added from a personal computer or USB drive by connecting directly to the display.
Display
Panel type
VA
Touchscreen
No
Dynamic contrast ratio marketing name
Mega Contrast
Pixel frequency (max)
594 MHz
Colour gamut
72%
Display diagonal
2.16 m (85")
Display technology
LED
Display resolution
3840 x 2160 pixels
Display brightness
300 cd/m²
HD type
4K Ultra HD
Response time
8 ms
Contrast ratio (typical)
4000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.4875 x 0.4875 mm
Active display area (W x H)
1872 x 1053 mm
Colour saturation
72%
Horizontal scan range
30 - 81 kHz
Vertical scan range
48 - 75 Hz
Haze rate
2%

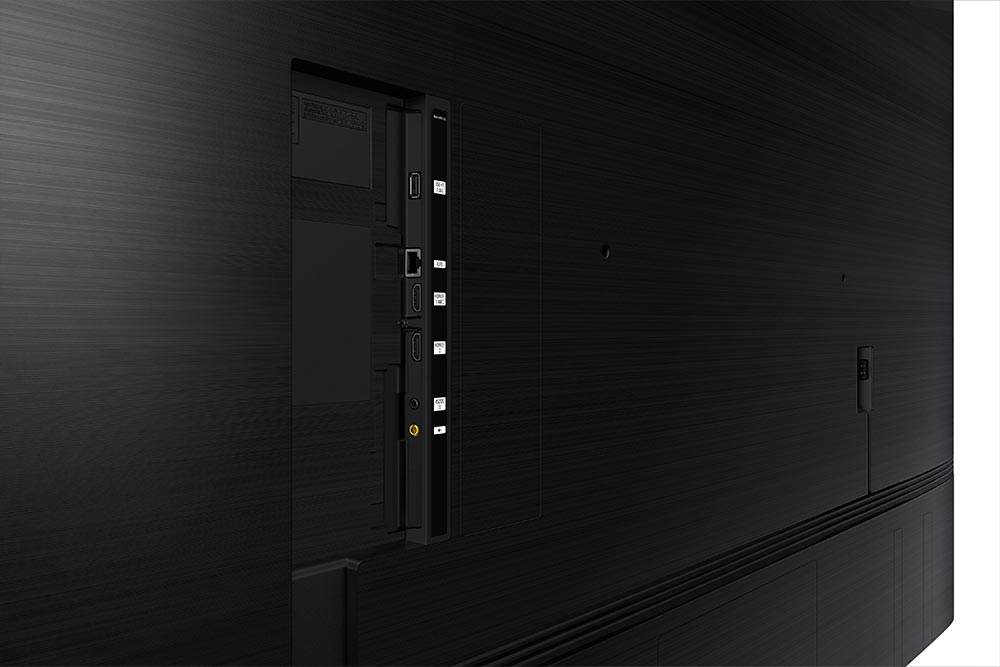

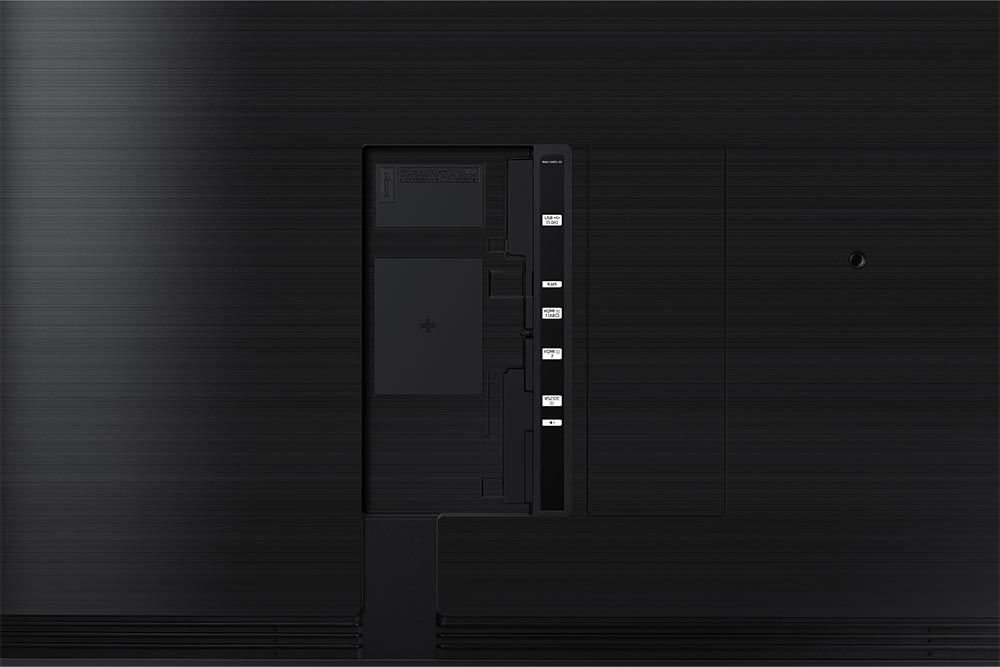

Ports & interfaces
HDMI input ports quantity
2
DVI port
No
HDMI ports quantity
2
HDMI version
2.0
USB port
Y
USB ports quantity
1
USB version
2.0
Ethernet LAN
Y
Ethernet LAN (RJ-45) ports
1
Audio (L/R) out
1
RS-232 interface
Y
Design
Screen shape
Flat
Bezel type
3 Bezel-less
Bezel colour
Black
Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal
Product colour
Black

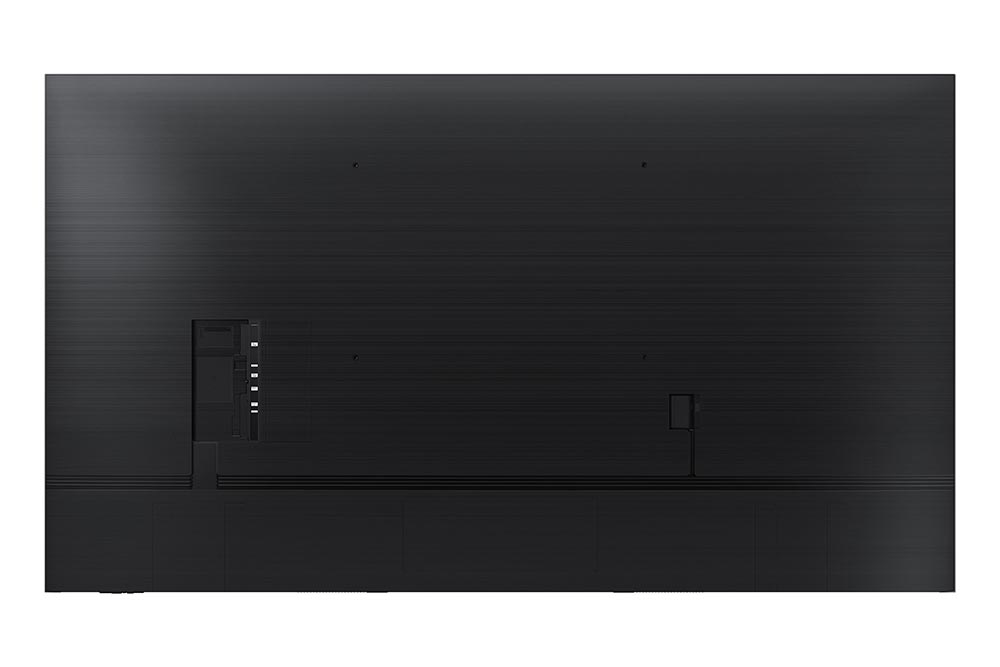

VESA mounting
Y
Panel mounting interface
600 x 400 mm
Audio
Built-in speaker(s)
Y
Number of built-in speakers
1
RMS rated power
10 W
Speaker impedance
2 O
Power
Energy efficiency scale
A+++ to D
Power consumption (typical)
208 W
Power consumption (sleep)
0.5 W
AC input voltage
100 - 200 V
AC input frequency
50/60 Hz
Performance
Purpose
Universal
Operating hours (hours/days)
16/7
HDCP
Y
HDCP version
2.2
Computer system
Computer system
Yes
Computer system type
System on Chip (SoC)
Built-in processor
Y
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor model
Cortex-A72
Processor frequency
1.7 GHz
Internal memory
2 GB
Operating system installed
Tizen 4.0
Video formats supported
AVS+, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Audio formats supported
AC3
Image formats supported
JPEG, PNG
Weight & dimensions
Display width
1900.9 mm
Display depth
26.9 mm
Display height
1086.2 mm
Display weight
41.5 kg
Width
1900.9 mm
Depth
1086.2 mm
Height
26.9 mm
Weight
41.5 kg
Packaging data
Package width
2075 mm
Package depth
220 mm
Package height
1237 mm
Package weight
54.3 kg
Packaging content
Remote control included
Y
Technical details
Other features
Flash memory
8000 MB
RS-232 input ports
1
RJ-45 input ports
1
Optional features
WMN8200SG
Quick start guide
Y
Annual energy consumption
304 kWh
Energy efficiency class (old)
A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Certificates
Certification
Safety 60950-1,
Features
Heat dissipation (max)
930.9 BTU/h
