Product Details
Introduction
The SIL MICRO 240 is a single 2km radio capable of 240Mbps throughput.
It can be used in a Point to Point or Point to MultiPoint system.
Nominated in 2012 for 'Security Product of the Year'. The SIL MICRO 240 has a high MTBF and robust design. It has all the features of the SIL MICRO and is available in standard white with other colours available on special order.
Data transmission
Maximum data transfer rate
240 Mbit/s
Maximum transfer distance
2000 m
Supported data transfer rates
240Mbps
Antenna
Antenna design
Internal
Antenna gain level (max)
14 dBi
Pan/tilt-axis range
180°
Antennas quantity
1
Wireless LAN features
Wi-Fi
Yes
Wi-Fi band
Single-band (5 GHz)
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)
300 Mbit/s
Frequency band
5.1 - 5.8 GHz
Transmission gain
0 - 14 dB
Signal strength
-40 dBm
Channels quantity
25 channels
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Receiver sensitivity
-82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
Output power (dBm)
26
Indoor range
2000m
Outdoor range
2000m
Network
Ethernet LAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x
Cabling technology
10/100/1000Base-T(X)
Full duplex
Yes
Auto MDI/MDI-X
Yes
Static IP
Yes
Dynamic IP
Yes
Ports & interfaces
Connectivity technology
Wired & Wireless
Ethernet LAN (RJ-45) ports
1
Security
Security algorithms
256-bit AES, 802.1x RADIUS, SNMPv2, SSH
MAC address filtering
Yes
Authentication method
WPA2 AES
Management features
Management protocols
SNMP V2
Web-based management
Yes
DHCP client
Yes
Features
Product type
Network bridge
Product colour
White
Remote control function
Yes
LED indicators
LAN, Signal strength
Automatic Transmit Power Control (ATPC)
Yes
Wall mountable
Yes
Reset button
Yes
International Protection (IP) code
IP67
Surge protection
Yes
Quality of Service (QoS) support
Yes
Network Time Protocol (NTP) client
Yes
Mean time between failures (MTBF)
60000 h
System requirements
Minimum system requirements
Internet Explorer, Google Chrome, Mozilla Firefox
Compatible operating systems
Microsoft Windows, Mac OS, Linux Distributions
Power
Power source type
DC, PoE
AC input voltage
100-240 V
Power supply
15.4 W
DC input voltage
24-48/48-56 V
Power consumption (typical)
6 W
Power consumption (max)
16 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) voltage
48 V
Power plug type
Type G
Operational conditions
Operating temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
-4 - 158 °F
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-40 - 90 °C
Storage relative humidity (H-H)
0 - 95%
Certificates
Certification
CE, FCC
Weight & dimensions
Antenna diameter
20.5 cm
Width
179 mm
Depth
120 mm
Height
45 mm
Weight
500 g
Packaging content
Packaging content

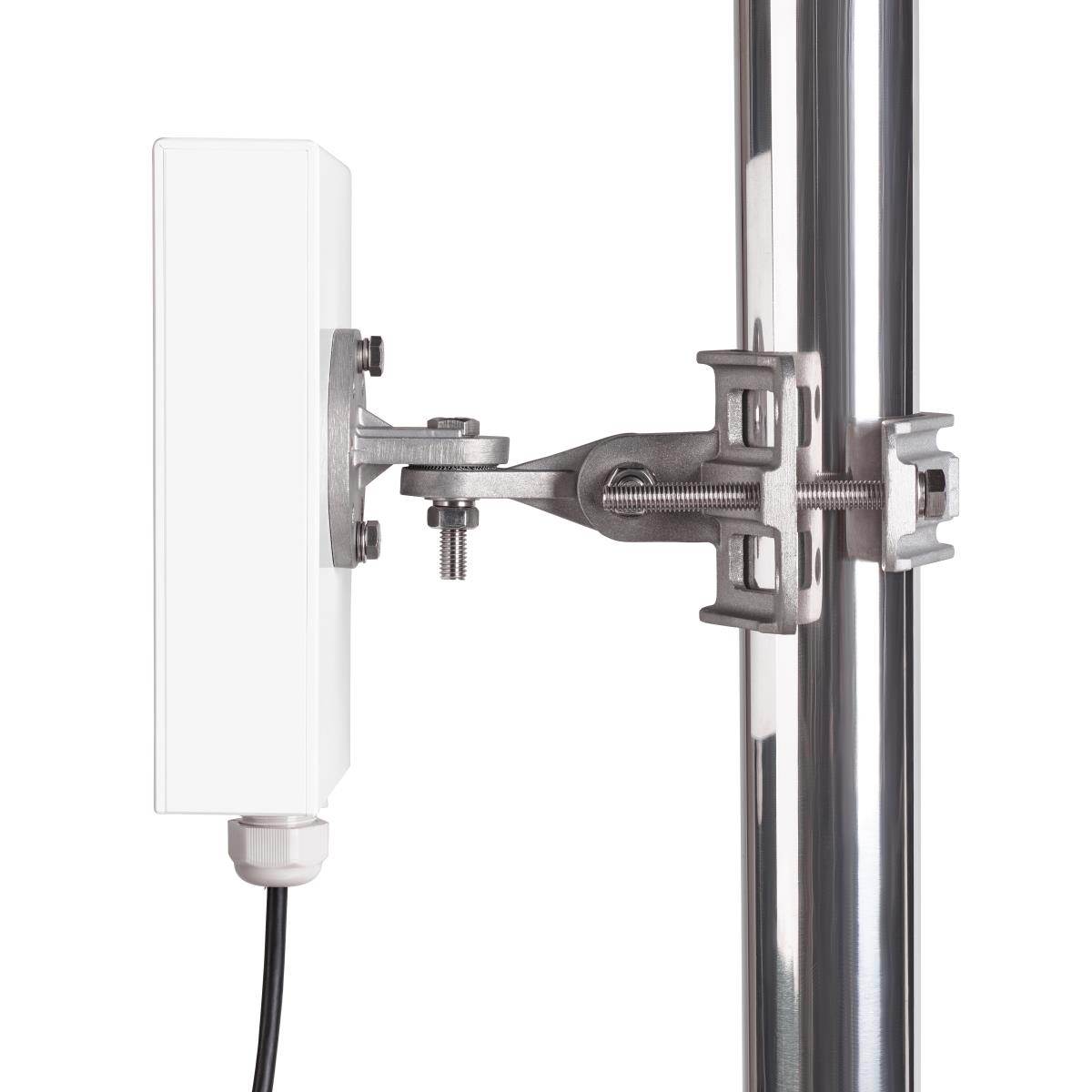

Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.
PoE+ Injector(s)
Yes
Mounting bracket(s) included
Yes
Power supply included
Yes
Antenna included
Yes
Quick installation guide
Yes
Packaging data
Package width
130 mm
Package depth
300 mm
Package height
100 mm
Package weight
1.42 kg
Package type
Box
Quantity per pack
1 pc(s)
Logistics data
UK Trade Tariff code
85176200
Country of origin
United Kingdom
Information
| Part Number: | SIL MICRO 240 |
