Product Details
Introduction

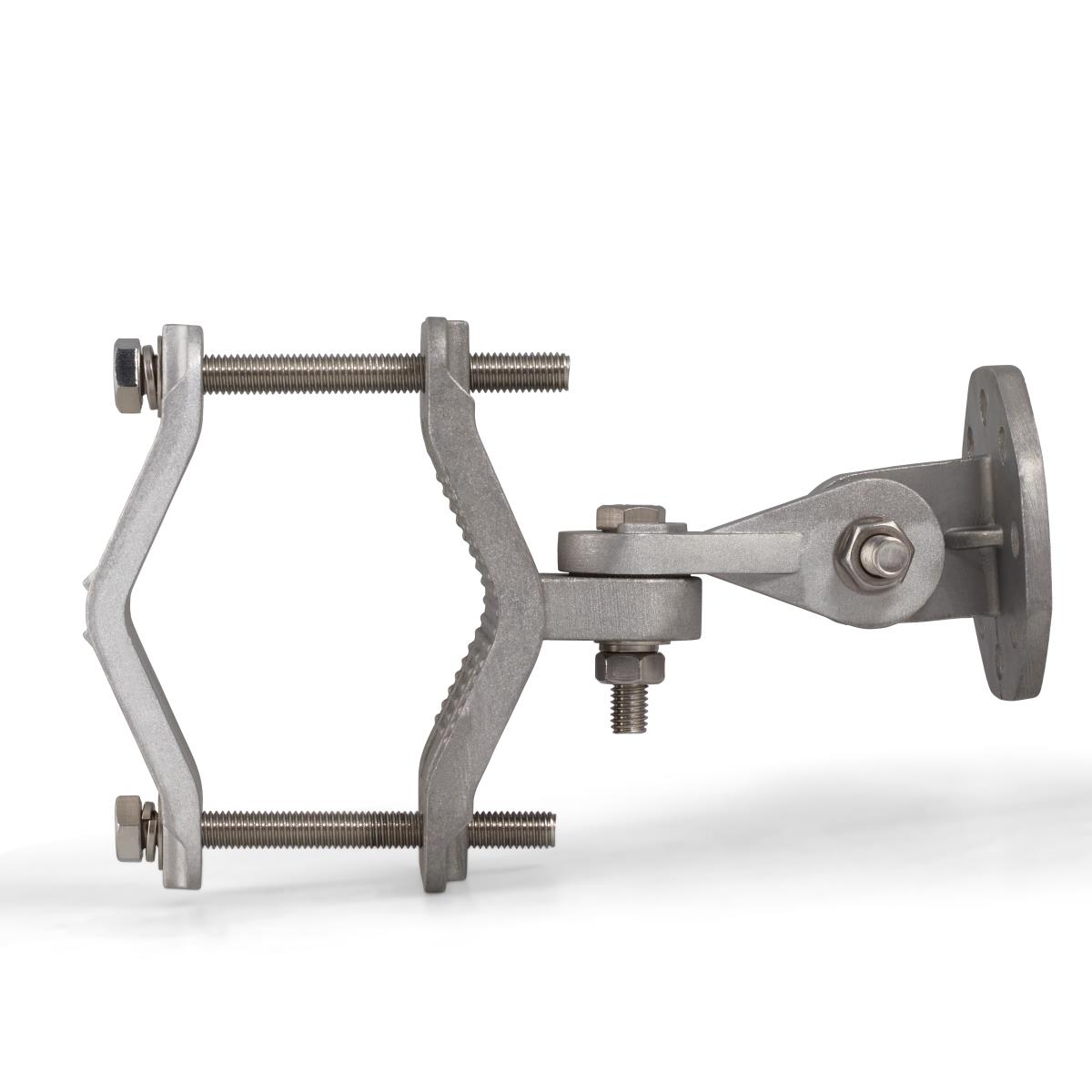

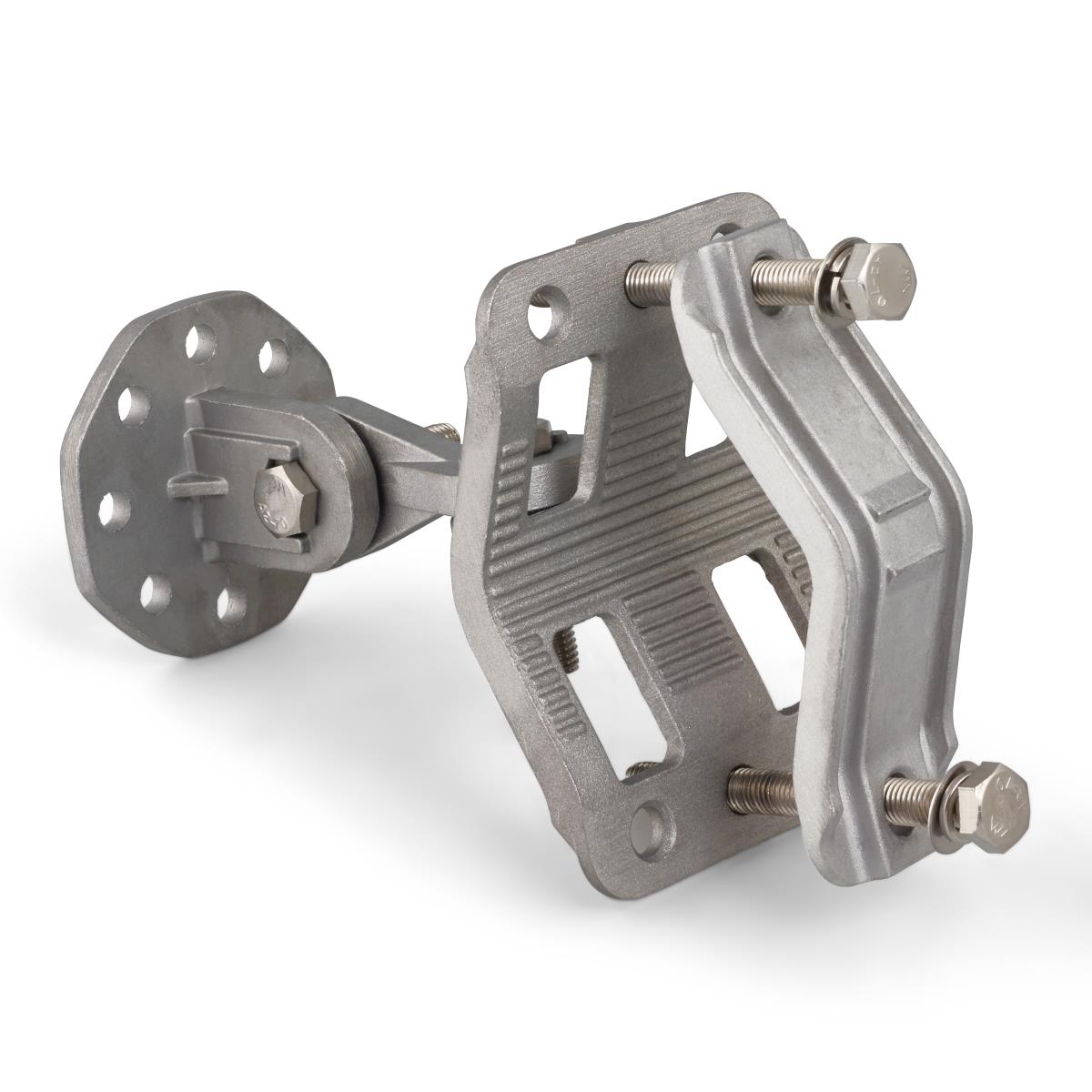

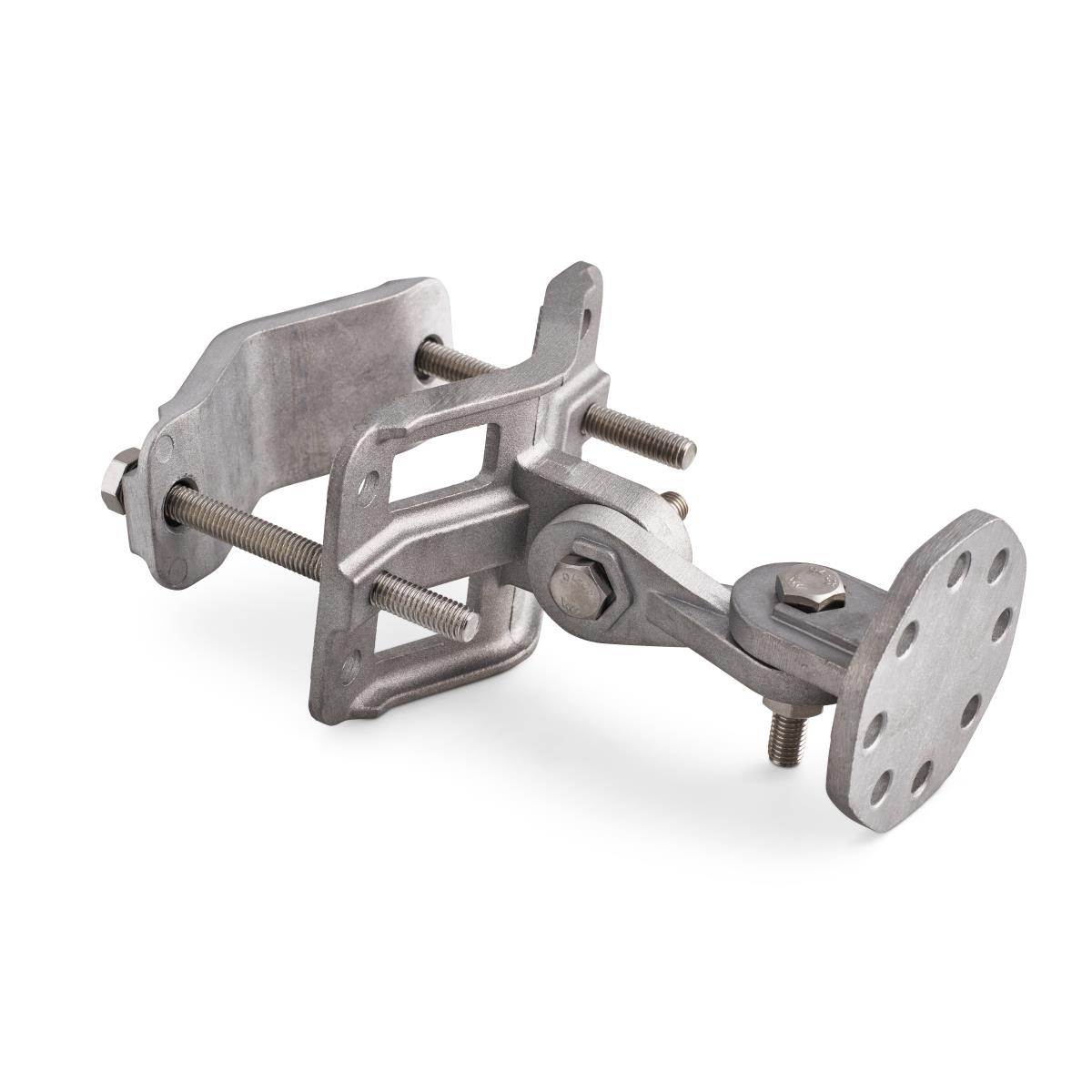

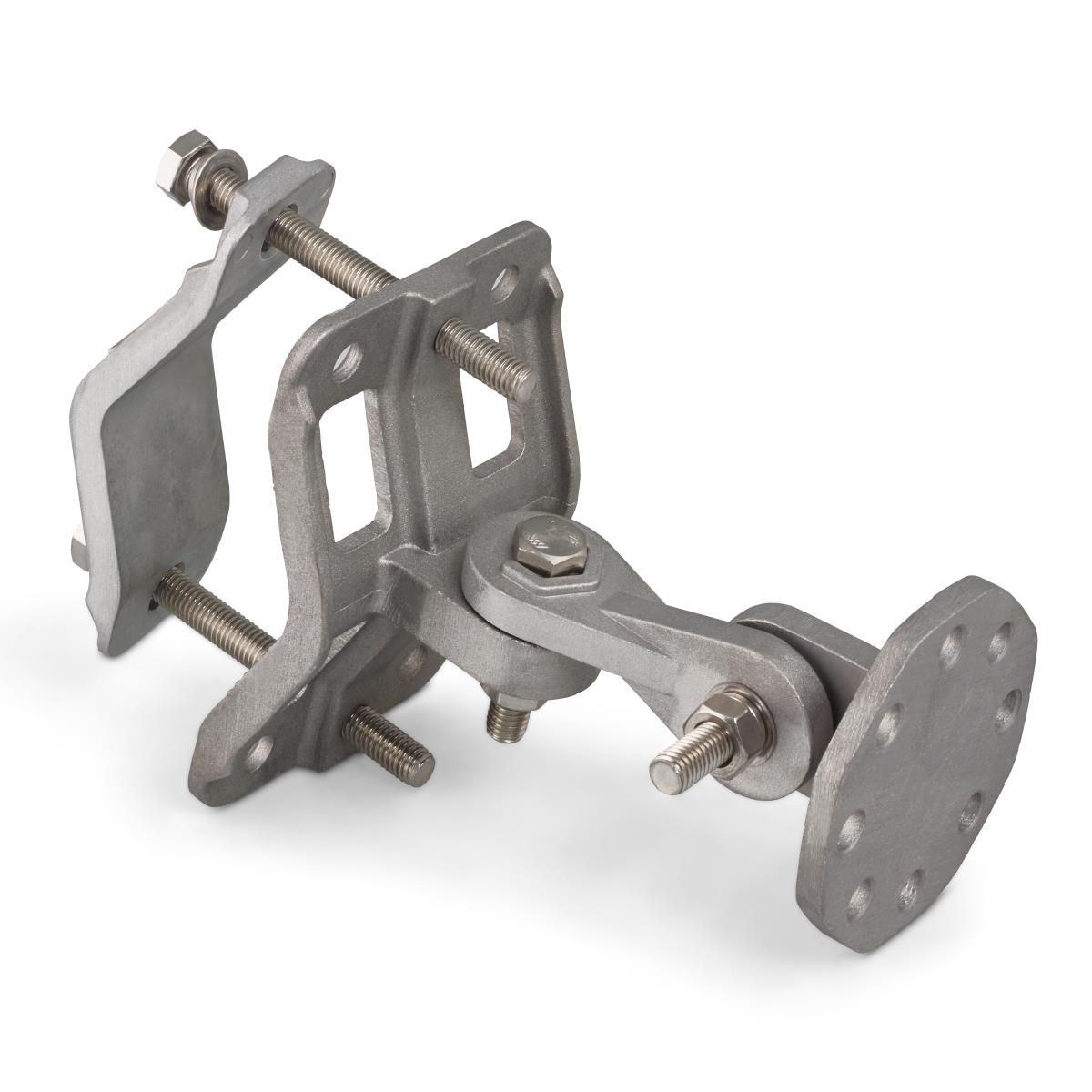

The SilverNet PRO Range Mounting Bracket (SIL MNT 3) is a 3 Axis, Tilt and Swivel Mounting Kit for all PRO Range radios. It can be fitted to either a wall, a 3” (75mm) pole or paired with banding strap to fit to larger columns.
The 3 Axis Tilt and Swivel mechanism enables precise alignment, while the notches engraved on the metal allows the bracket to hold firm when you reach the best signal.
The SIL MNT 3 has an additional 4 holes so it can be mounted to a 45 degree slanted pole or mount a radio on a 45 degree angle to improve RF noise isolation.
Technical details
Product colour
Grey
Material
Magnesium
Compatibility
SilverNet Pro Range
Ergonomics
Maximum pipe/tube diameter
7.5 cm
Swivel angle
180°
Tilt angle range
0 - 180°
Weight & dimensions
Weight
445 g
Width
110 mm
Height
75 mm
Packaging data
Screws included
Yes
Quantity per pack
1 pc(s)
Package width
125 mm
Package depth
115 mm
Package height
95 mm
Package weight
525 g
Logistics data
UK Trade Tariff code
76169990
Information
| Part Number: | SIL MNT3 |
