Product Details
Introduction

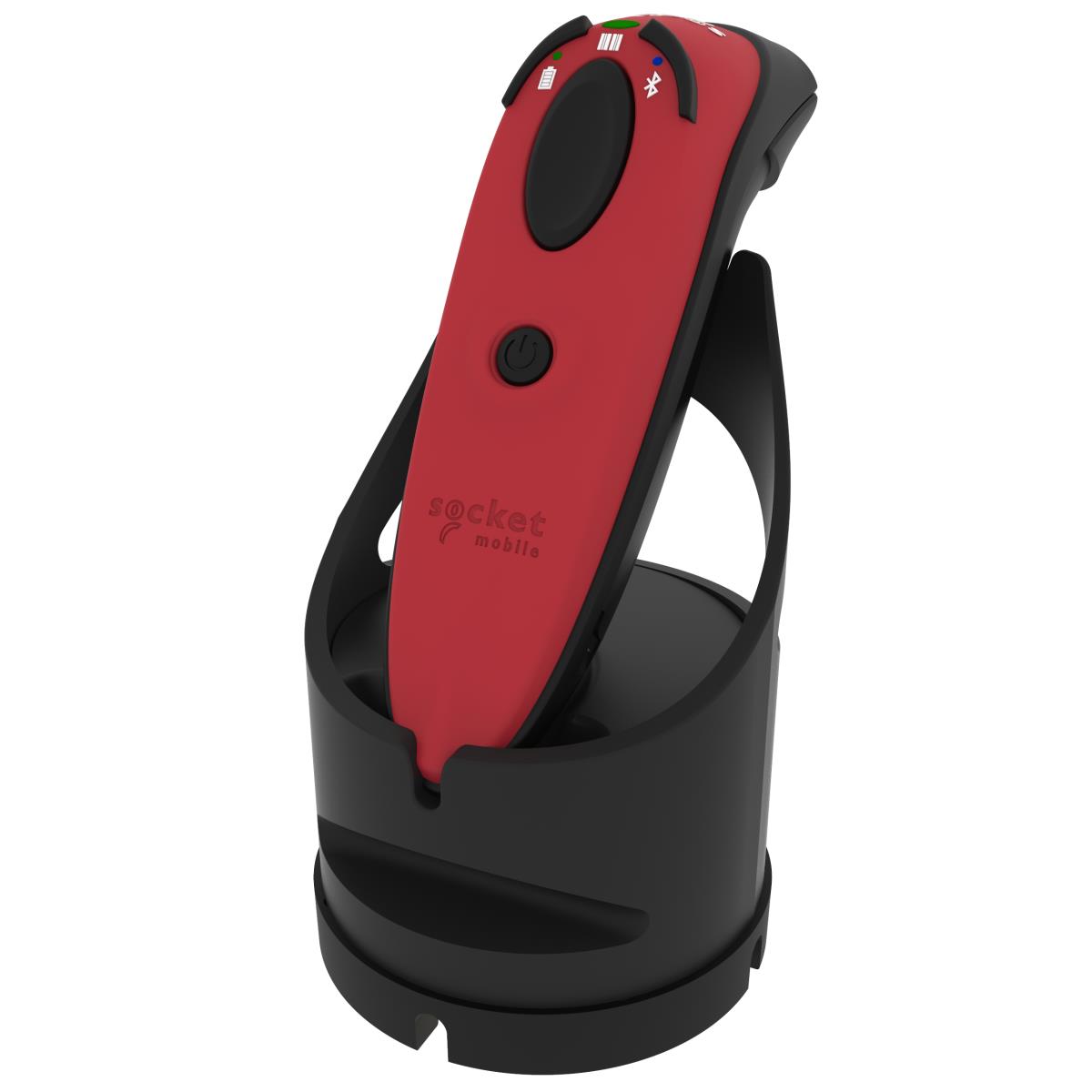

The D720 is a linear barcode & QR Code 1D/2D barcode scanner, able to read 1D and 2D barcodes on paper and screen. The D720 was built for mobility and durability. It is IP54 rated for dust and water, comes with a field-replaceable battery, and withstands multiple drops. Also great for warehousing and manufacturing applications due to the scanning versatility. It is lightweight, ergonomic designed and has a long-lasting battery. The scanner is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status. Perfect for inventory, order entry, field service, and other mobile business applications.
Scanning
Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
Linear
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, UPC-A
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code
Light levels (direct sunlight)
0 - 100000 lx
Ports & interfaces
Connectivity technology
Wireless
Standard interfaces
Bluetooth
Wireless range
10 m
Bluetooth version
2.1+EDR
Performance
International Protection (IP) code
IP54
LED indicators
Y
Print contrast
25%
Product colour
Black, Red
Country of origin
China
Power
Power source type
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of batteries supported
1
Battery capacity
1400 mAh
Battery voltage
3.7 V
Battery life
20 h
Charging time
6 h
Weight & dimensions
Width
38 mm
Depth
46.1 mm
Height
132.9 mm
Weight
109 g
Packaging data
Charging base
Y
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-5 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Technical details
Sustainability compliance
Y
Sustainability certificates
RoHS
Warranty period
1 year(s)
Information
| Part Number: | CX4056-3119 |
