Introduction

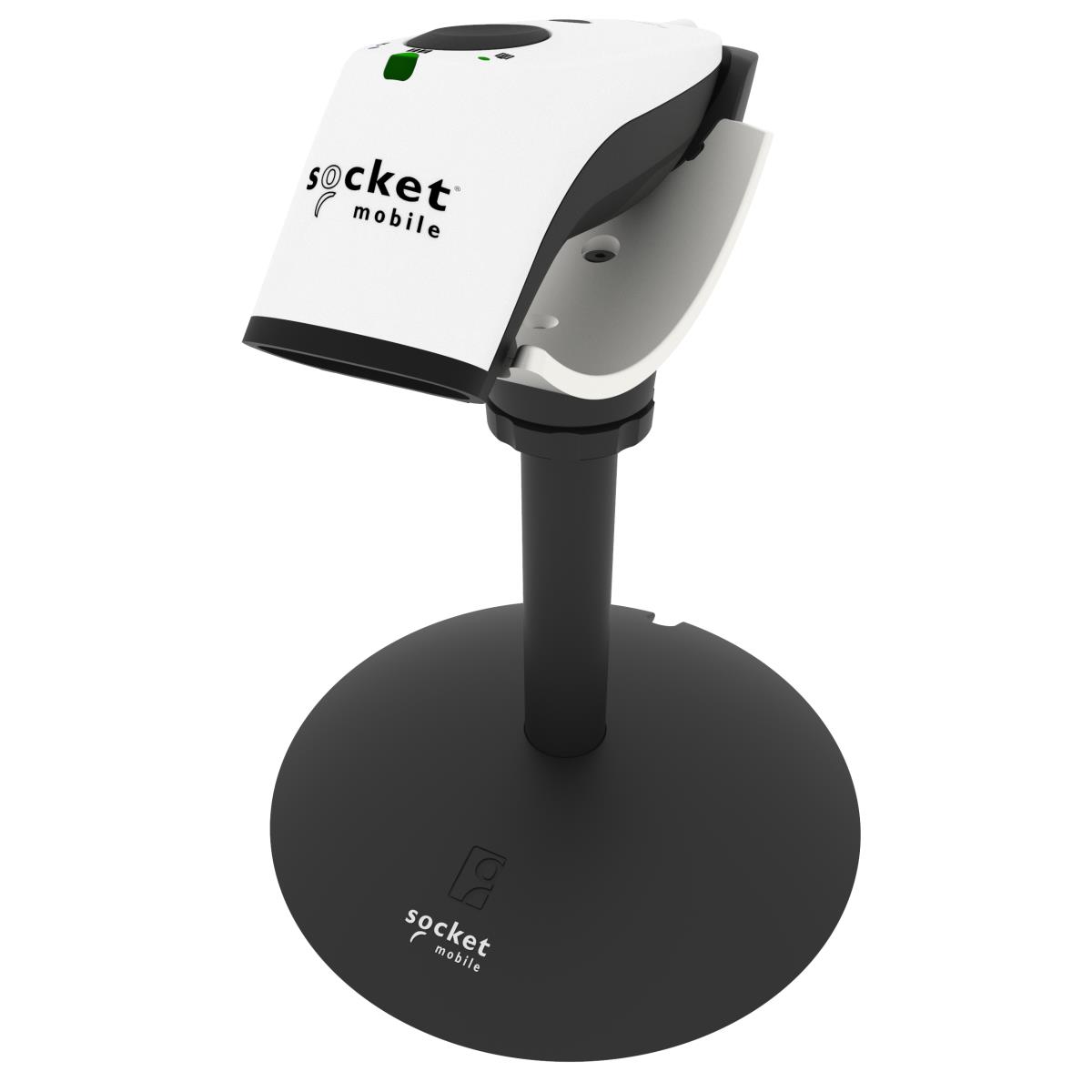

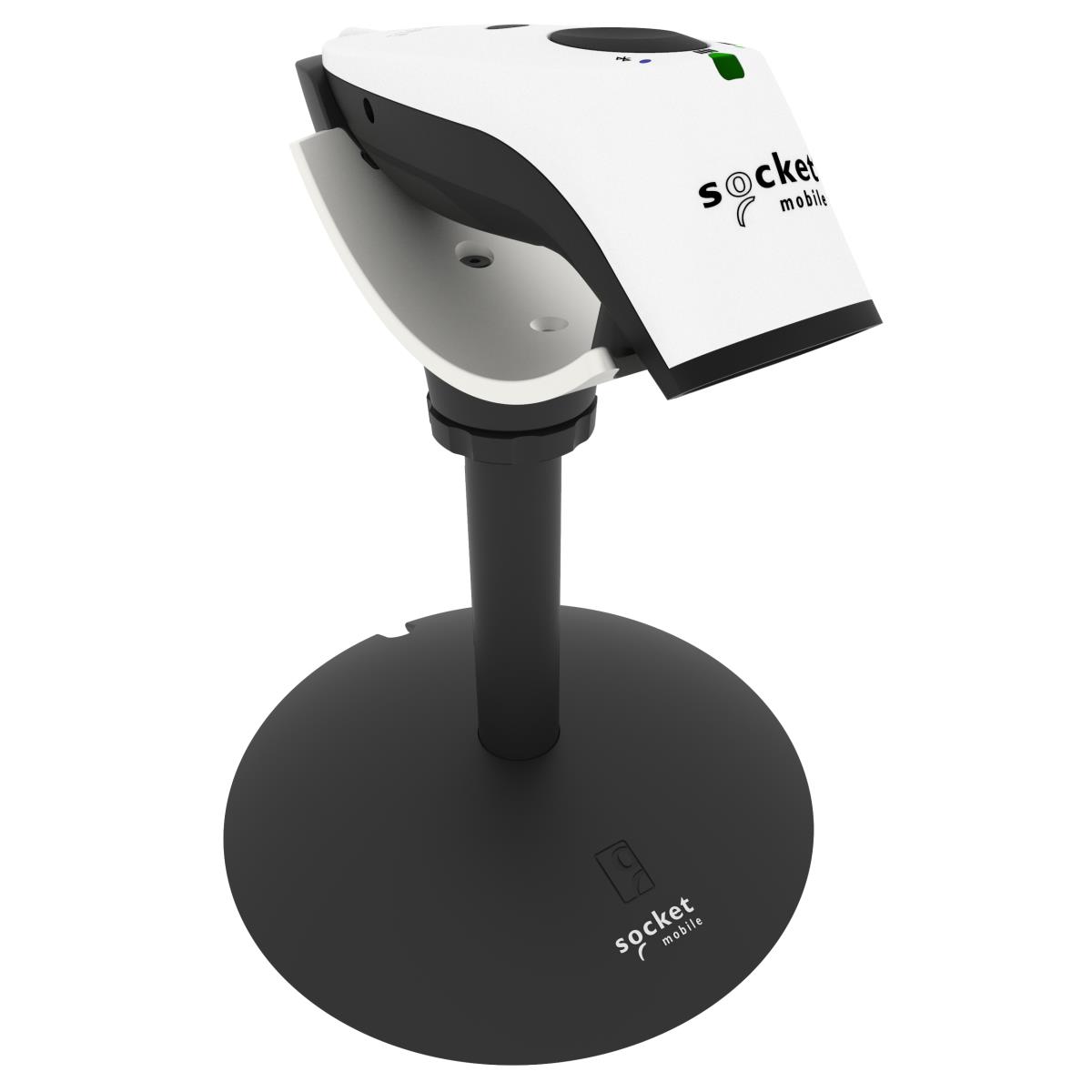

The SocketScan S720 is a Bluetooth Barcode Scanner that reads 1D and 2D barcodes on paper and screen. It’s lightweight, ergonomically designed and comes with long-lasting batteries. Great for everyday general-purpose scanning, the S720 2D barcode reader scans popular 2D barcodes such as PDF417, QR Codes and Data Matrix. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status.
The S720 is wireless, providing increased mobility and productivity, helping reduce human error. 2D barcodes offer the next step in versatility, functionality, and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes with an effective barcode reader gives your business an accurate and easy way to track inventory and assets, scan products, digital IDs and/or credentials from mobile wallets. Designed for the budget-conscious business, the S720 is a great everyday general-purpose 2D barcode reader that scans the most popularly used 2D barcodes such as PDF417, QR Codes and Data Matrix.
Scanning
Type
Handheld bar code reader
Scanner type
1D/2D
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, MSI, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code
Optical sensor resolution (W x H)
1280 x 960 pixels
Working distance
38 cm
Light levels (direct sunlight)
0 - 100000 lx
Ports & interfaces
Connectivity technology
Wireless
Standard interfaces
Bluetooth
USB version
2.0
USB 2.0 ports quantity
1
Wireless range
10 m
Bluetooth version
2.1+EDR
Cable length
1.2 m
Performance
LED indicators
Power, Status
Buzzer
Yes
Built-in display
No
Product colour
White
Vibration function
Yes
Certification
EC 60950-1, UL 60950-1, CAN/CSA C22.2
RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024, TELEC
Power
Power source type
Battery
Battery technology
Nickel-Metal Hydride (NiMH)
Battery type
AA
Number of batteries supported
2
Battery capacity
2000 mAh
Battery voltage
2.4 V
Number of reads per charge
70000
Battery life
16 h
Charging time
6 h
Weight & dimensions
Width
37.1 mm
Depth
40.1 mm
Height
132.2 mm
Weight
117 g
Packaging data
Cables included
USB
Charging base
Yes
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Battery
Technical details
Sustainability compliance
Yes
Sustainability certificates
C-TICK, CE, Federal Communications Commission (FCC), RoHS
Compliance certificates
C-TICK, CE, Federal Communications Commission (FCC), RoHS
Other features
Light source
LED
Compatible operating systems
Windows 10, Android, iOS, Mac OS
