Product Details
Introduction

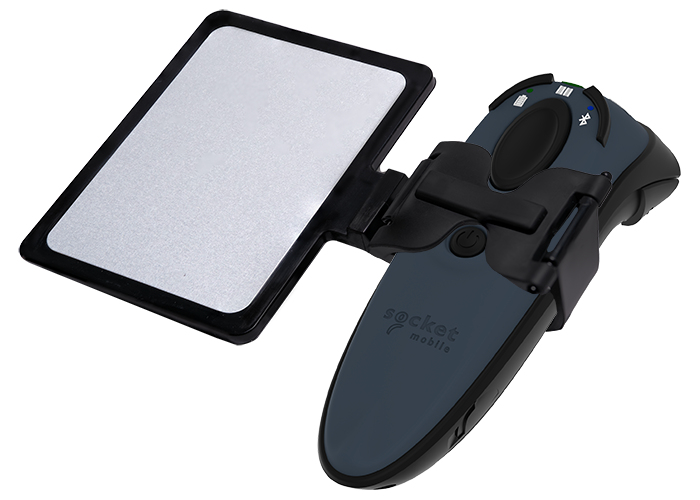

DuraScan D740
The D740 reads 1D, 2D, OCR A & B fonts, OCR USC, OCR passport, OCR MICR (E13B) fonts, and DotCode, covering most travel identification documents, including passports, international IDs, and micro QR codes on drivers’ licenses. It is an excellent option for solutions requiring age verification and tracking cannabis, alcohol, or tobacco sales.
Scanning
Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
LED
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 Databar Limited, ISSN, Interleaved 2 of 5, JAN, MSI, Matrix 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Light levels (direct sunlight)
0 - 100000 lx
Ports & interfaces
Connectivity technology
Wireless
Standard interfaces
Bluetooth
Wireless range
10 m
Bluetooth version
2.1+EDR
Performance
International Protection (IP) code
IP54
Protection features
Drop proof
LED indicators
Yes
Product colour
Black, Grey
Power
Power source type
Battery
Battery technology
Lithium Polymer (LiPo)
Battery capacity
1400 mAh
Battery voltage
3.7 V
Number of reads per charge
85000
Battery life
20 h
Charging time
6 h
Weight & dimensions
Width
38.1 mm
Depth
132 mm
Height
132.2 mm
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Technical details
Compliance certificates
RoHS
Information
| Part Number: | CX4349-3482 |
