Introduction
Connect to a Gigabit Ethernet network through your computer's USB-C port
This USB-C to Gigabit Ethernet adapter lets you connect easily to a wired Ethernet network, with full Gigabit bandwidth support, through the USB-C or Thunderbolt 3 port on your laptop, tablet or desktop computer.
Powerful Gigabit network connections
The USB Type-C to Gigabit Ethernet adapter adds a single RJ45 Ethernet port with Gigabit support, by harnessing the performance of USB 3.0, also known as USB 3.1 Gen 1 (5 Gbps). You can access very large files over the network at Gigabit speeds. Support for features such as jumbo frames, VLAN tagging and Wake-on-LAN (WOL), provides versatile Gigabit network performance for business or home office use.
Native driver support makes installation easy
Get up and running quickly. Simply plug the adapter into the USB-C port on your laptop and connect to your network. The network adapter chipset provides native driver support for the latest versions of Windows, macOS, Linux, and Chrome OS, providing easy setup.
Designed for portability
Compact, lightweight and with a cableless design, this portable USB Gigabit network adapter is the ideal accessory for your MacBook Pro, Dell XPS or other USB-C enabled laptop or desktop computer. It's powered directly from the USB port, making it easy to connect when you're on the go.
The US1GC30DB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage

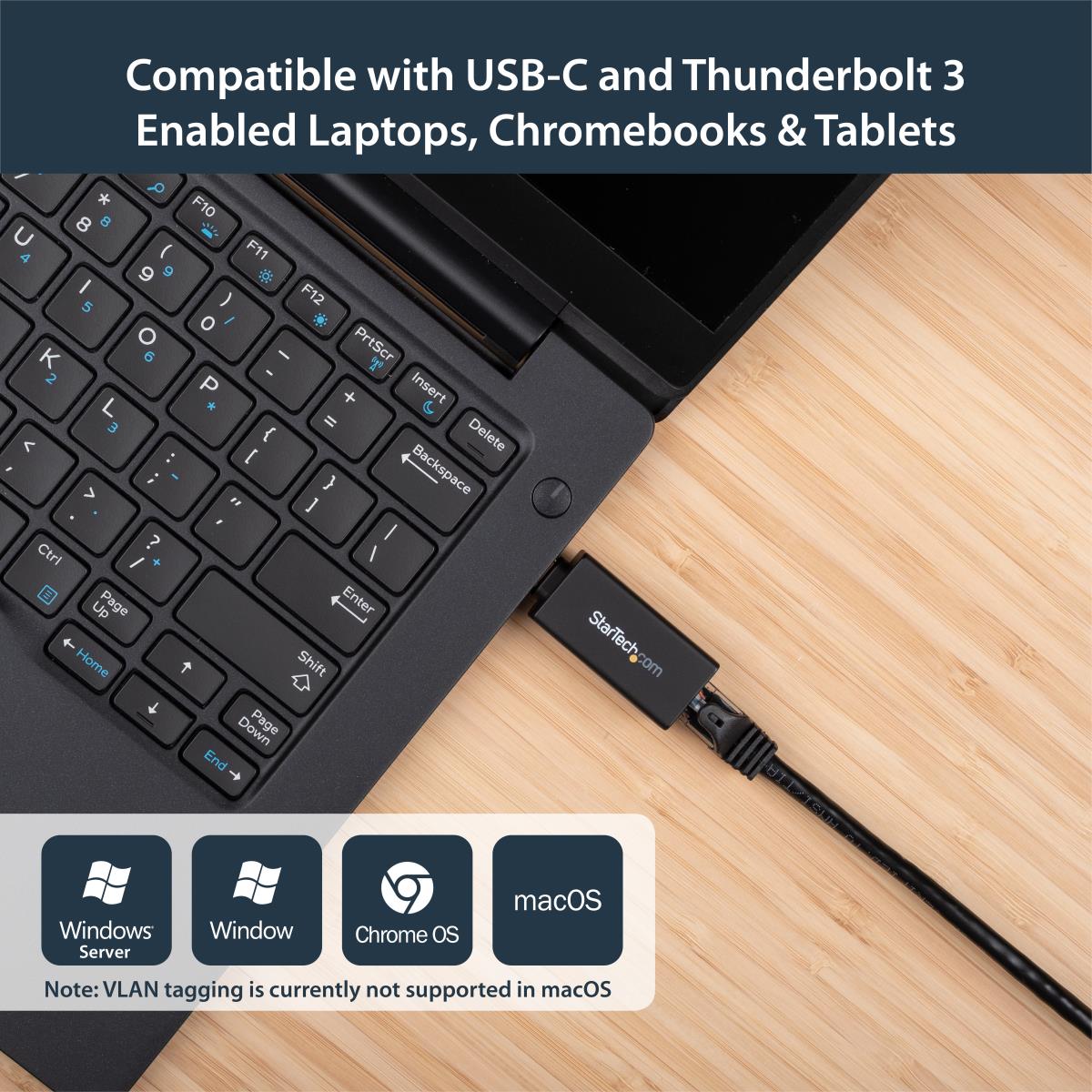

- SECURE WIRED CONNECTIVITY: USB C to Gigabit Ethernet Adapter allows you to connect to a GbE Network from a USB-C/Thunderbolt 3 Laptop incl. Apple MacBook/MacBook Pro, Microsoft Surface, & HP EliteBook
- TECH SPECS: USB-C 3.0 or TB3

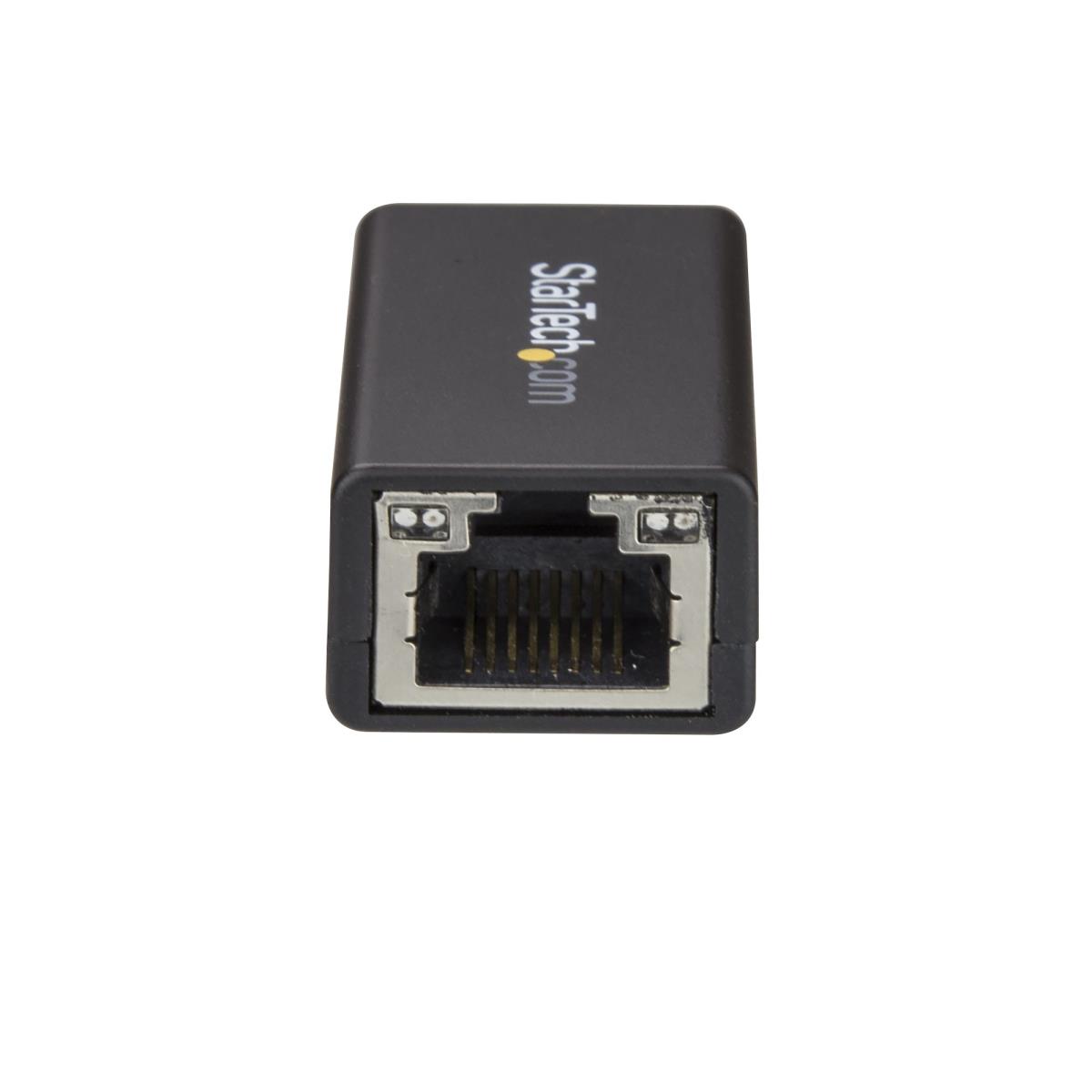

- 1x RJ45
Technical details
Compliance certificates
RoHS
Ports & interfaces
Connectivity technology
Wired
Host interface
USB Type-C
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1
Other features
Harmonized System (HS) code
85176990
Housing material
Plastic
Network
Maximum data transfer rate
5000 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Ethernet LAN
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
Wake-on-LAN ready
Y
Auto MDIX IEEE
Y
Full duplex
Y
VLAN tagging
Y
Design
Product colour
Black
Internal
N
Chipset
Realtek - RLT8153
LED indicators
Activity, Power
Certification
CE, FCC, REACH
Power
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
5 - 90%
Sustainability
Sustainability certificates
RoHS
Weight & dimensions
Width
141 mm
Depth
175 mm
Height
13 mm
Weight
58 g
Packaging data
Package width
141 mm
Package depth
175 mm
Package height
30 mm
Package weight
100 g
Logistics data
Master (outer) case width
280 mm
Master (outer) case length
450 mm
Master (outer) case height
265 mm
Products per master (outer) case
50 pc(s)
