STARTECH.COM Portable M.2 Ngff SATA Enclosure - USB 3.1 (10gbps) With USB-c Cable

£26.65

Part Number: SM21BMU31C3
Delivery: 1 - 2 days

Product Details

Introduction

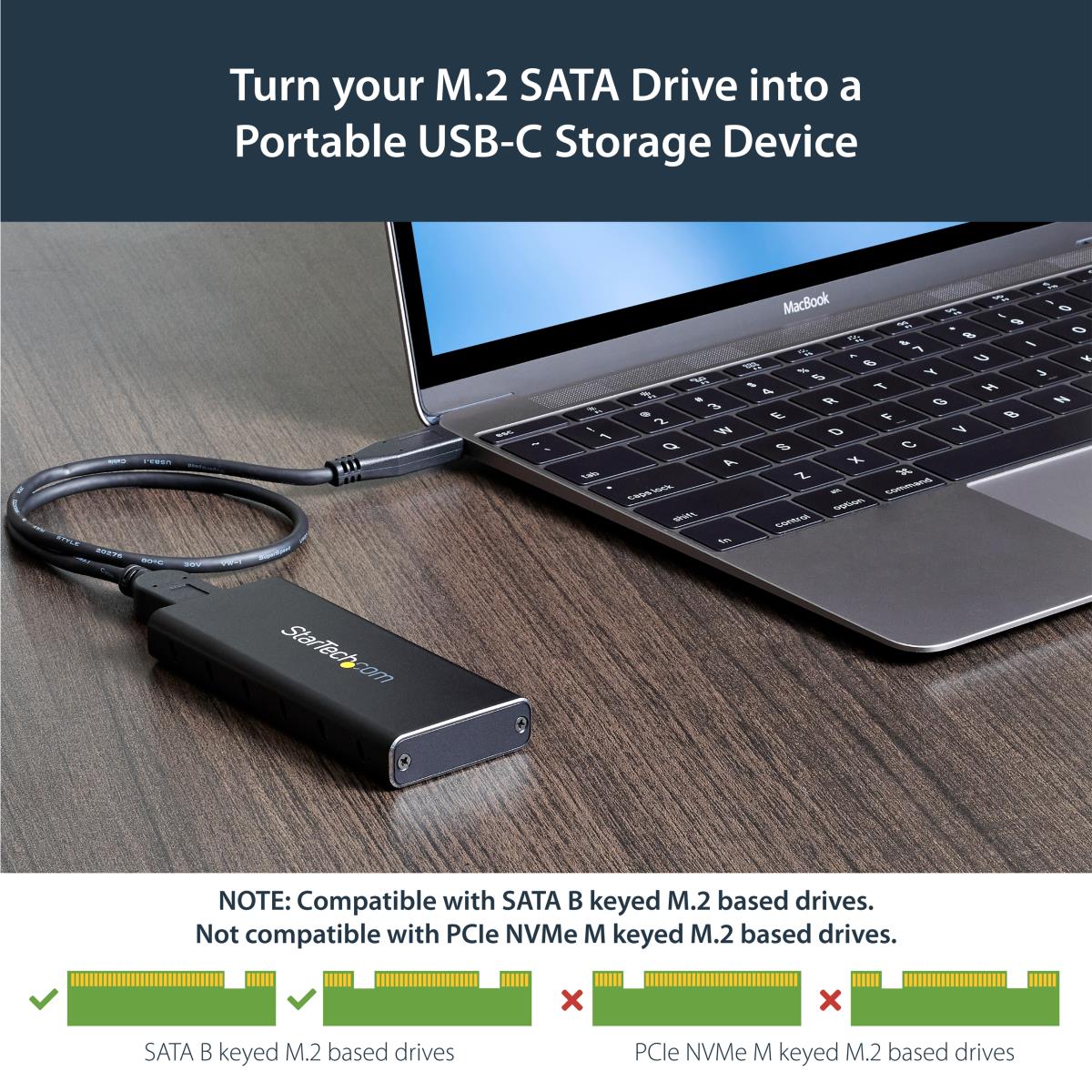

Turn your M.2 SATA drive into an ultra-fast, ultra-portable storage solution for USB-C enabled devices

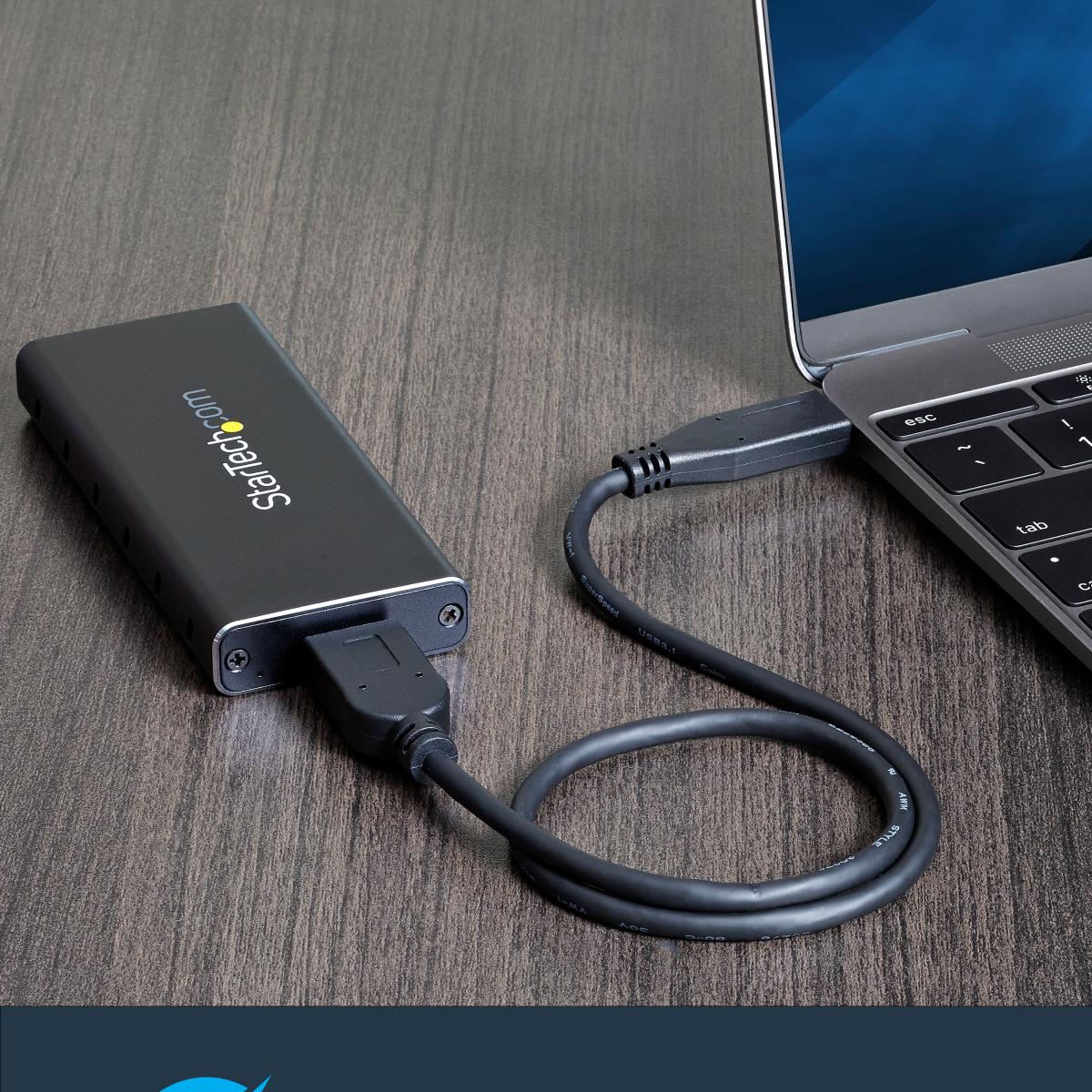

This compact M.2 SATA SSD enclosure lets you add highly portable data storage to any laptop or computer with a USB-C port - such as MacBook, Chromebook Pixel, Dell XPS laptops, and many others. It turns your SATA M.2 drive into a high-speed storage solution over a USB 3.1 Gen 2 connection, at up to 10Gbps throughput.

A truly portable solution

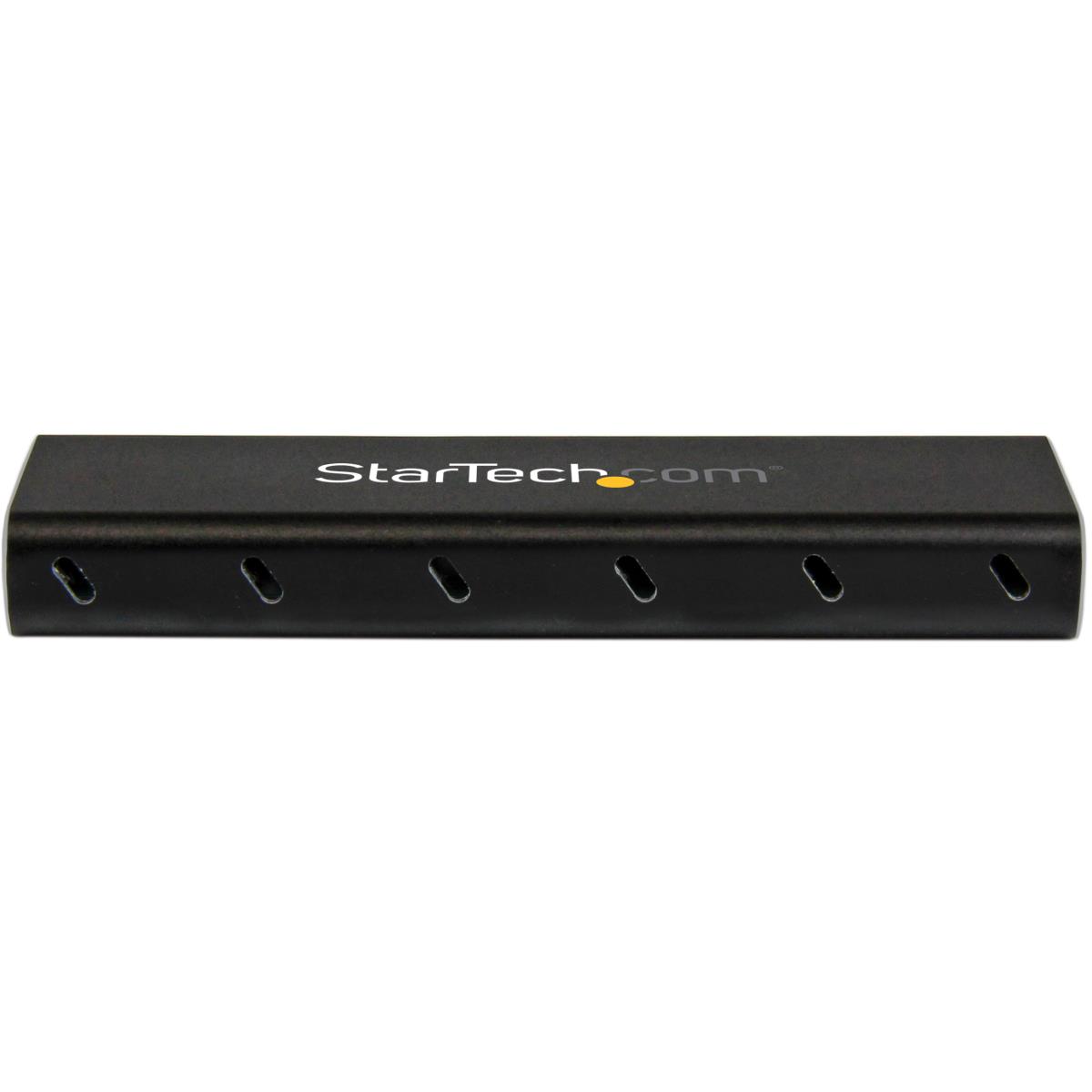

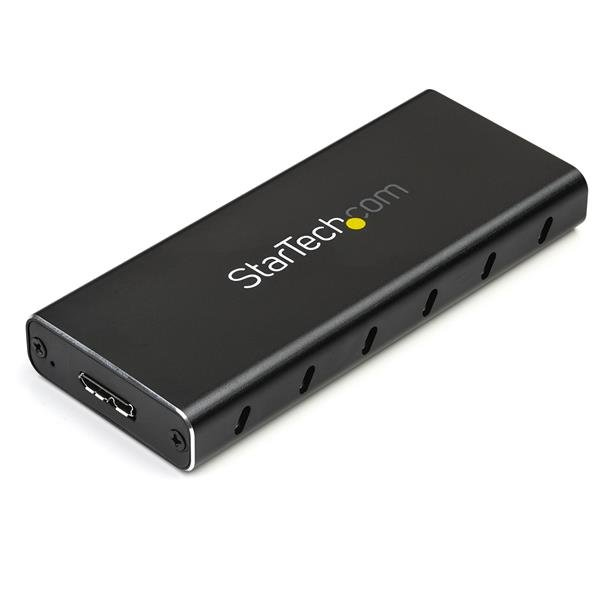

This slim, pocket-sized enclosure for M.2 NGFF SATA SSDs has been specially designed for mobility, with a small form factor design that fits easily into your laptop bag. Its lightweight yet durable aluminum housing helps to ensure your drive won't be damaged while you're on the move.

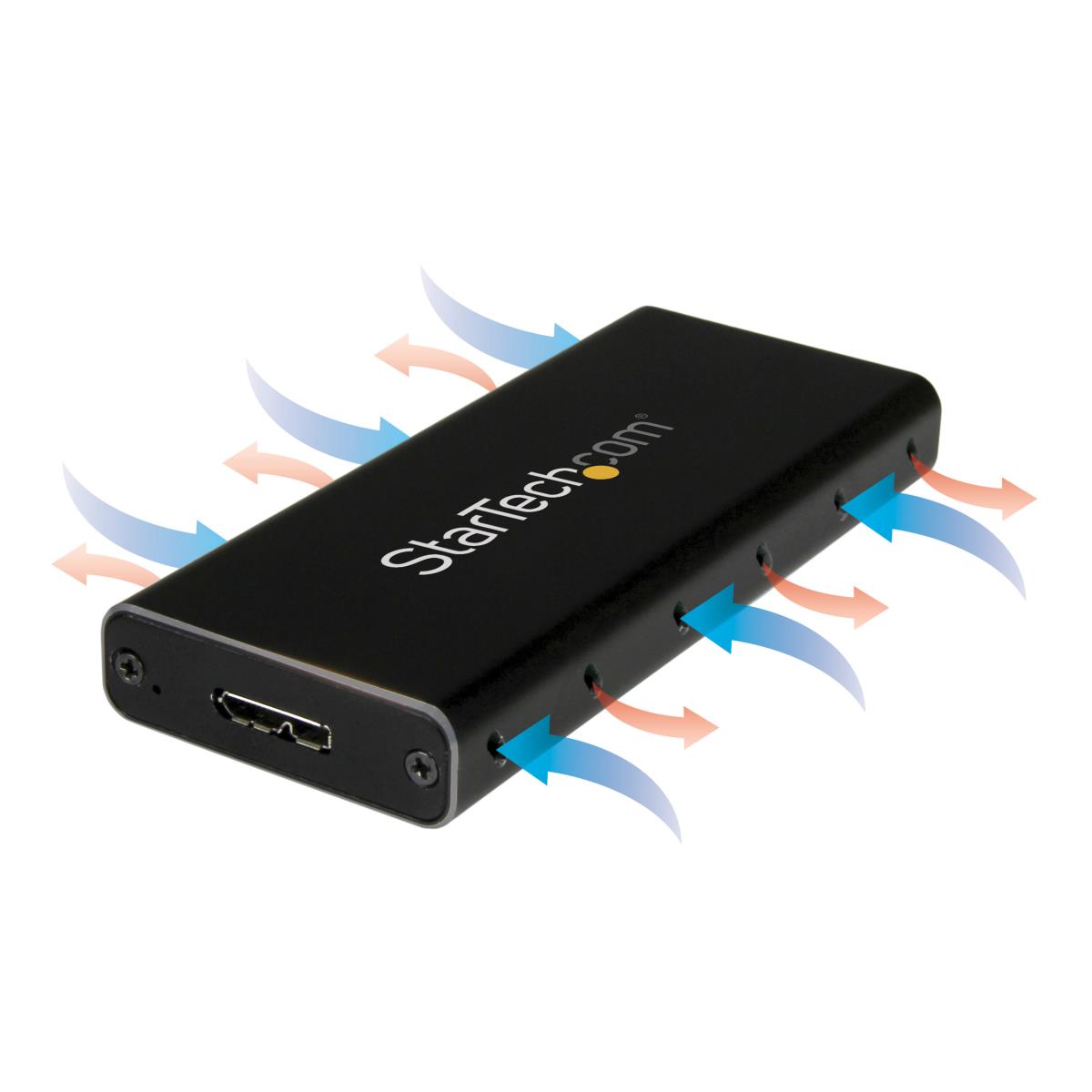

Ventilation holes help to dissipate heat and help ensure an optimum operating temperature.

Maximize the performance of your M.2 SATA SSD

Leverage the speed of your M.2 NGFF SATA drive with this external enclosure. It delivers USB 3.1 Gen 2 data transfer speeds up to 10Gbps as well as UASP support, so you can achieve higher transfer speeds when you connect it to a UASP-enabled host computer.

The enclosure works with tablets, laptops and desktop computers and is compatible with hosts equipped with Thunderbolt 3 USB-C ports.

Broad compatibility

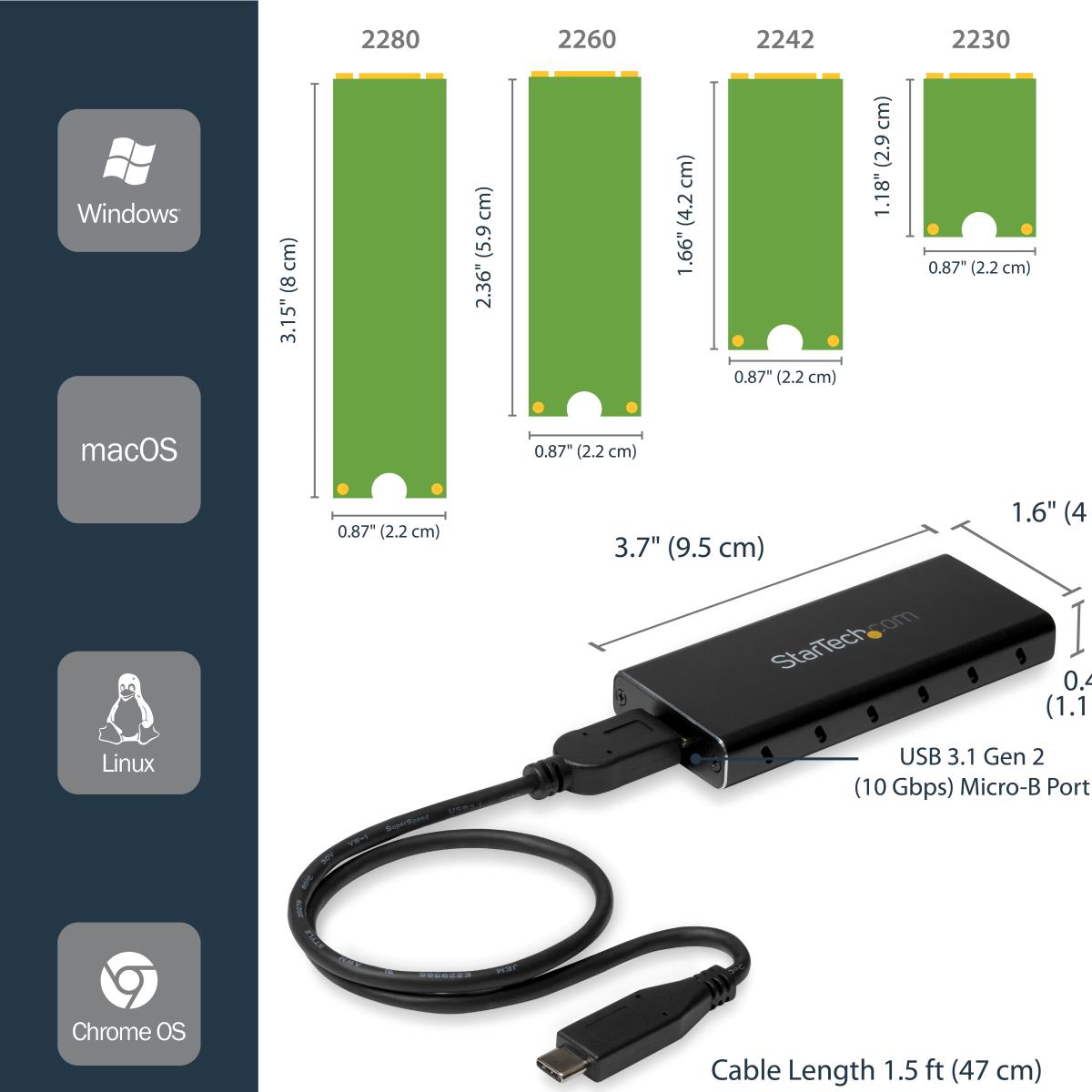

The enclosure is compatible with all of the common M.2 SATA SSDs, and enables you to mount multiple drive lengths, including: 30mm (2230), 42mm (2242), 60mm (2260), and 80mm (2280).

The SM21BMU31C3 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- Leverage your SATA M.2 SSD to add fast external storage to your USB-C enabled host (USB-C cable included)
- Supports USB 3.1 Gen 2 (10Gbps)
- Compatible with Thunderbolt 3 USB-C port

Logistics data

Master (outer) case width 478 mm
Master (outer) case length 548 mm
Master (outer) case height 330 mm
Products per master (outer) case 100 pc(s)

Technical details

Compliance certificates RoHS
Harmonized System (HS) code 84733080
Sustainability certificates RoHS

Storage

Number of storage drives supported 1
Storage drive size M.2
Supported storage drive interfaces M.2
Supported storage drive lengths 80 mm

Ports & interfaces

USB connectivity Y
USB version 3.2 Gen 2 (3.1 Gen 2)

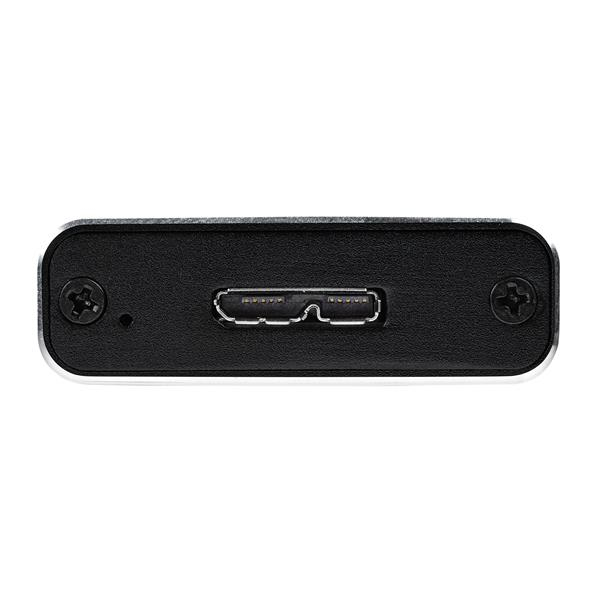

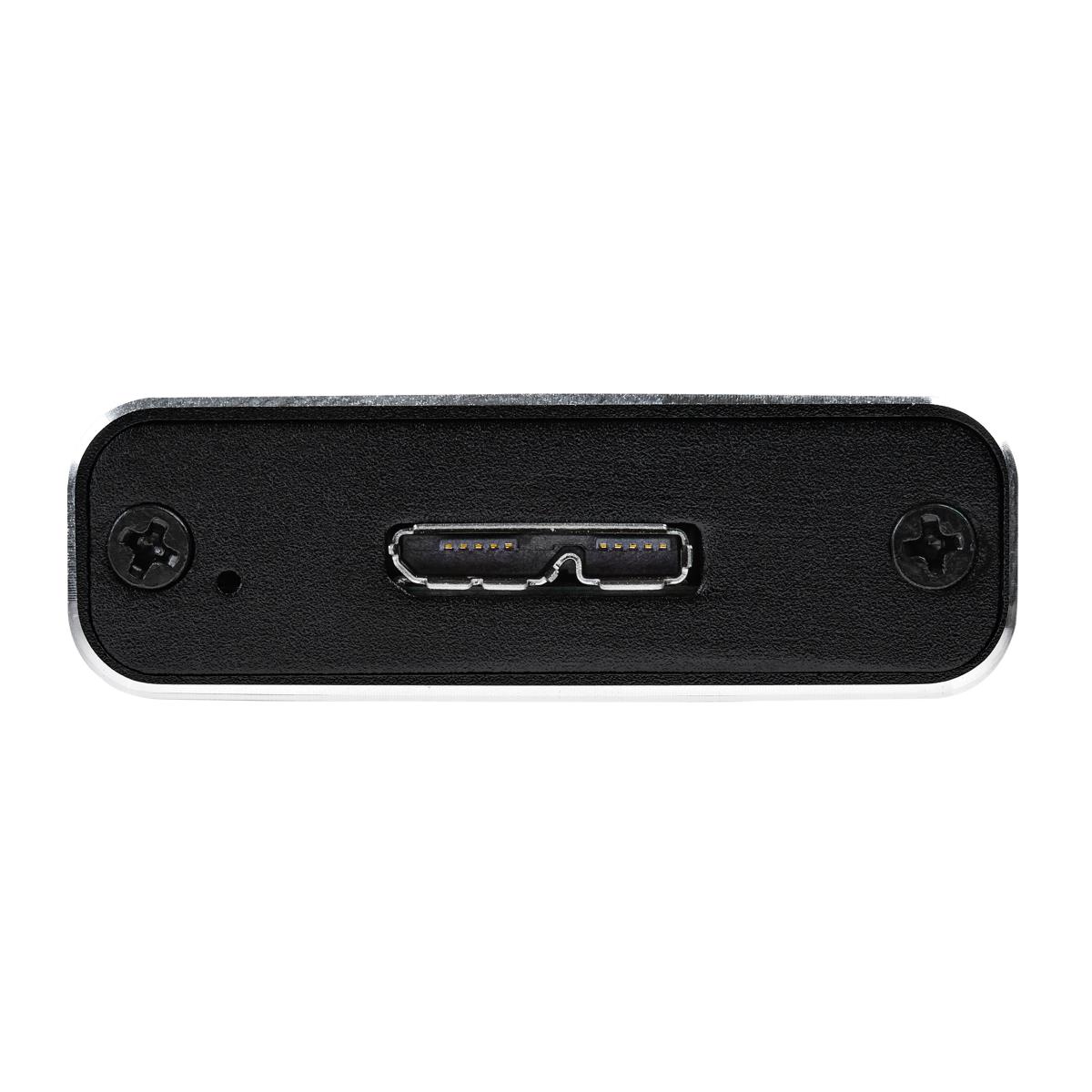

USB connector type Micro-USB B
USB connector gender Female
USB ports quantity 1
Integrated USB cable N

Design

Product type SSD enclosure
Product colour Black, Silver
Material Aluminium
LED indicators Activity, Power
Certification CE, FCC, TAA, REACH

Performance

Data transfer rate 10 Gbit/s
Chipset ASMedia - ASM1351
UASP support Y
Mean time between failures (MTBF) 1000000 h
Plug and Play Y

Power

Power source type USB

Operational conditions

Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 65 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 95%

Weight & dimensions

Width 42 mm
Depth 99 mm
Height 13 mm
Weight 61 g
Package width 161 mm
Package depth 131 mm
Package height 32 mm
Package weight 139 g

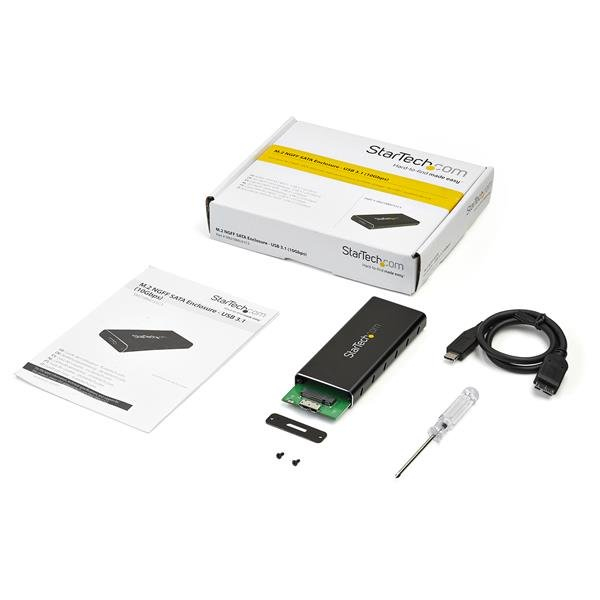

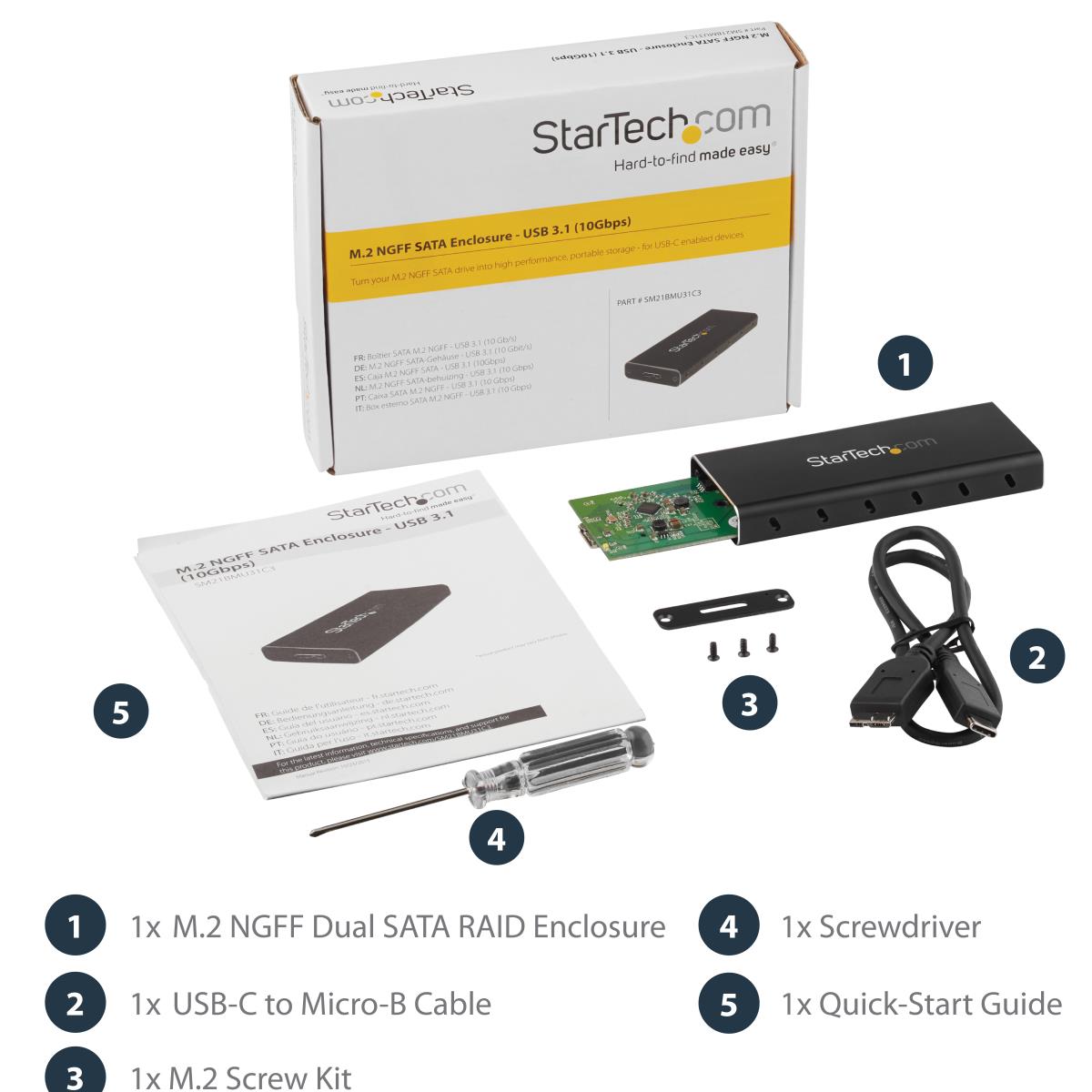

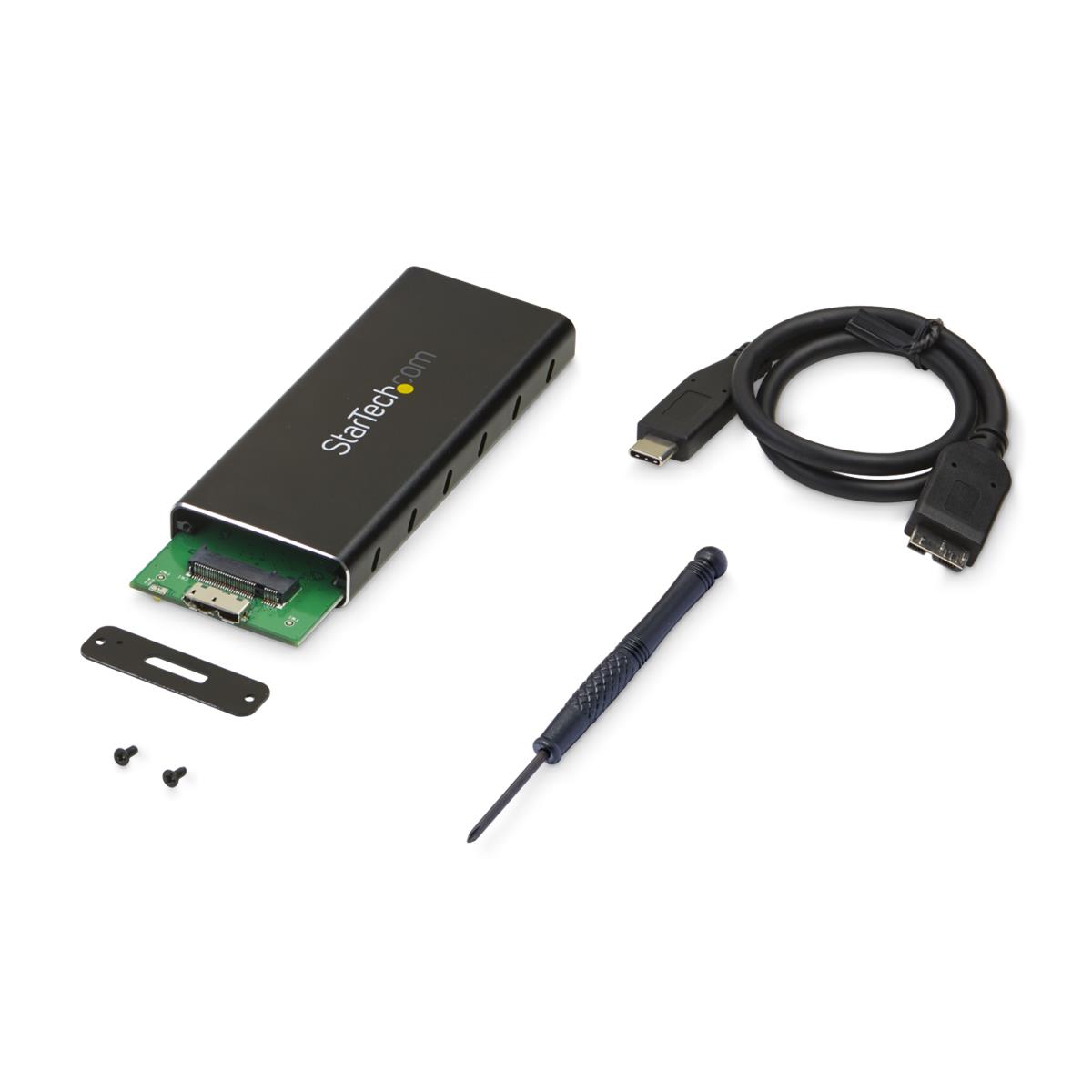

Packaging content

Cables included USB
Screws included Y
Screwdriver included Y
Quick installation guide Y

Information

Part Number: SM21BMU31C3
