Introduction

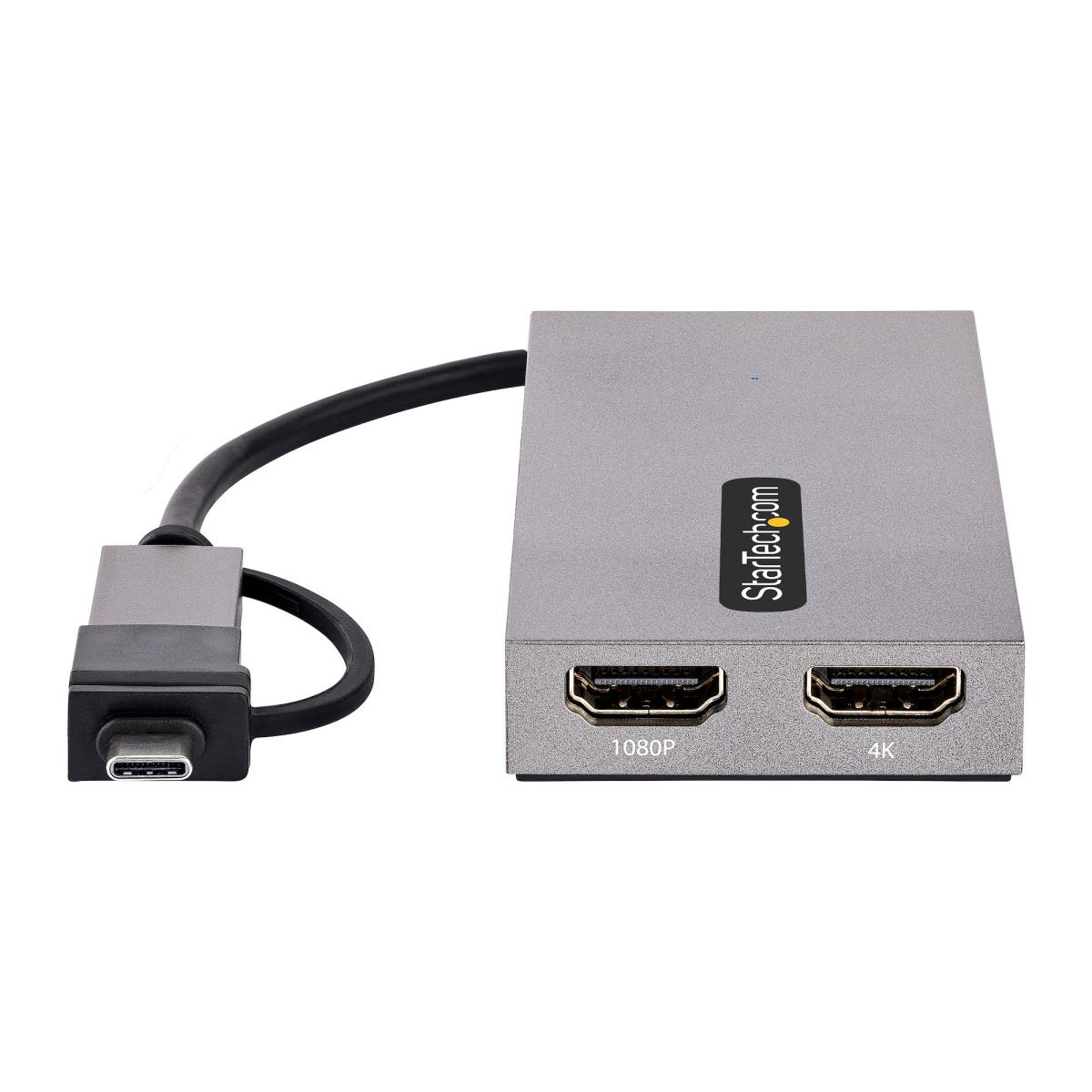

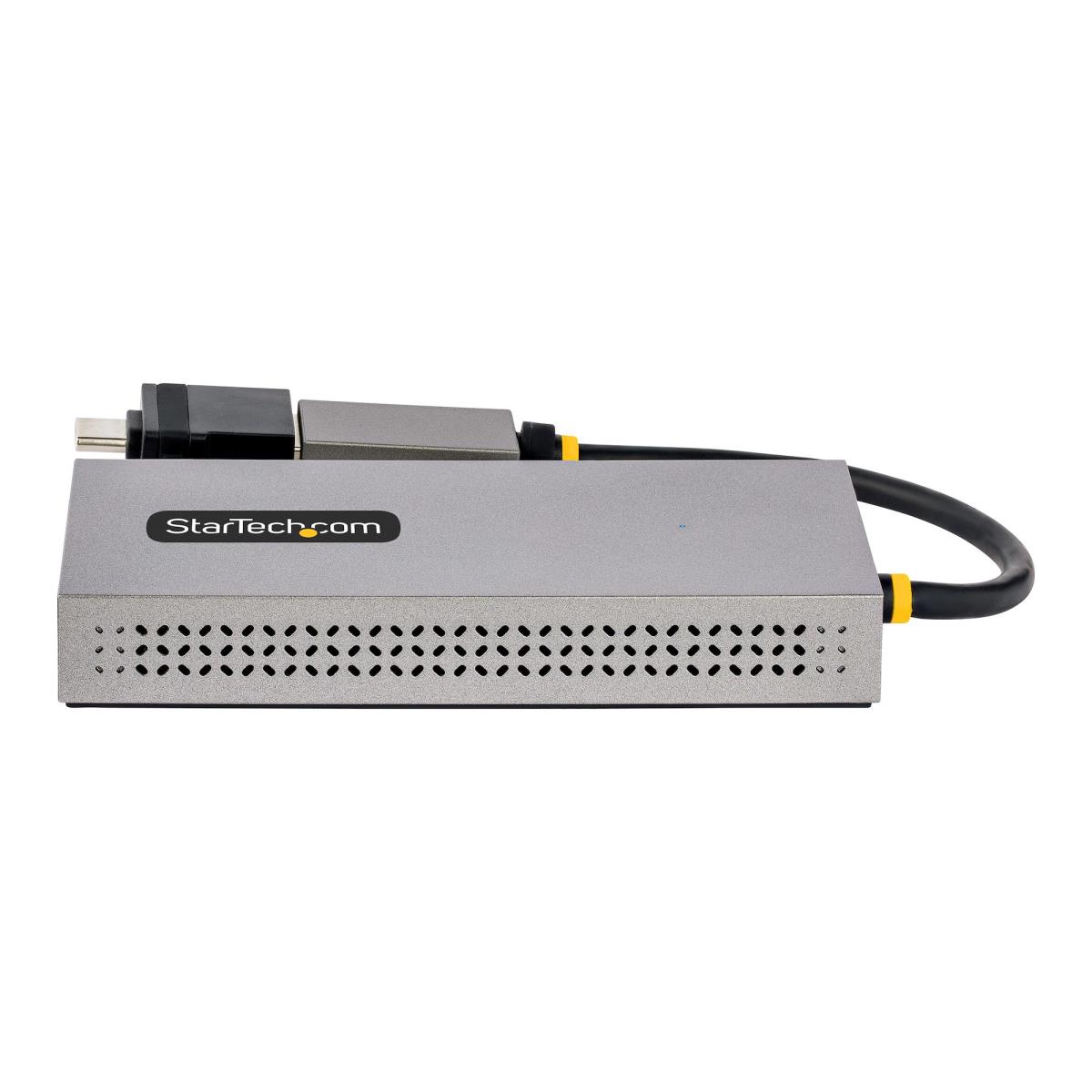

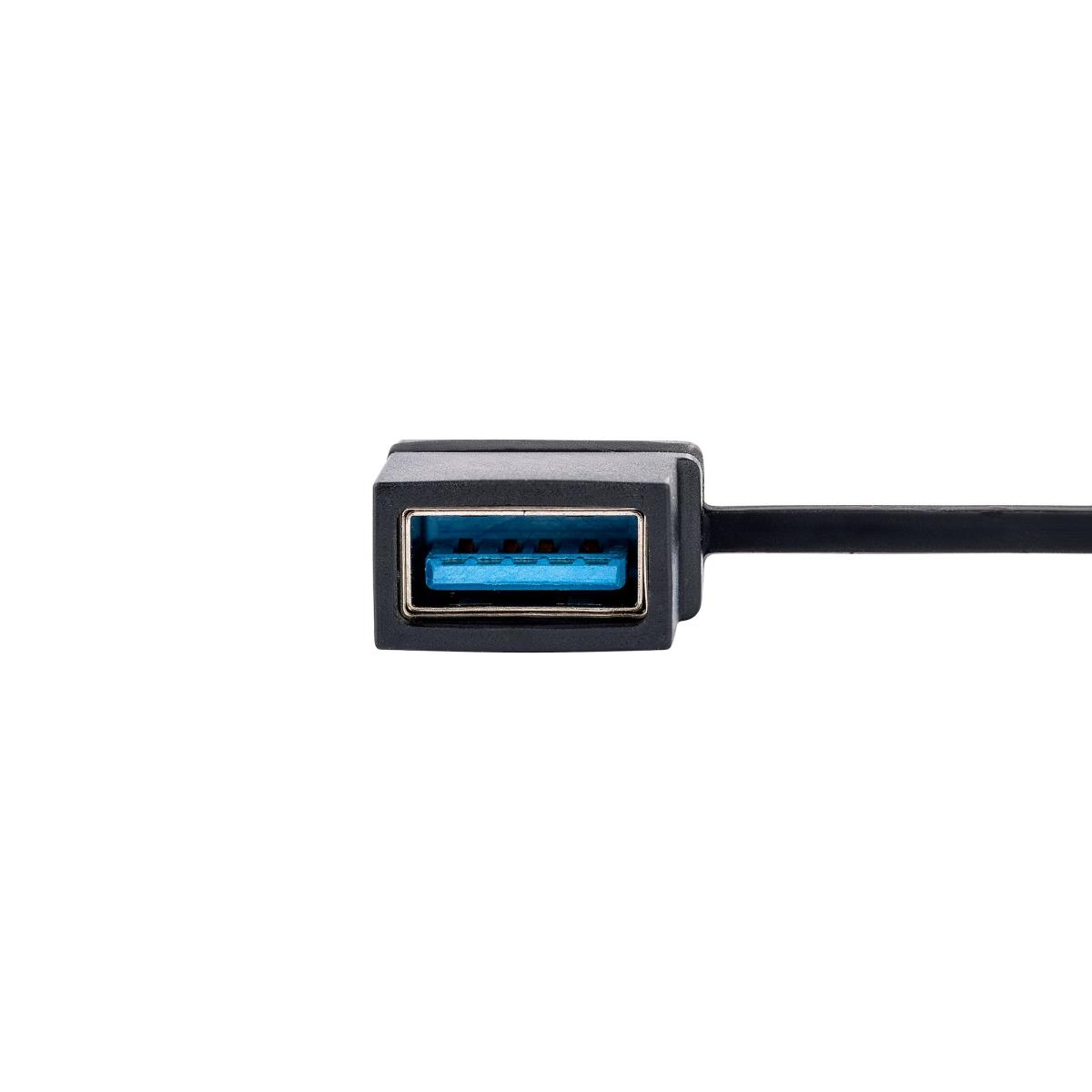

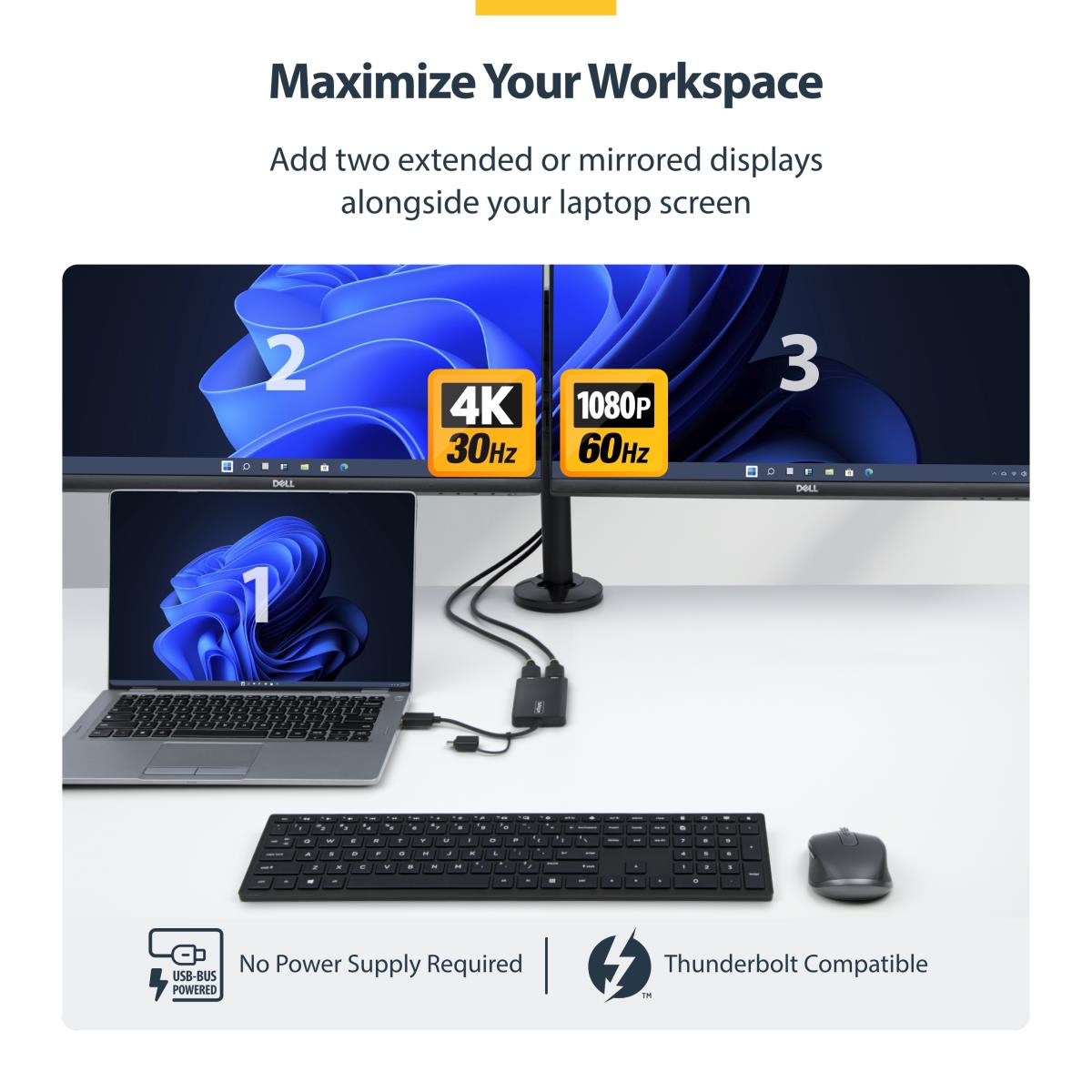

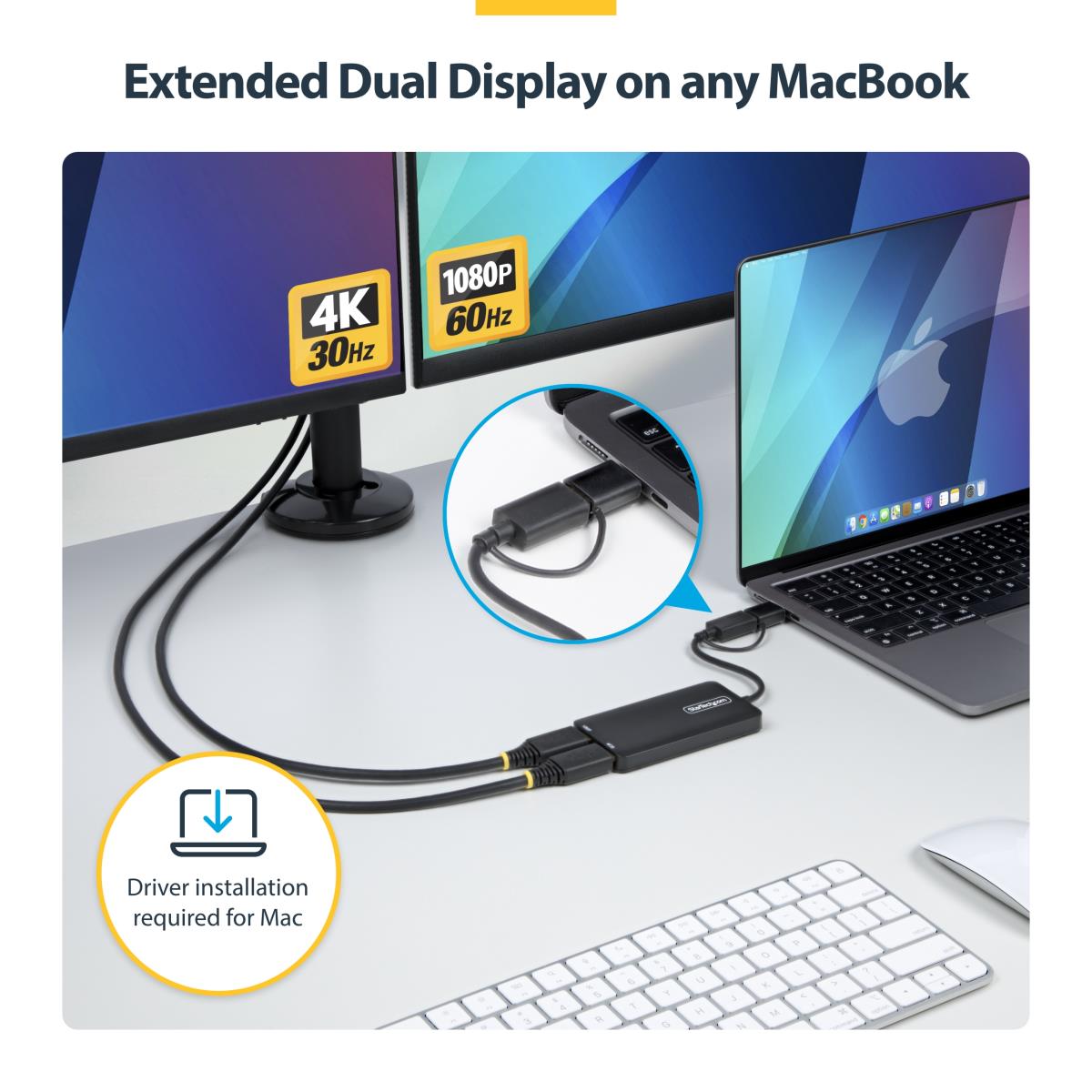

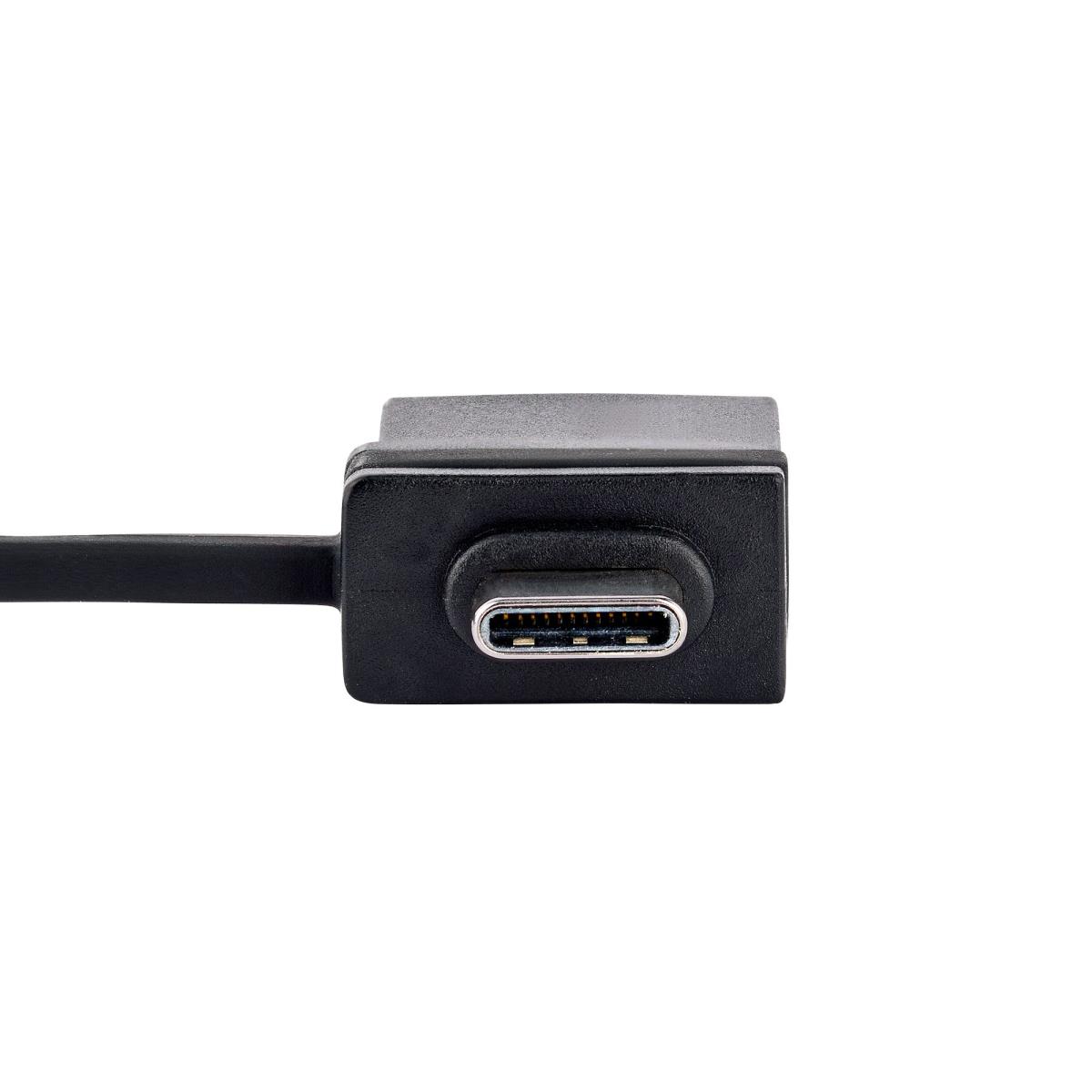

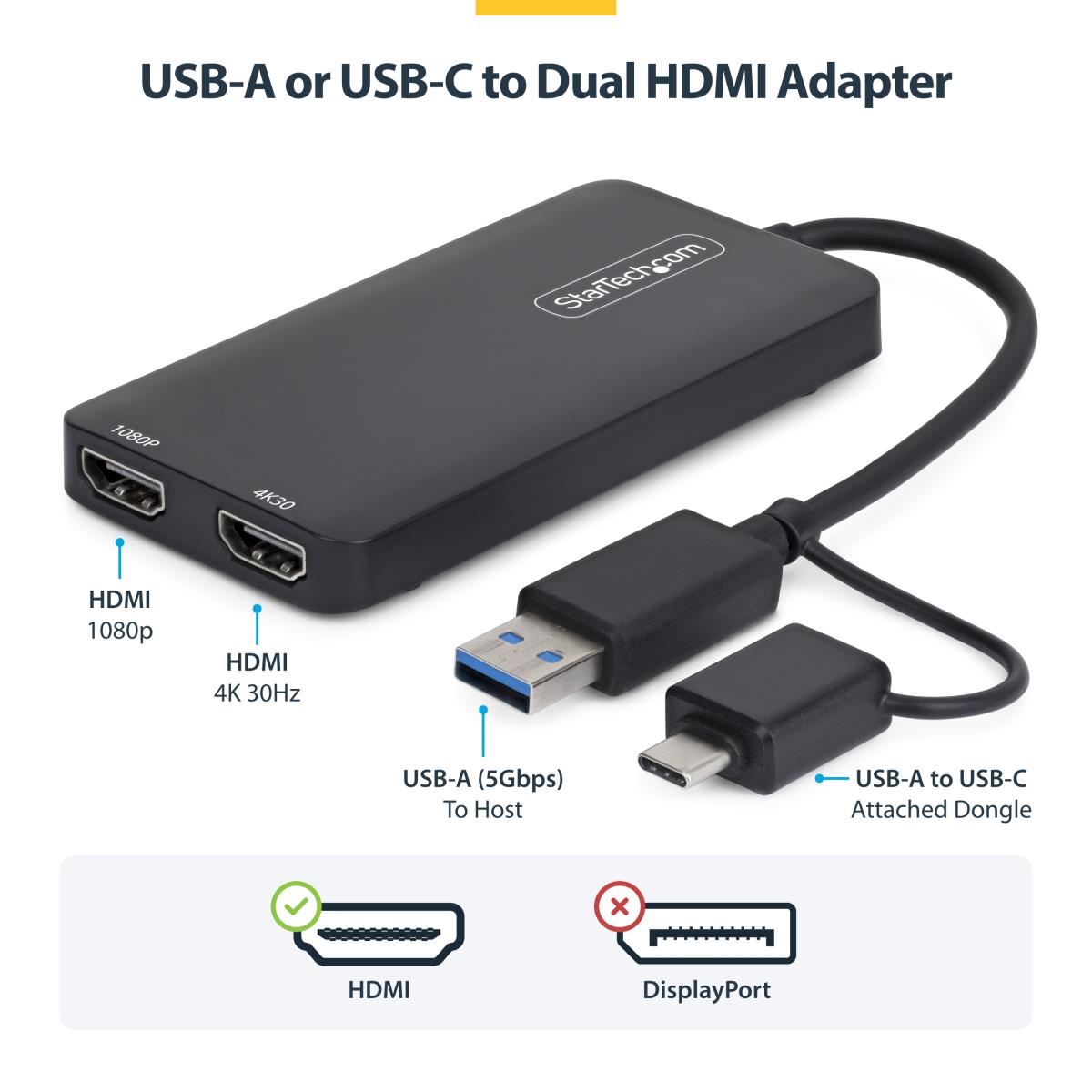

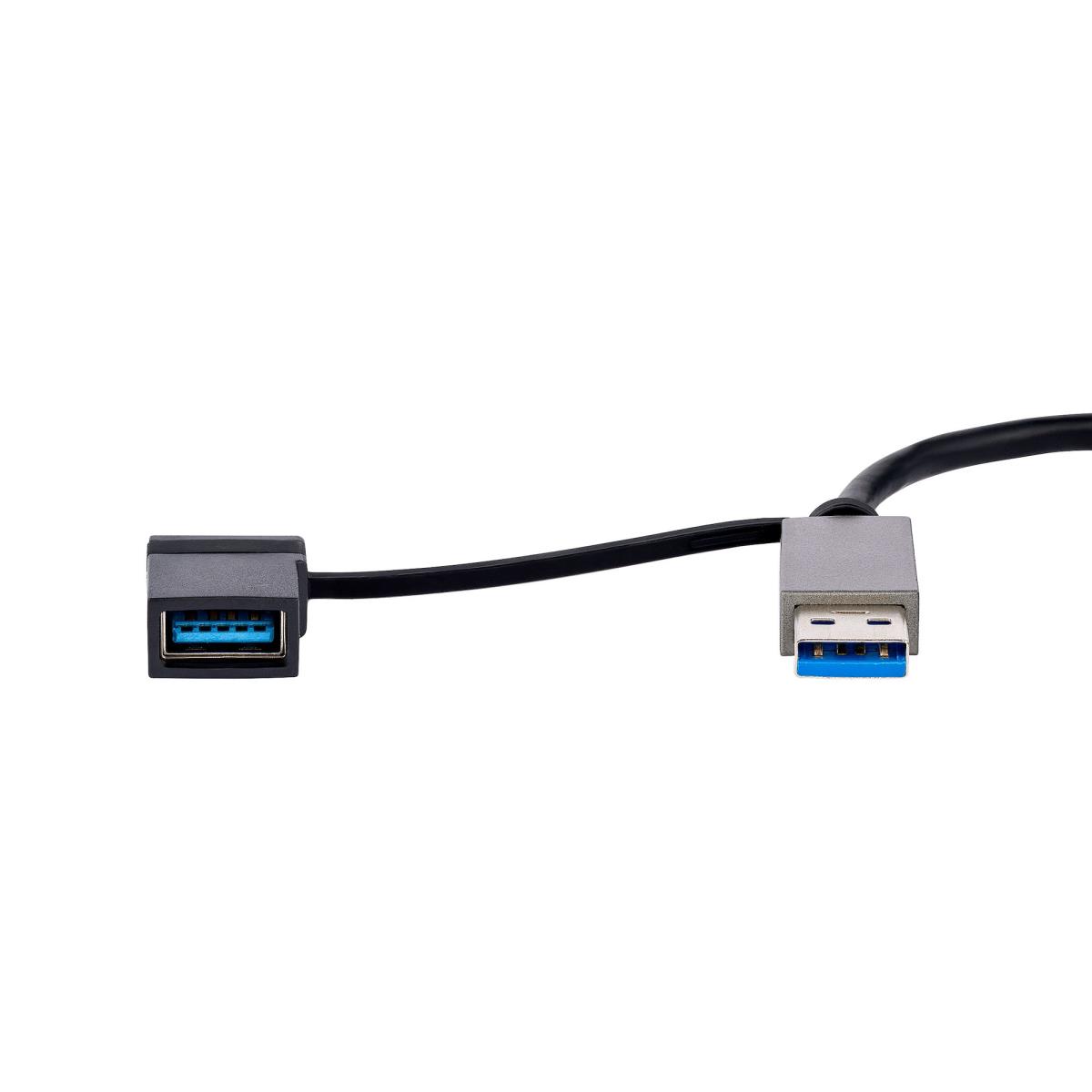

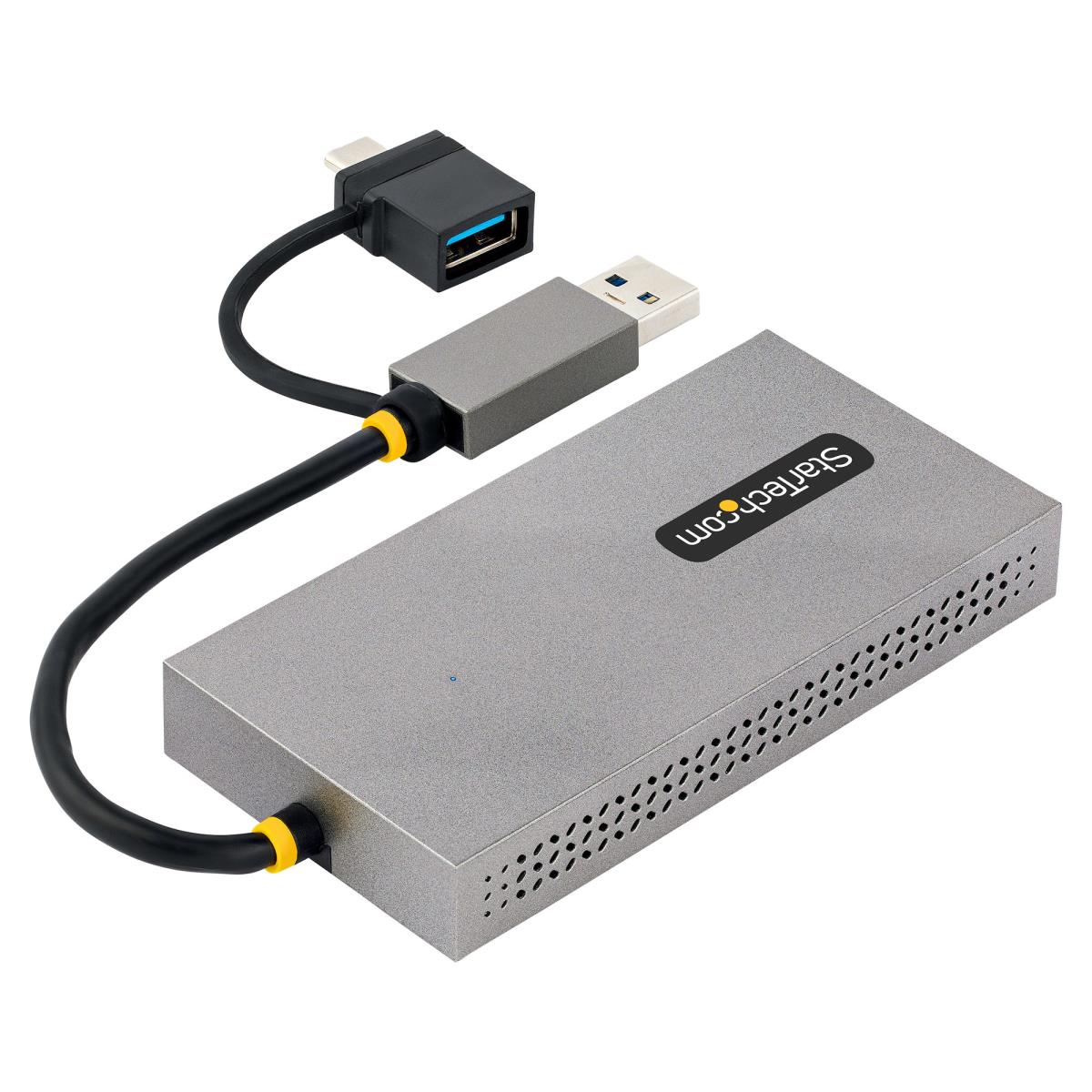

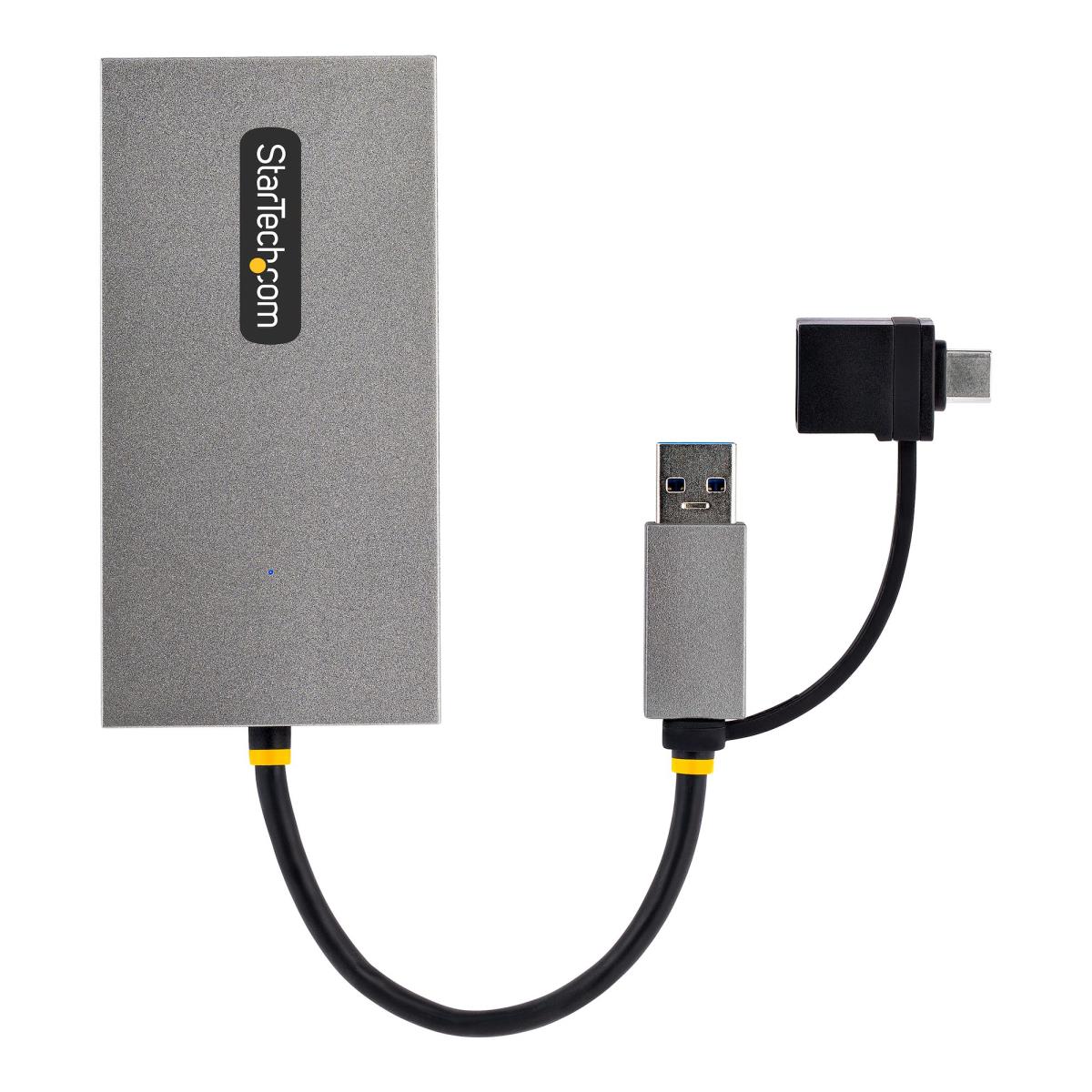

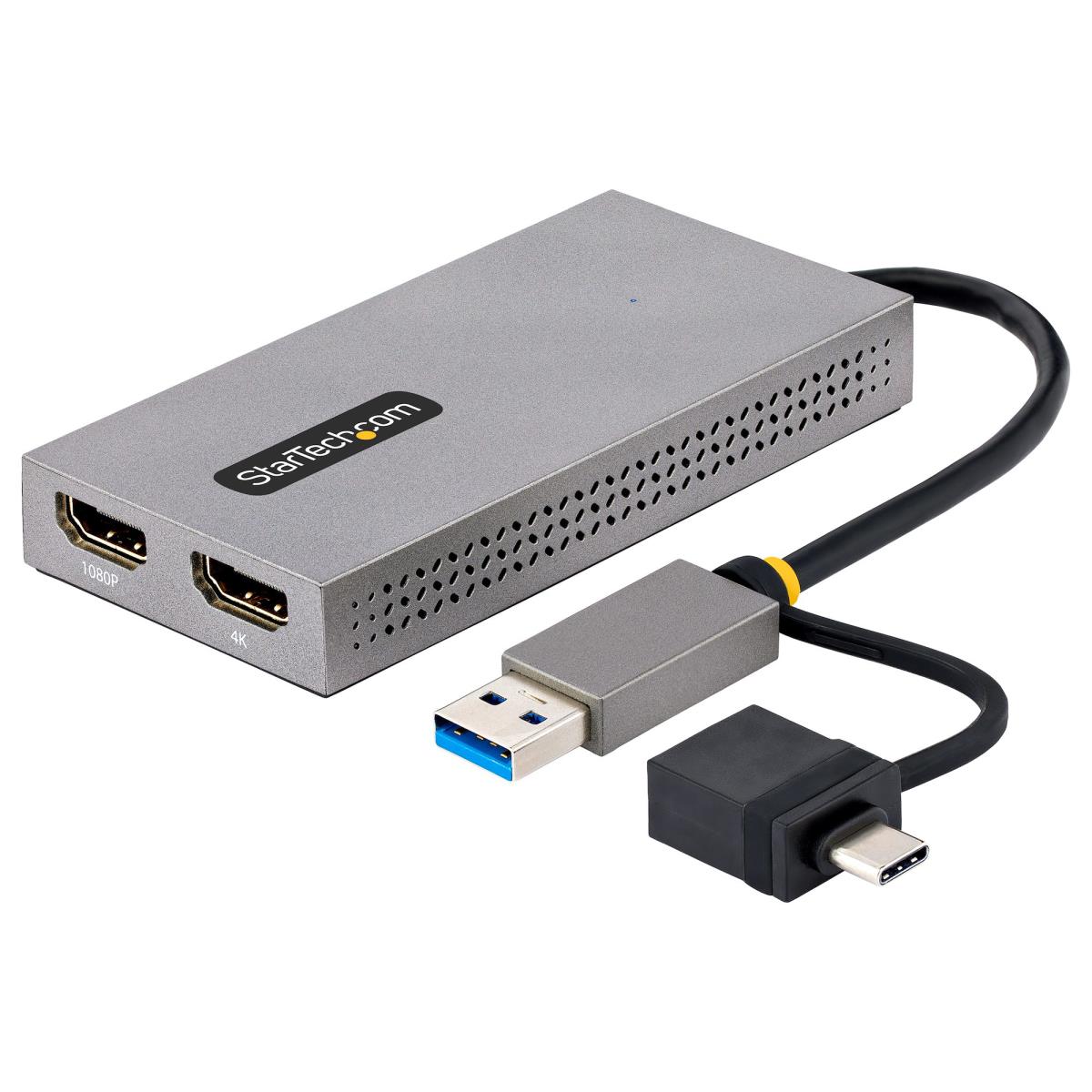

Multi-Monitor USB-A or USB-C Adapter | 1x 4K 30Hz + 1x 1080p | Windows, macOS, & Chrome OSThis USB to Dual HDMI® Adapter enables the addition of two independent HDMI displays (1x 4K & 1x 1080p) to your computer, using a single USB Type-A 3.2 Gen 1 (5 Gbps) connection.Increase Productivity with Multiple DisplaysThis USB to HDMI Dual Monitor Adapter features two video outputs, boosting productivity by connecting up to two displays using a single USB Type-A or C port. The adapter is bus-powered, lightweight, and features an integrated 4.3" (11cm) USB cable, making it ideal for transitioning between the office, home, or connecting to displays in a boardroom.4K ResolutionConnect a 4K 30Hz and a 1080p display to a laptop or desktop. The USB to Multi-Monitor Adapter supports extended or mirrored display modes, and ultrawide displays, providing additional viewing space.Wide-Ranging System CompatibilityThe USB video adapter is compatible with Windows, macOS, and Chrome OS. The integrated USB-A to USB-C dongle ensures USB compatibility with any host running a supported operating system. The attached 4.3in (11cm) cable is convenient for on the go use.107B-USB-HDMI is backed for 3-years by StarTech.com, including free 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Technical details
Compliance certificates
CE, RoHS
Harmonized System (HS) code
84733020
Sustainability certificates
CE, RoHS
Performance

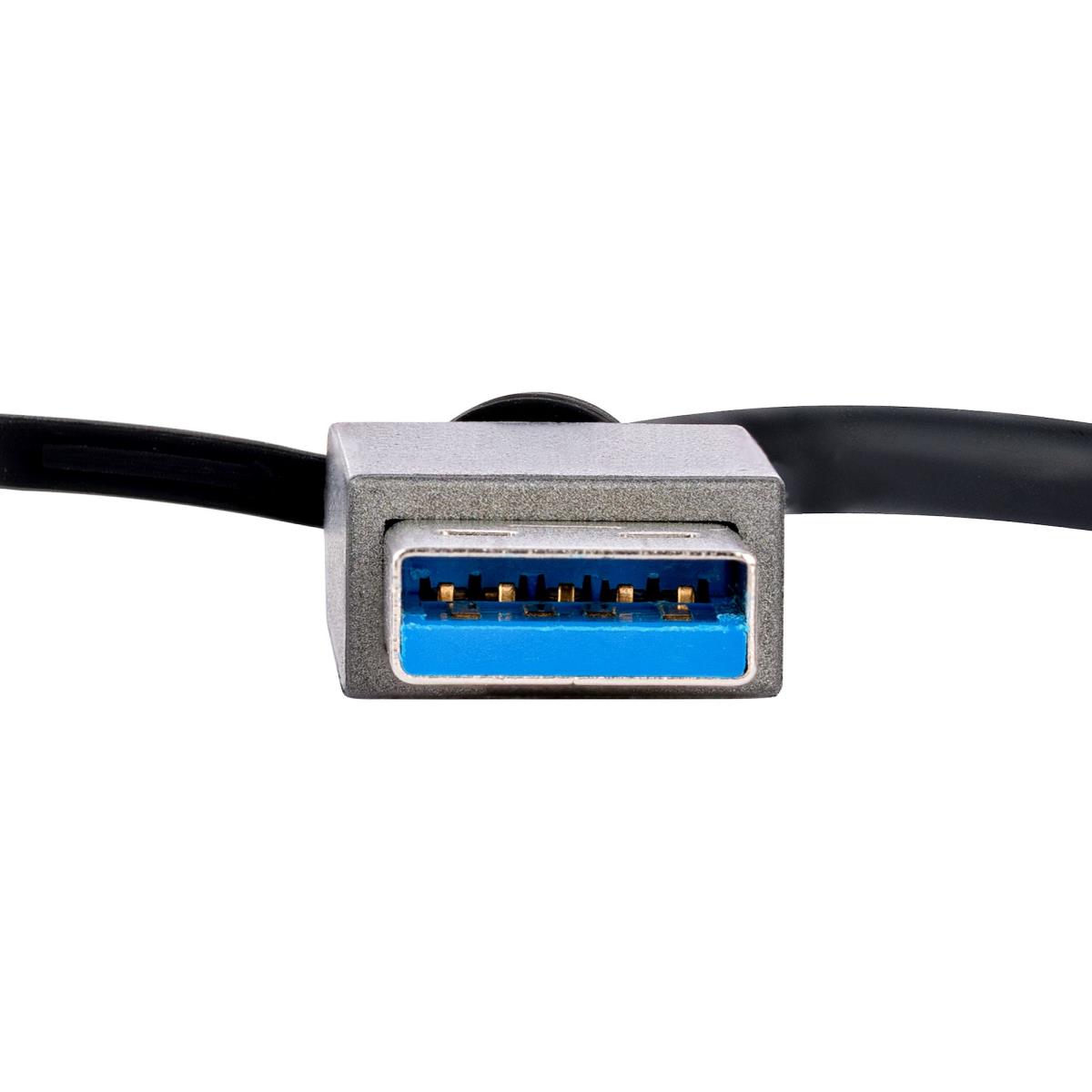

USB connector type
USB Type-A, USB Type-C
USB connector gender
Male
USB connector form factor
Straight
DVI output
N
HDMI output
Y
DisplayPort output
N
Number of displays supported
2
HDMI ports quantity
2
HDMI version
1.4
Internal memory
8192 MB
Internal memory type
DDR3
Maximum resolution
3840 x 2160 pixels
Refresh rate at maximum resolution
30 Hz
Supported graphics resolutions
1280 x 720 (HD 720),1600 x 900,1920 x 1080 (HD 1080),2560 x 1440,3840 x 2160
Audio output channels
2.0 channels
Data transfer rate (max)
5 Gbit/s
Chipset
Silicon Motion - SM768
Design
Product colour
Grey
Integrated USB cable
Y
USB cable length
0.11 m
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 11,Windows 11 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac compatibility
Y
Mac operating systems supported
Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur
Other operating systems supported
Chrome
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%

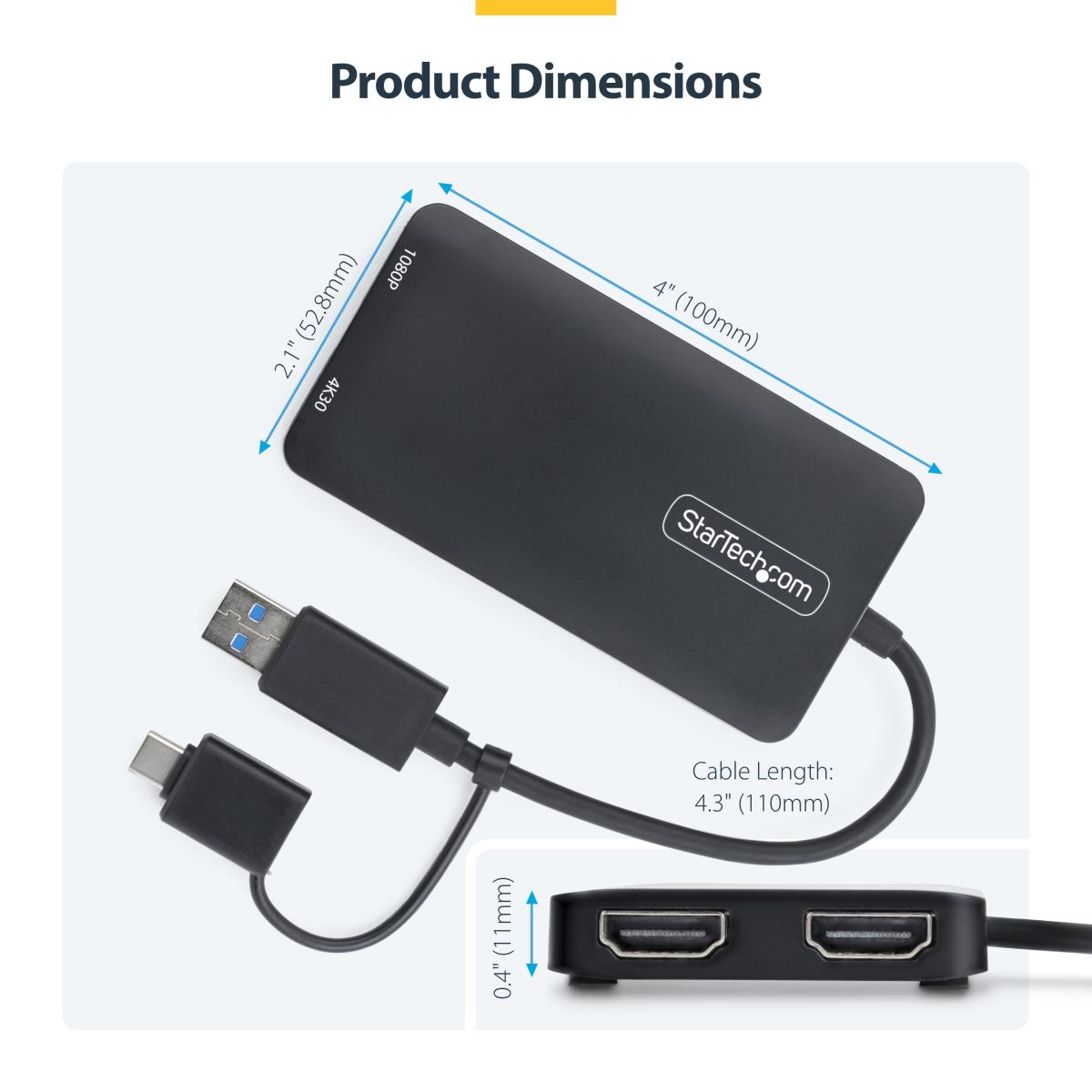

Weight & dimensions
Width
50 mm
Depth
100 mm
Height
15 mm
Weight
83 g
Package width
135 mm
Package depth
85 mm
Package height
20 mm
Package weight
80 g
Logistics data
Products per master (outer) case
100 pc(s)
Master (outer) case width
445 mm
Master (outer) case length
230 mm
Master (outer) case height
295 mm
