Product Details

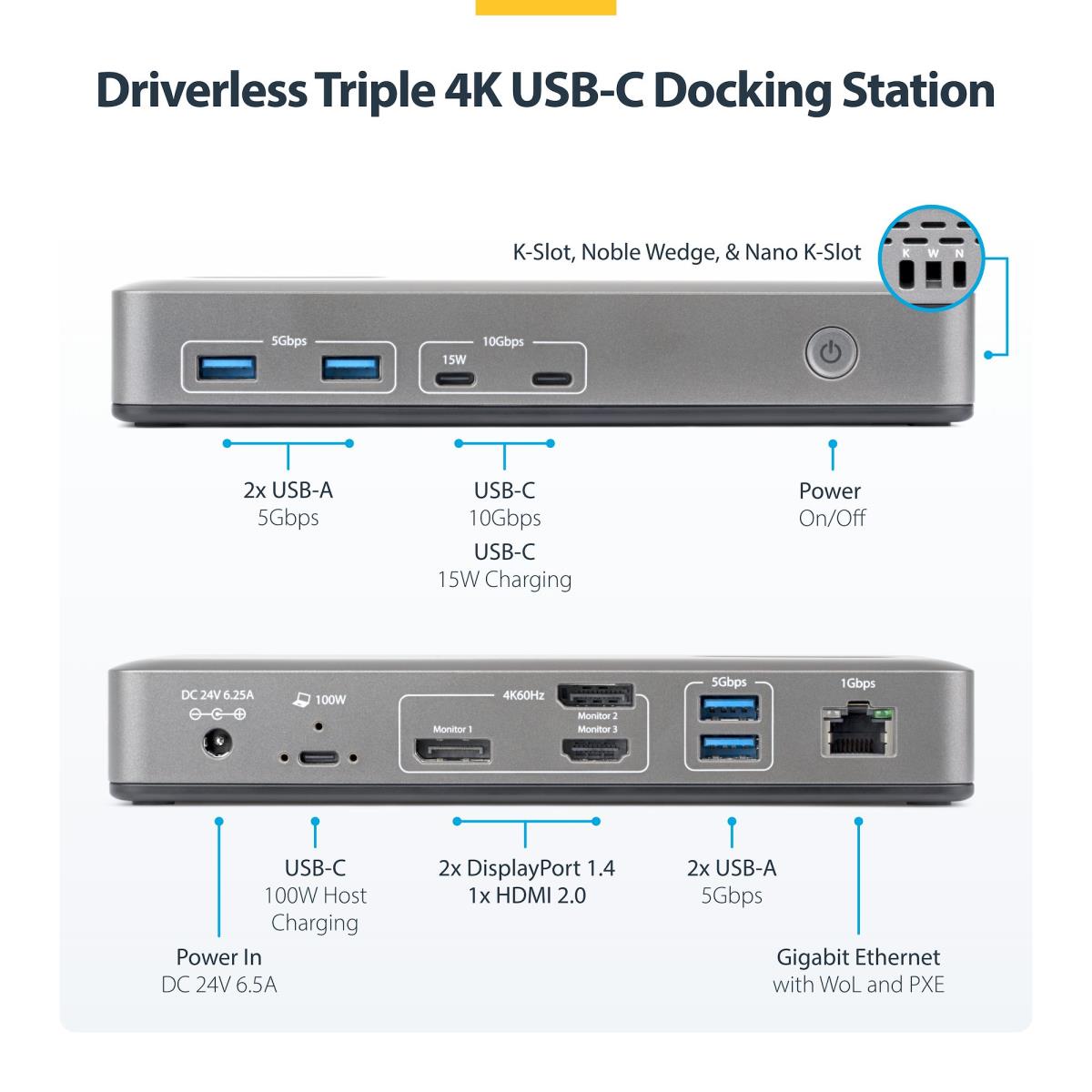

Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
HDMI ports quantity
1
HDMI version
2.0
DisplayPorts quantity
1
DisplayPort version
1.4
Microphone in
No
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Wake-on-LAN ready
Yes
Full duplex
Yes
Performance
Card reader integrated
No
Data transfer rate
10 Gbit/s
HD type
4K Ultra HD
Maximum digital resolution
4096 x 2160 pixels
Number of displays supported
2

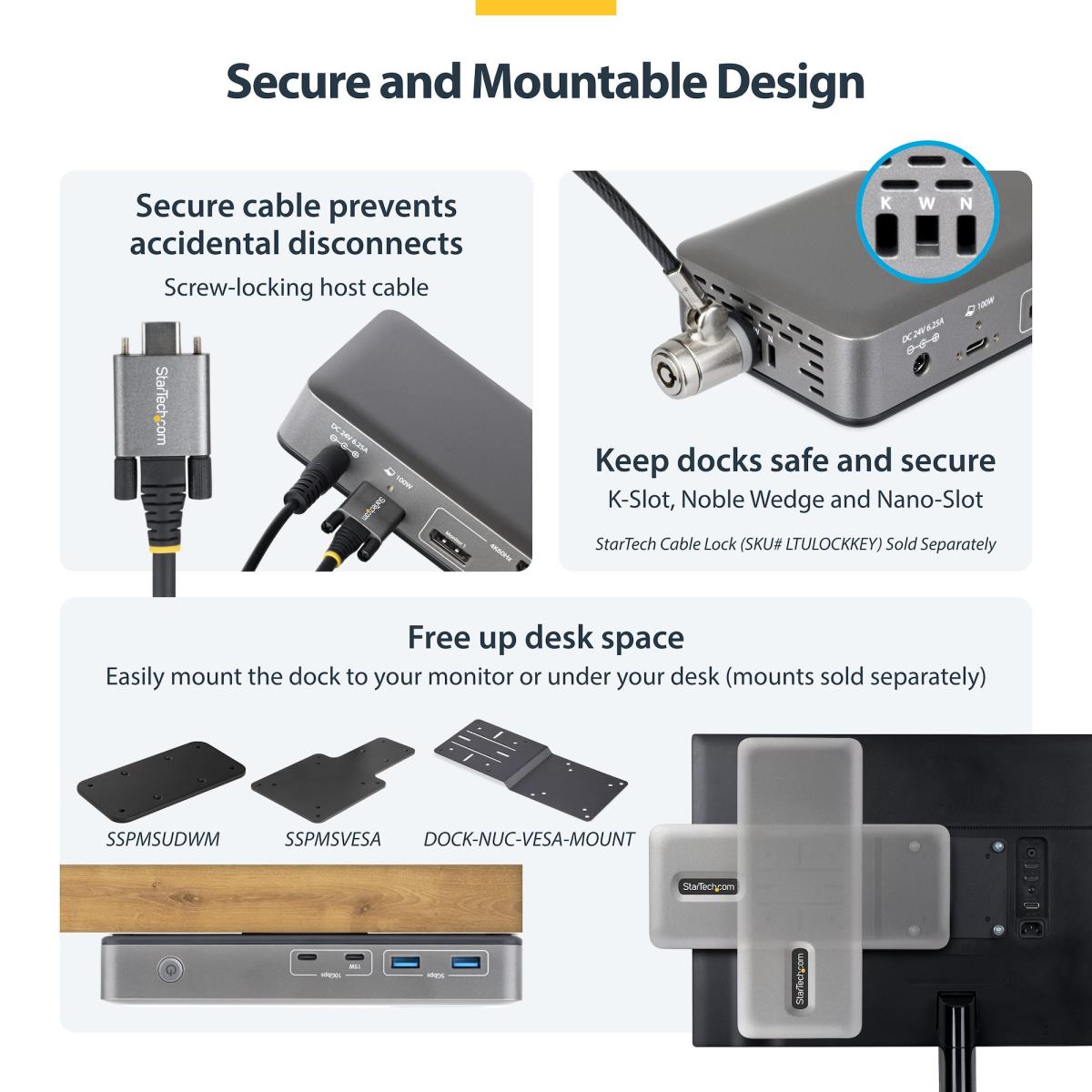

Cable lock slot
Yes
Cable lock slot type
Kensington, Nano, Wedge, Noble
Product colour
Grey
On/off switch
Yes
LED indicators
Yes
Mean time between failures (MTBF)
84290 h
Power
AC input voltage
100 - 240 V
Input current
2.5 A
Output voltage
24 V
Output current
6.25 A
Power consumption (typical)
150 W
Compatible power plug types
EU, UK
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported
Ubuntu 24.04 LTS
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
10 - 70 °C
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
79 mm
Depth
190 mm
Height
27 mm
Weight
300 g
Packaging data
Package width
250 mm
Package depth
205 mm
Package height
50 mm
Package weight
1 kg

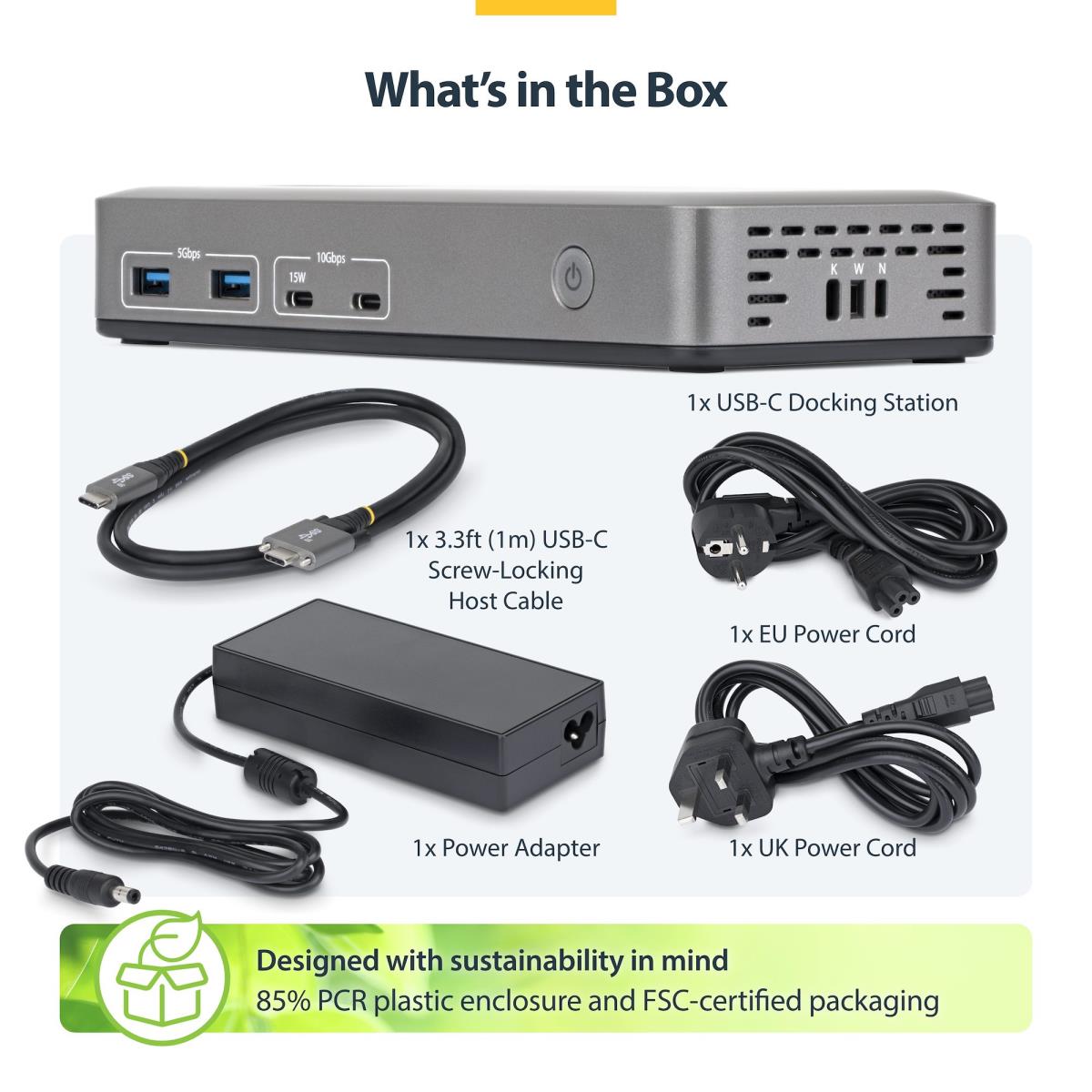

Packaging content
Cables included
USB Type-C
AC adapter included
Yes
Technical details
Compliance certificates
RoHS, Federal Communications Commission (FCC)
Logistics data
Products per master (outer) case
10 pc(s)
Master (outer) case width
430 mm
Master (outer) case length
270 mm
Master (outer) case height
280 mm
Other features
Chipset
VMM5320, VL103R, VL171, VL822, VP226, VL817, RTL8153E
Information
| Part Number: | 199UE-USBC-DOCK |
