Product Details
Ports & interfaces
Video port type
HDMI
HDMI in
2
Number of HDMI outputs
1
USB port type
Micro-USB
Features
Material
Metal
Product colour
Black
Plug and Play
Yes
Maximum operating distance
5 m
Supported graphics resolutions
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1080, 2560 x 1440, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 7680 x 4320
LED indicators
Yes
Maximum resolution
7680 x 4320 pixels
Audio output channels
7.1 channels
Power
AC input voltage
100 - 240 V
AC adapter input current
0.3 A
AC adapter output voltage
5 V
AC adapter output current
1 A
Power consumption (typical)
5 W
Weight & dimensions
Width
44 mm
Depth
90 mm
Height
14 mm
Weight
87 g
Packaging data
Package width
123 mm
Package depth
179 mm
Package height
50 mm
Package weight
312 g

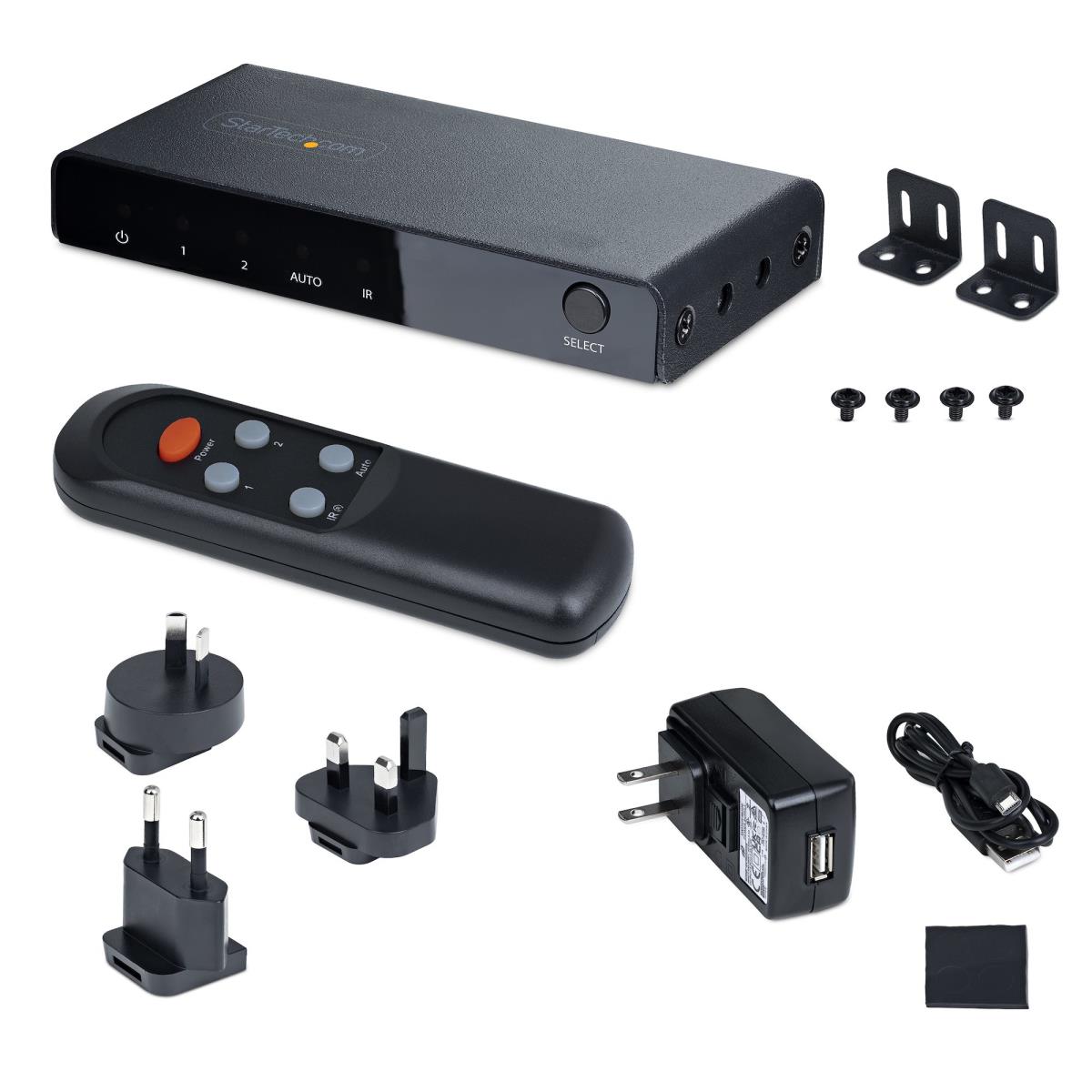

Packaging content
Mounting kit
Yes
Quick start guide
Yes
Remote control included
Yes
Cables included
USB Type-A to Micro-USB Type-B
AC adapter included
Yes
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
5 - 90%
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, RoHS
Logistics data
Master (outer) case width
550 mm
Master (outer) case length
400 mm
Master (outer) case height
280 mm
Products per master (outer) case
40 pc(s)
Technical details
Compliance certificates
CE, RoHS
Information
| Part Number: | 2PORT-HDMI-SWITCH-8K |
