Product Details
Features
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
High Dynamic Range (HDR) supported
Y
Maximum refresh rate
60 Hz
Audio output channels
7.1 channels
Electrostatic Discharge (ESD) protection
Y
Electrostatic Discharge (ESD) protection
8 kV
LED indicators
Y
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
HDCP
Y
Material
Metal
Rack mounting
N
Plug and Play
Y

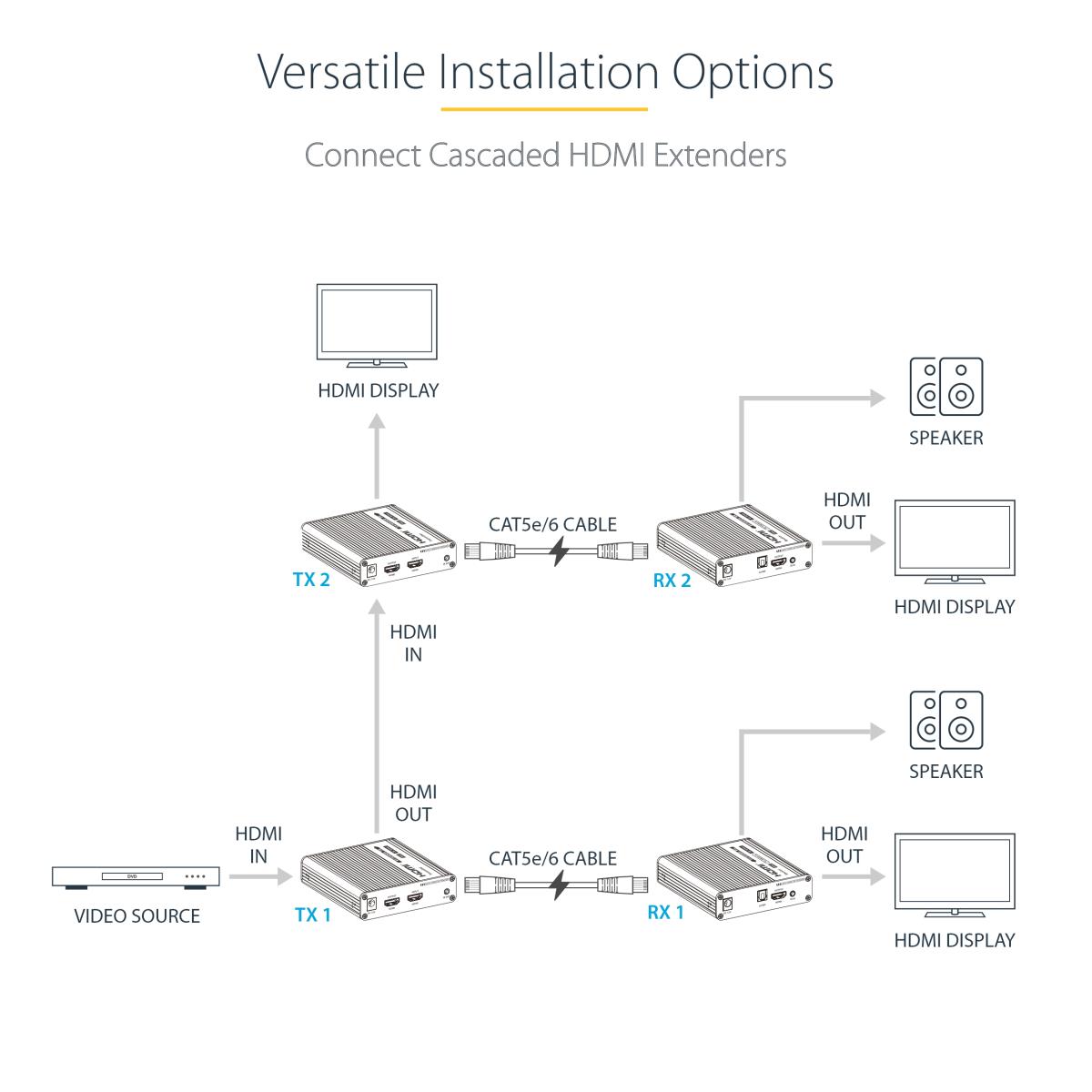

Daisy chain
Y

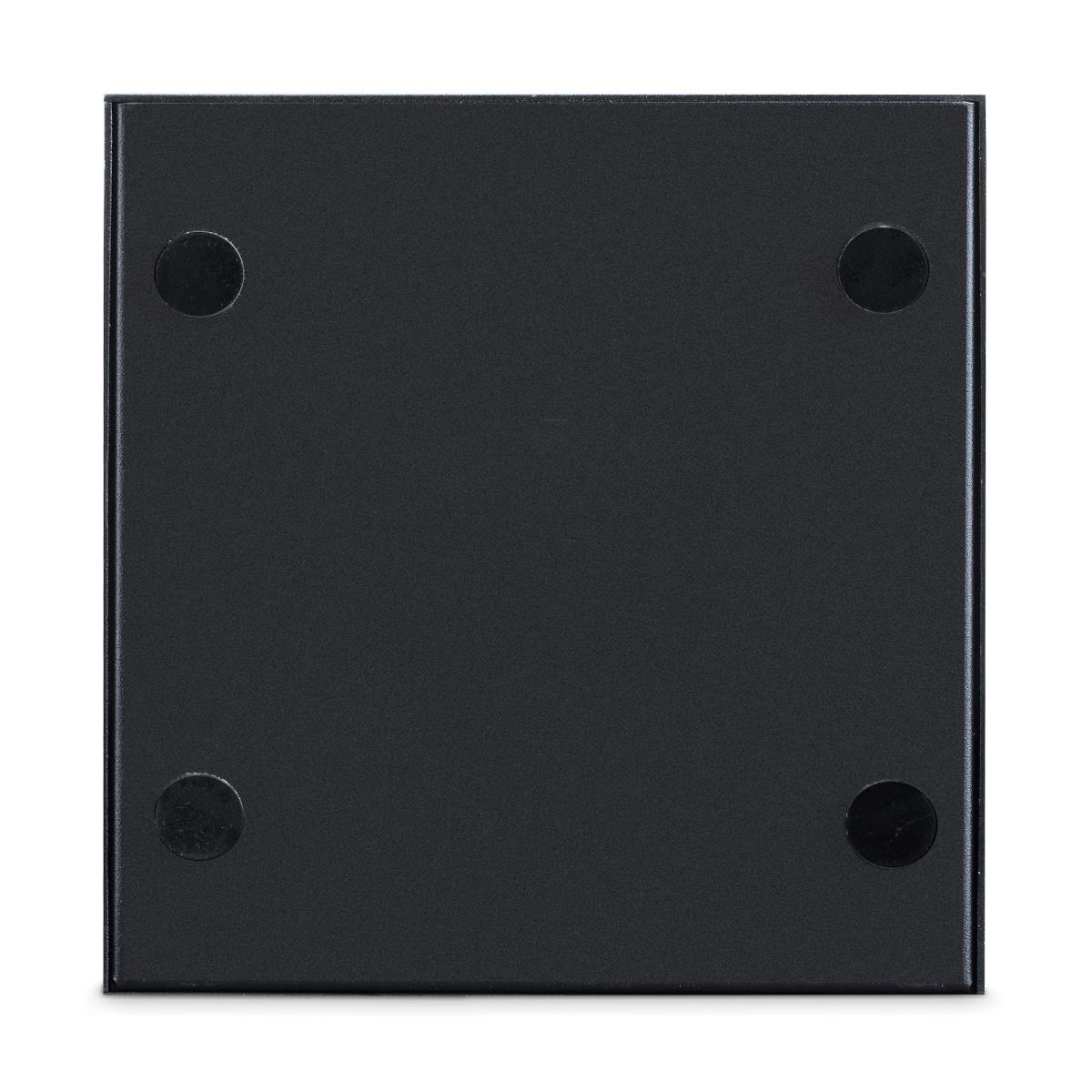

Rubber feet
Y
HDCP version
2.2
Product colour
Black

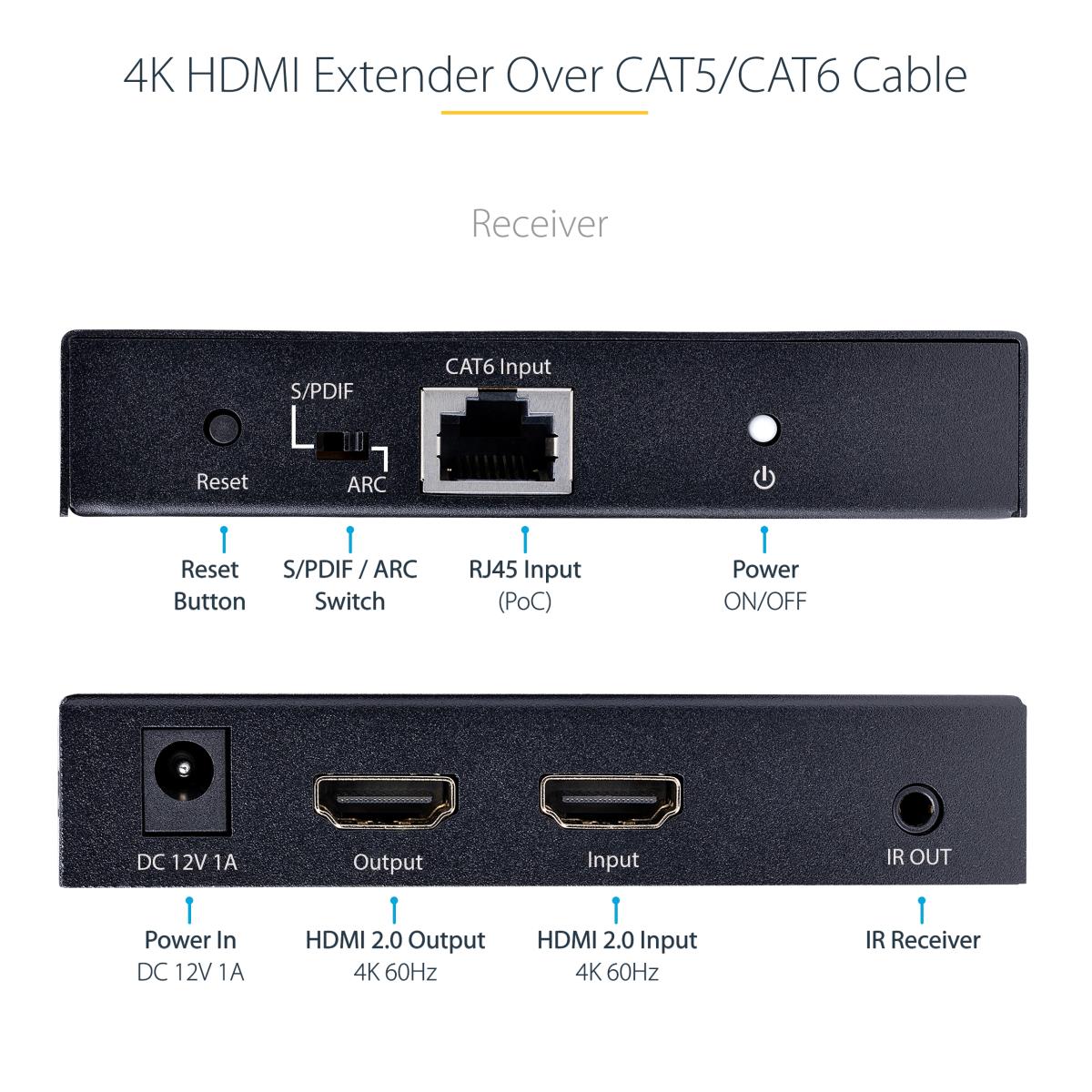

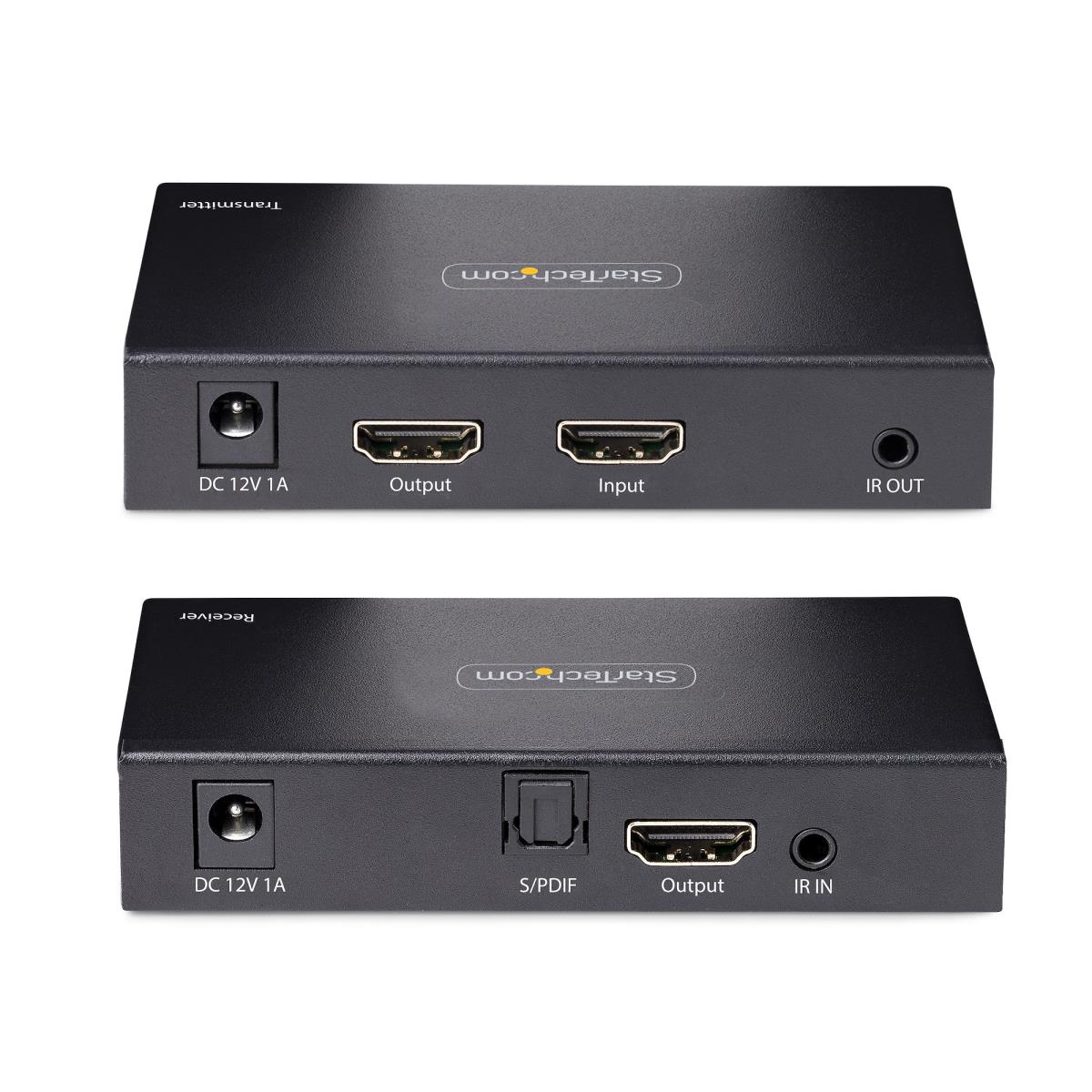

Ports & interfaces
Connectivity technology
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
2
HDMI version
2.0
Digital audio optical out
1
Remote (IR) input
1
Remote (IR) output
1
DC-in jack
Y
Power
AC input voltage
100 - 240 V
Input current
0.3 A
Operating voltage (transmitter)
12 V
Output current
1 A
Power consumption (typical)
0.1 W
External power adapter
Y
Power plug type
Type M
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Technical details
Compliance certificates
CE, RoHS
Sustainability compliance
Y
Sustainability certificates
CE, RoHS
Weight & dimensions
Width
99 mm
Depth
106 mm
Height
26 mm
Weight
210 g
Packaging data
Package width
240 mm
Package depth
176 mm
Package height
80 mm
Package weight
900 g

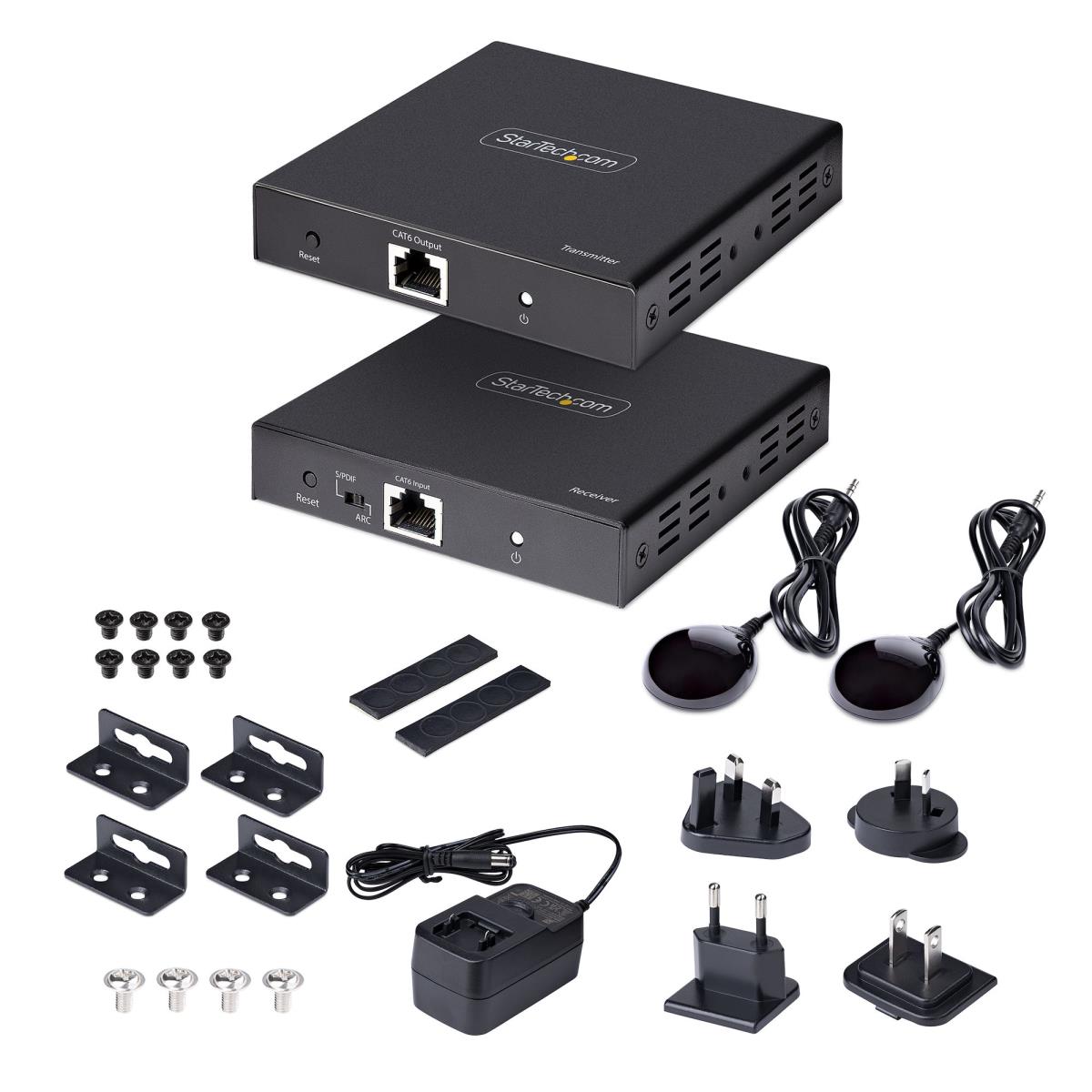

Packaging content
AC adapter included
Y
Quick start guide
Y
IR blaster included
Y
IR receiver included
Y
Mounting kit
Y
Logistics data
Master (outer) case width
380 mm
Master (outer) case length
270 mm
Master (outer) case height
420 mm
Products per master (outer) case
10 pc(s)
Information
| Part Number: | 4K70IC-EXTEND-HDMI |
