Introduction

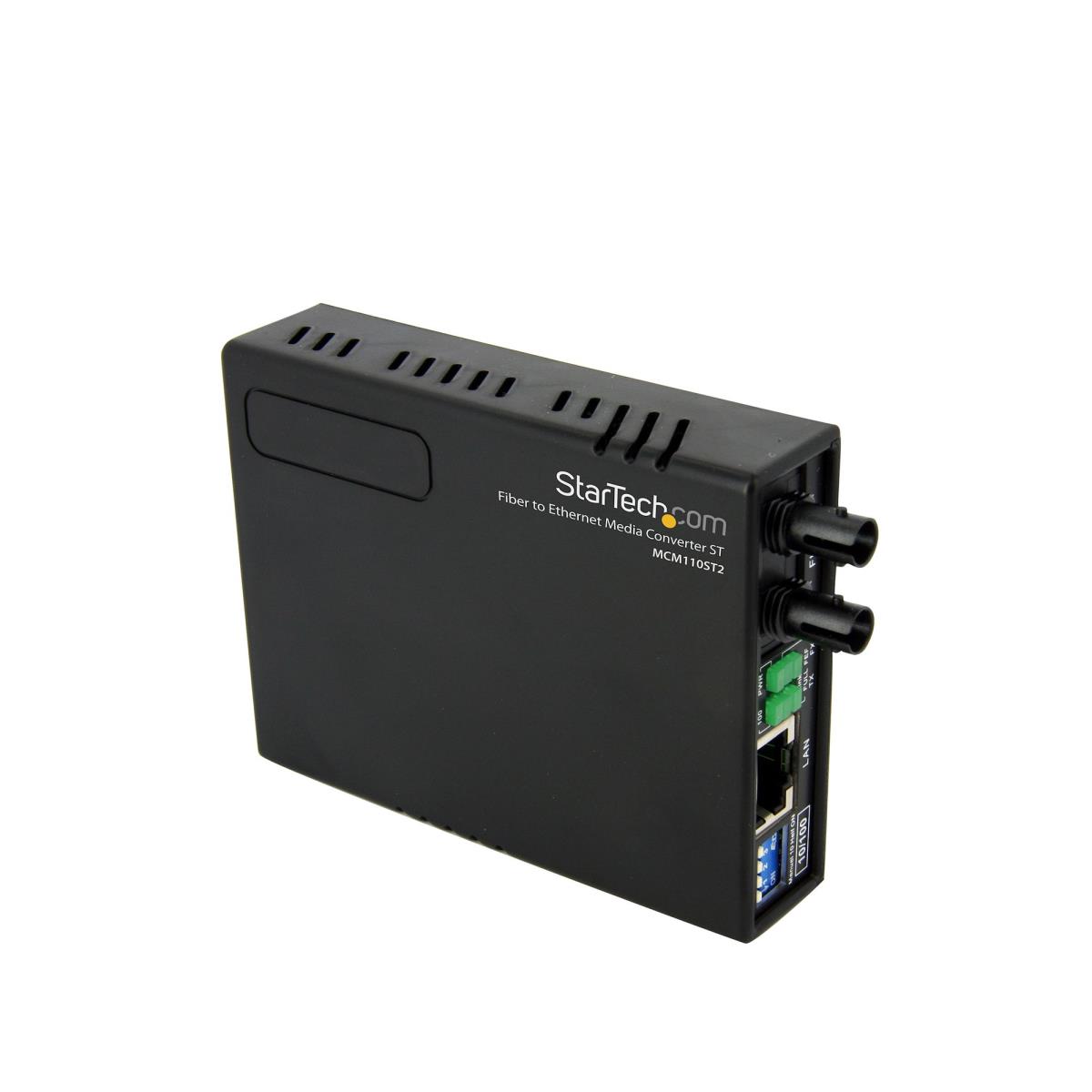

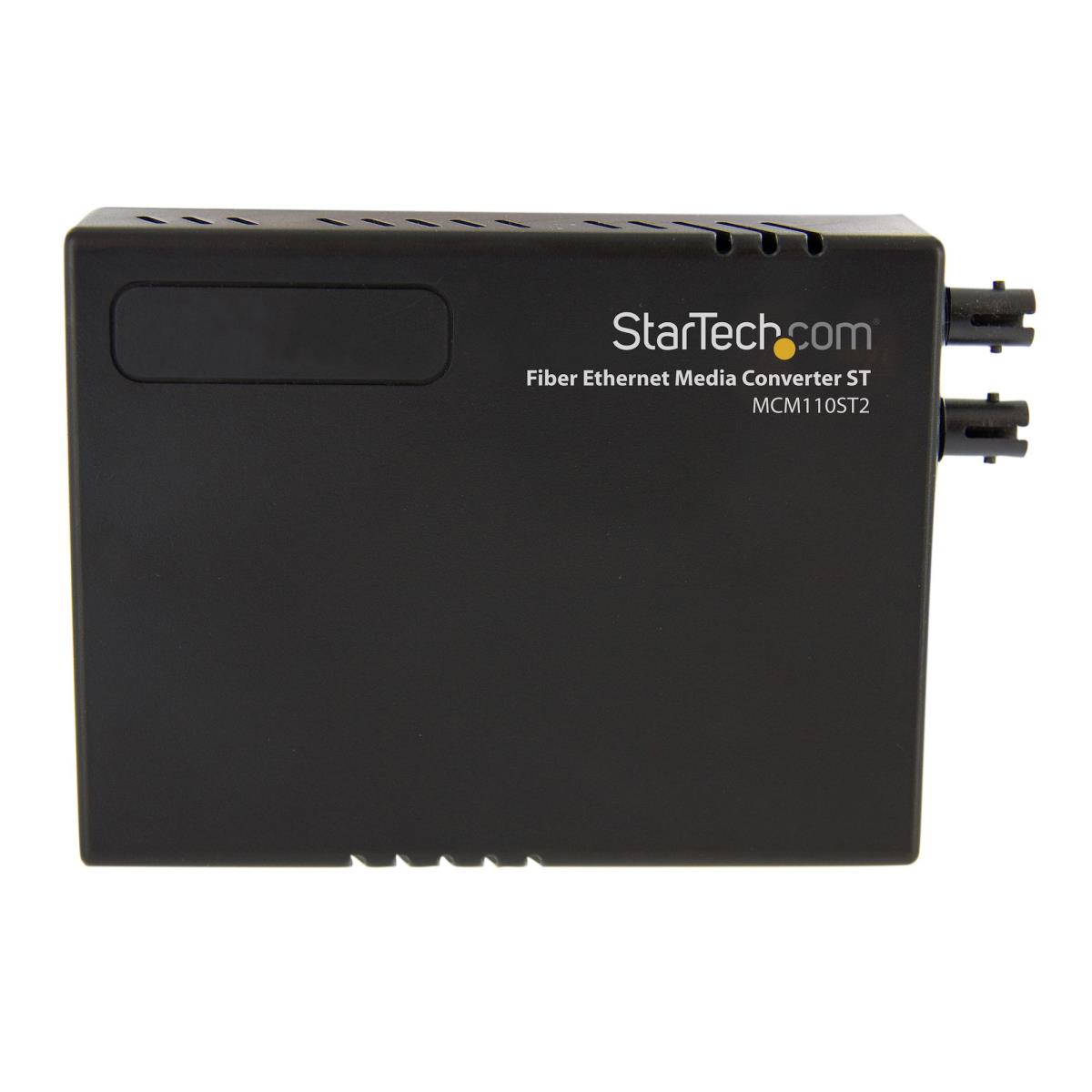

This Ethernet to MM Fiber Media Converter creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

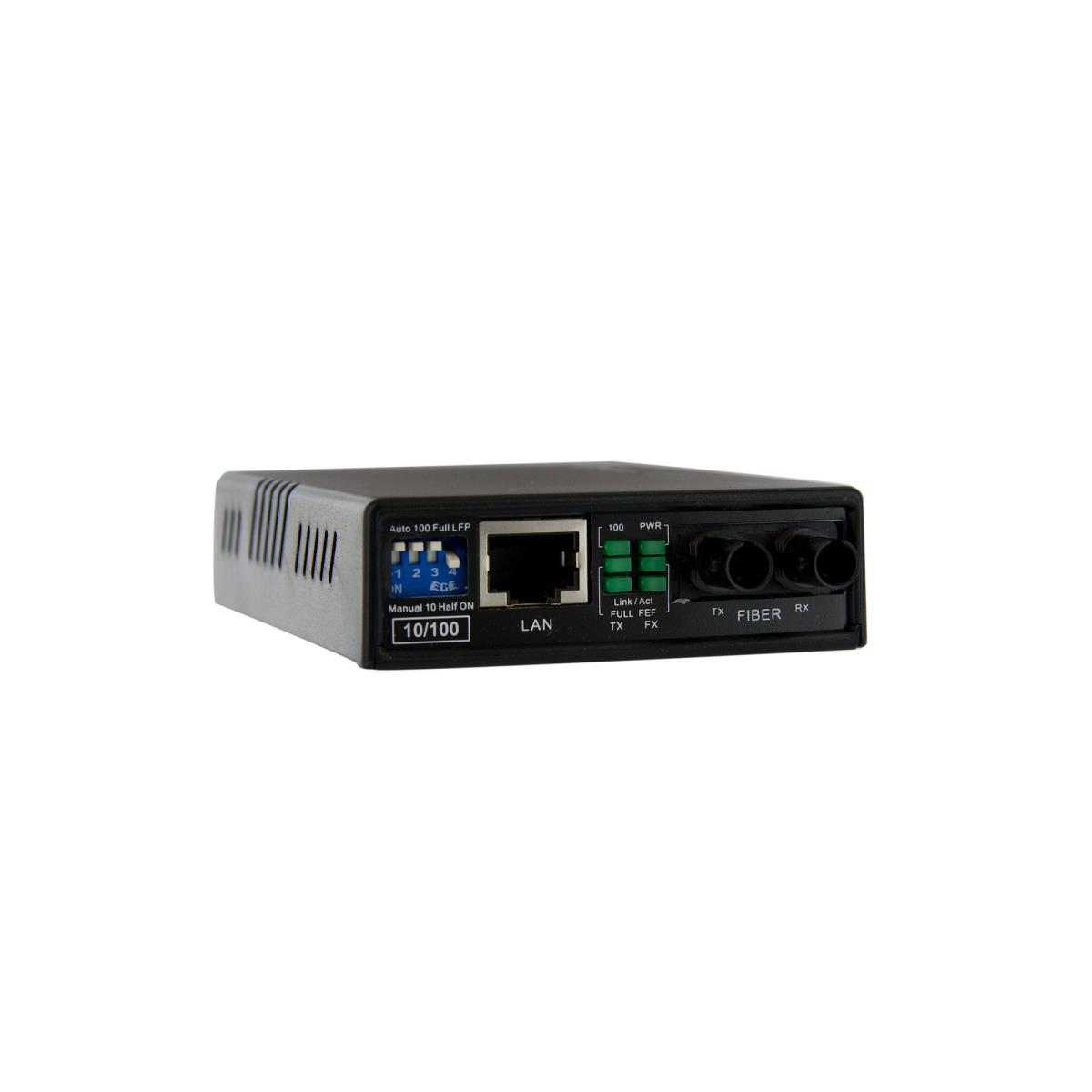

Easy to setup and install, this compact, value-conscious media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Network
Converter input interface
10Base-T
Converter output interface
100Base-FX
Networking standards
IEEE 802.3, IEEE 802.3u
Jumbo frames support
Yes
Jumbo frames
9000
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Maximum data transfer rate
100 Mbit/s
Cabling technology
10Base-T, 100Base-Tx, 100Base-Fx
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
ST

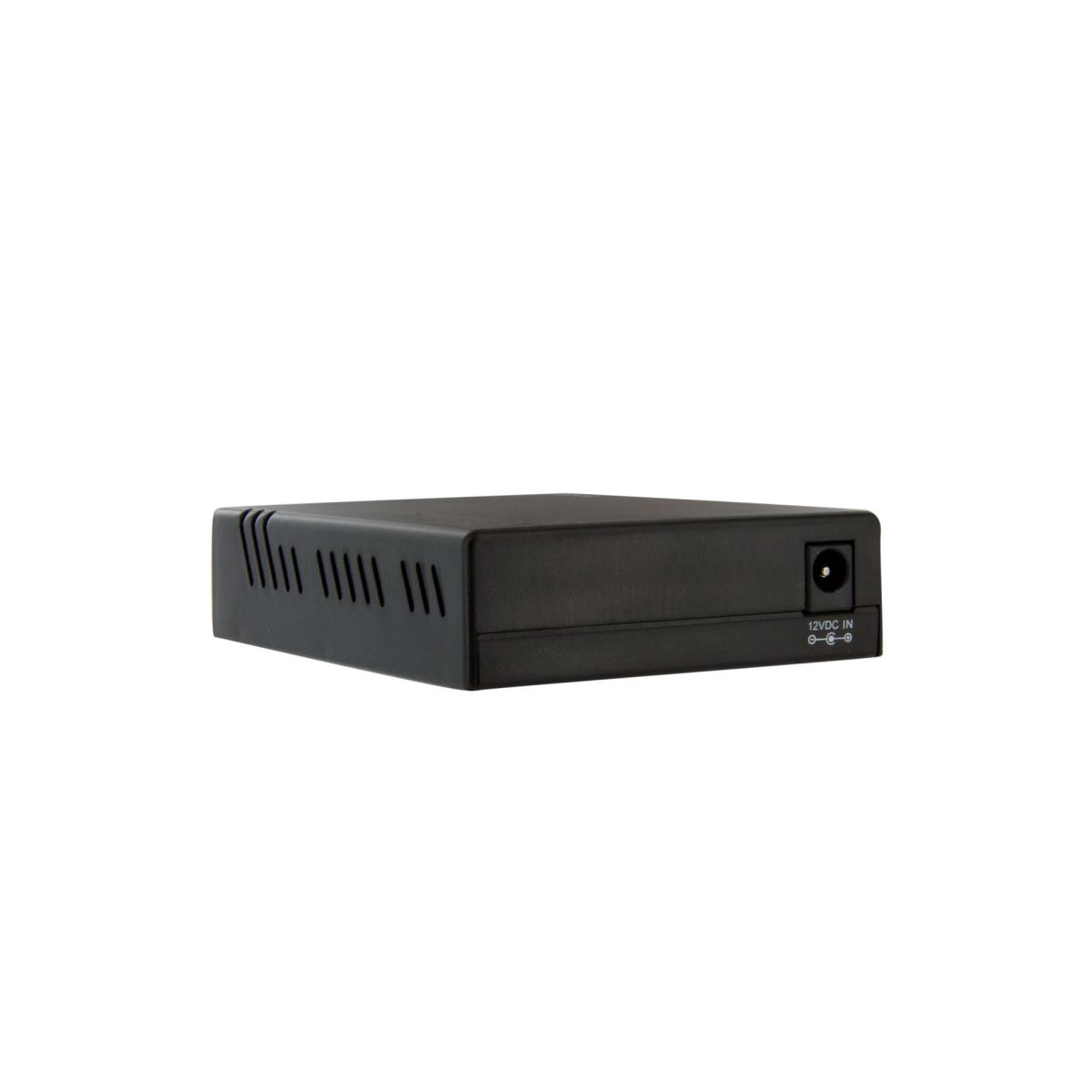

DC-in jack
Yes
Connectivity technology
Wired
Performance
Wavelength
1310 nm
Wavelength-division multiplexing (WDM)
No
Fiber mode structure
Multi-mode
Maximum transfer distance
2000 m
Design
Internal
No
LED indicators
Activity, Link, Power, Speed
Product colour
Black
Power
Input voltage
100 - 240 V
Output voltage
12 V
Output current
0.2 A
Power consumption (typical)
2.4 W
External power adapter
Yes
Power plug type
Type M
Weight & dimensions
Width
75 mm
Depth
95 mm
Height
20 mm
Weight
90.5 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Packaging content
AC adapter included
Yes
Manual
Yes
Logistics data
Master (outer) case width
390 mm
Master (outer) case length
480 mm
Master (outer) case height
300 mm
Products per master (outer) case
1 pc(s)
Technical details
Compliance certificates
CE, RoHS
Harmonized System (HS) code
85176990
Packaging data
Package width
145 mm
Package depth
175 mm
Package height
65 mm
Package weight
280 g
Other features
Interface
LAN
Full duplex
Y
Fiber type
MM, FX, ST
