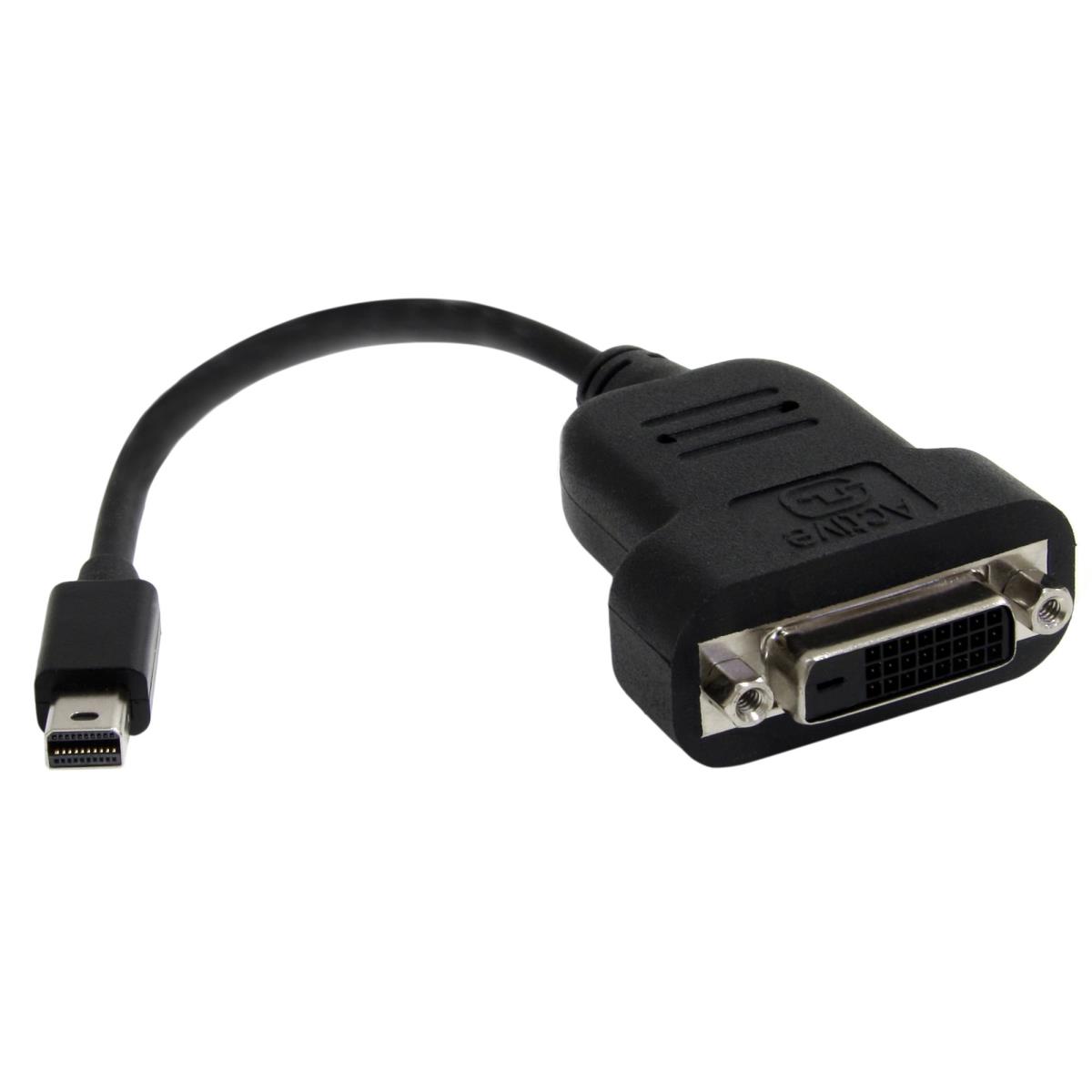

STARTECH.COM Mini DisplayPort To DVI Active Adapter

£21.91

Part Number: MDP2DVIS
Delivery: 1 - 2 days

Product Details

Introduction

Connect a DVI monitor to a single-mode DisplayPort output from your computerThe MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® SurfaceT Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.The Mini DP to DVI adapter is compatible with Intel® ThunderboltT, when connected directly to a supporting DisplayPort over ThunderboltT I/O port.Backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage

Technical details

Compliance certificates CE, RoHS
Harmonized System (HS) code 84733080

Features

Connector 1 form factor Straight
Connector 2 form factor Straight
Cable length 0.12 m

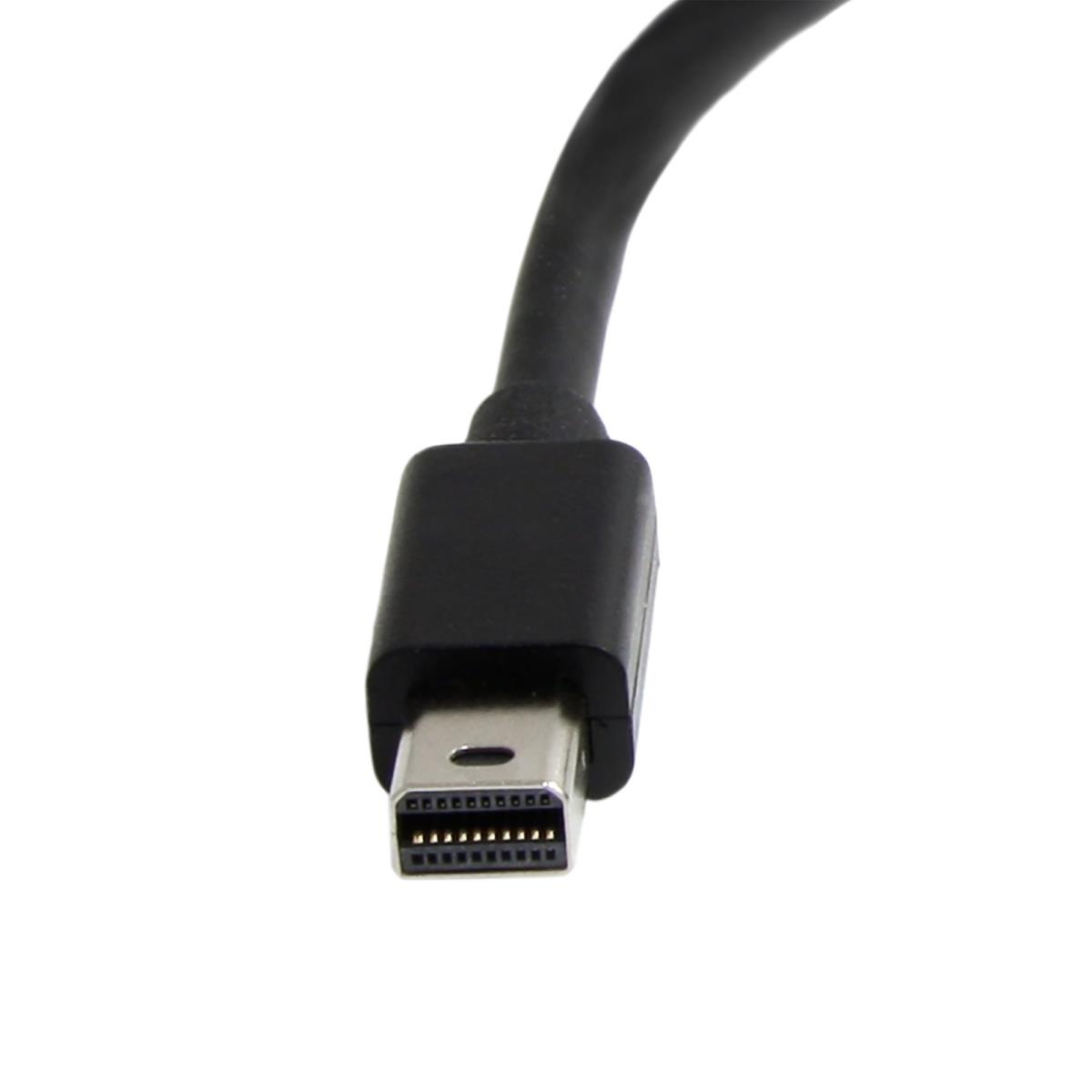

Connector 1 Mini DisplayPort

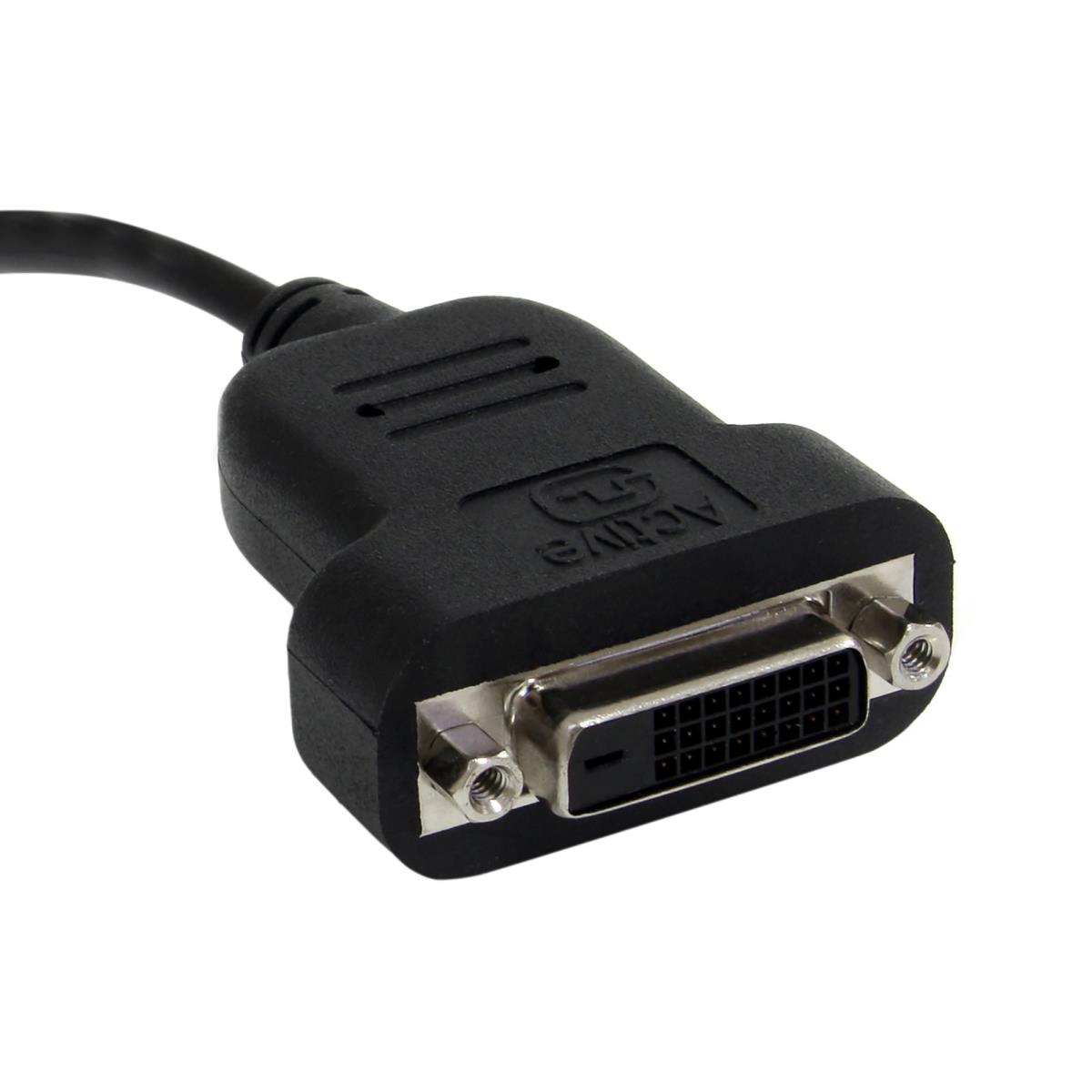

Connector 2 DVI-D
Connector 1 gender Male
Connector 2 gender Female
HDCP Y
HDCP version 1.3
DisplayPort version 1.2
Dual Link DVI N
Maximum resolution 1920 x 1200 pixels
Maximum refresh rate 60 Hz
Product colour Black
Jacket material Low smoke zero halogen (LSZH)
Plug and Play Y
Converter type Active video converter

Operational conditions

Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) 0 - 70 °C

Sustainability

Sustainability certificates CE, RoHS

Weight & dimensions

Weight 38 g
Width 44 mm
Depth 200 mm
Height 20 mm

Packaging data

Quantity per pack 1 pc(s)
Package width 200 mm
Package depth 220 mm
Package height 19 mm
Package weight 47 g

Logistics data

Master (outer) case width 495 mm
Master (outer) case length 339 mm
Master (outer) case height 220 mm
Products per master (outer) case 90 pc(s)
