Product Details
Introduction

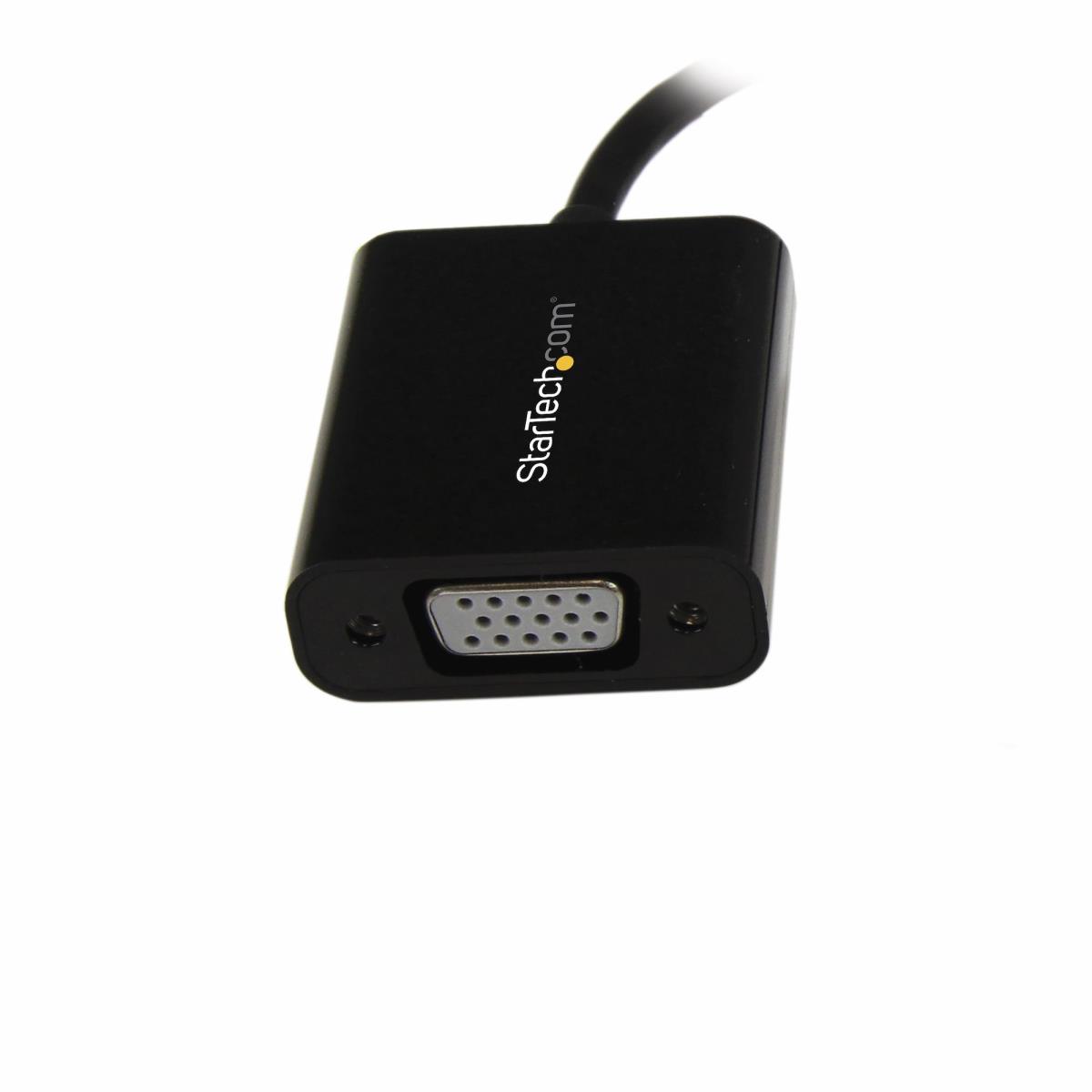

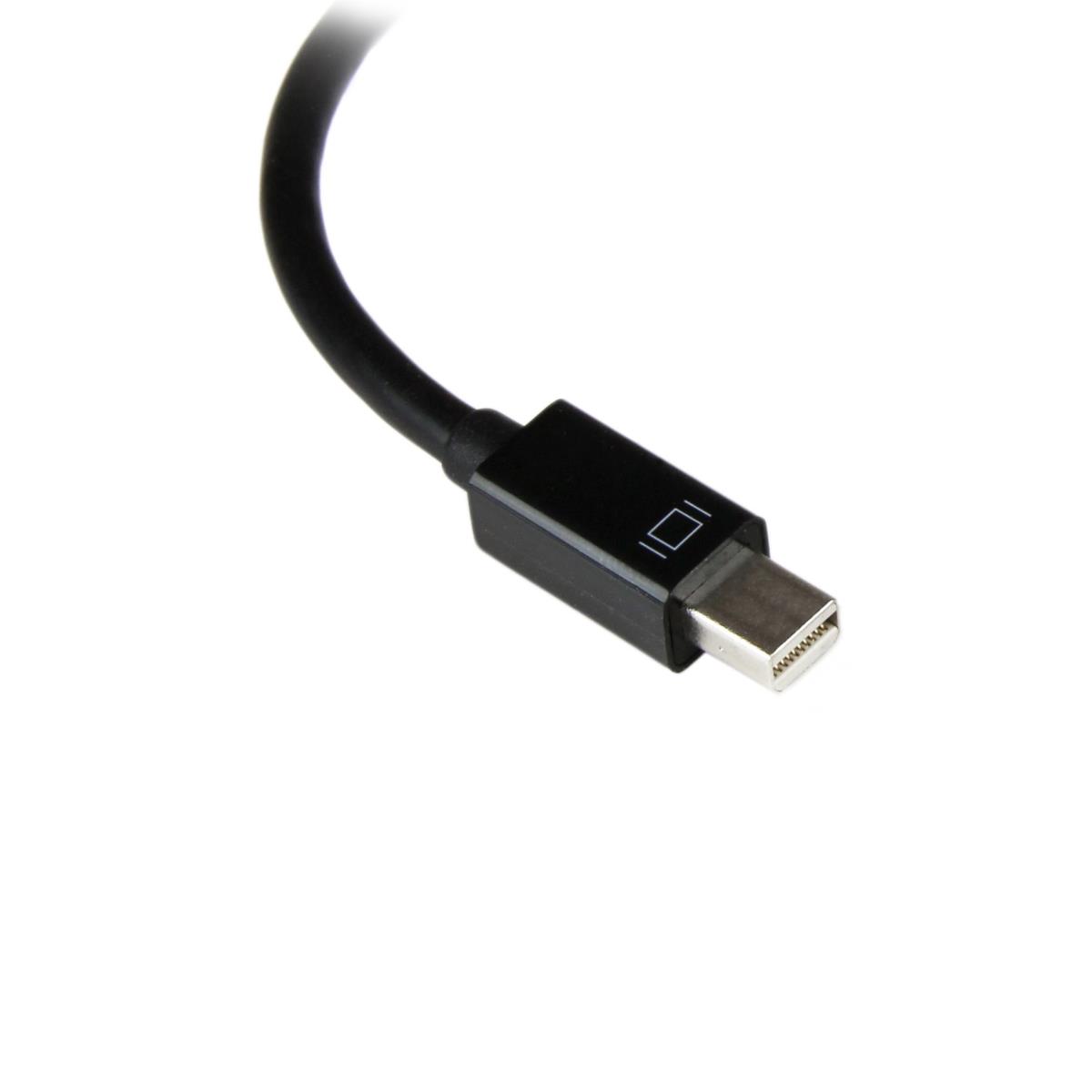

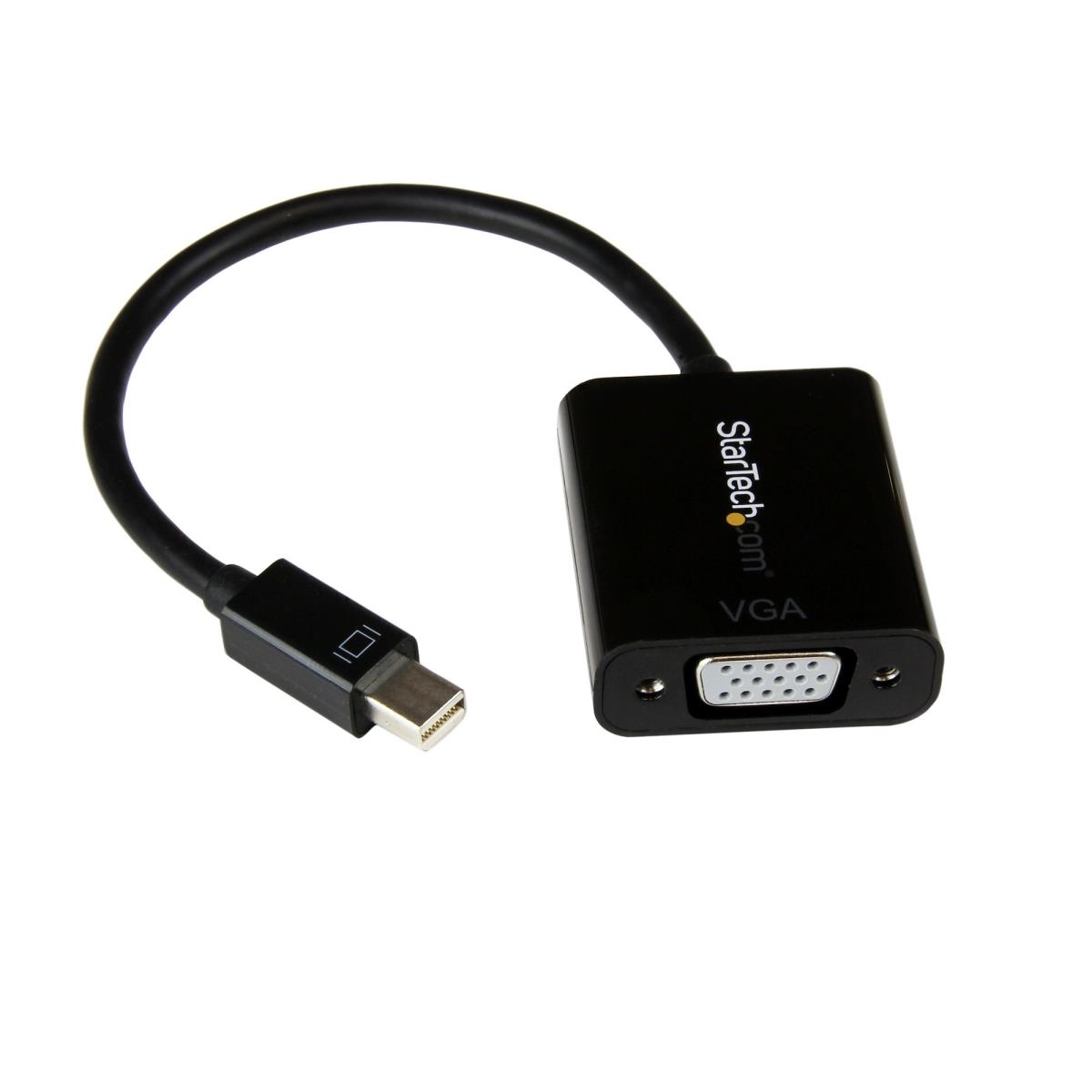

Connect a Mini DisplayPort 1.2-equipped PC or MacŪ to a VGA Monitor or ProjectorThe StarTech.com Advantage
Technical details
Compliance certificates
CE, RoHS
Harmonized System (HS) code
84733080
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Cable length
0.18 m
Connector 1
Mini DisplayPort
Connector 2
VGA (D-Sub)
Connector 1 gender
Male
Connector 2 gender
Female
DisplayPort version
1.2
Maximum resolution
1920 x 1200 pixels
Supported video modes
720p,1080p
Maximum refresh rate
60 Hz
HBR2 support
Y
Product colour
Black
Chipset
Analogix - ANX9833
Plug and Play
Y
Converter type
Active video converter
Certification
RoHS, CE, FCC
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
10 - 85%
Sustainability
Sustainability certificates
CE, RoHS
Weight & dimensions
Weight
27 g
Width
35 mm
Depth
220 mm
Height
8 mm
Packaging data
Package width
200 mm
Package depth
220 mm
Package height
18 mm
Package weight
36 g
Logistics data
Master (outer) case width
330 mm
Master (outer) case length
500 mm
Master (outer) case height
213 mm
Products per master (outer) case
150 pc(s)
Information
| Part Number: | MDP2VGA2 |
