STARTECH.COM Hdmi Video Splitter And Signal Amplifier 2 Port

£72.60

Part Number: ST122HDMI2
Delivery: 1 - 2 days

Product Details

Introduction

Split an HDMI audio and video signal to two displays simultaneously

The ST122HDMI2 2-Port High Speed HDMI Splitter and Signal Amplifier lets you share a single HDMI source signal with audio between two HDMI or DVI (using HDMI to DVI adapter - see Accessories) enabled displays simultaneously.

Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 50ft (15m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.

The HDMI splitter is easy to install and use with no software or configuration required, for a completely plug-and-play setup that can be used with HDMI output devices such as Blu-ray players or desktop/laptop computers.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Signal amplification distributes HDMI signals without degradation or loss of signal quality
- Support for High Speed HDMI ensures compatibility with the latest HDMI devices and features
- Plug-and-play setup with no software or configuration allows you to be setup in minutes

Logistics data

Master (outer) case width 352 mm
Master (outer) case length 384 mm
Master (outer) case height 332 mm
Products per master (outer) case 12 pc(s)
Harmonized System (HS) code 85176990

Technical details

Compliance certificates RoHS
Sustainability certificates RoHS

Ports & interfaces

Video port type HDMI
Video out 2x HDMI
Video ports quantity 2
Audio ports quantity 2

Features

Product colour Black
Housing material Steel
Maximum resolution 1920 x 1200 pixels
Maximum operating distance 15 m
LED indicators Y
Certification CE, FCC, TAA, REACH

Power

AC input voltage 100 - 240 V
Input current 0.6 A
Output voltage 12 V
Output current 1.5 A
Power consumption (typical) 13 W

Weight & dimensions

Width 80 mm
Depth 180 mm
Height 20 mm
Weight 380 g

Packaging data

Package width 221 mm
Package depth 97 mm
Package height 98 mm
Package weight 716 g

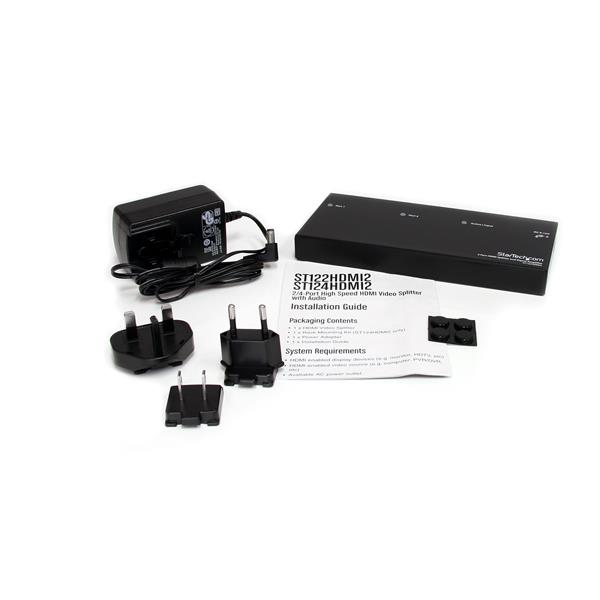

Packaging content

Manual Y
AC adapter included Y
Included power plug types AU,EU,NA,UK

Operational conditions

Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%

Information

Part Number: ST122HDMI2
