USB 2.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows

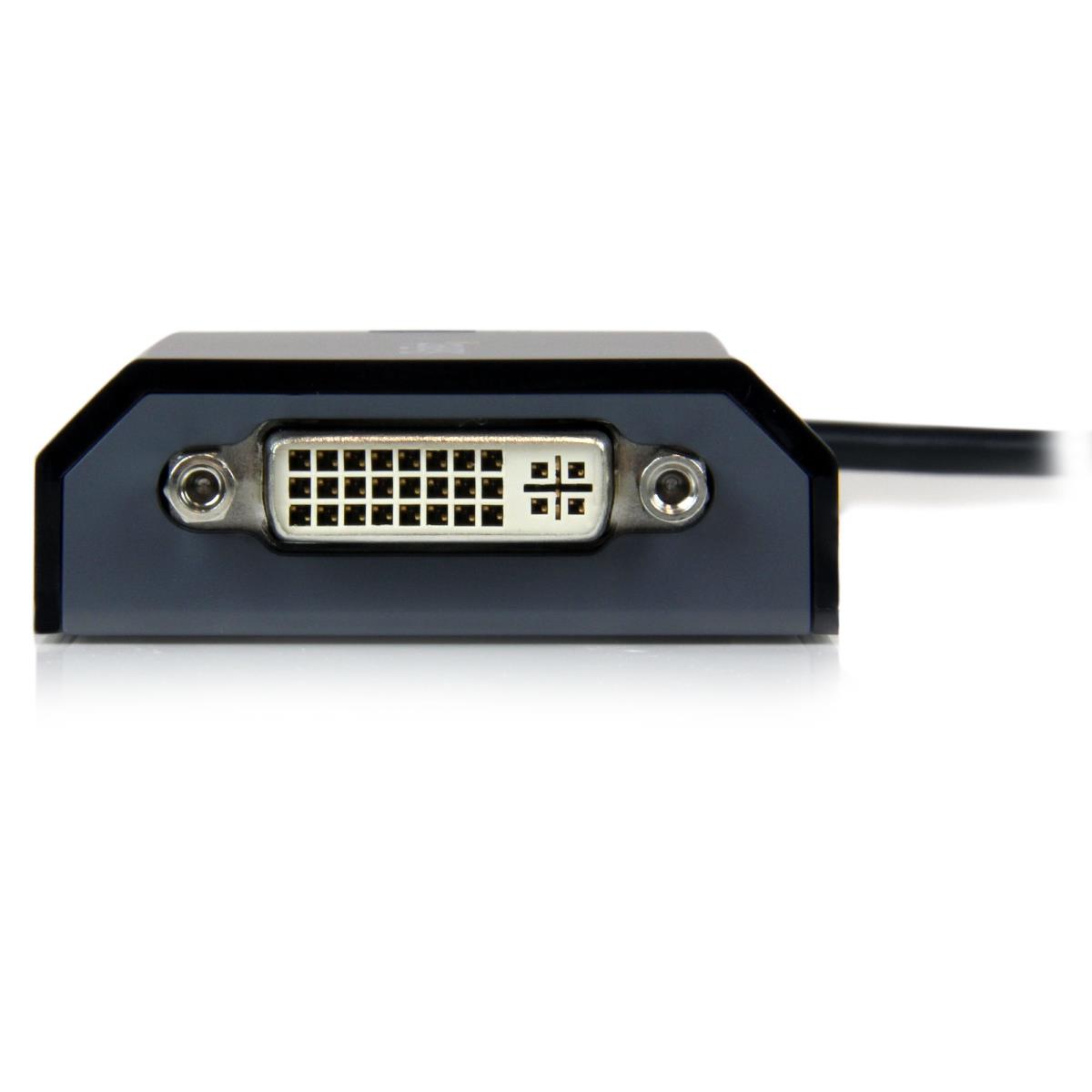

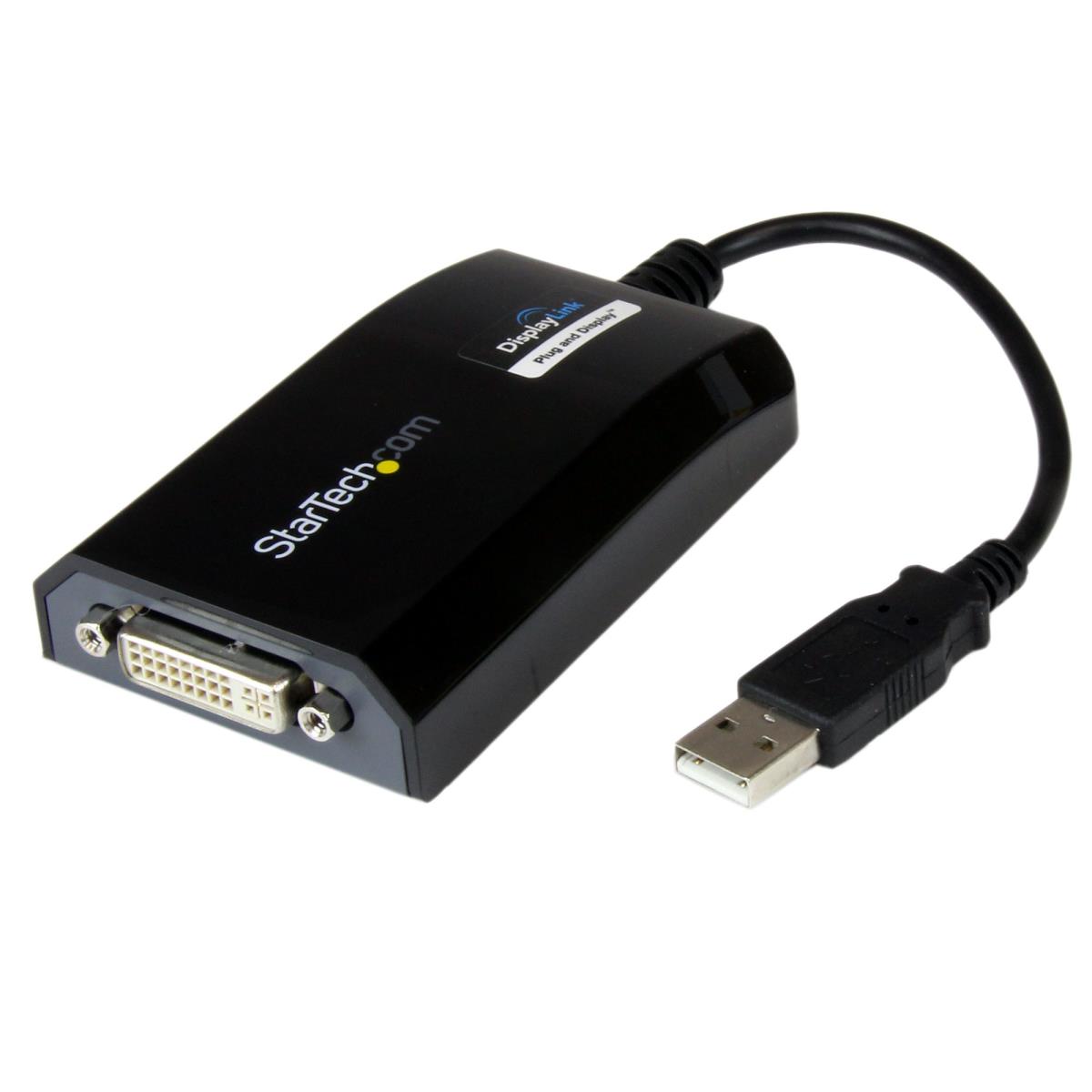

The USB2DVIPRO2 USB to DVI Adapter functions as an external graphics card for Windows and Mac computers - the perfect solution for turning your desktop or laptop computer into a dual or multi-monitor environment, all through the simplicity and convenience of USB.
The USB-DVI Adapter delivers high quality video (up to 1920x1200) for a variety of applications and is capable of simultaneously running up to five additional displays from a single computer (using four USB2DVIPRO2 External Video Adapters). The adapter connects to a host computer through a USB 2.0 port, acting as an external DVI video card to either extend or mirror the desktop shown on the existing display - without having to open the computer case.
Featuring driver support for Microsoft Windows (including Aero themes) and Mac OS X, and with video support for resolutions up to 1920x1200, this USB-DVI video adapter is the ideal solution for a wide rade of operating environments as well as large-screen displays/monitors.
The USB2DVIPRO2 USB to DVI Adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- The graphics adapter supports high-performance requirements and high resolution video, making it suitable for connecting large-screen monitors
- USB-powered operation eliminates the need for an external power adapter, enabling you to position an additional monitor without having to make the extra power connection or carry an additional cable for mobile applications
- Completely external device offers a simple upgrade solution saving the cost and hassle of upgrading the internal video card on your system, which in many cases would void manufacturers warranties
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733020
Sustainability certificates
RoHS
Logistics data
Products per master (outer) case
40 pc(s)
Master (outer) case width
427 mm
Master (outer) case length
436 mm
Master (outer) case height
324 mm
Performance
USB connector type
USB Type-A
USB connector gender
Male
USB version
2.0
DVI output
Y
HDMI output
N
DisplayPort output
N
Number of displays supported
1
DVI connector type
DVI-I
Internal memory
16 MB
Maximum resolution
1920 x 1200 pixels
Supported graphics resolutions
640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1366 x 768,1440 x 900,1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1200 (WUXGA)
LED indicators
Power
Chipset
DisplayLink - DL-195
USB pass-through
N
Certification
CE, FCC, DisplayLink, REACH
Design
Product colour
Black
Integrated USB cable
Y
USB cable length
0.165 m
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac compatibility
Y
Mac operating systems supported
Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Linux operating systems supported
Ubuntu 14.04,Ubuntu 16.04
Other operating systems supported
Chrome
Minimum processor speed
1.2 GHz
Minimum RAM
0.512 GB
Minimum storage drive space
30 MB
Operational conditions
Operating temperature (T-T)
10 - 40 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
0 - 85%
Weight & dimensions
Width
55 mm
Depth
270 mm
Height
20 mm
Weight
70 g
Package width
211 mm
Package depth
146 mm
Package height
42 mm
Package weight
245 g
Packaging content
Drivers included
Y
Interface adapters included
DVI-I male - VGA female
Manual
Y
