Introduction
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows

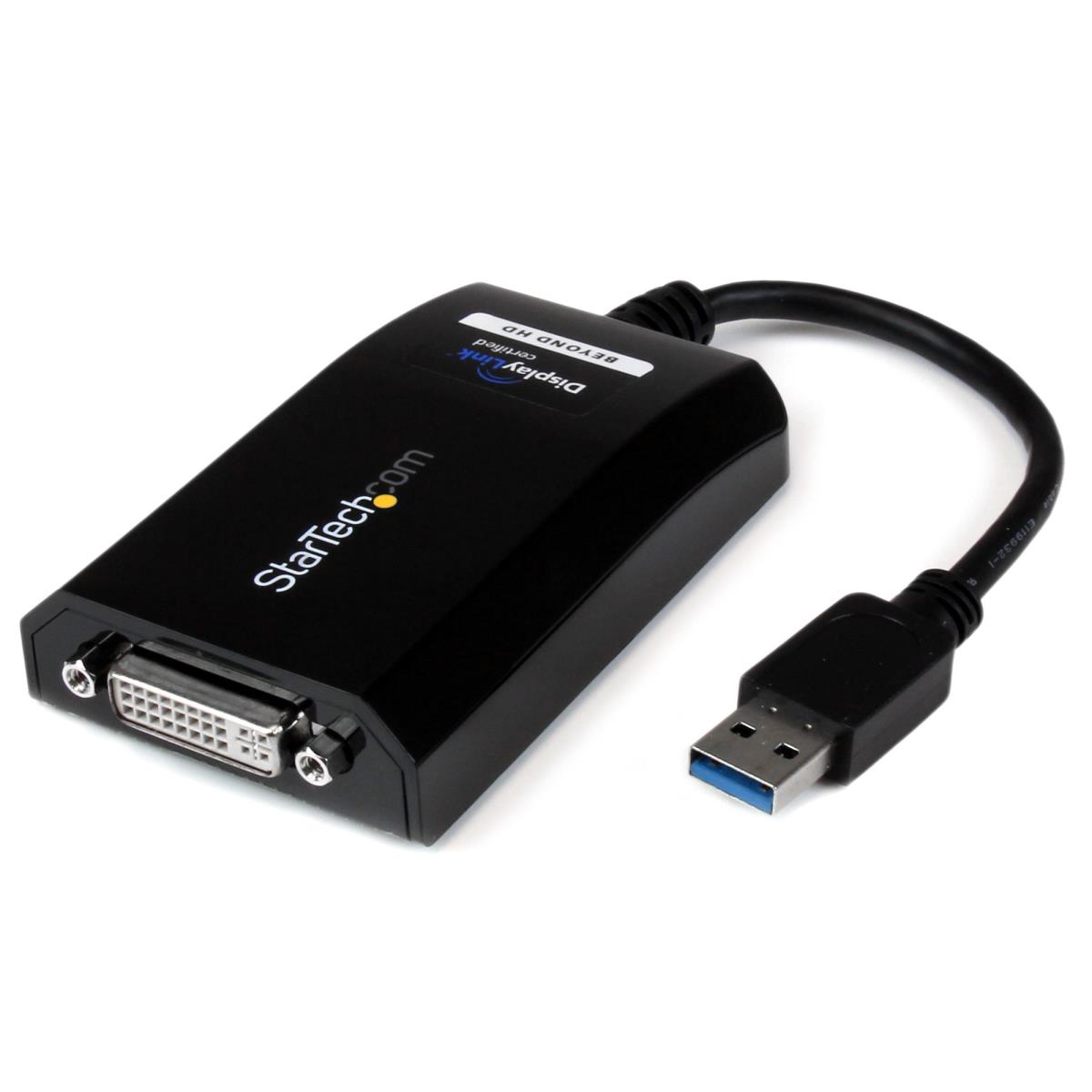

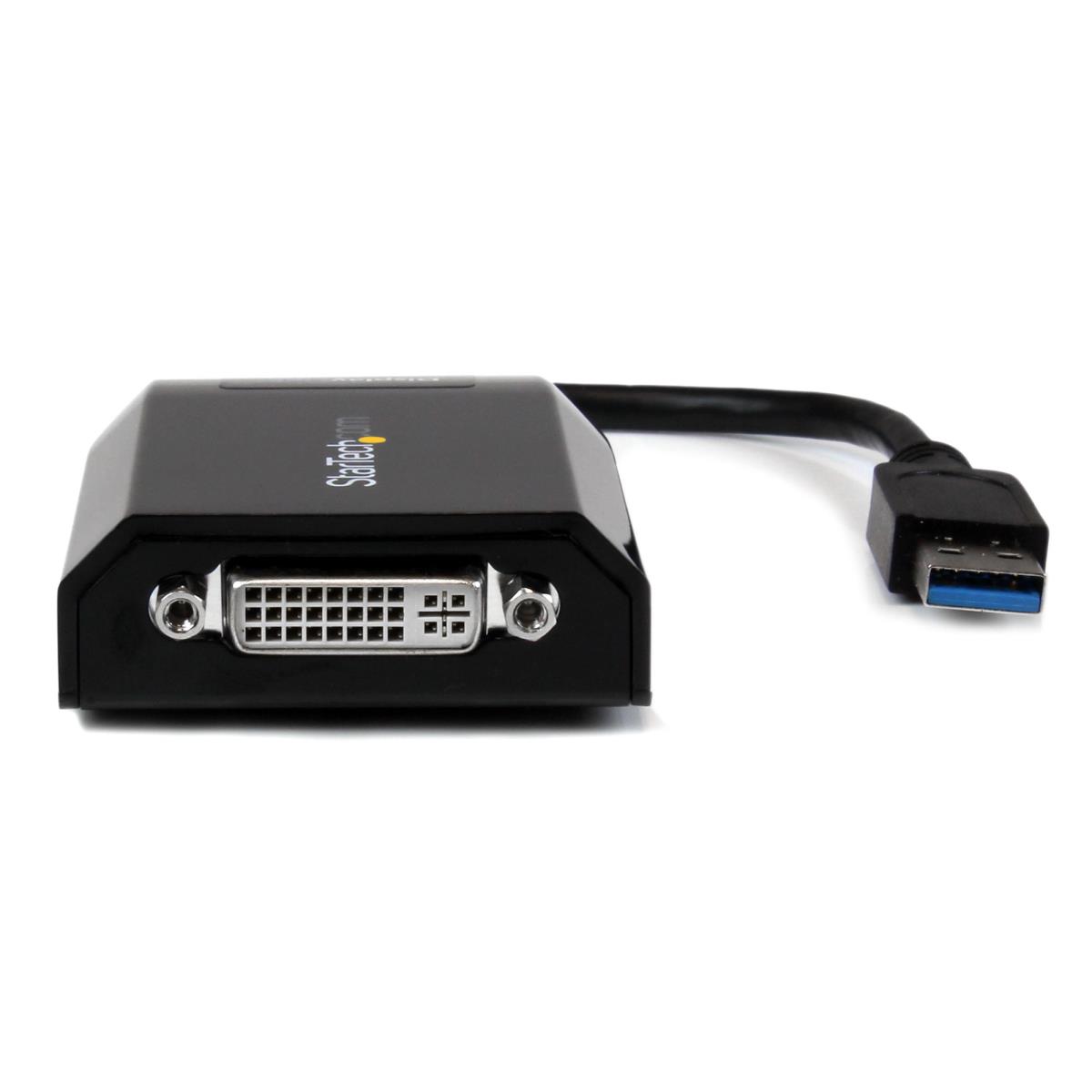

The USB32DVIPRO USB 3.0 to DVI Adapter turns an available USB 3.0 port into a DVI output, with high resolution 2048x1152 video support - a convenient external video solution that makes it easy to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).

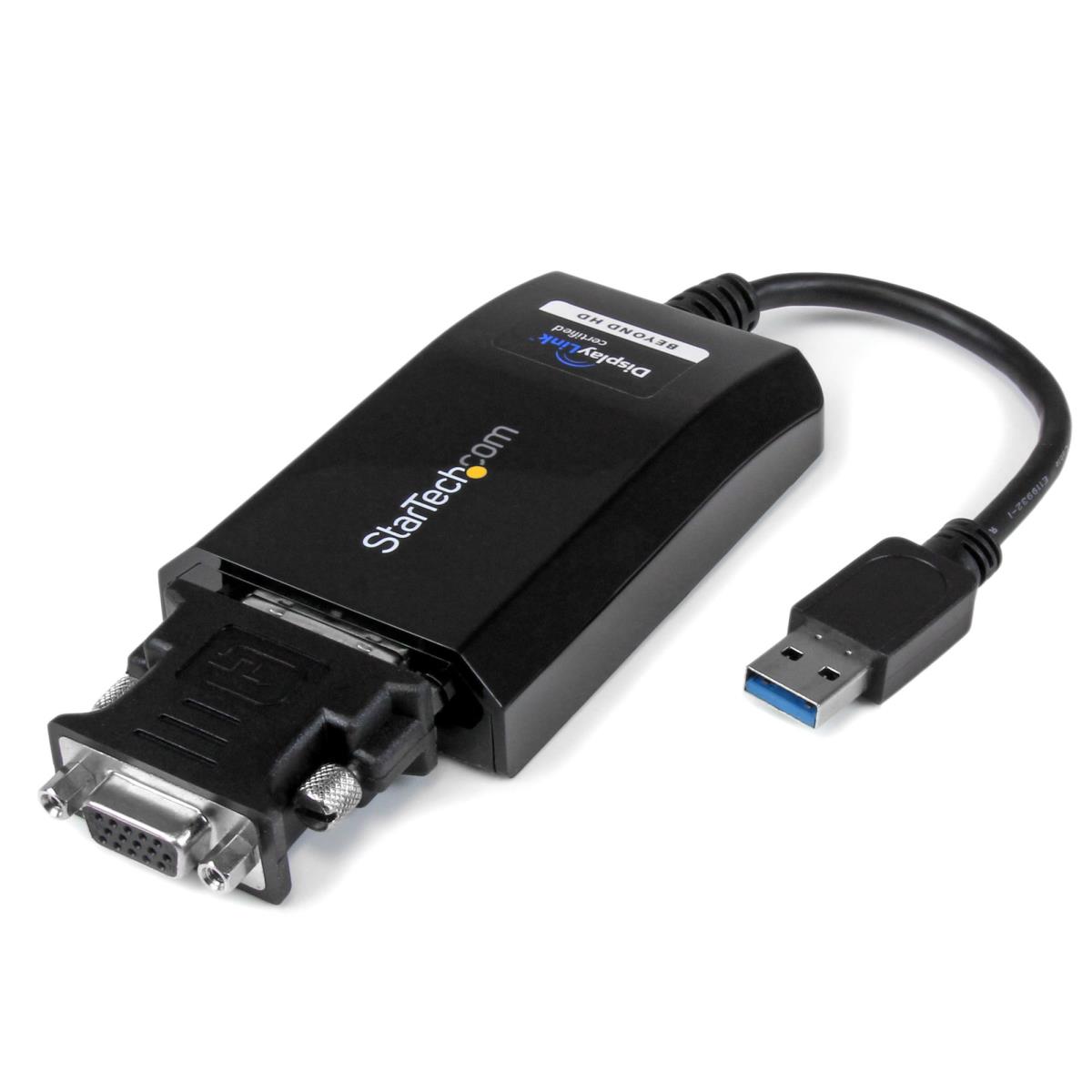

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter functions as a external graphics card to deliver smooth, high-resolution content to your DVI or VGA-capable display (DVI to VGA Adapter included). The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
The StarTech.com Advantage
- SuperSpeed USB 3.0 to DVI conversion provides added bandwidth, for smooth high-resolution video content
- External USB-Powered device provides the simplest way to add additional graphics capability to your system, without opening the case or voiding system warranties
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733020
Sustainability certificates
RoHS
Performance
USB connector type
USB Type-A
USB connector gender
Male
USB version
3.2 Gen 1 (3.1 Gen 1)
DVI output
Y
HDMI output
N
DisplayPort output
N
Number of displays supported
1
DVI connector type
DVI-I
Internal memory
512 MB
Maximum resolution
2048 x 1152 pixels
Supported graphics resolutions
1280 x 800,1366 x 768,2048 x 1152,1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1400 x 1050 (SXGA+),1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),640 x 480 (VGA),800 x 600 (SVGA)
Chipset
DisplayLink - DL-3100
USB pass-through
N
Certification
CE, FCC, REACH
Design
Product colour
Black
Housing material
Plastic
Integrated USB cable
Y
USB cable length
0.152 m
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac compatibility
Y
Mac operating systems supported
Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Linux operating systems supported
Ubuntu 14.04,Ubuntu 16.04
Other operating systems supported
Chrome
Minimum processor family
Core i5
Minimum processor speed
2.4 GHz
Minimum RAM
4096 GB
Operational conditions
Operating temperature (T-T)
10 - 40 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
0 - 85%
Weight & dimensions
Width
43.5 mm
Depth
78 mm
Height
16 mm
Weight
91 g
Package width
144 mm
Package depth
171 mm
Package height
30 mm
Package weight
211 g

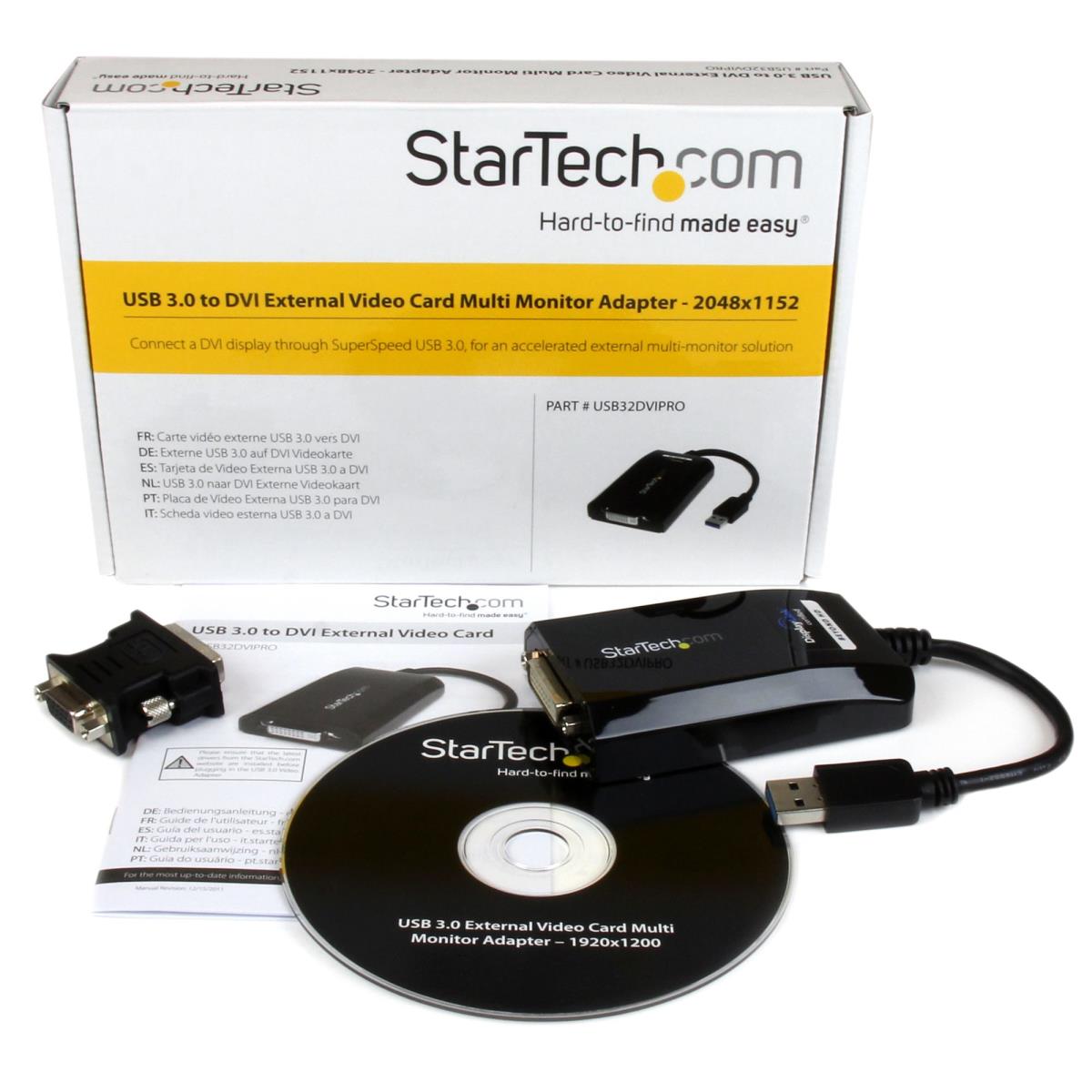

Packaging content
Quick installation guide
Y
Drivers included
Y
Interface adapters included

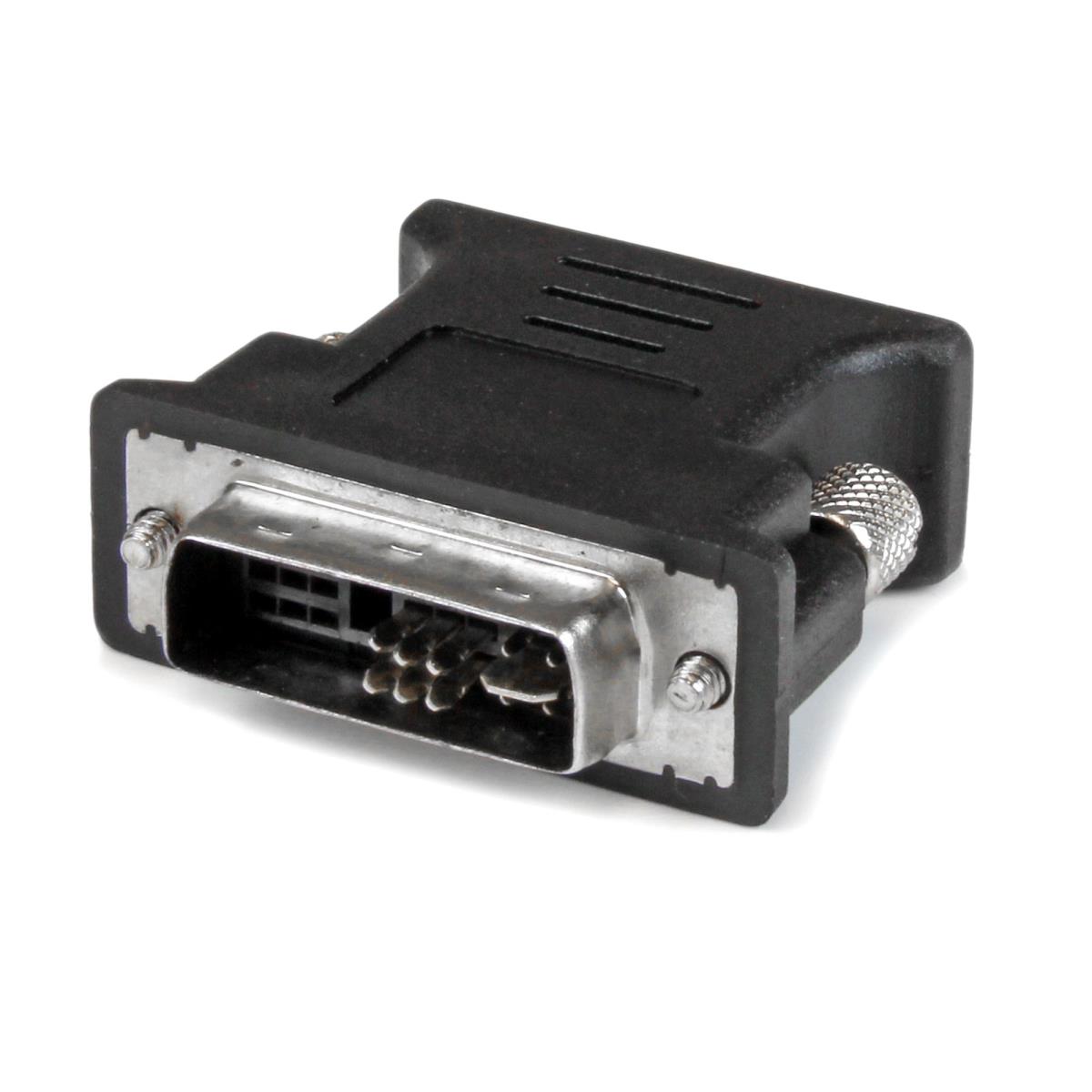

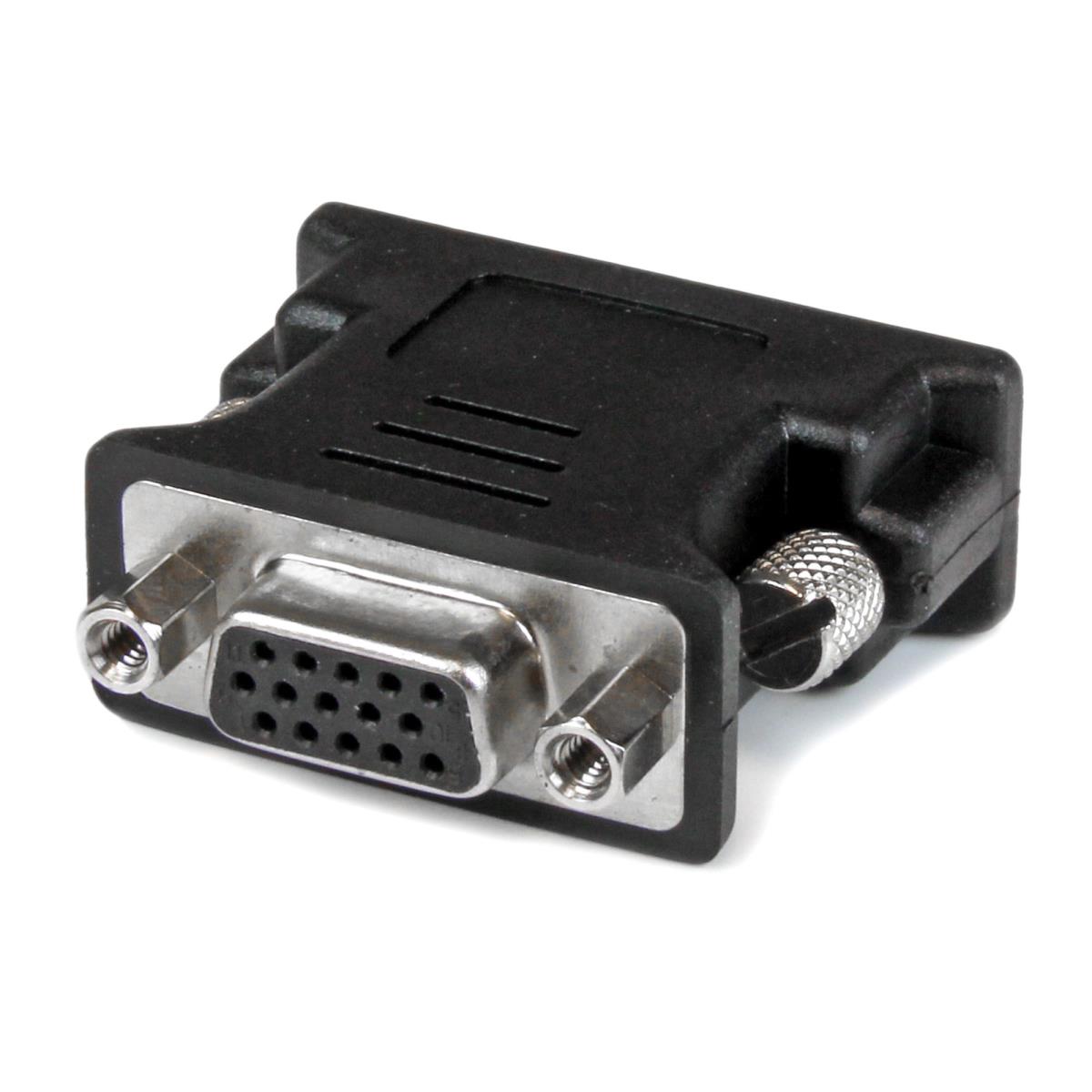

DVI-I male - VGA female
Logistics data
Products per master (outer) case
40 pc(s)
Master (outer) case width
430 mm
Master (outer) case length
430 mm
Master (outer) case height
330 mm
