Introduction
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows

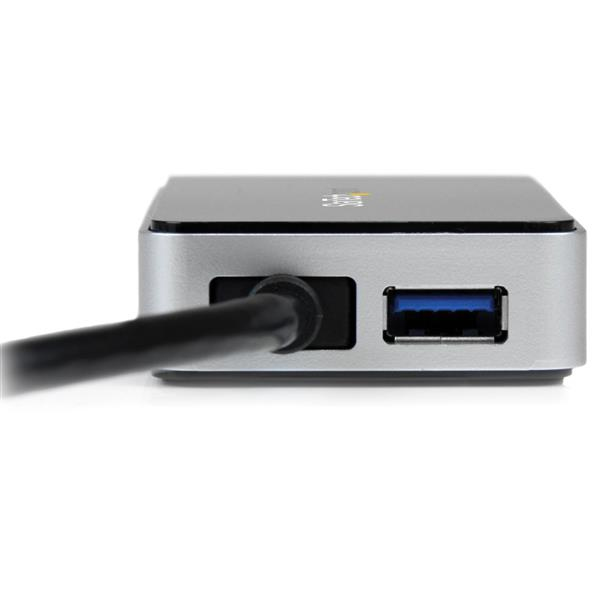

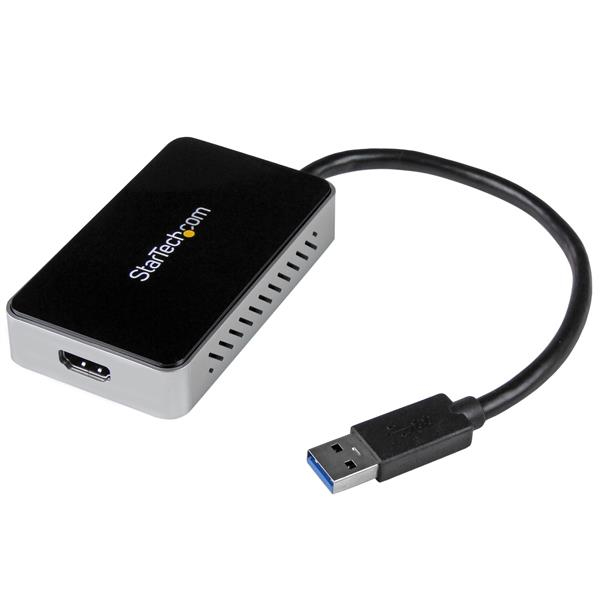

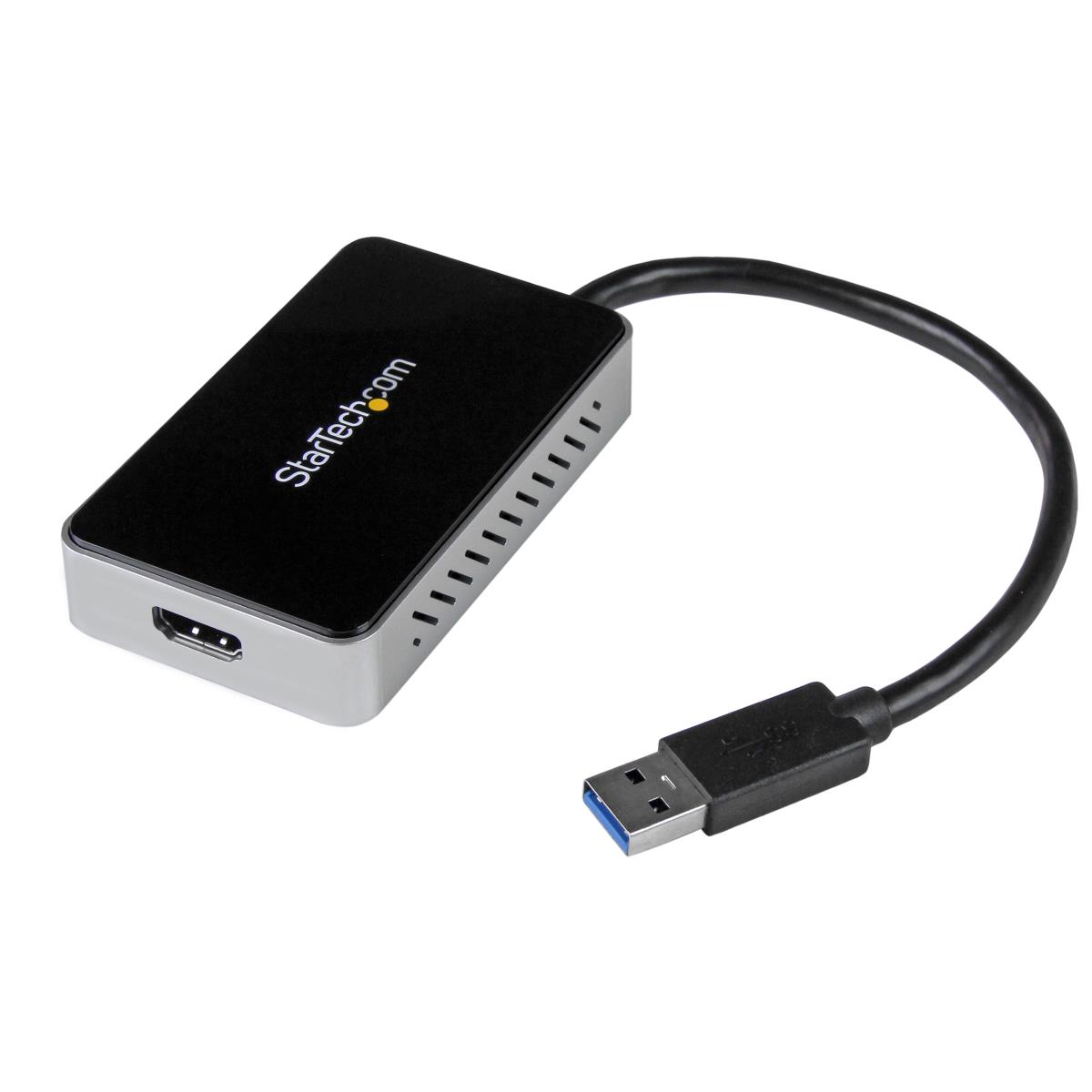

The USB32HDEH USB 3.0 to HDMI Adapter is TAA compliant and turns a USB 3.0 port into an HDMI output port with 1920x1200/1080p video support. The adapter features built-in USB 3.0 pass-through, which offers a connection port in place of the USB port used for connecting the HDMI adapter - an ideal workaround for Ultrabook or laptop users, where only a limited number of USB ports are available.
Functioning as an external graphics card, this USB to HDMI adapter provides a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).

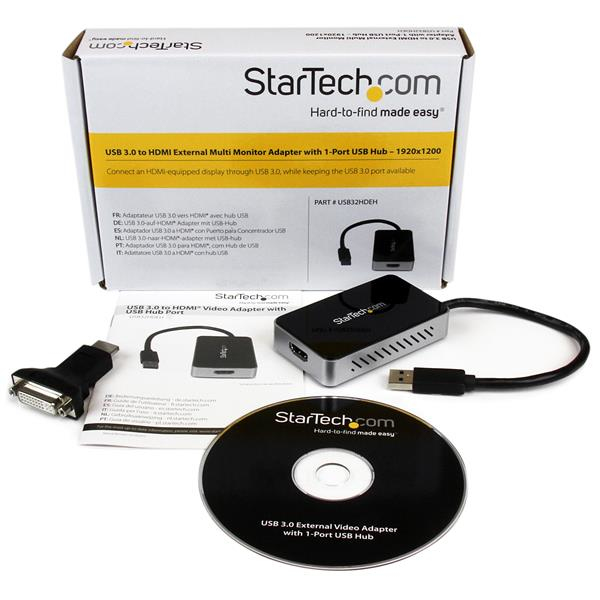

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your HDMI display / projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity. The included HDMI to DVI adapter also allows you to use this device with a DVI display.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
The StarTech.com Advantage
- Keep a USB 3.0 port available on your Ultrabook or slim laptop, using the built-in USB 3.0 hub
- Enjoy smooth, high-definition video content, using a high bandwidth USB 3.0 connection
Logistics data
Products per master (outer) case
40 pc(s)
Master (outer) case width
320 mm
Master (outer) case length
444 mm
Master (outer) case height
438 mm
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733020
Sustainability certificates
RoHS
Performance
USB connector type
USB Type-A
USB connector gender
Male
USB version
3.2 Gen 1 (3.1 Gen 1)
DVI output
N
HDMI output
Y
DisplayPort output
N
Number of displays supported
1
Internal memory
16 MB
Maximum resolution
1920 x 1200 pixels
Supported graphics resolutions
800 x 600 (SVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800,1280 x 960,1360 x 768 (WXGA),1400 x 1050 (SXGA+),1440 x 900 (WXGA+),1600 x 1200 (UXGA),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Audio output channels
2.0 channels
USB pass-through
Y
Certification
CE, FCC, TAA, REACH
Design
Product colour
Black
Integrated USB cable
Y
USB cable length
0.16 m
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Minimum processor family
Core i5
Minimum processor speed
2.4 GHz
Minimum RAM
4 GB
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 75 °C
Operating relative humidity (H-H)
0 - 85%
Weight & dimensions
Width
49 mm
Depth
85 mm
Height
17 mm
Weight
66 g
Package width
146 mm
Package depth
213 mm
Package height
38 mm
Package weight
244 g
Packaging content
