Introduction
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows®

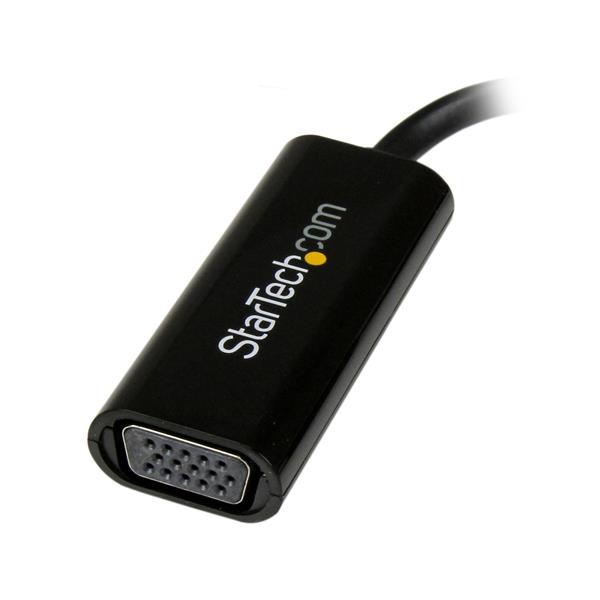

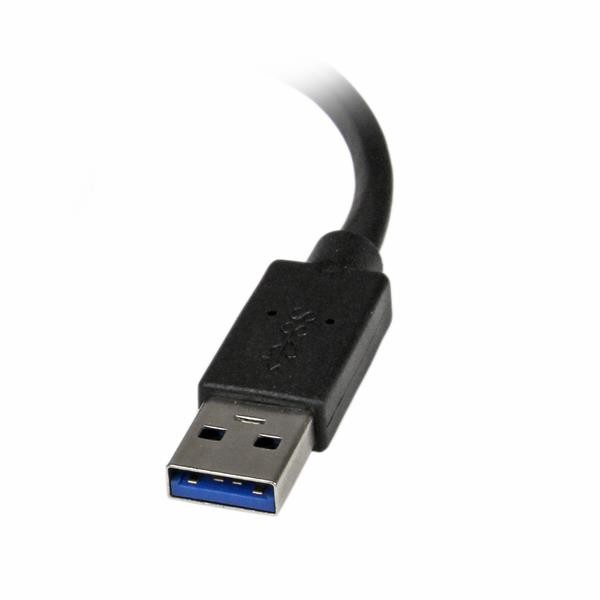

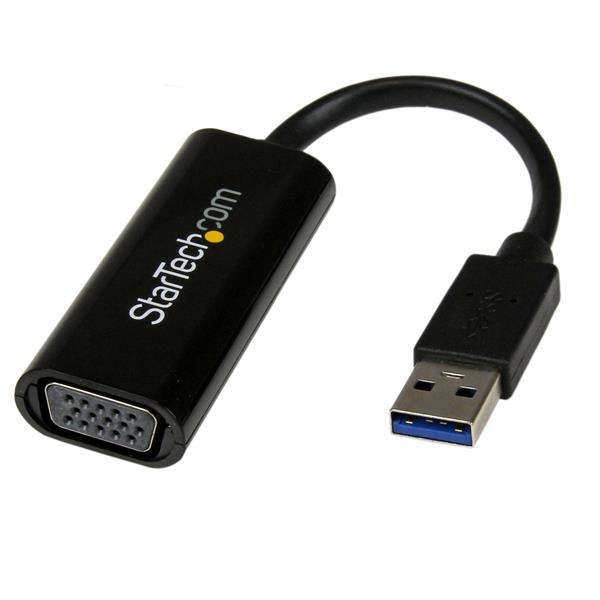

The USB32VGAES Slim USB 3.0 to VGA Adapter turns a USB 3.0 port into a VGA output port with 1920x1200/1080p video support. The adapter minimizes clutter with a slim design that seamlessly blends with your video cable - an ideal space-saving solution for multi-monitor applications on Ultrabook, laptop, or desktop computers.
Functioning as an external graphics card, this USB to VGA adapter provides a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).
To save space while travelling, this ultra-portable USB to VGA adapter features a lightweight, small footprint design that fits easily in a laptop carrying bag.
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your VGA display/projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.
The USB32VGAES is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
USB 3.0 port (Backwards compatible with USB 2.0)
The StarTech.com Advantage
- Minimizes clutter, with a slim design that blends seamlessly with your video cable
- Ensures smooth, High-Definition video content, using a high bandwidth USB 3.0 connection
- Ideal for travel with an ultra-portable small footprint and lightweight design
Logistics data
Products per master (outer) case
40 pc(s)
Master (outer) case width
369 mm
Master (outer) case length
314 mm
Master (outer) case height
365 mm
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733020
Sustainability certificates
RoHS
Performance
USB connector type
USB Type-A
USB connector gender
Male
USB version
3.2 Gen 1 (3.1 Gen 1)
DVI output
N
HDMI output
N
DisplayPort output
N
Number of displays supported
1
VGA (D-Sub) output
Y
Internal memory
16 MB
Maximum resolution
1920 x 1200 pixels
Supported graphics resolutions
800 x 600 (SVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800,1280 x 960,1360 x 768 (WXGA),1400 x 1050 (SXGA+),1440 x 900 (WXGA+),1600 x 1200 (UXGA),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Chipset
Trigger - T5-302
USB pass-through
N
Certification
CE, FCC, TAA, REACH
Design
Product colour
Black
Integrated USB cable
Y
USB cable length
0.062 m
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Minimum processor family
Core i5
Minimum processor speed
2.4 GHz
Minimum RAM
4 GB
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 75 °C
Operating relative humidity (H-H)
0 - 85%
Weight & dimensions
Width
25 mm
Depth
190 mm
Height
12 mm
Weight
25 g
Package width
171 mm
Package depth
151 mm
Package height
32 mm
Package weight
148 g

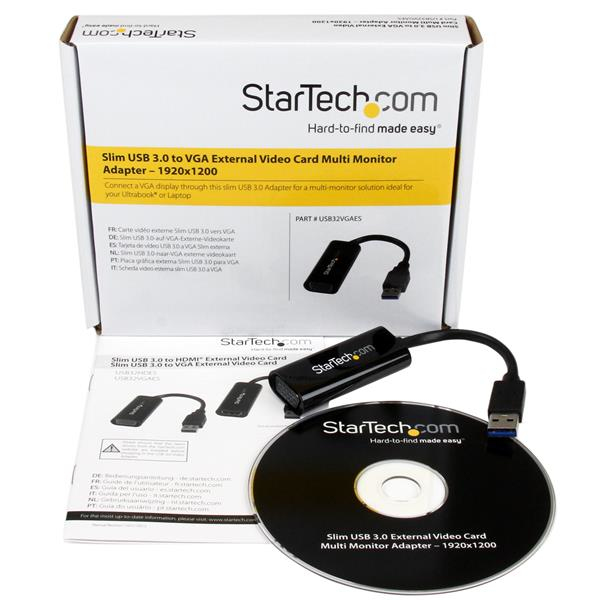

Packaging content
