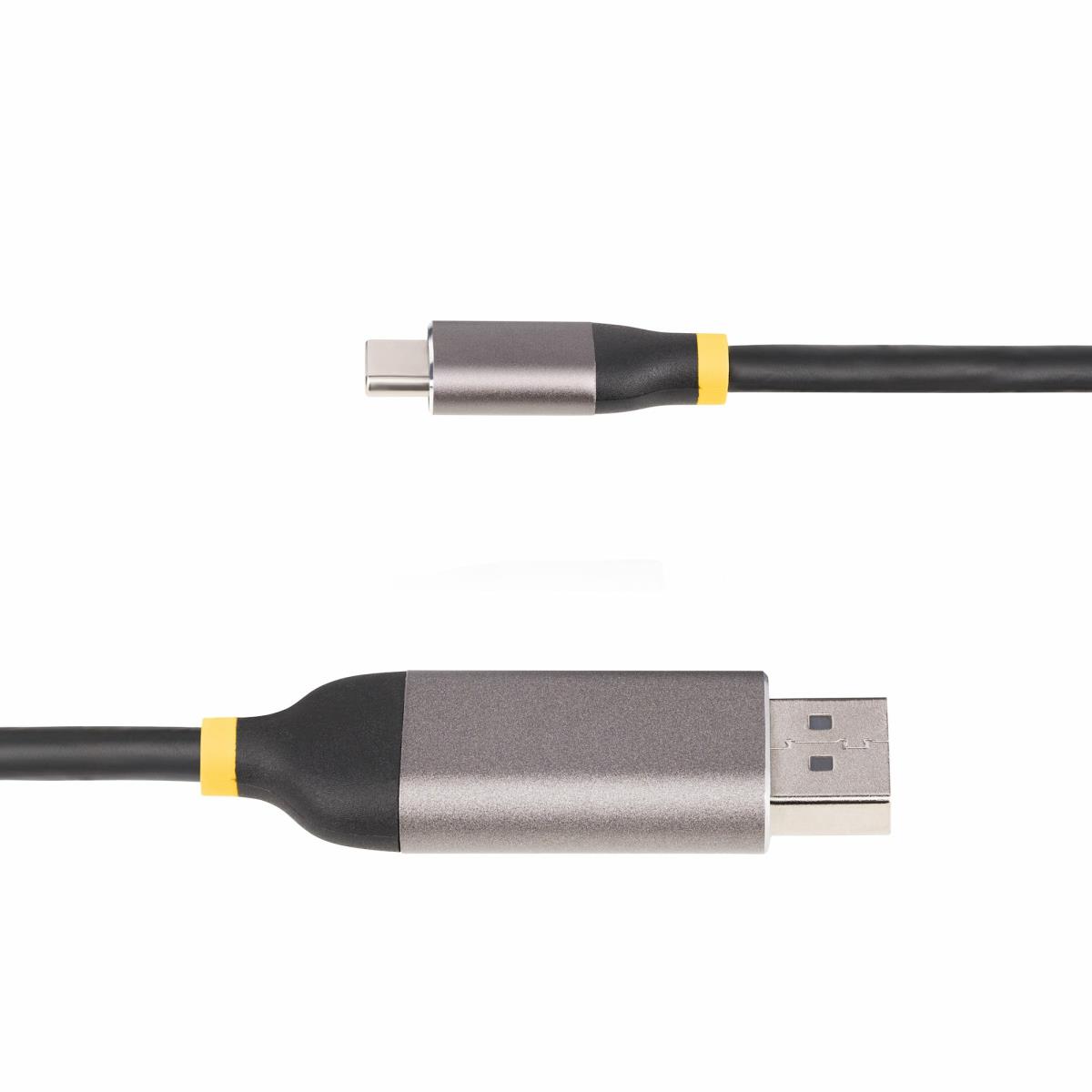

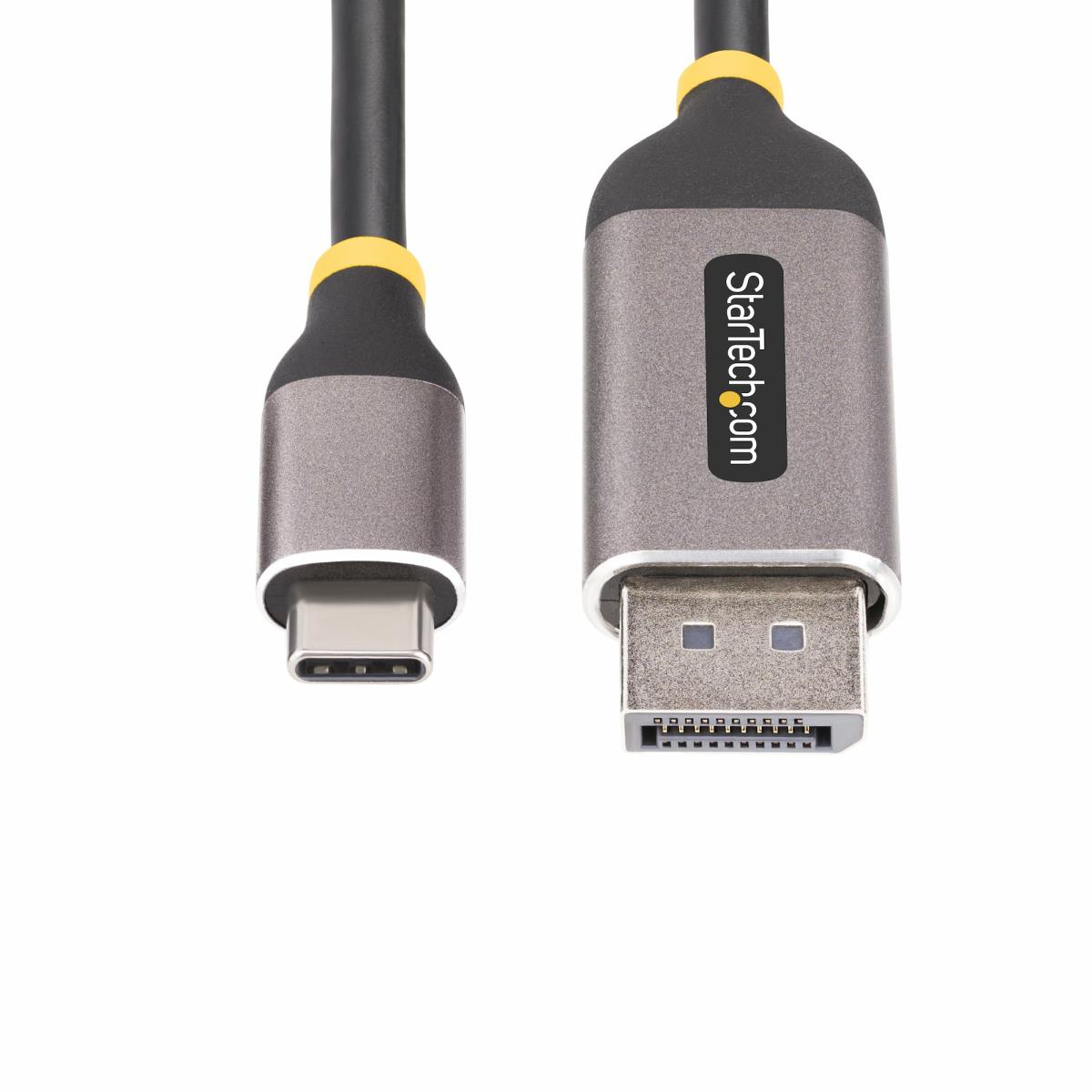

STARTECH.COM USB-c To DisplayPort Adapter Cable, 8k 60hz, 4k 144hz, Hdr, USB Type-c To Dp 1.4 Video Converter Cable 3m

STARTECH.COM USB-c To DisplayPort Adapter Cable, 8k 60hz, 4k 144hz, Hdr, USB Type-c To Dp 1.4 Video Converter Cable 3m

£20.90 (incl. VAT)

Qty:

Add to basket

Part Number:	142-USBC-DP-8K-10F
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Connect a DisplayPort Alt Mode-enabled USB-C source to a DisplayPort monitor with support for resolutions up to 8K at 60HzConnect an 8K 60Hz or 4K 144Hz DisplayPort monitor to a DP Alt Mode-enabled USB Type-C source up to 9.8ft (3m) away with this USB-C to DisplayPort adapter cable.High-Resolution HDR VideoThis USB-C to DisplayPort Cable enables resolutions of up to 8K 60Hz and is DisplayPort 1.4 compliant. It supports HDR10, DSC, and 2 channel audio.Hardware PlatformSingle MonitorDisplayPort Alt ModeIntel 11th Gen & Later Processors8K 60Hz or 4K 144Hz*DisplayPort 1.4Nvidia RTX3000 and AMD RX6000 or later8K 60Hz or 4K 144HzDisplayPort 1.4Intel 10th Gen & Earlier4K 60HzDisplayPort 1.4Apple M1/M2/M3 + Pro & Max4K 60Hz**DisplayPort 1.4*DSC support required to reach maximum resolution capabilities on Intel 11th Gen or later**Apple MacBook's with M1/M2/M3 Pro/Max silicon do not support 8K 60Hz over USB-C DP Alt ModeUniversal CompatibilityThe USB-C to DisplayPort Converter Cable is compatible with laptops and devices from various brands such as Dell, HP, Lenovo, Microsoft, and more. It works with all hardware platforms and any operating system. The USB Type-C to DisplayPort Cable requires no drivers or software and works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.Thoughtfully DesignedCombining a video adapter and cable minimizes potential points of failure and signal loss. A latching DisplayPort connector reduces the risk of accidental disconnections. The cable is equipped with aluminum connector shells, providing enhanced durability, and shielding from Electromagnetic Interference (EMI).The StarTech.com Advantage

Features

Connector 1 form factor Straight

Connector 2 form factor Straight

Cable length 3 m

Connector 1 USB Type-C

Connector 2 DisplayPort

Connector 1 gender Male

Connector 2 gender Male

HDCP Yes

HDCP version 1.4/2.2/2.3

DisplayPort version 1.4

USB Type-C DisplayPort Alternate Mode Yes

High Dynamic Range (HDR) supported Yes

Supported graphics resolutions 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 768 (WXGA), 1280 x 800, 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2560 x 1080, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 5120 x 2880, 7680 x 4320

Bandwidth 32400 MB/s

Maximum refresh rate 144 Hz

Refresh rate at maximum resolution 60 Hz

Product colour Black, Grey

Chipset VL103

Jacket material Thermoplastic elastomer (TPE)

Cable type Round cable

Plug and Play Yes

Latching connectors Yes

Operational conditions

Operating temperature (T-T) -20 - 70 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 5 - 95%

Sustainability

Sustainability compliance Yes

Sustainability certificates RoHS

Weight & dimensions

Cable diameter 4.3 mm

Weight 111 g

Packaging data

Package width 150 mm

Package depth 100 mm

Package height 100 mm

Package weight 80 g

Technical details

Compliance certificates RoHS

Logistics data

Master (outer) case width 300 mm

Master (outer) case length 300 mm

Master (outer) case height 350 mm

Products per master (outer) case 100 pc(s)

Information

Part Number:

142-USBC-DP-8K-10F
