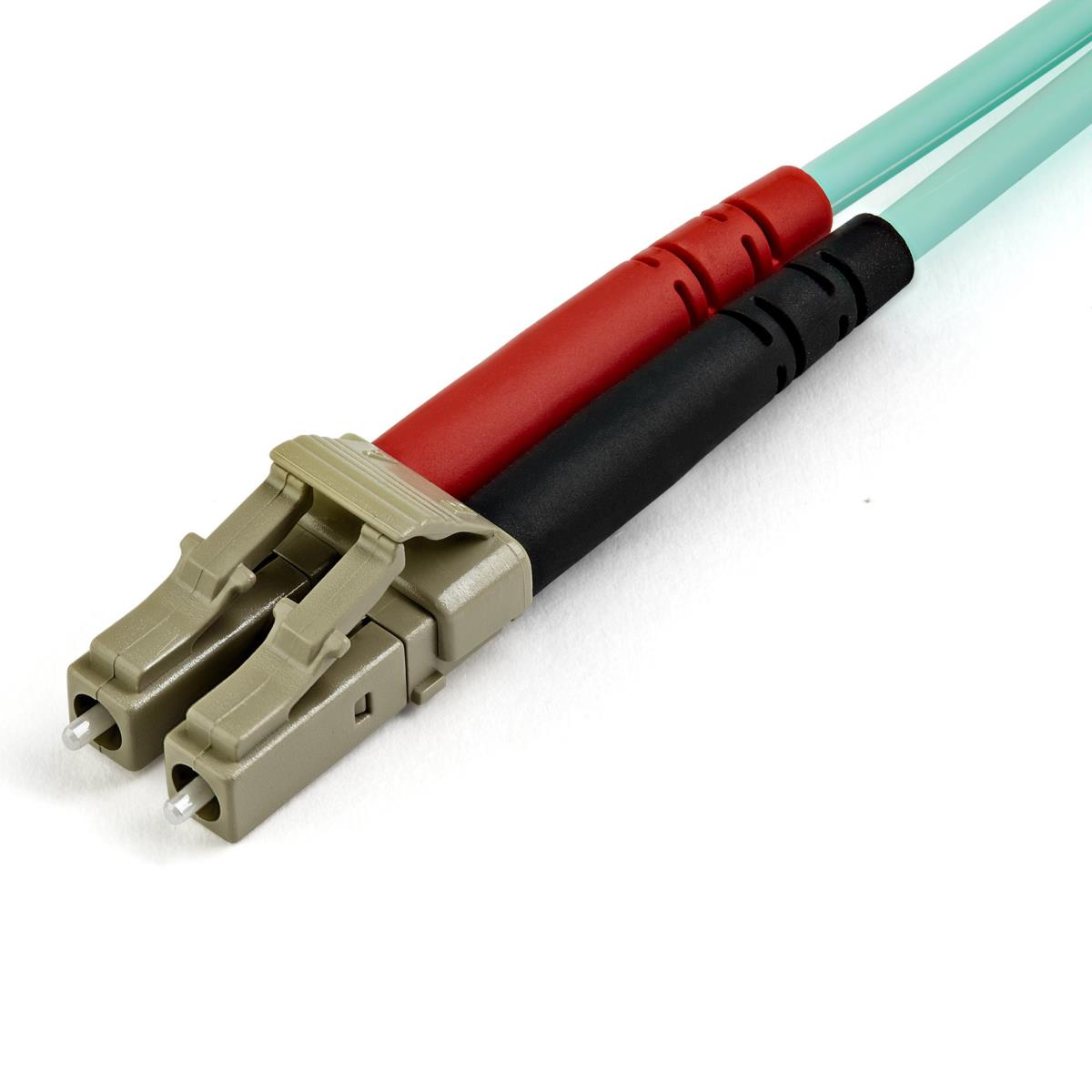

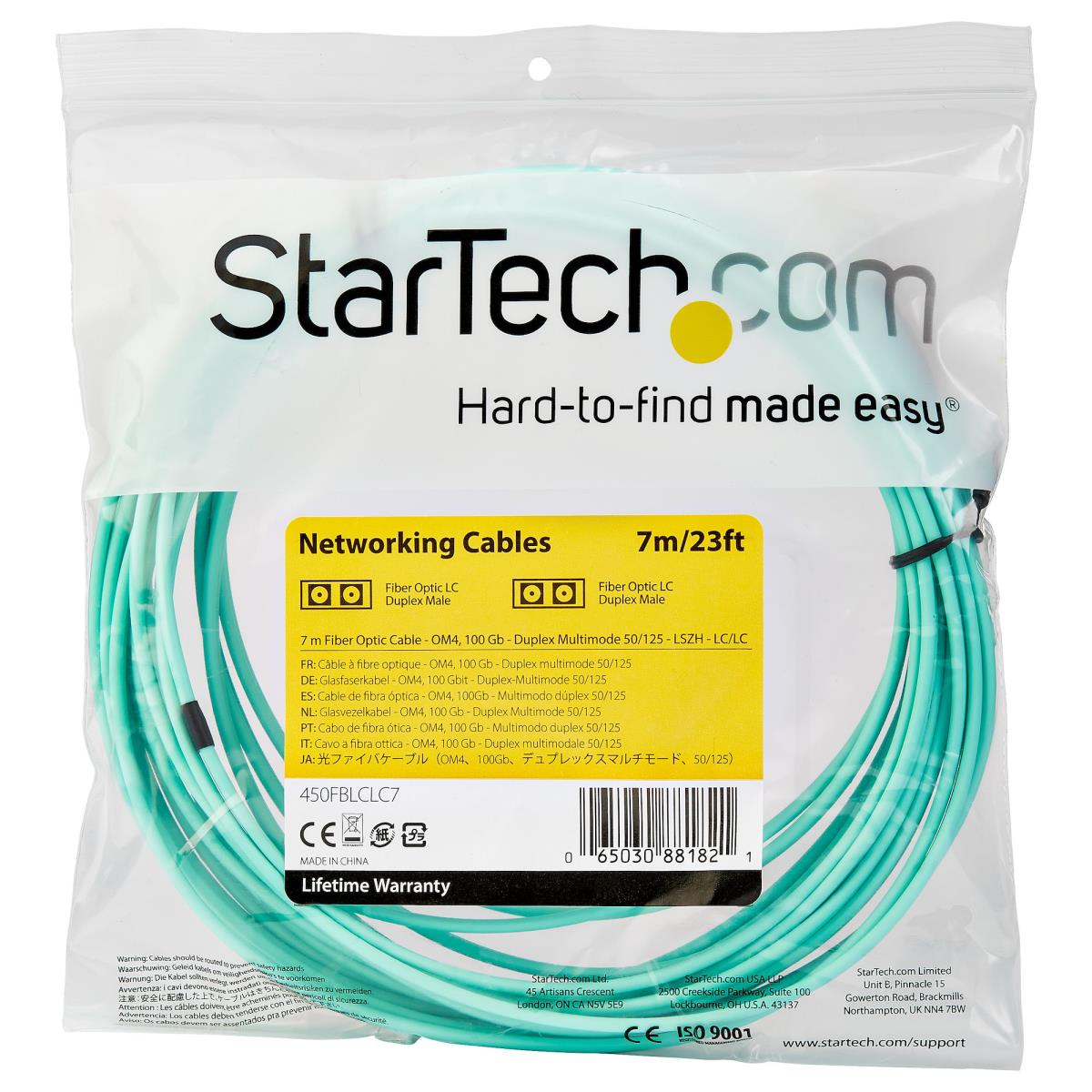

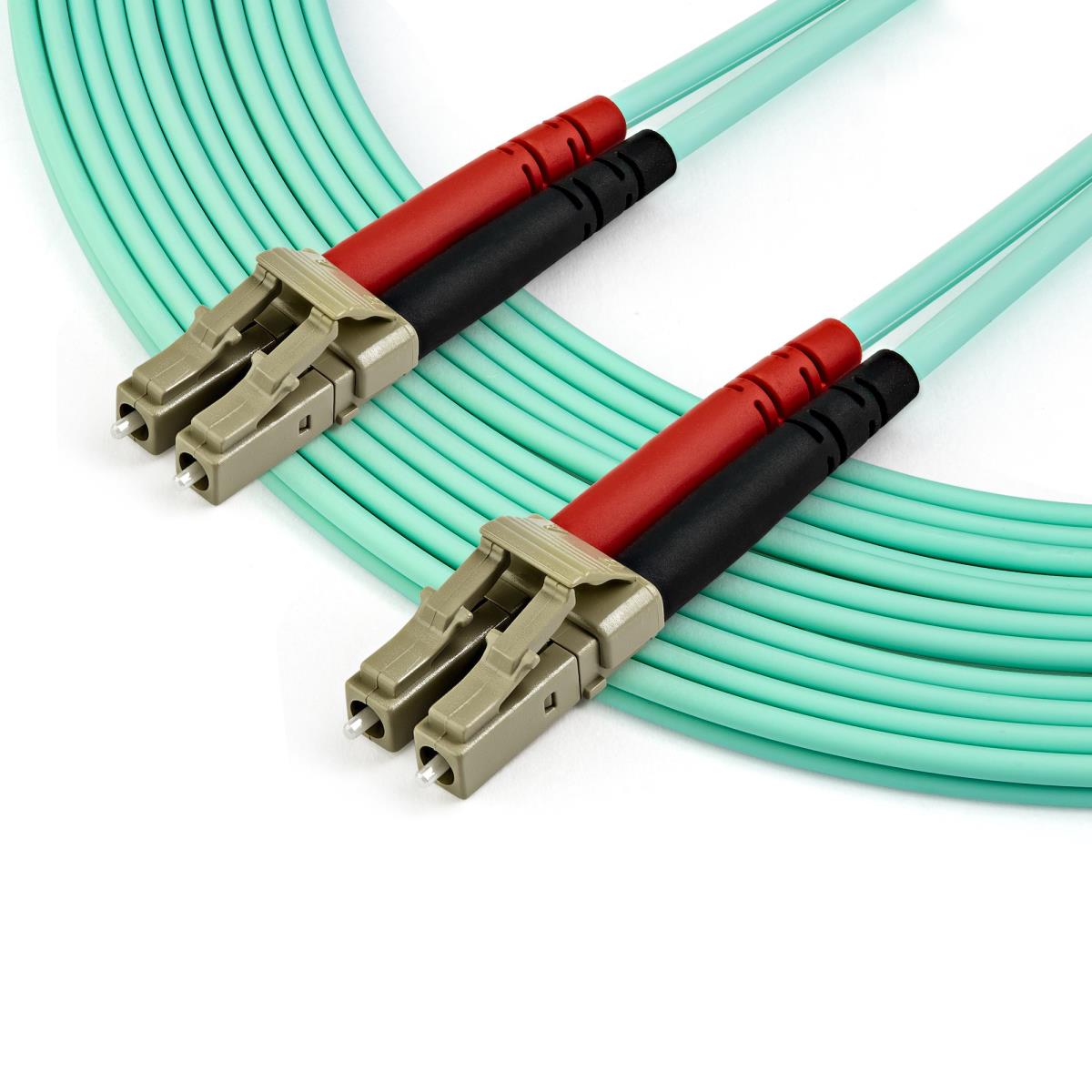

STARTECH.COM Om4 Fiber Optic Cable 100 GB 50/125 Lszh-lc/lc- Multimode Duplex 7m

£22.02

Part Number: 450FBLCLC7
Delivery: 1 - 2 days

Product Details

Introduction

This LC to LC Multimode Duplex Fiber Optic Patch cable offers reliable connections for 40GBase-SR4, 100GBase-SR10, SFP+ and QSFP+ transceivers in your 40 and 100 Gigabit networks.

Built for Performance
With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.

Maximum Compatibility
This fiber-optic patch cord is backward compatible with your existing 50/125 equipment, ensuring a reliable connection with legacy LANs.

High Quality Construction
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

450FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Technical details

Sustainability compliance Yes
Compliance certificates RoHS, CE
Sustainability certificates RoHS, CE
Doesn't contain Halogen

Logistics data

Master (outer) case width 410 mm
Master (outer) case length 410 mm
Master (outer) case height 450 mm
Products per master (outer) case 120 pc(s)

Features

Harmonized System (HS) code 85447000
Cable length 7 m
Connector 1 LC
Connector 2 LC
Connector 1 gender Male
Connector 2 gender Male
Fibre optic type OM4
Product colour Aqua colour
Full duplex Y
Core diameter 50 µm
Cladding diameter 125 µm
Fiber mode structure Multi-mode
Wavelengths supported 850 nm
Data transfer rate 100 Gbit/s
Jacket material Low smoke zero halogen (LSZH)

Operational conditions

Operating temperature (T-T) -20 - 60 °C
Storage temperature (T-T) -20 - 60 °C

Weight & dimensions

Weight 94 g

Packaging data

Quantity per pack 1 pc(s)
Package width 220 mm
Package depth 200 mm
Package height 15 mm
Package weight 104 g

Information

Part Number: 450FBLCLC7
