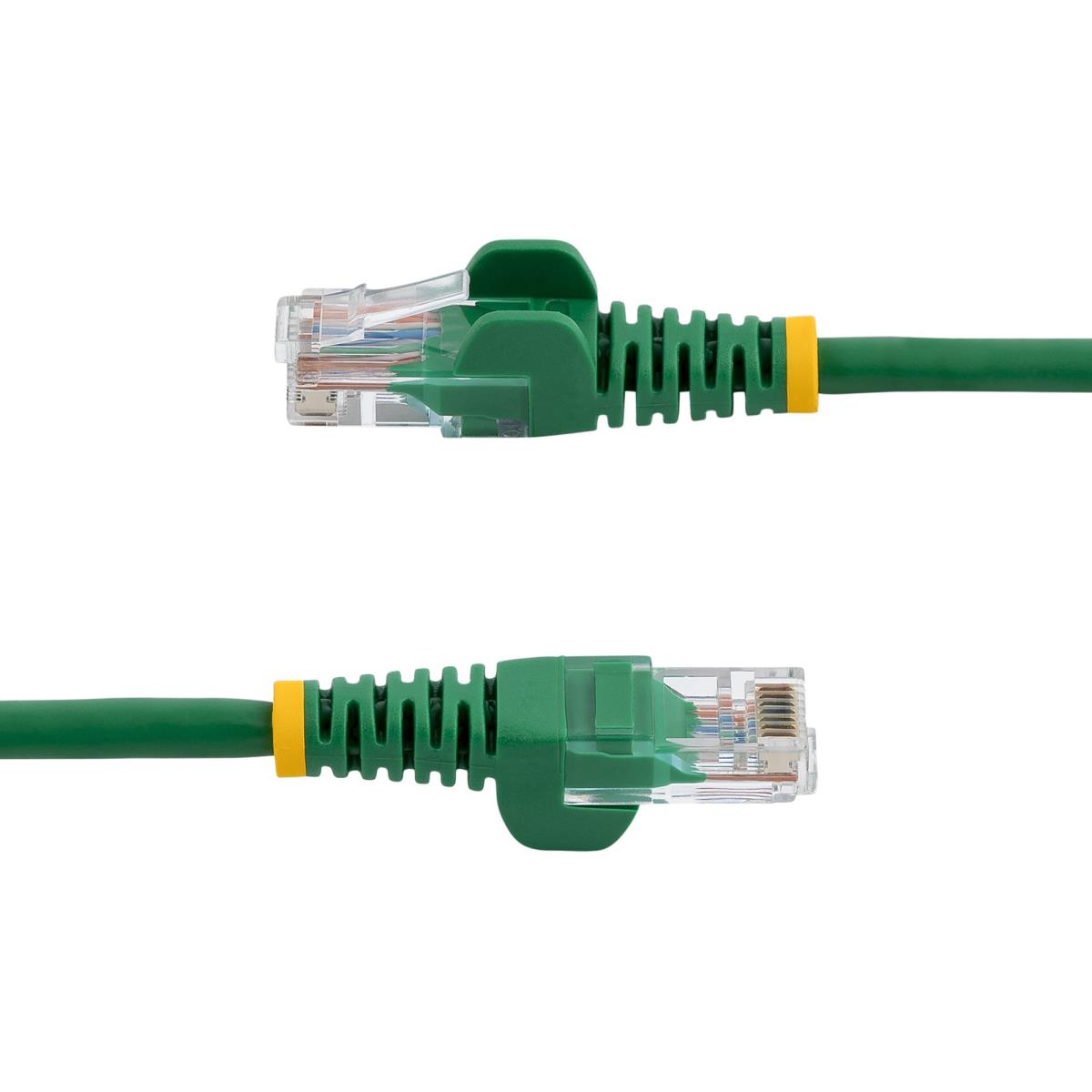

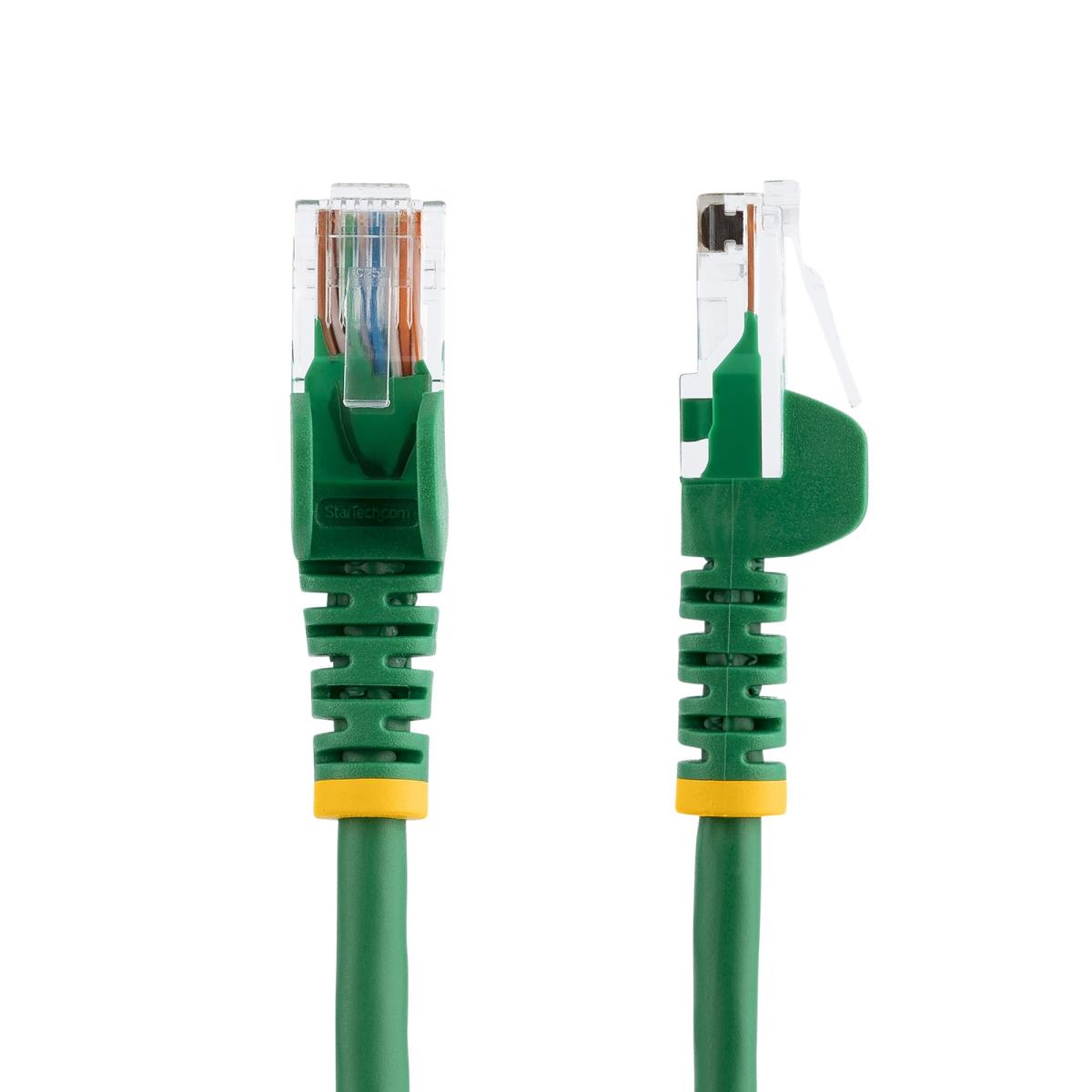

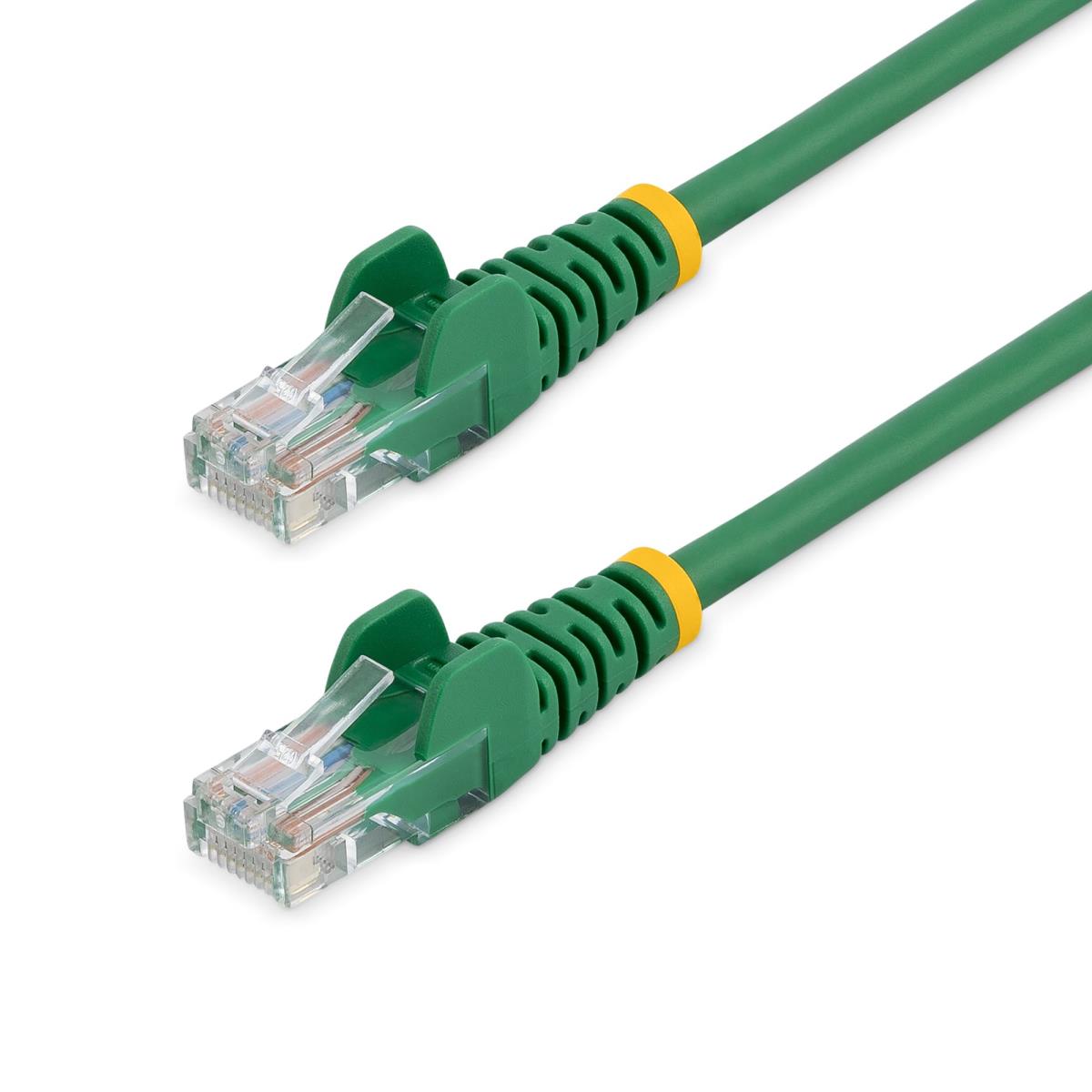

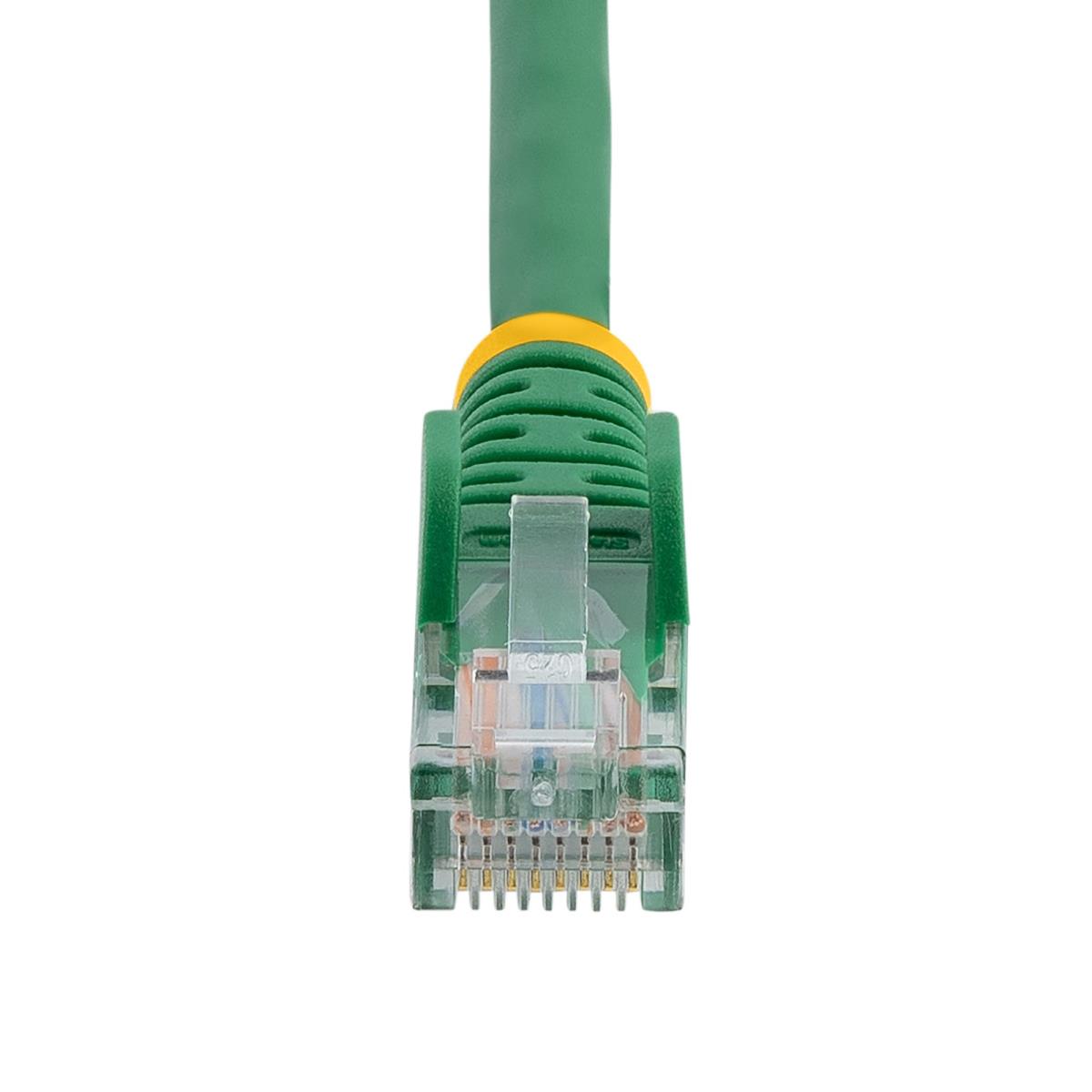

STARTECH.COM Patch Cable - Cat 5e - Utp - Snagless - 2m - Green

£3.05

Part Number: 45PAT2MGN
Delivery: 1 - 2 days

Product Details

Introduction

It’s all about selection. Choose the colors you want, the lengths you want, the styles you want
Select from a wide variety of colors, lengths, and styles to complete your network solutions. That way, you can organize your cable runs and identify network connections faster, easily find the cables that best suit your network connection requirements, and pick the styles, either snagless – perfect for concealed cable runs – or molded – perfect for strengthening the connector to prevent damage.

100% copper for outstanding value
Get the highest value for your cable investment with our Cat 5 cables, each one manufactured using high-quality copper conductors.

24-gauge wire for high-performance network connections
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.

50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

Lifetime Warranty
We back all our cables with a lifetime warranty.

Logistics data

Master (outer) case width 408 mm
Master (outer) case length 412 mm
Master (outer) case height 232 mm
Products per master (outer) case 130 pc(s)

Technical details

Compliance certificates RoHS
Sustainability certificates RoHS

Features

Harmonized System (HS) code 84733080
Product colour Green
Cable length 2 m
Cable standard Cat5e
Cable shielding U/UTP (UTP)
Connector 1 RJ-45
Connector 2 RJ-45
Connector 1 gender Male
Connector 2 gender Male
Connector contacts plating Gold
Jacket material Polyvinyl chloride (PVC)
Conductor type Stranded
Conductor material Copper
Cable rating CMG (CM)
Cabling technology 10/100Base-T(X)
Ethernet interface type Fast Ethernet
AWG wire size 24
Data transfer rate 100 Mbit/s
Frequency 350 MHz
Snagless cable boot Y
Plug and Play Y
Power over Ethernet (PoE) Y
Certification CE, REACH

Weight & dimensions

Weight 76 g

Packaging data

Quantity per pack 1 pc(s)
Package width 200 mm
Package depth 220 mm
Package height 15 mm
Package weight 85 g
