STARTECH.COM Fiber Optic Cable 50/125 Multimode Duplex Lc-male/ Sc-male 1m

£9.56

Part Number: 50FIBLCSC1
Delivery: 1 - 2 days

Product Details

Introduction

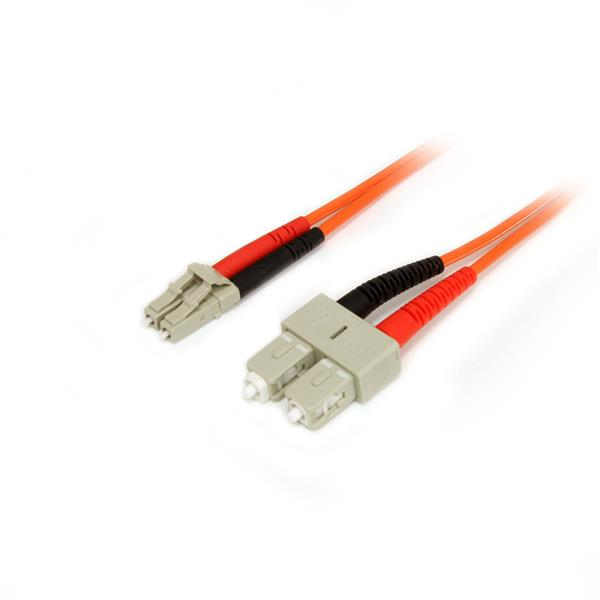

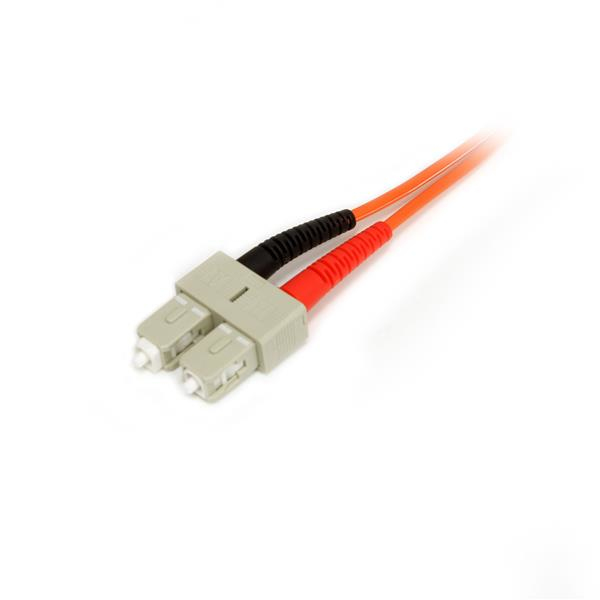

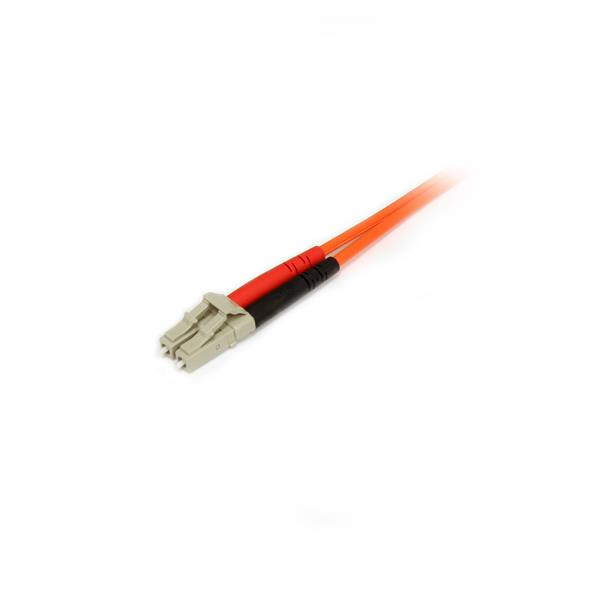

The 50FIBLCSC1 1m LSZH LC to SC Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.

This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.

The StarTech.com Advantage
- LSZH-rated cable, suitable for installations under restrictive building codes
- High-speed, high bandwidth transmissions over Gigabit Ethernet/fiber channel networks
- Resistant to pulls, strains, and impacts during your cable installations and maintenance

Logistics data

Master (outer) case width 352 mm
Master (outer) case length 245 mm
Master (outer) case height 320 mm
Products per master (outer) case 320 pc(s)

Technical details

Compliance certificates RoHS
Sustainability certificates RoHS
Doesn't contain Halogen

Features

Harmonized System (HS) code 85447000
Cable length 1 m
Connector 1 LC
Connector 2 SC
Connector 1 gender Male
Connector 2 gender Male
Fibre optic type OM2
Product colour Orange
Full duplex Y
Core diameter 50 µm
Cladding diameter 125 µm
Fiber mode structure Multi-mode
Jacket material Low smoke zero halogen (LSZH)

Weight & dimensions

Weight 18 g

Packaging data

Package width 200 mm
Package depth 220 mm
Package height 26 mm
Package weight 35 g

Information

Part Number: 50FIBLCSC1
