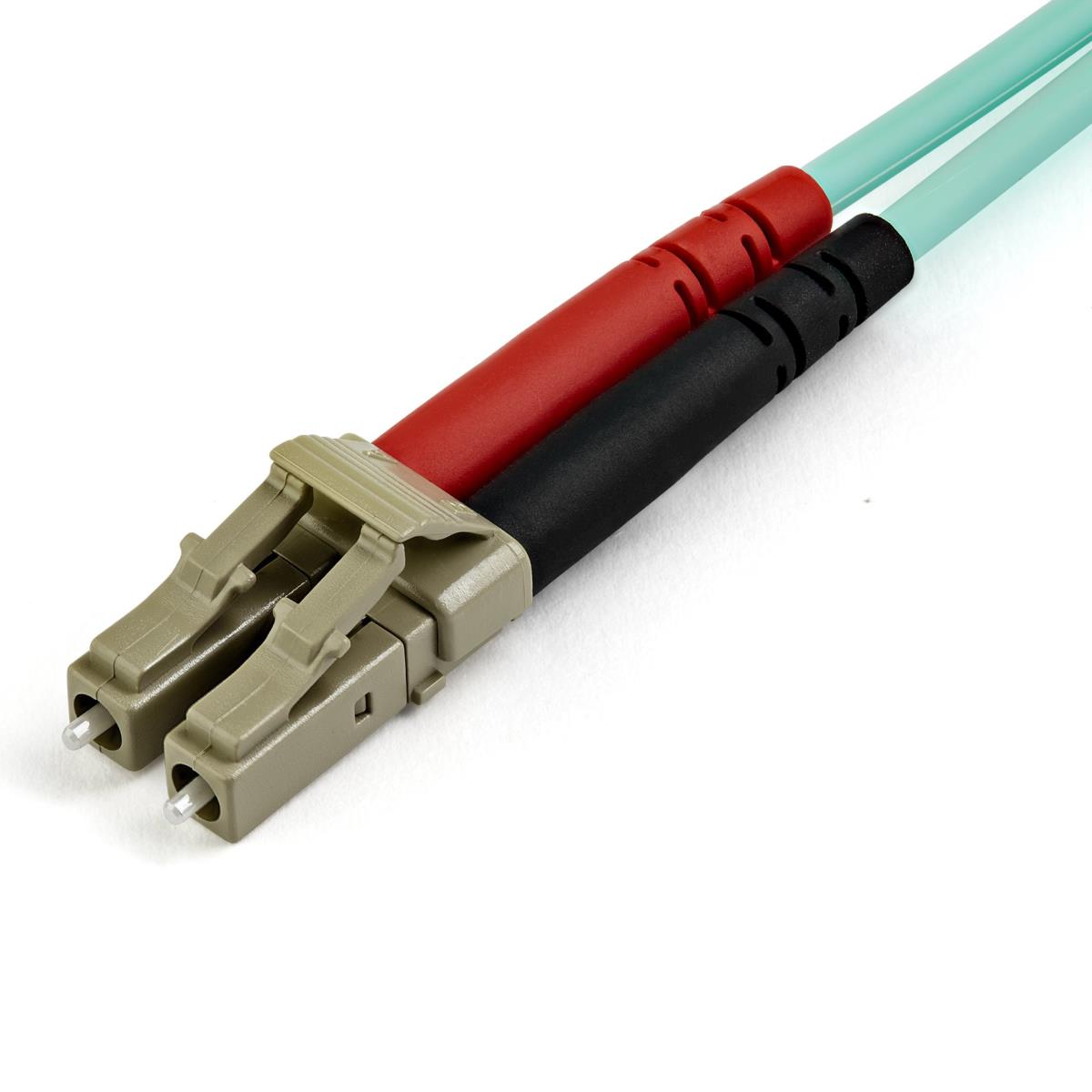

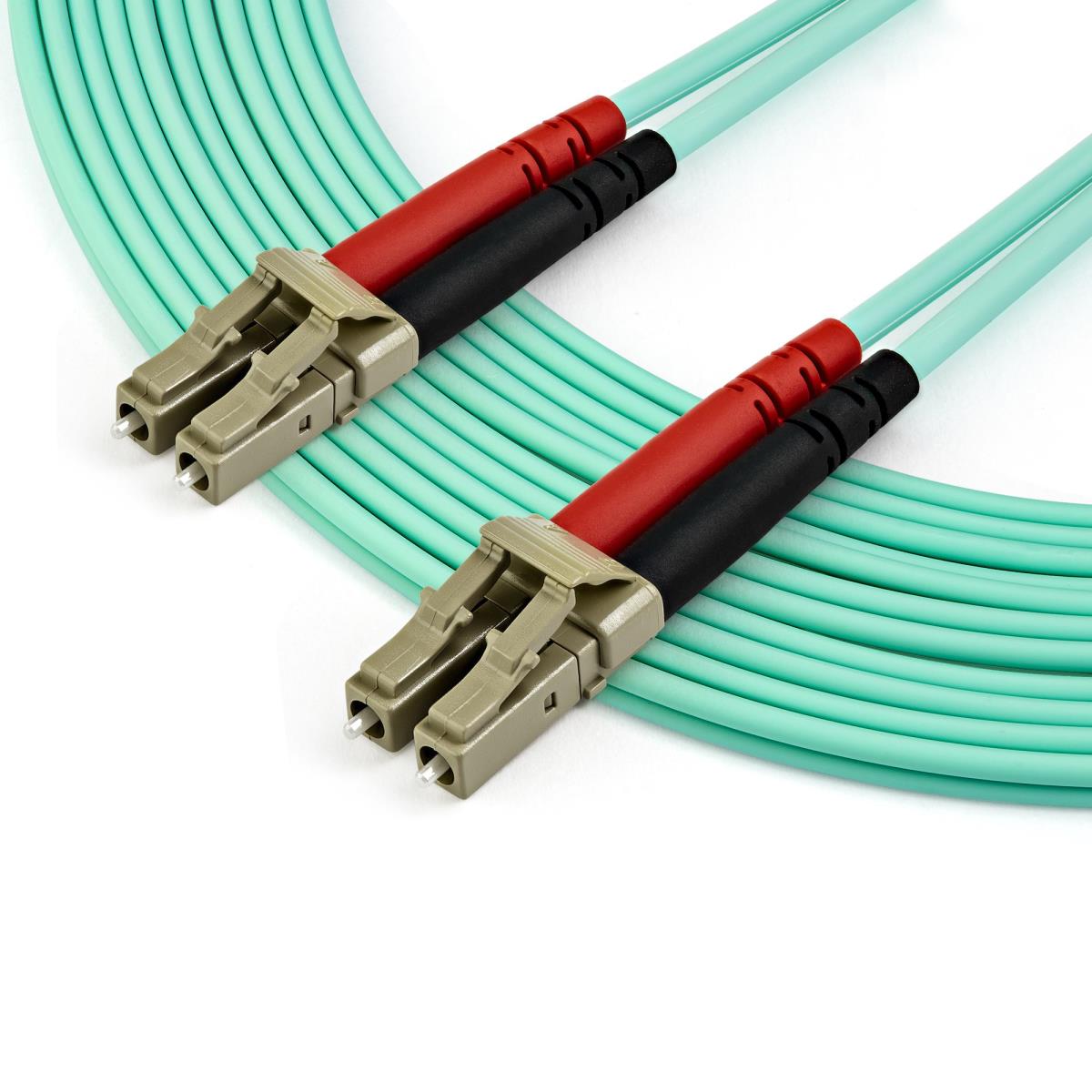

STARTECH.COM Fiber Patch Cable - Lc / Lc - Multimode 50/125 - 7m

£17.80

Part Number: A50FBLCLC7
Delivery: 1 - 2 days

Product Details

Introduction

This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.

Built for Performance
With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.

Reliable Connection
Each OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

High-Quality Construction
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Logistics data

Master (outer) case width 406 mm
Master (outer) case length 414 mm
Master (outer) case height 442 mm
Products per master (outer) case 120 pc(s)

Technical details

Compliance certificates RoHS, CE
Sustainability certificates RoHS, CE
Doesn't contain Halogen

Features

Harmonized System (HS) code 85447000
Cable length 7 m
Connector 1 LC
Connector 2 LC
Connector 1 gender Male
Connector 2 gender Male
Fibre optic type OM3
Product colour Aqua colour
Full duplex Y
Core diameter 50 µm
Cladding diameter 125 µm
Fiber mode structure Multi-mode
Wavelengths supported 850 nm
Data transfer rate 100 Gbit/s
Jacket material Low smoke zero halogen (LSZH)

Operational conditions

Operating temperature (T-T) -20 - 60 °C
Storage temperature (T-T) -20 - 60 °C

Weight & dimensions

Weight 96 g

Packaging data

Quantity per pack 1 pc(s)
Package width 215 mm
Package depth 200 mm
Package height 20 mm
Package weight 106 g

Information

Part Number: A50FBLCLC7
