Product Details
Introduction

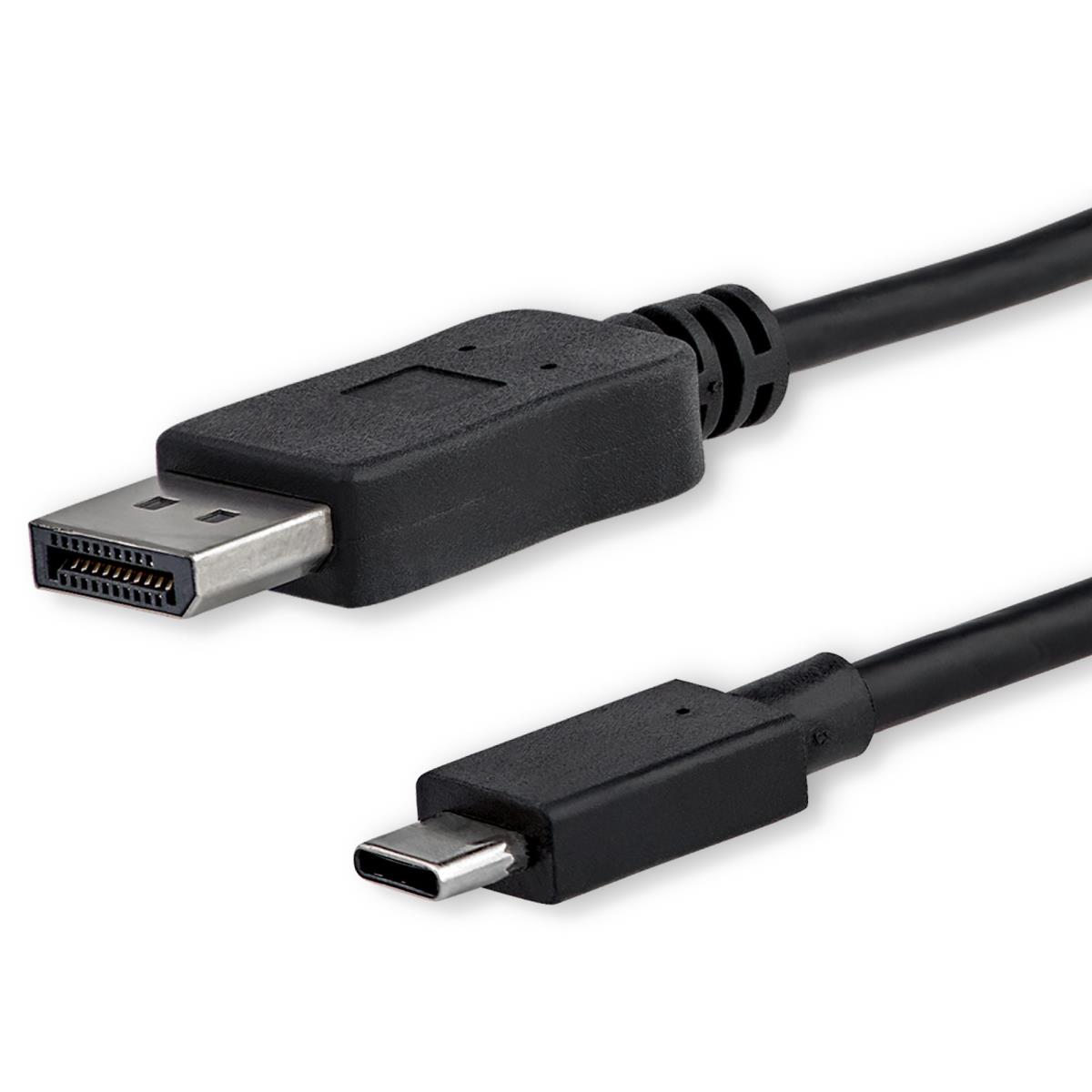

USB Type-C™ Video Adapter Cable | Thunderbolt™ 3 CompatibleThe StarTech.com Advantage
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733080
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight

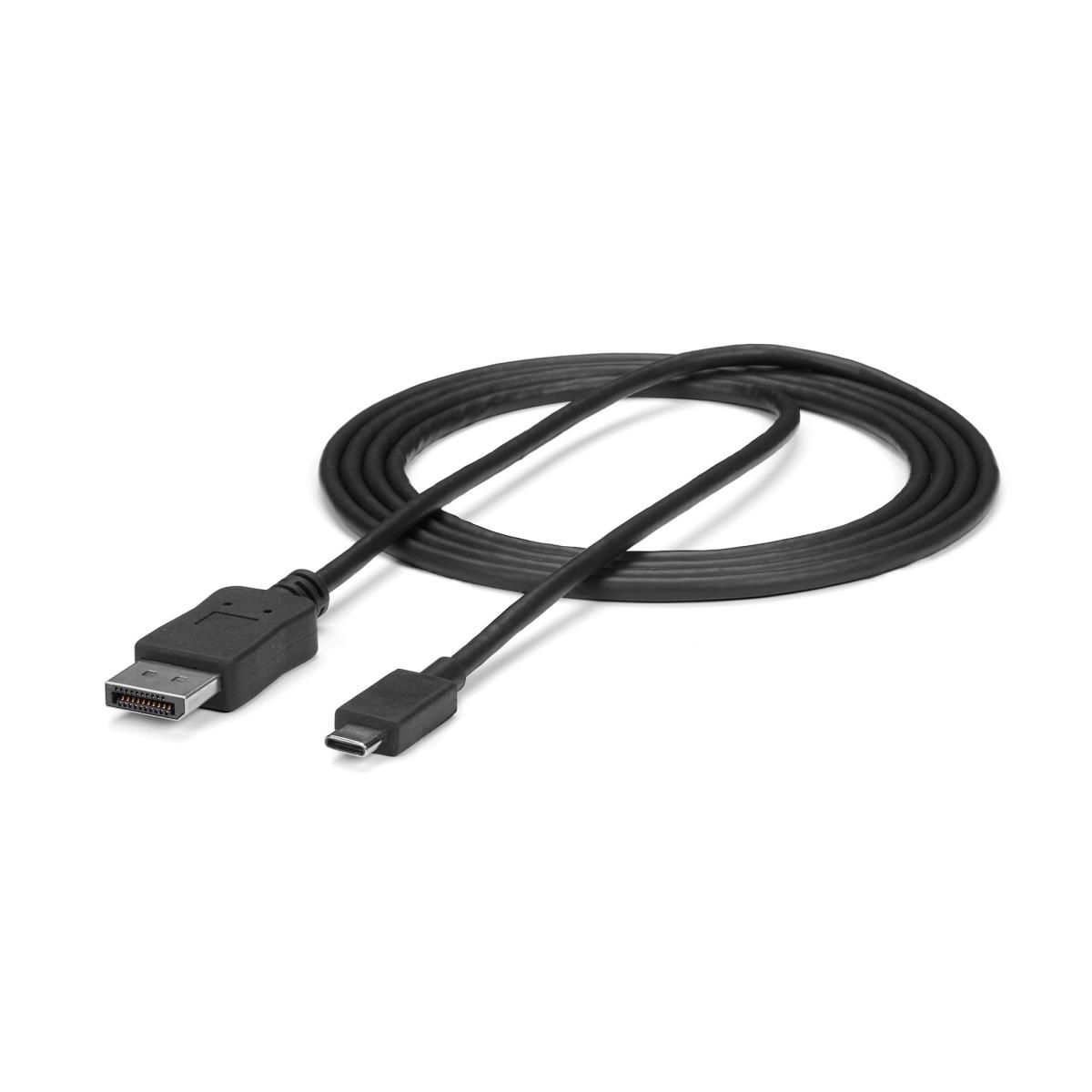

Cable length
1.8 m

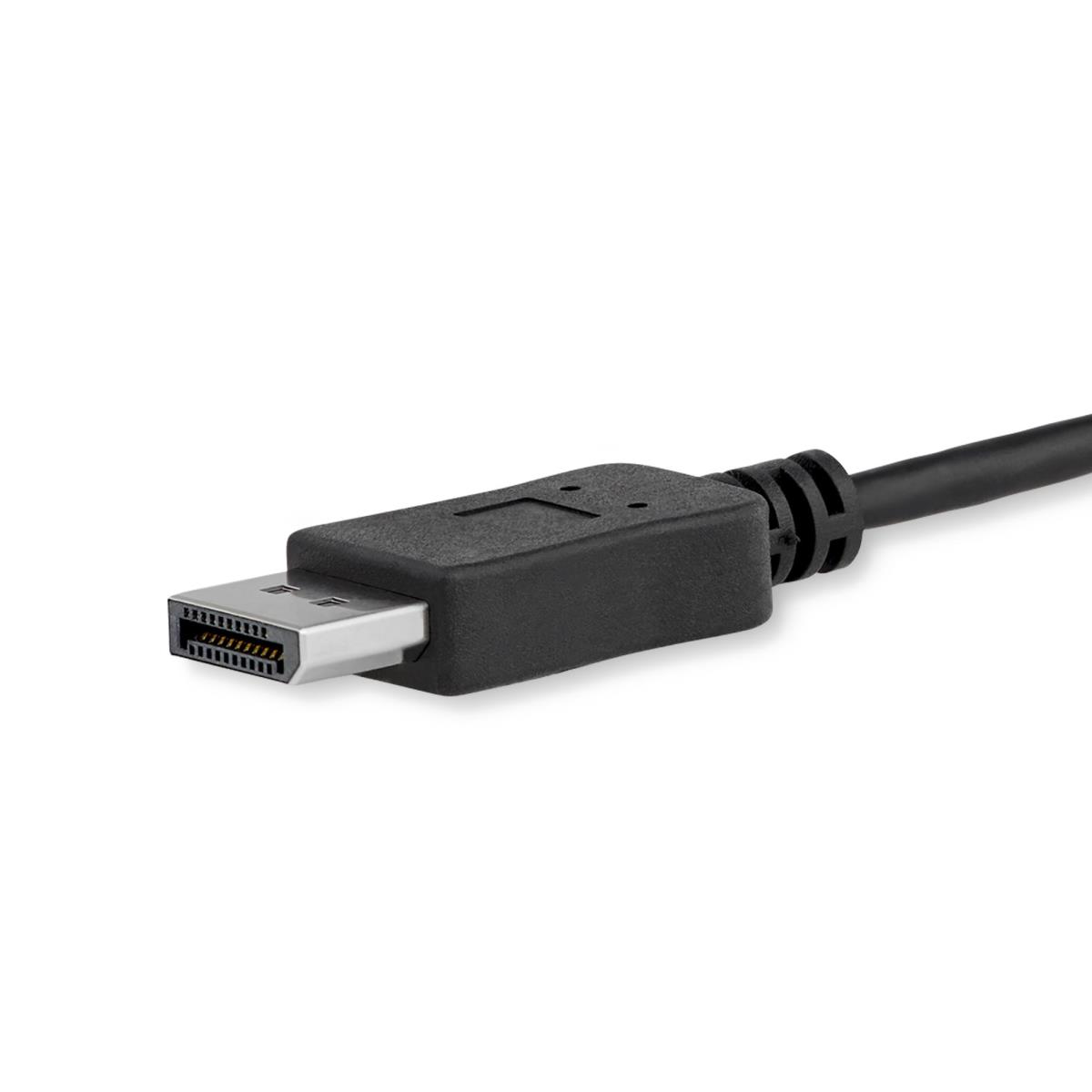

Connector 1
DisplayPort

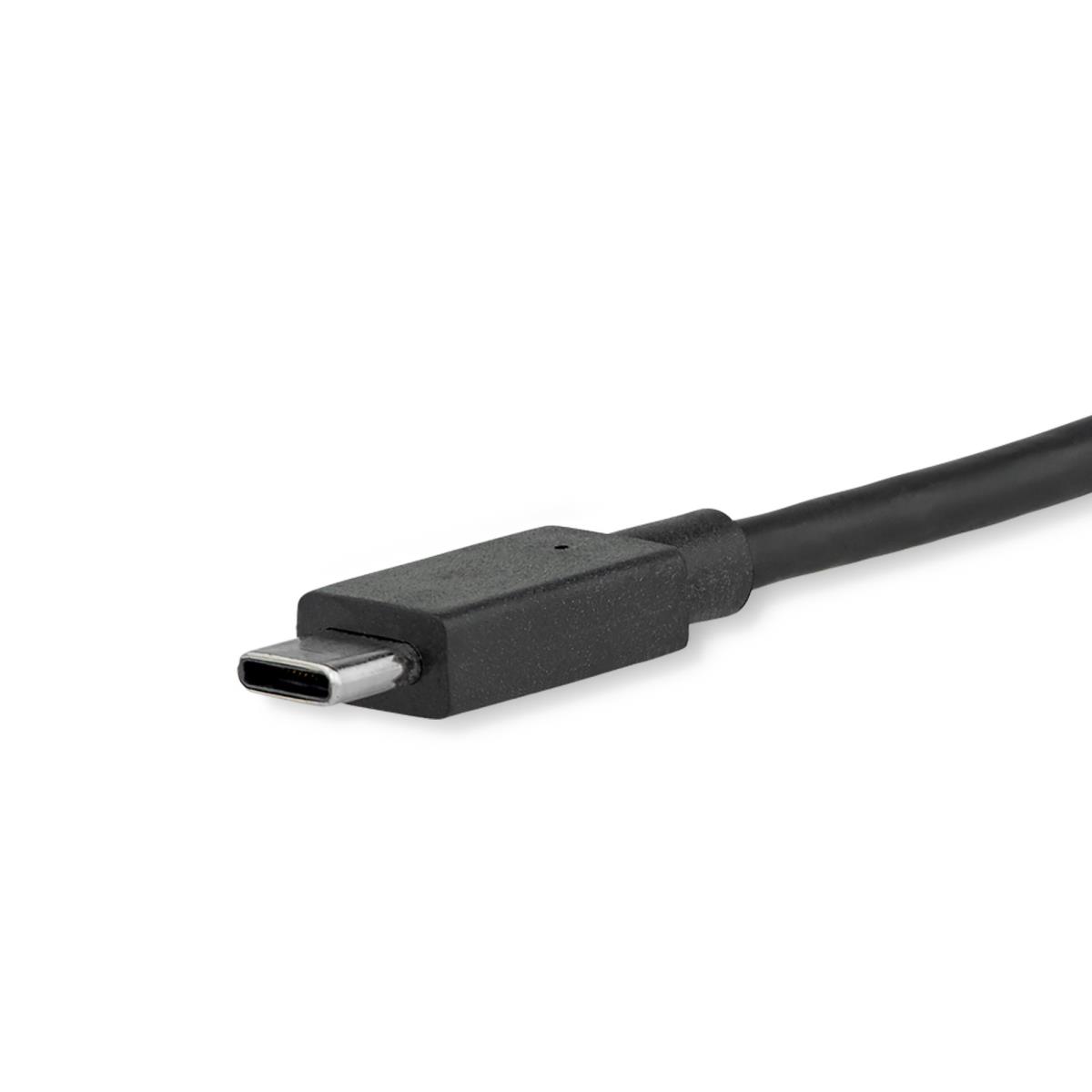

Connector 2
USB Type-C
Connector 1 gender
Male
Connector 2 gender
Male
HDCP
Y
HDCP version
1.4/2.2
DisplayPort version
1.2
USB Type-C DisplayPort Alternate Mode
Y
Maximum resolution
3840 x 2160 pixels
Supported graphics resolutions
1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160
Supported video modes
720p,1080p,2160p
Bandwidth
21600 MB/s
Maximum refresh rate
60 Hz
HBR2 support
Y
Product colour
Black
Chipset
STMicroelectronics - STM32F072CBU6
Supported audio channels
7.1
Plug and Play
Y
Certification
CE, FCC, REACH
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
20 - 70%
Sustainability
Sustainability certificates
RoHS
Weight & dimensions
Weight
49 g
Width
20 mm
Depth
1800 mm
Height
10 mm
Packaging data
Quantity per pack
1 pc(s)
Package width
200 mm
Package depth
220 mm
Package height
19 mm
Package weight
58 g
Logistics data
Master (outer) case width
340 mm
Master (outer) case length
500 mm
Master (outer) case height
225 mm
Products per master (outer) case
60 pc(s)
Information
| Part Number: | CDP2DPMM6B |
