Product Details
Introduction

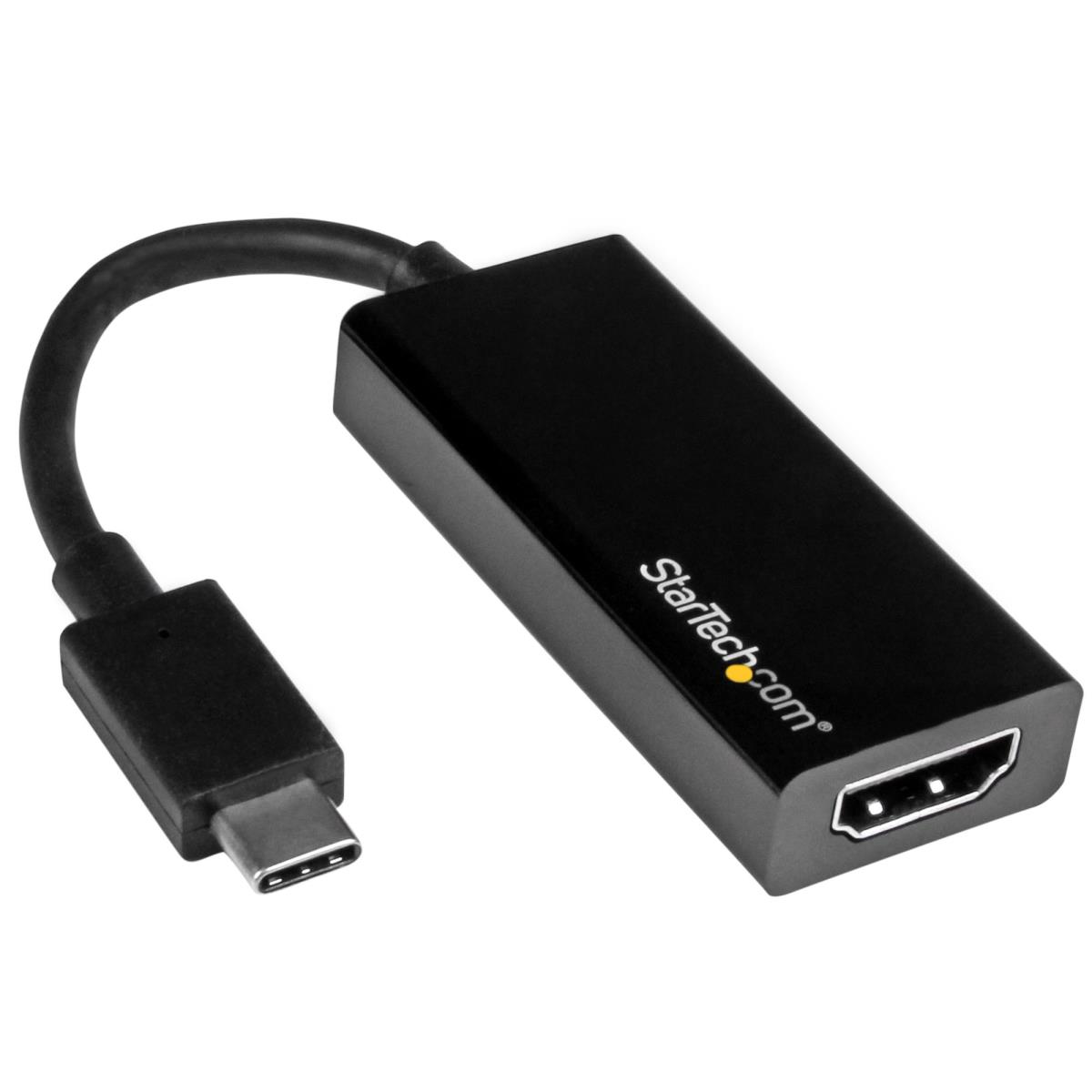

USB Type-C™ to HDMI Converter | Thunderbolt™ 3 Compatible | DP Alt ModeThe StarTech.com Advantage
Technical details
Compliance certificates
CE, RoHS
Sustainability compliance
Yes
Harmonized System (HS) code
84733020
Sustainability certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 85%
Performance
USB connector type
USB Type-C
USB connector gender
Male
USB connector form factor
Straight
USB version
3.2 Gen 2 (3.1 Gen 2)
DVI output
N
HDMI output
Y
DisplayPort output
N
Number of displays supported
1
HDMI version
1.4
Maximum resolution
3840 x 2160 pixels
Refresh rate at maximum resolution
30 Hz
Supported graphics resolutions
1024 x 768 (XGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),1280 x 720 (HD 720),2560 x 1600 (WQXGA),3840 x 2160
Supported video modes
1080p,720p
Audio output channels
7.1 channels
Chipset
Parade - PS171, STMicroelectronics - STM32F072CBU6
Certification
CE, FCC, REACH
Design
Product colour
Black
Integrated USB cable
Y
USB cable length
0.12 m
Weight & dimensions
Width
23 mm
Depth
147 mm
Height
9 mm
Weight
22 g
Package width
200 mm
Package depth
220 mm
Package height
10 mm
Package weight
30 g
Logistics data
Products per master (outer) case
120 pc(s)
Master (outer) case width
337 mm
Master (outer) case length
500 mm
Master (outer) case height
220 mm
Information
| Part Number: | CDP2HD |
