Product Details
Introduction

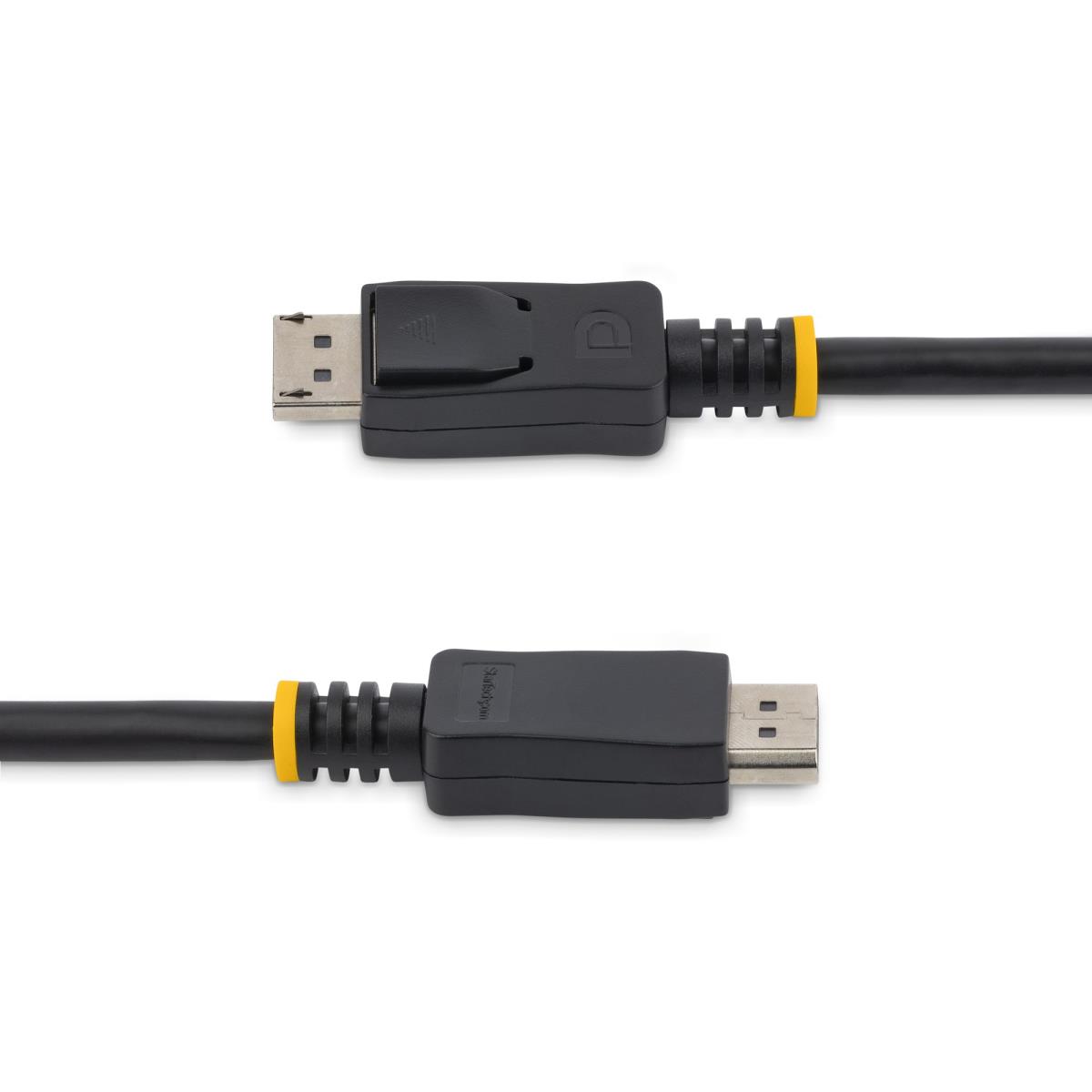

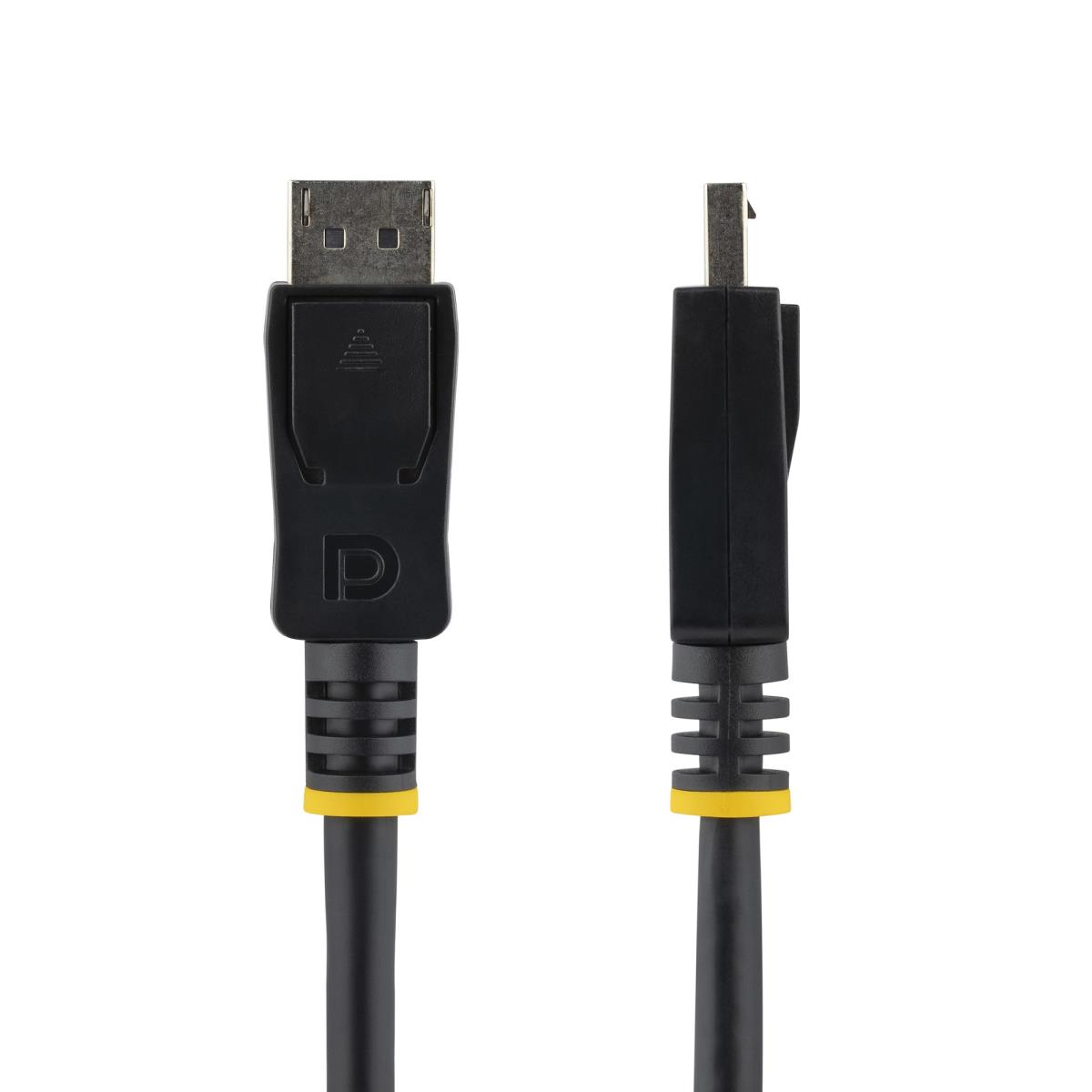

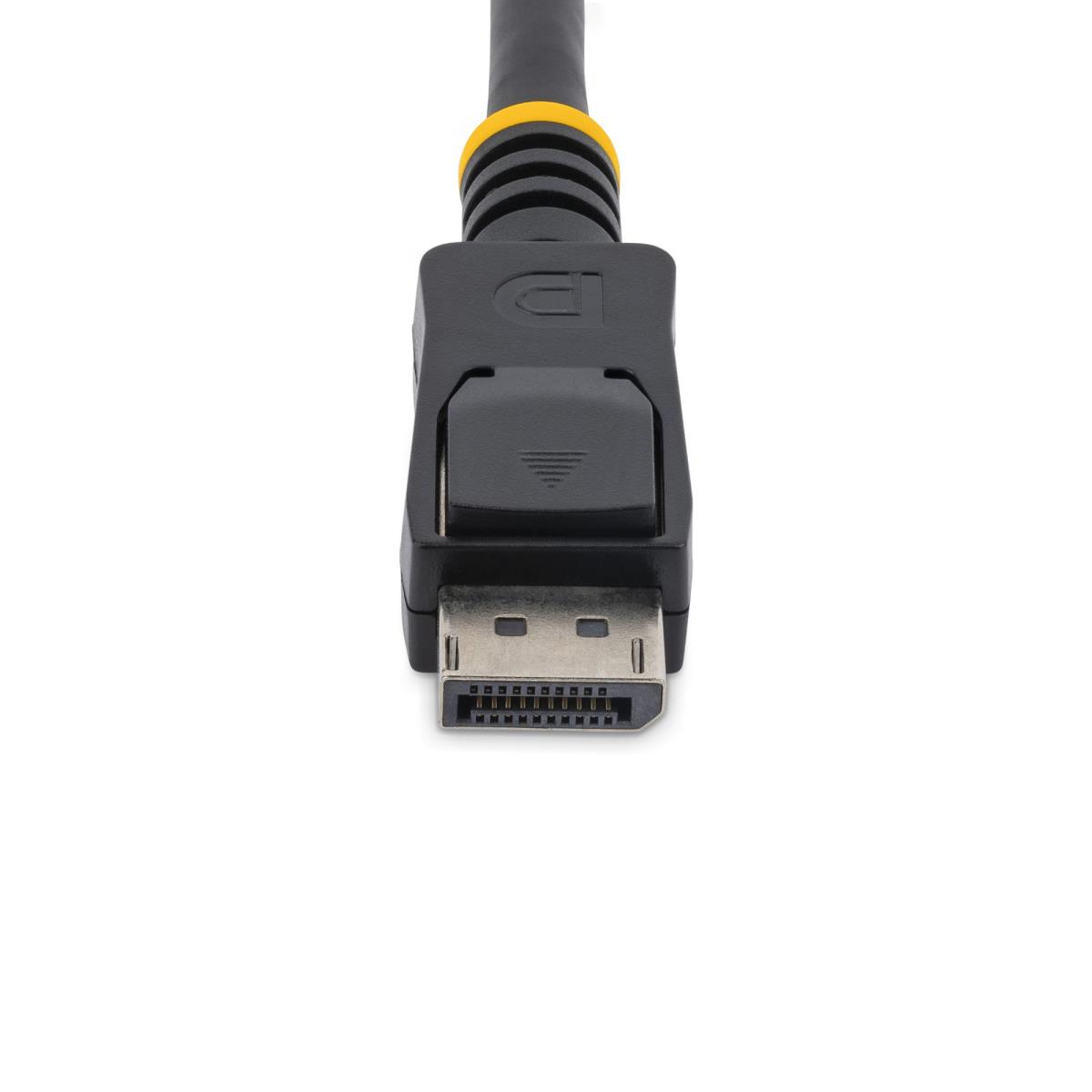

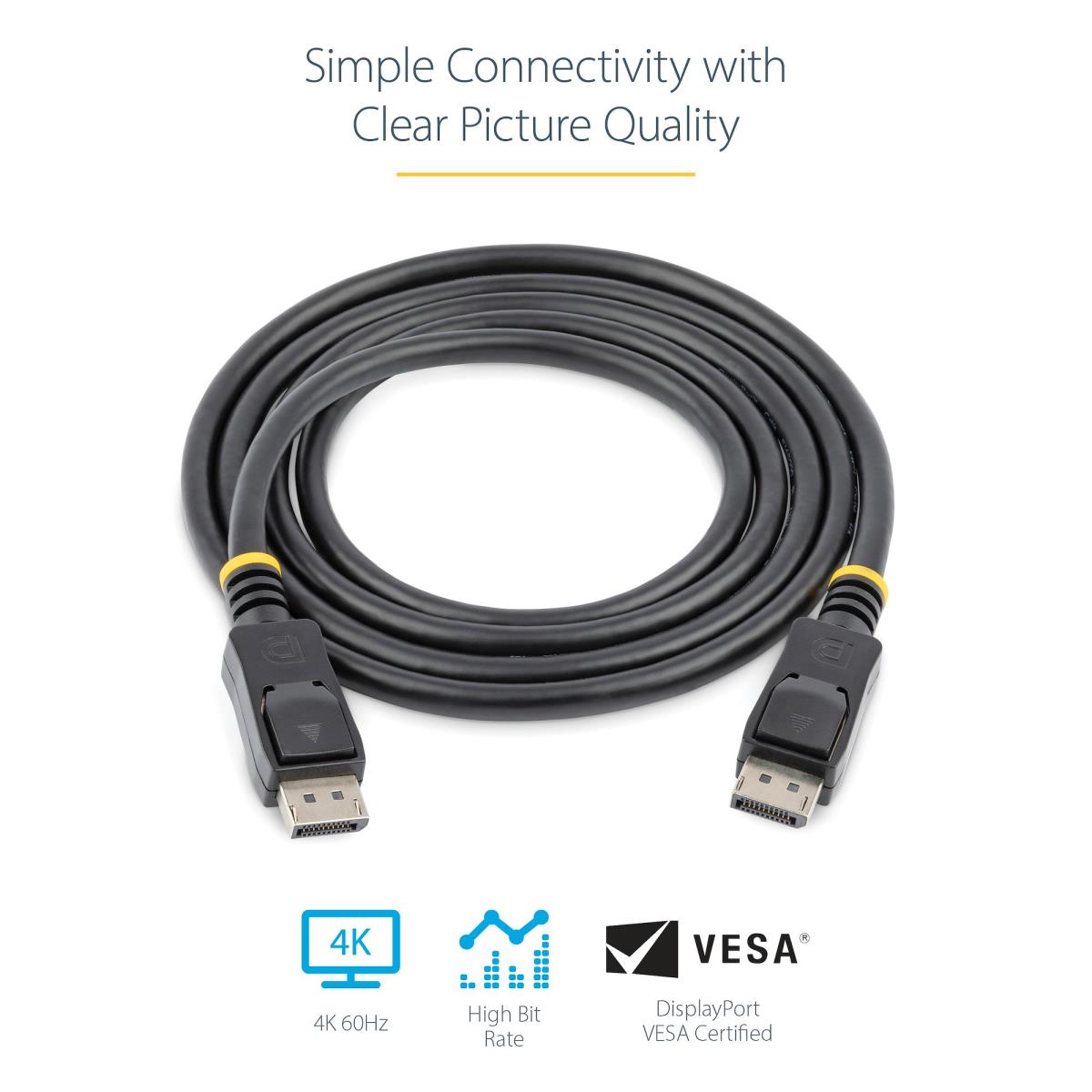

Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPortT-equipped devicesThe StarTech.com Advantage
Technical details
Harmonized System (HS) code
84733080
Compliance certificates
CE, RoHS
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Nickel
DisplayPort version
1.2
Maximum resolution
3840 x 2400 pixels
Supported graphics resolutions
1920 x 1080 (HD 1080),2560 x 1600 (WQXGA),3840 x 2400
Maximum refresh rate
60 Hz
HDCP
Y
DisplayPort Content Protection (DPCP)
Y
Cable length
1 m
Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male

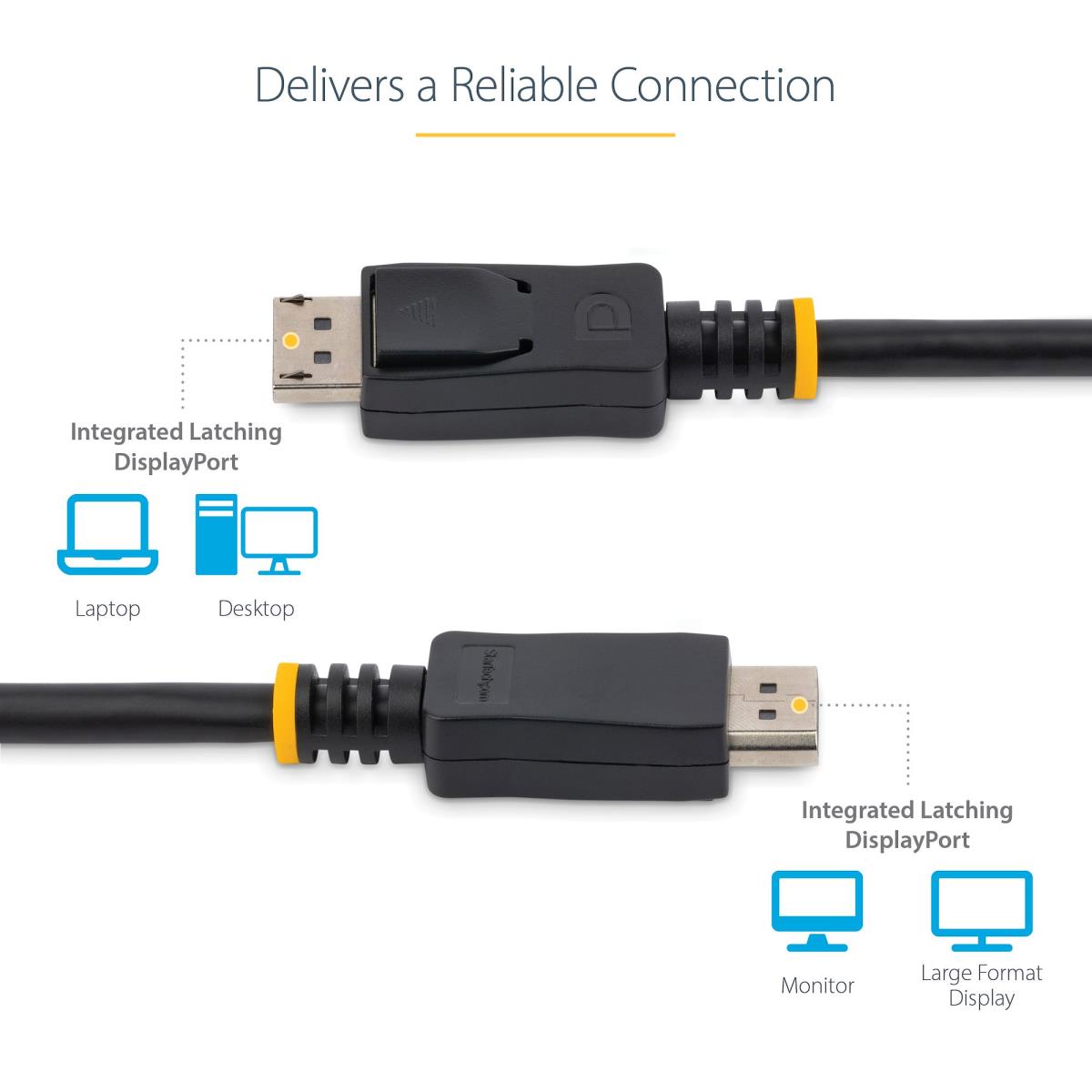

Latching connectors
Y
Product colour
Black
Cable rating
CMG (CM)
Cable shielding
Aluminum mylar foil
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
28
Bandwidth
21600 MB/s
Plug and Play
Y
Multi-Stream Transport (MST)
Y
Number of conductors
19
Sustainability
Sustainability certificates
CE, RoHS
Packaging data
Cable diameter
7.3 mm
Weight
85 g
Quantity per pack
1 pc(s)
Package width
200 mm
Package depth
220 mm
Package height
15 mm
Package weight
97 g
Logistics data
Master (outer) case width
330 mm
Master (outer) case length
500 mm
Master (outer) case height
250 mm
Products per master (outer) case
120 pc(s)
Information
| Part Number: | DISPL1M |
