Product Details
Introduction

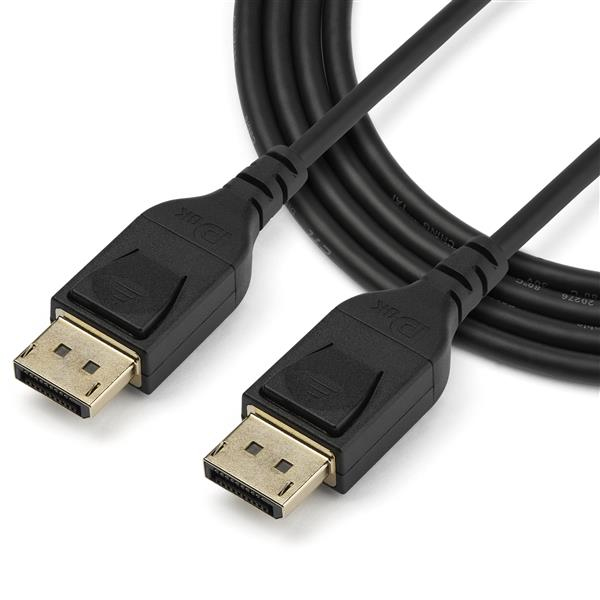

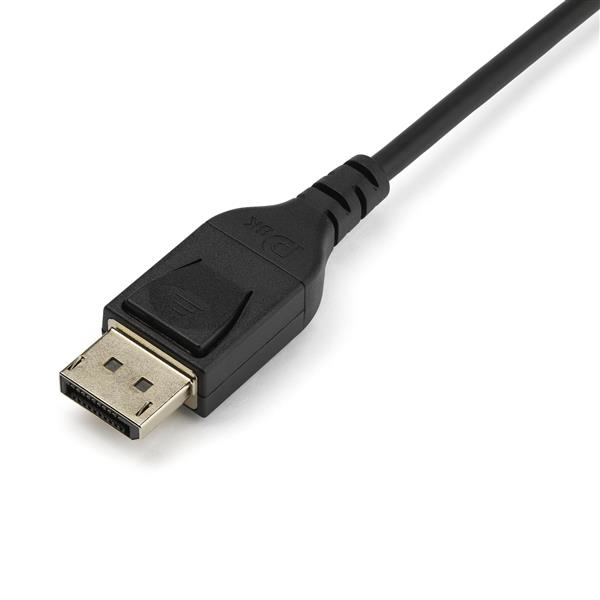

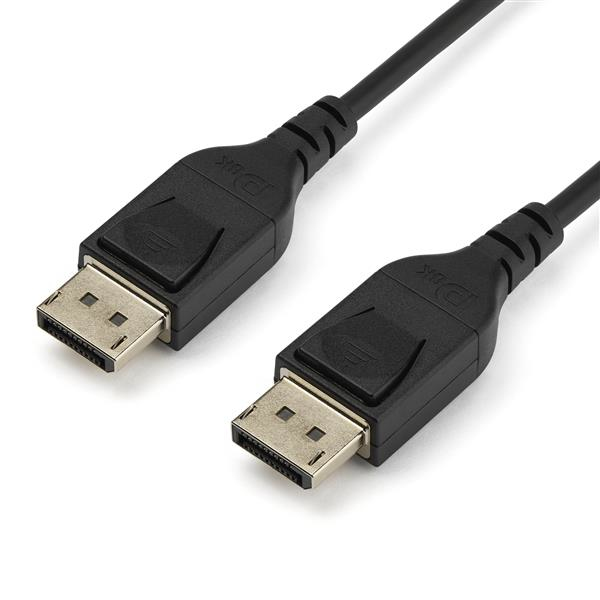

Slim DP Monitor Cable | 8K@60Hz | HBR3 | HDR | Gold-Plated | Lifetime WarrantyThe StarTech.com Advantage
Packaging data
Package height
15 mm
Weight
59 g
Quantity per pack
1 pc(s)
Package width
200 mm
Package depth
220 mm
Package weight
69 g
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733080
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
DisplayPort version
1.4
Maximum resolution
7680 x 4320 pixels
Supported graphics resolutions
3840 x 2160,7680 x 4320
Maximum refresh rate
120 Hz
HDCP
Y
Cable length
1 m
Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Latching connectors
Y
Product colour
Black
Cable shielding
Aluminum mylar foil
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
34
High Dynamic Range (HDR) supported
Y
Bandwidth
32400 MB/s
Plug and Play
Y
HBR3 support
Y
Multi-Stream Transport (MST)
Y
Number of conductors
19
Fire-resistance rating
VW-1
Certification
CE, REACH
Sustainability
Sustainability certificates
RoHS
Logistics data
Master (outer) case width
335 mm
Master (outer) case length
400 mm
Master (outer) case height
265 mm
Products per master (outer) case
120 pc(s)
Information
| Part Number: | DP14MM1M |
