Product Details
Introduction

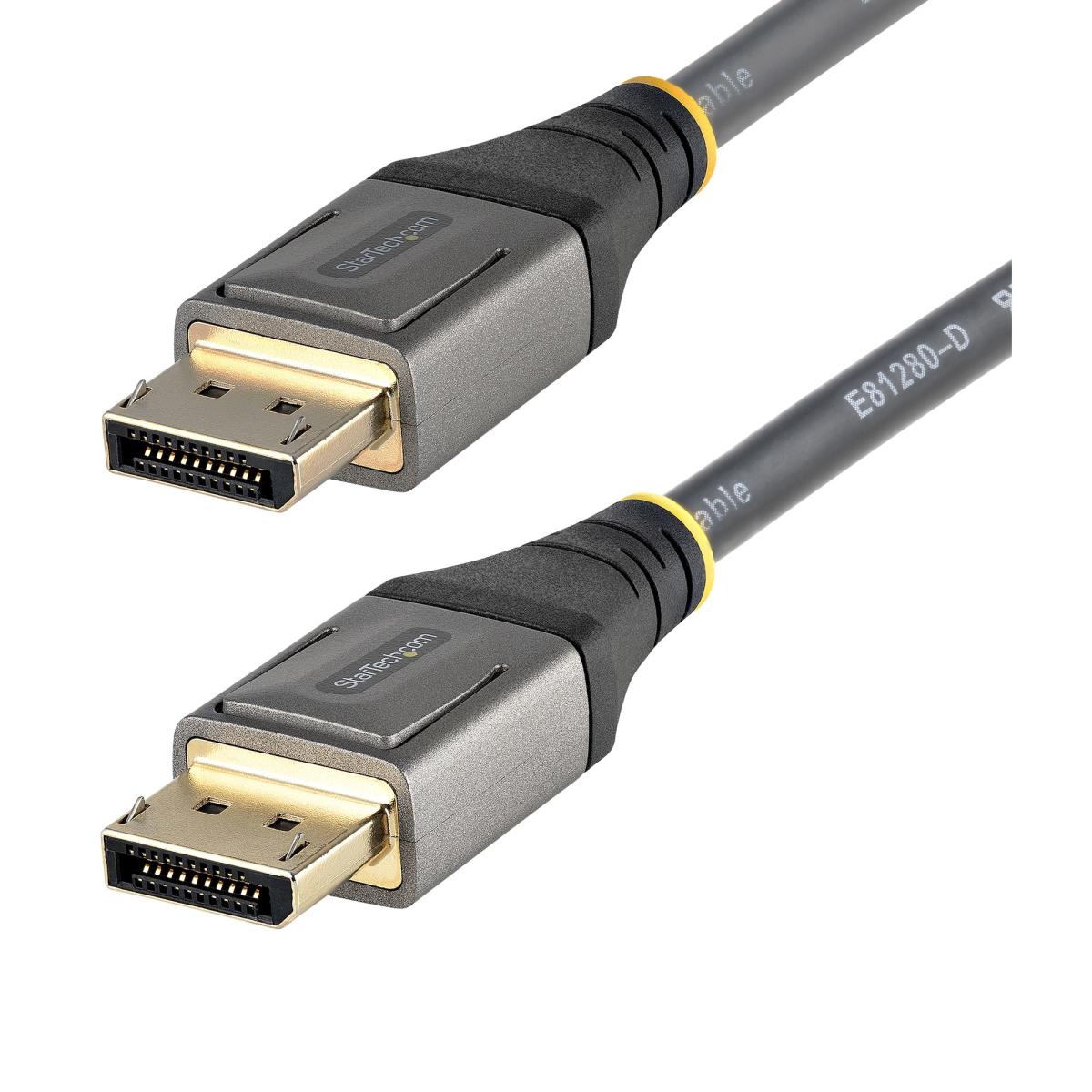

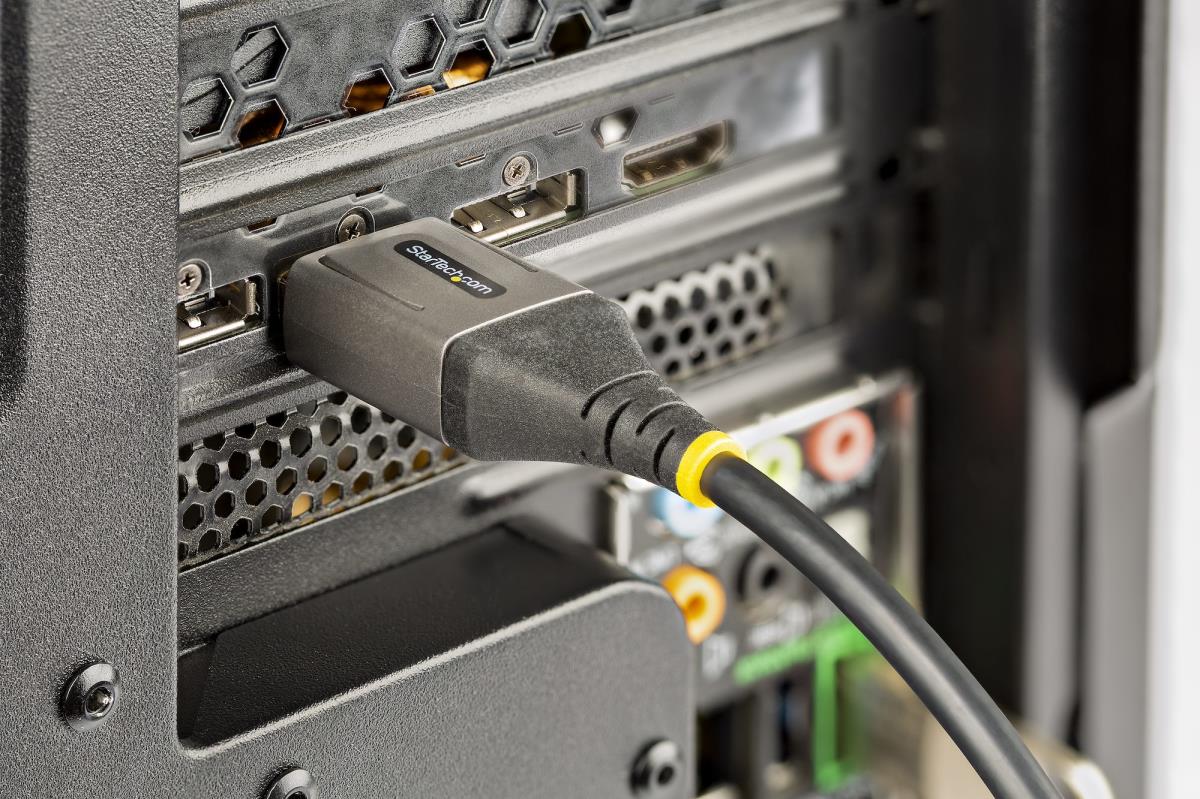

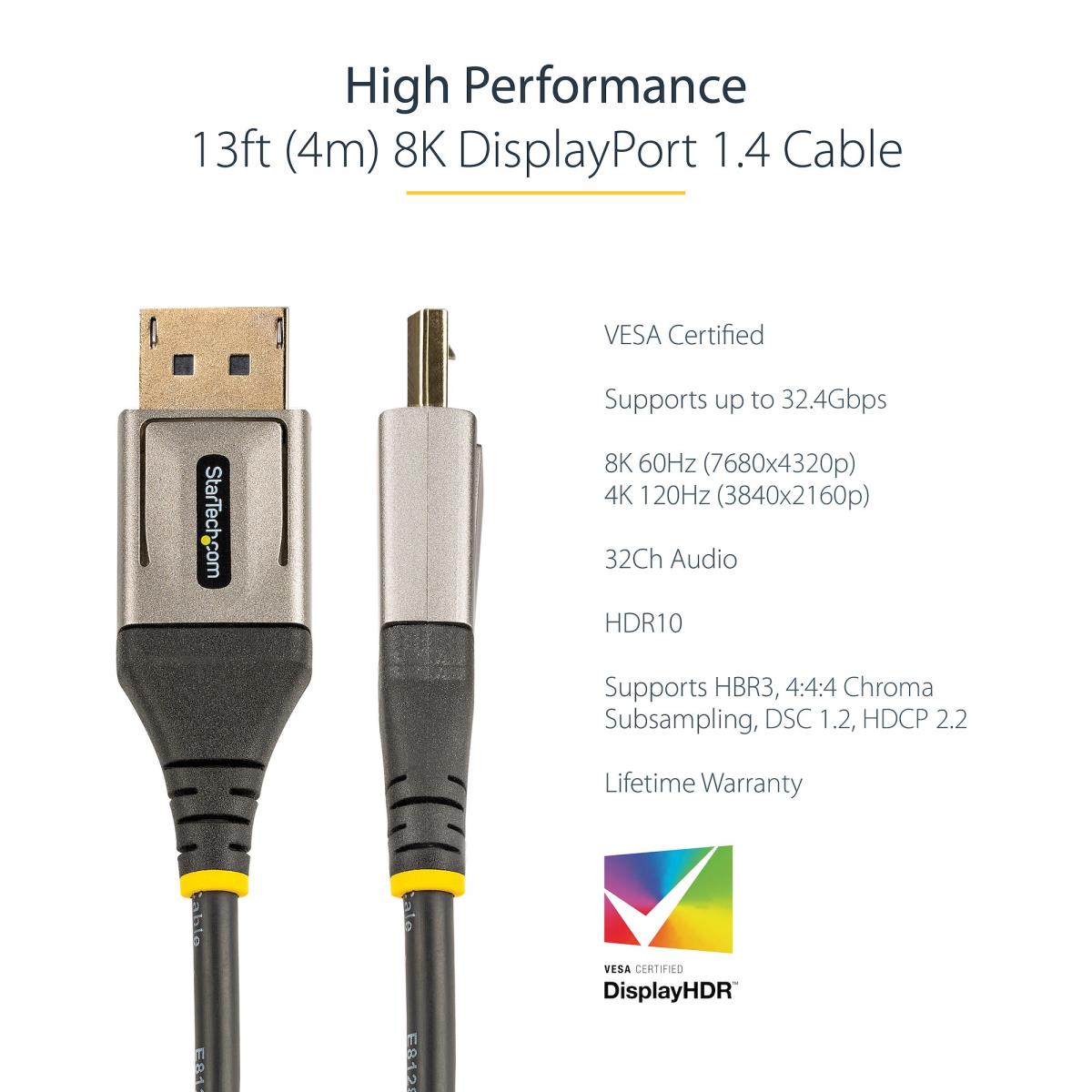

VESA Certified DisplayPort 1.4 Cable - 8K 60Hz HDR10 - 13.1 ft. (4 m)The StarTech.com Advantage
Packaging data
Weight
309 g
Cable diameter
7.5 mm
Package width
245 mm
Package depth
330 mm
Package height
23 mm
Package weight
328 g
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733080
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
DisplayPort version
1.4
Maximum resolution
7680 x 4320 pixels
Supported graphics resolutions
3840 x 2160,7680 x 4320
Maximum refresh rate
120 Hz
HDCP
Y
Cable length
4 m
Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Latching connectors
Y
Product colour
Grey, Black
Cable shielding
Aluminum mylar foil
Jacket material
Thermoplastic elastomer (TPE)
AWG wire size
28
High Dynamic Range (HDR) supported
Y
Bandwidth
32400 MB/s
HBR3 support
Y
Number of conductors
19
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 85%
Sustainability
Sustainability certificates
RoHS
Logistics data
Master (outer) case width
340 mm
Master (outer) case length
400 mm
Master (outer) case height
270 mm
Products per master (outer) case
25 pc(s)
Information
| Part Number: | DP14VMM4M |
