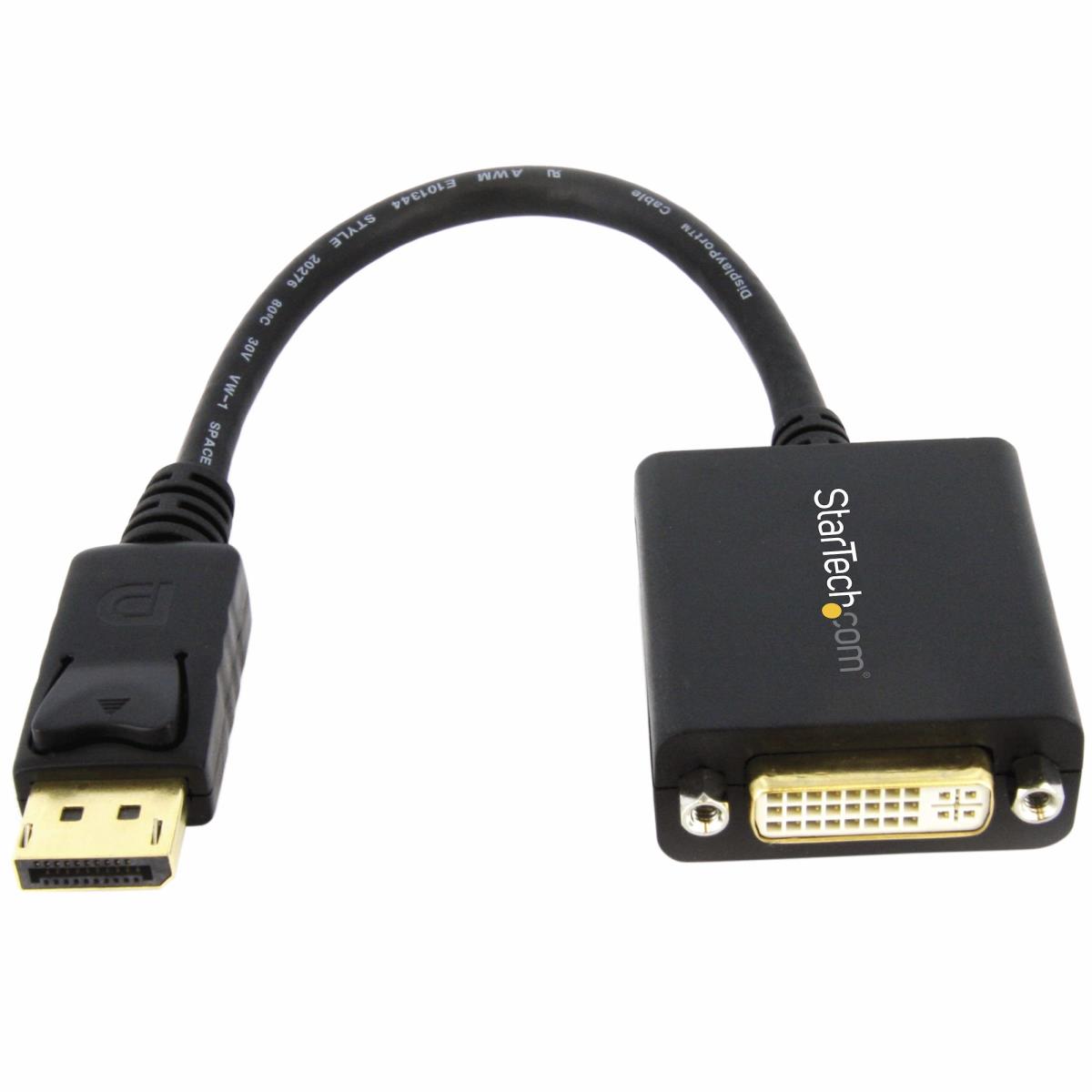

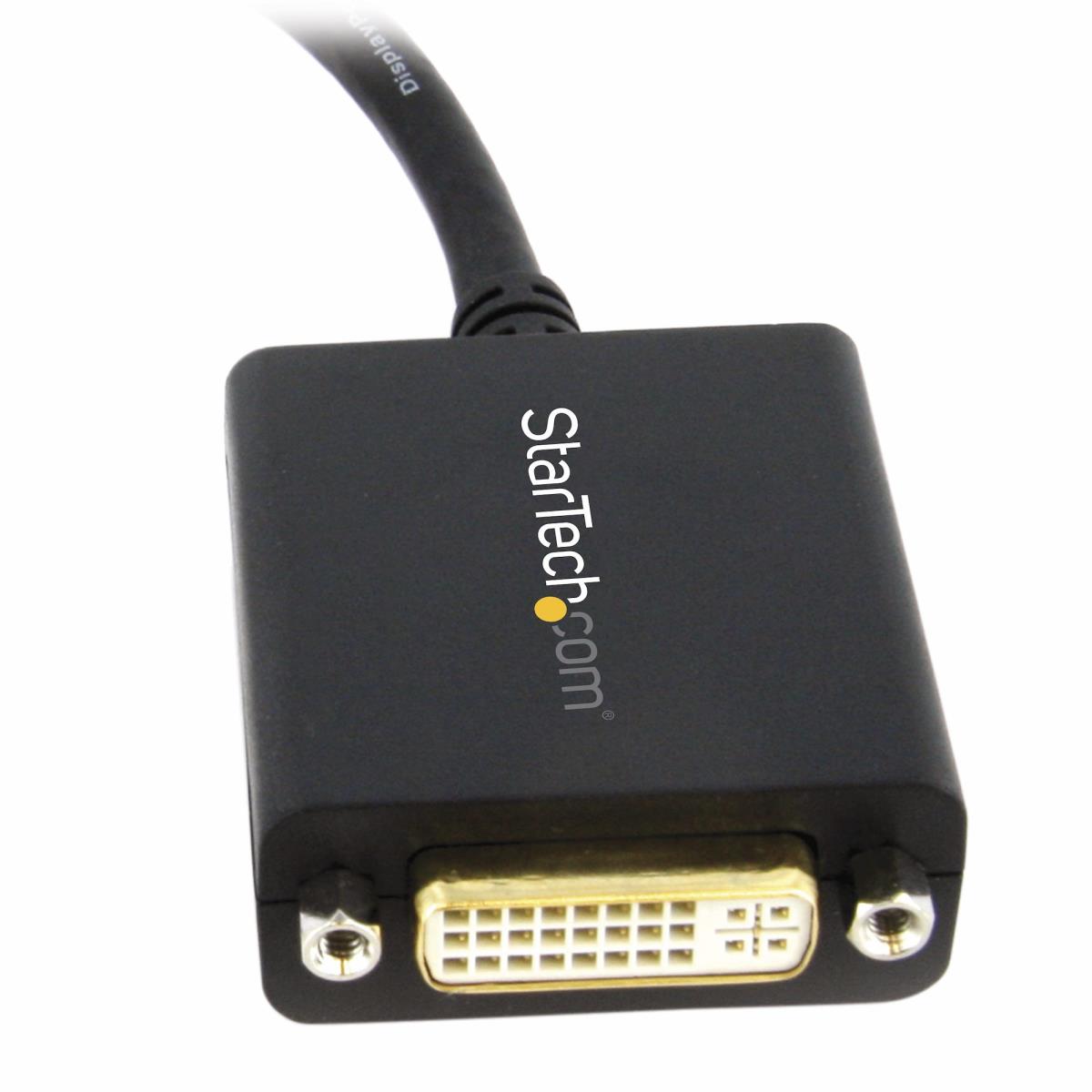

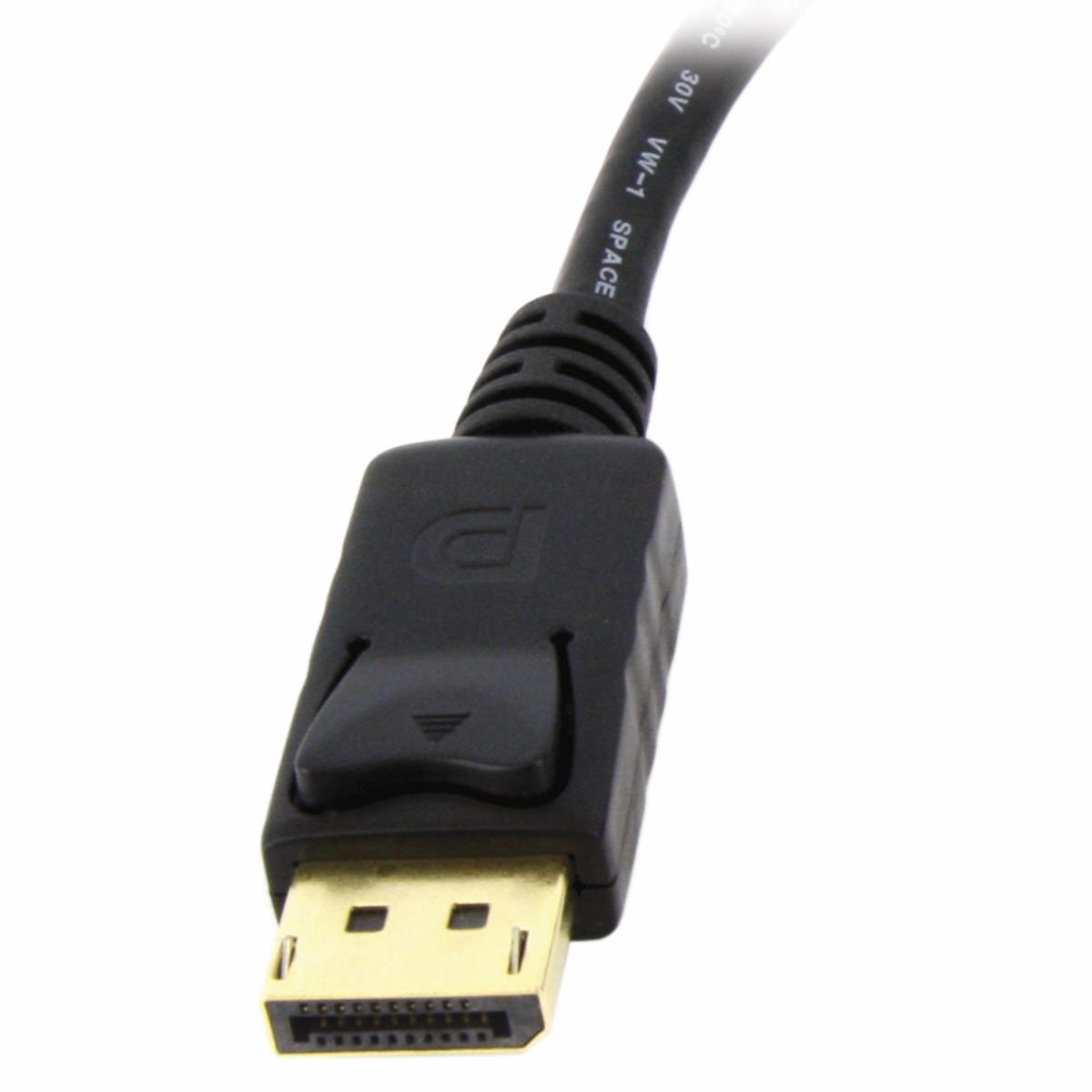

STARTECH.COM DisplayPort To DVI Video Ad/ Converter Cable

STARTECH.COM DisplayPort To DVI Video Ad/ Converter Cable

£7.67 (incl. VAT)

Qty:

Add to basket

Part Number:	DP2DVI2
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Connect your DVI monitor to a DisplayPort equipped computer

The DP2DVI2 DisplayPort to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.

Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Simple to use, small form factor converter makes DisplayPort backwards compatible with your DVI-D display
- No installation software or drivers required providing a simple plug and play solution
- 4 inch cable offers added flexibility in tight spots

Technical details

Compliance certificates RoHS

Harmonized System (HS) code 84733080

Features

Connector 1 form factor Straight

Connector 2 form factor Straight

Cable length 0.152 m

Connector 1 Display Port

Connector 2 DVI

Connector 1 gender Male

Connector 2 gender Female

HDCP Y

HDCP version 1.4

DisplayPort version 1.2

Dual Link DVI N

Maximum resolution 1920 x 1200 pixels

Supported graphics resolutions 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800 (WXGA),1280 x 960,1360 x 768 (WXGA),1366 x 768,1400 x 1050 (SXGA+),1440 x 900,1600 x 600,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)

Supported video modes 480p,720p,1080p

Maximum refresh rate 60 Hz

HBR2 support Y

Product colour Black

Plug and Play Y

Converter type Passive video converter

Certification CE, FCC, REACH

Operational conditions

Operating temperature (T-T) 0 - 70 °C

Storage temperature (T-T) -10 - 80 °C

Operating relative humidity (H-H) 5 - 90%

Sustainability

Sustainability certificates RoHS

Weight & dimensions

Weight 43 g

Width 42 mm

Depth 254 mm

Height 17 mm

Packaging data

Quantity per pack 1 pc(s)

Package width 200 mm

Package depth 220 mm

Package height 19 mm

Package weight 52 g

Logistics data

Master (outer) case width 325 mm

Master (outer) case length 500 mm

Master (outer) case height 220 mm

Products per master (outer) case 140 pc(s)
