Product Details
Introduction

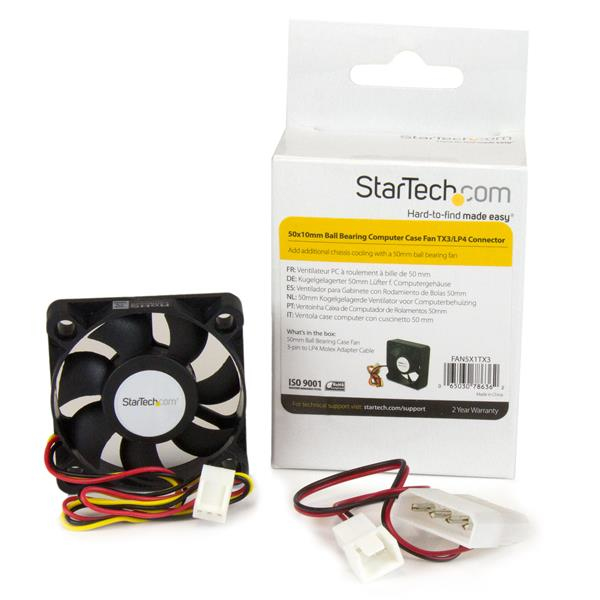

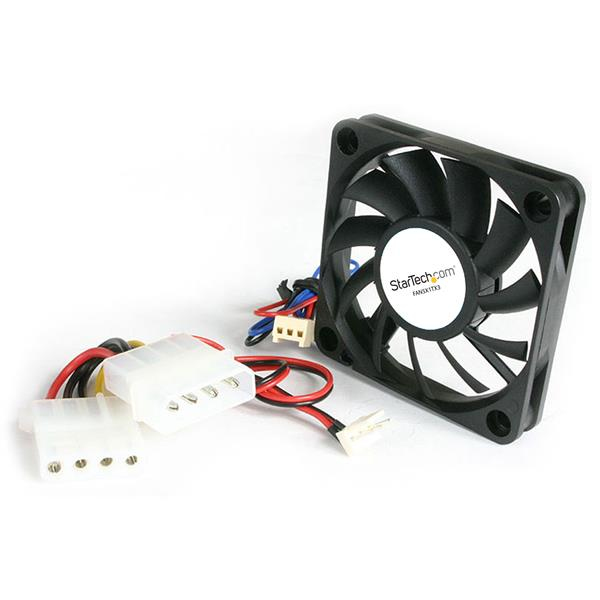

Add additional chassis cooling with a 50mm ball bearing fan
This versatile 5cm x 1cm fan is an ideal replacement fan for keeping your computer running cool. The fan can be powered through a TX3 connection, and features a dual ball bearing design that ensures reliable cooling and longer fan lifespan.
The StarTech.com Advantage
- Exhausts hot air out of a PC, increasing dependability and extending component lifetime
- Cools your PC, increasing dependability and extending component lifetime
- Comes complete with a TX3 to LP4 adapter
Logistics data
Master (outer) case width
356 mm
Master (outer) case length
452 mm
Master (outer) case height
294 mm
Products per master (outer) case
200 pc(s)
Technical details
Compliance certificates
RoHS
Sustainability certificates
RoHS
Performance
Suitable location
Computer case
Type
Fan
Fan diameter
5 cm
Rotational speed (max)
4500 RPM
Noise level (high speed)
23 dB
Maximum airflow
8.63 cfm
Bearing type
Ball bearing
Mean time between failures (MTBF)
50000 h
Operating temperature (T-T)
-10 - 80 °C
Design
Product colour
Black
Material
Plastic
Number of fans
1 fan(s)
Fan connector
3-pin
Certification
CE, UR, UL, REACH
Power
Power consumption (typical)
1.08 W
Voltage
12 V
Rated current
0.09 A
Other features
Harmonized System (HS) code
84733080
Weight & dimensions
Width
10 mm
Depth
50 mm
Height
50 mm
Weight
19 g
Package width
66 mm
Package depth
115 mm
Package height
33 mm
Package weight
41 g
Information
| Part Number: | FAN5X1TX3 |
