Product Details
Introduction

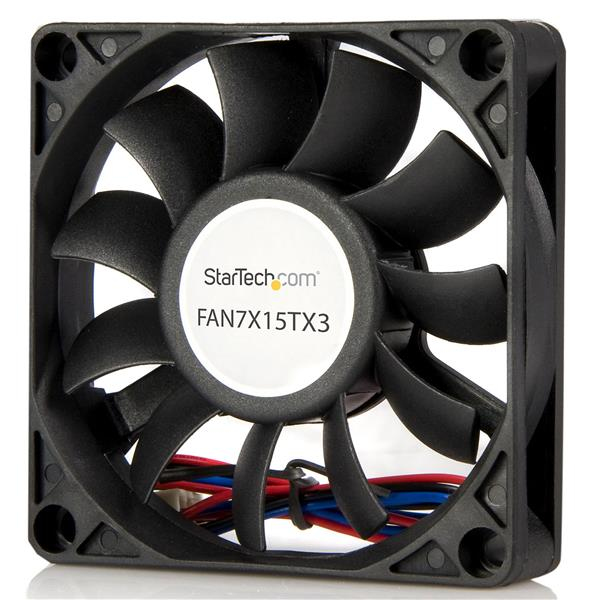

Add additional chassis cooling with a 70mm ball bearing fan
This versatile 70mm fan is an ideal replacement fan for keeping your computer running cool. The fan can be powered through a TX3 connection, and features a dual ball bearing design that ensures reliable cooling and longer fan lifespan.
The fan can be used to replace the fan component of some CPU coolers or mounted to the side panel of a computer case and features a tachometer pin on the TX3 motherboard connector that provides the host system with fan operating status information.
The StarTech.com Advantage
- A dual ball bearing design ensures reliability and longer life
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Logistics data
Master (outer) case width
364 mm
Master (outer) case length
586 mm
Master (outer) case height
220 mm
Products per master (outer) case
100 pc(s)
Technical details
Compliance certificates
RoHS
Sustainability certificates
RoHS
Performance
Suitable location
Computer case
Type
Fan
Fan diameter
7 cm
Rotational speed (max)
3500 RPM
Noise level (high speed)
34 dB
Maximum airflow
29.58 cfm
Mean time between failures (MTBF)
50000 h
Operating temperature (T-T)
-10 - 70 °C
Design
Product colour
Black
Material
Plastic
Number of fans
1 fan(s)
Certification
RoHS
Power
Power consumption (typical)
3.12 W
Voltage
12 V
Rated current
0.18 A
Other features
Harmonized System (HS) code
84733080
Storage temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
0 - 65%
Dimensions (WxDxH)
10 x 60 x 60 mm
Connector(s)
1 - TX3 Female
Product life
50000 h
Rotational speed
3500 RPM
Weight & dimensions
Width
15 mm
Depth
70 mm
Height
70 mm
Weight
38 g
Package width
96 mm
Package depth
143 mm
Package height
32 mm
Package weight
75 g
Information
| Part Number: | FAN7X15TX3 |
