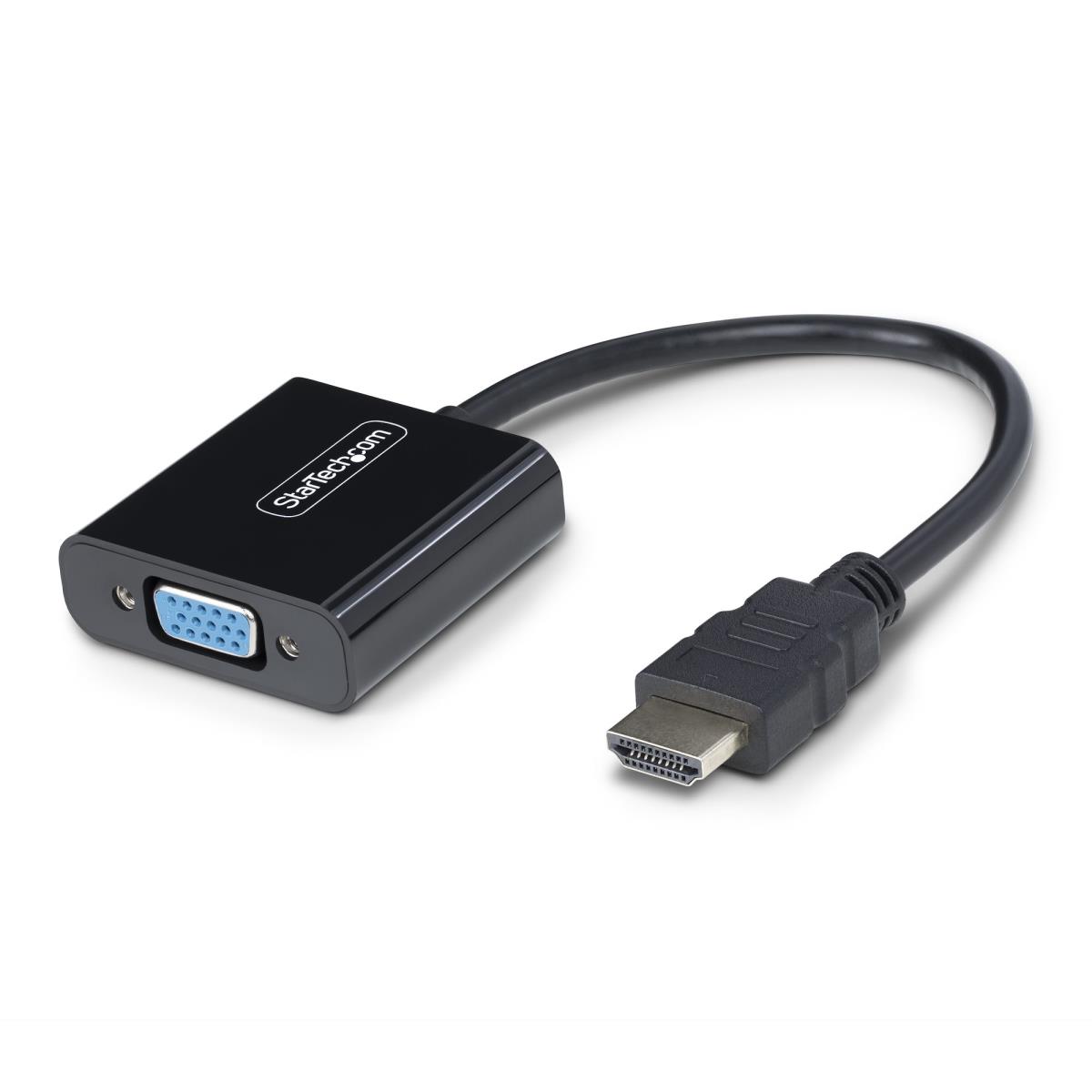

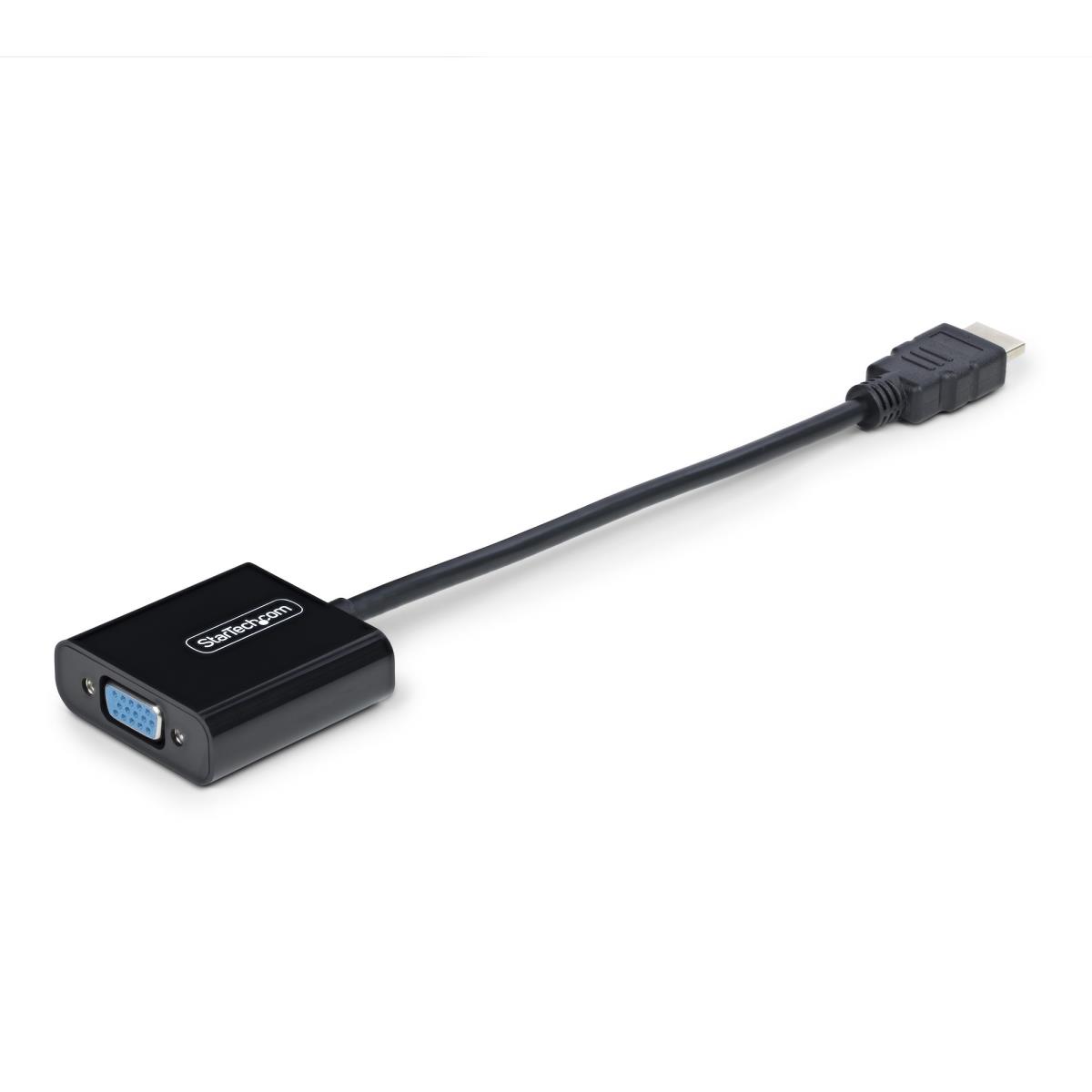

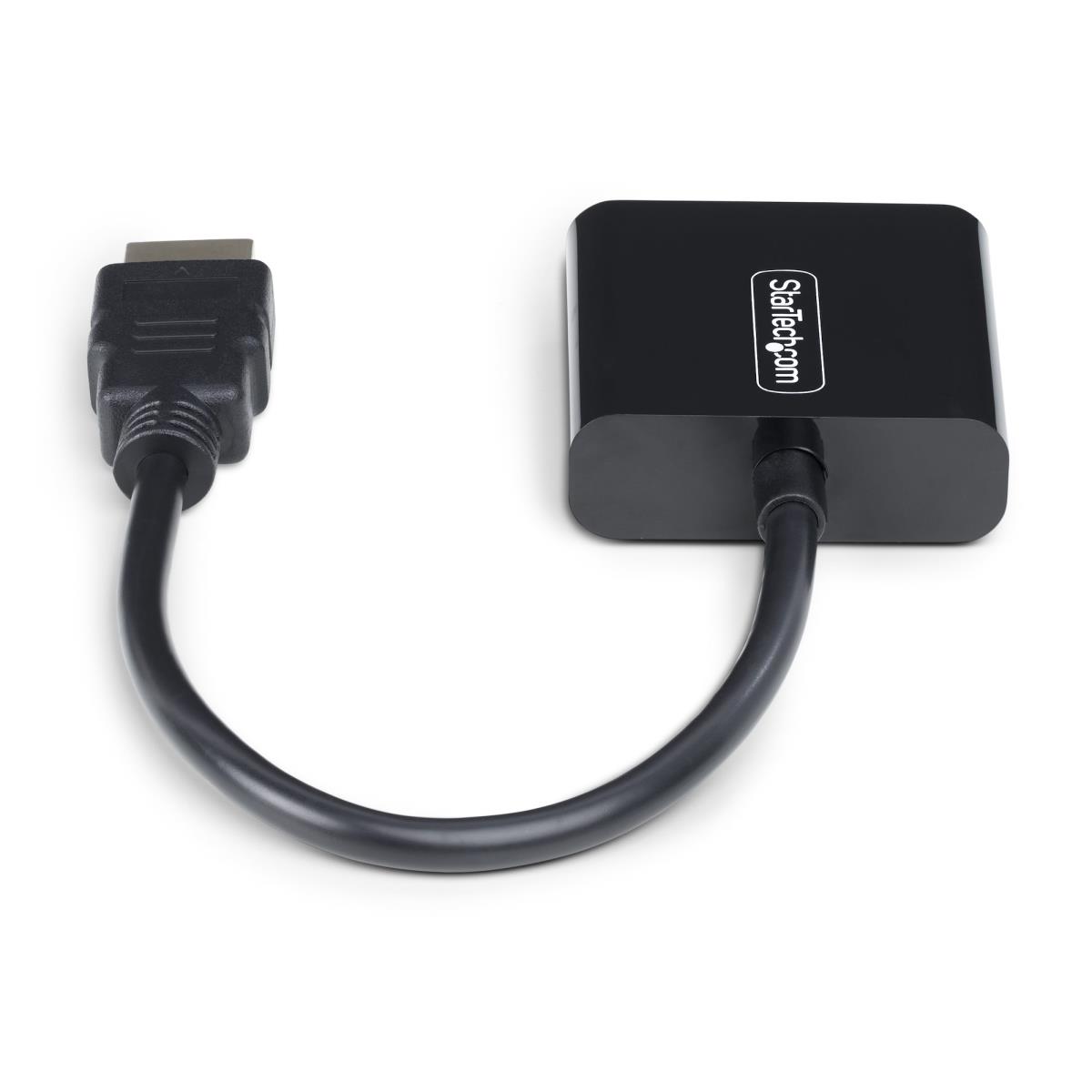

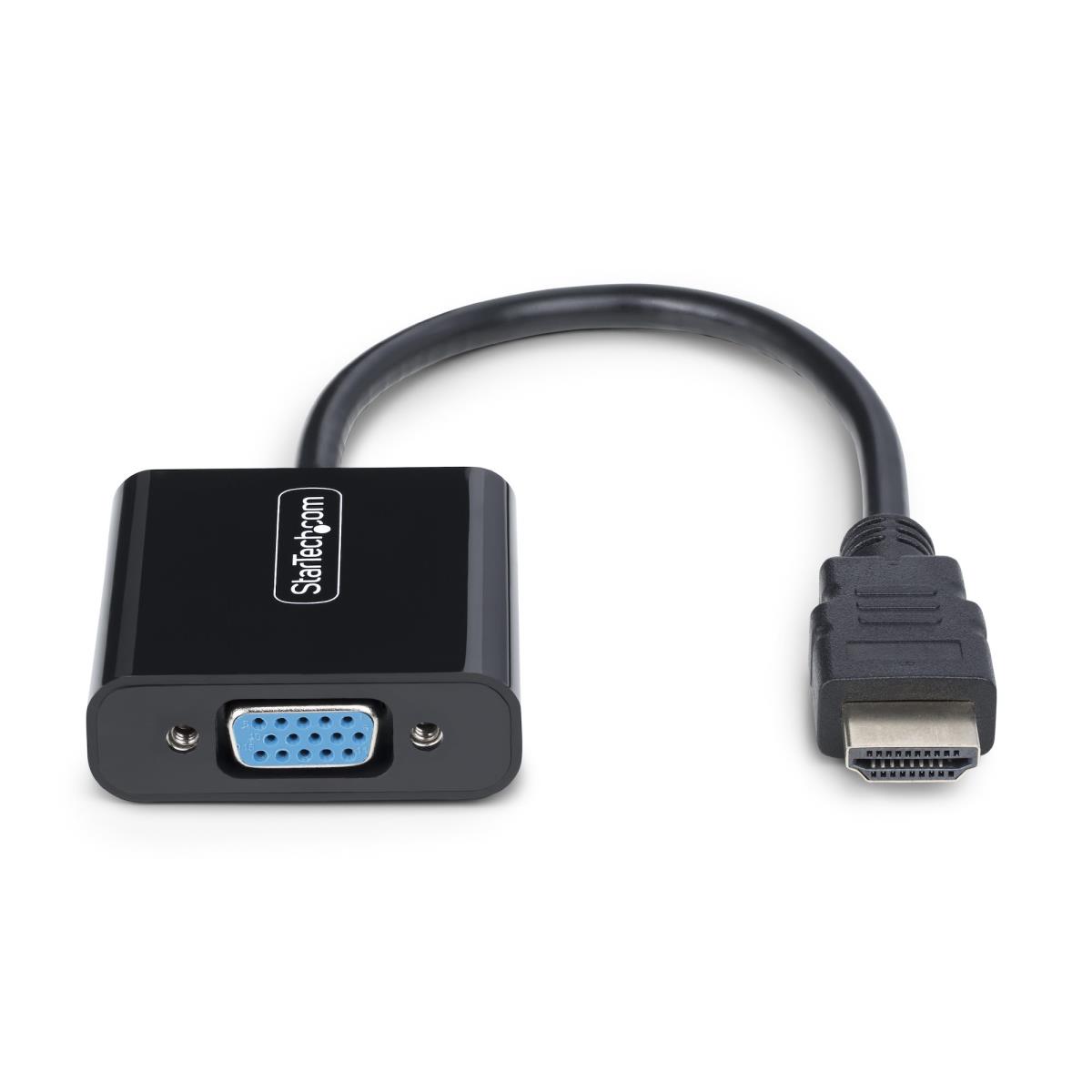

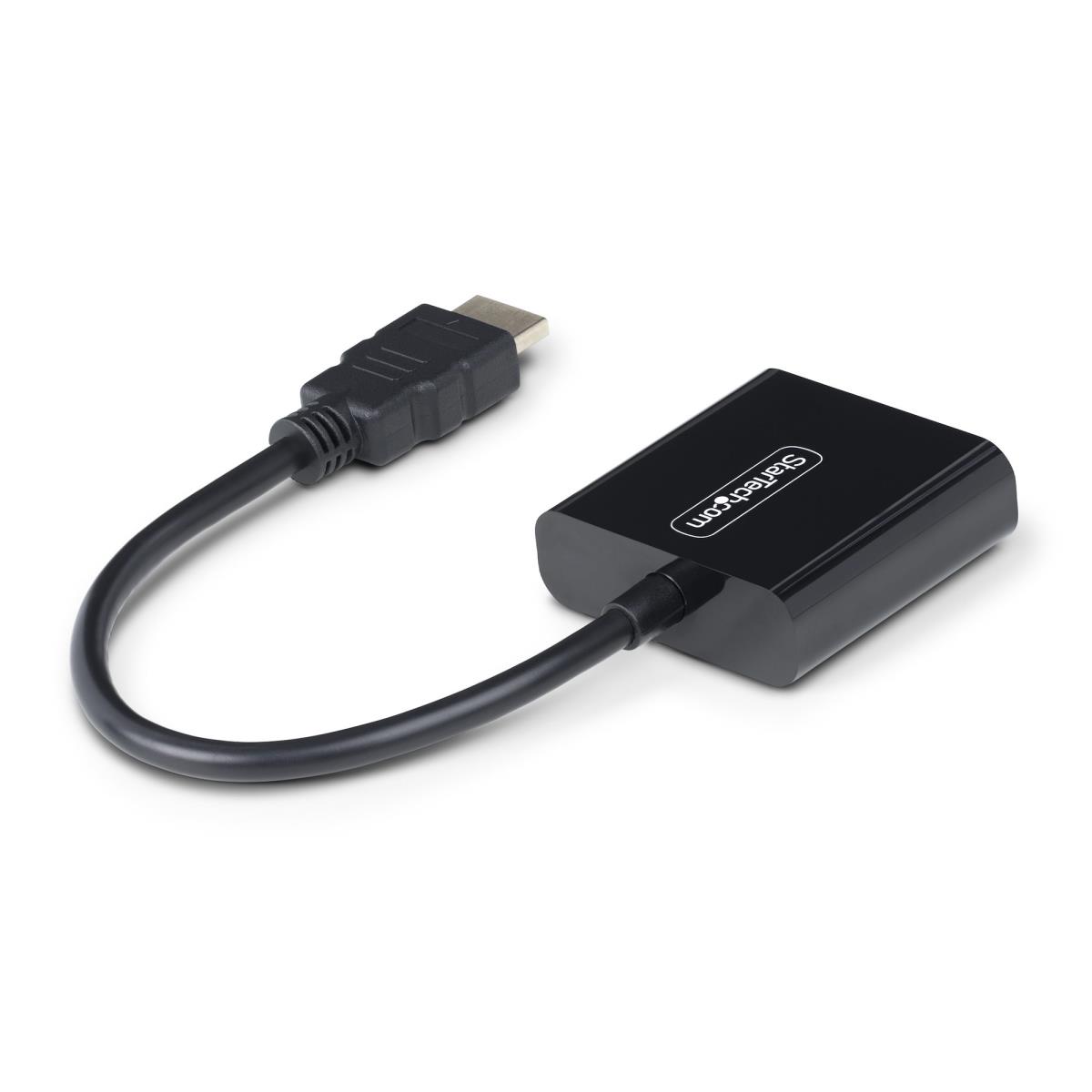

STARTECH.COM Hdmi To Vga Adapter 1080p - Active Video Converter

£10.11

Part Number: HD2VGAE3
Delivery: 1 - 2 days

Product Details

Introduction

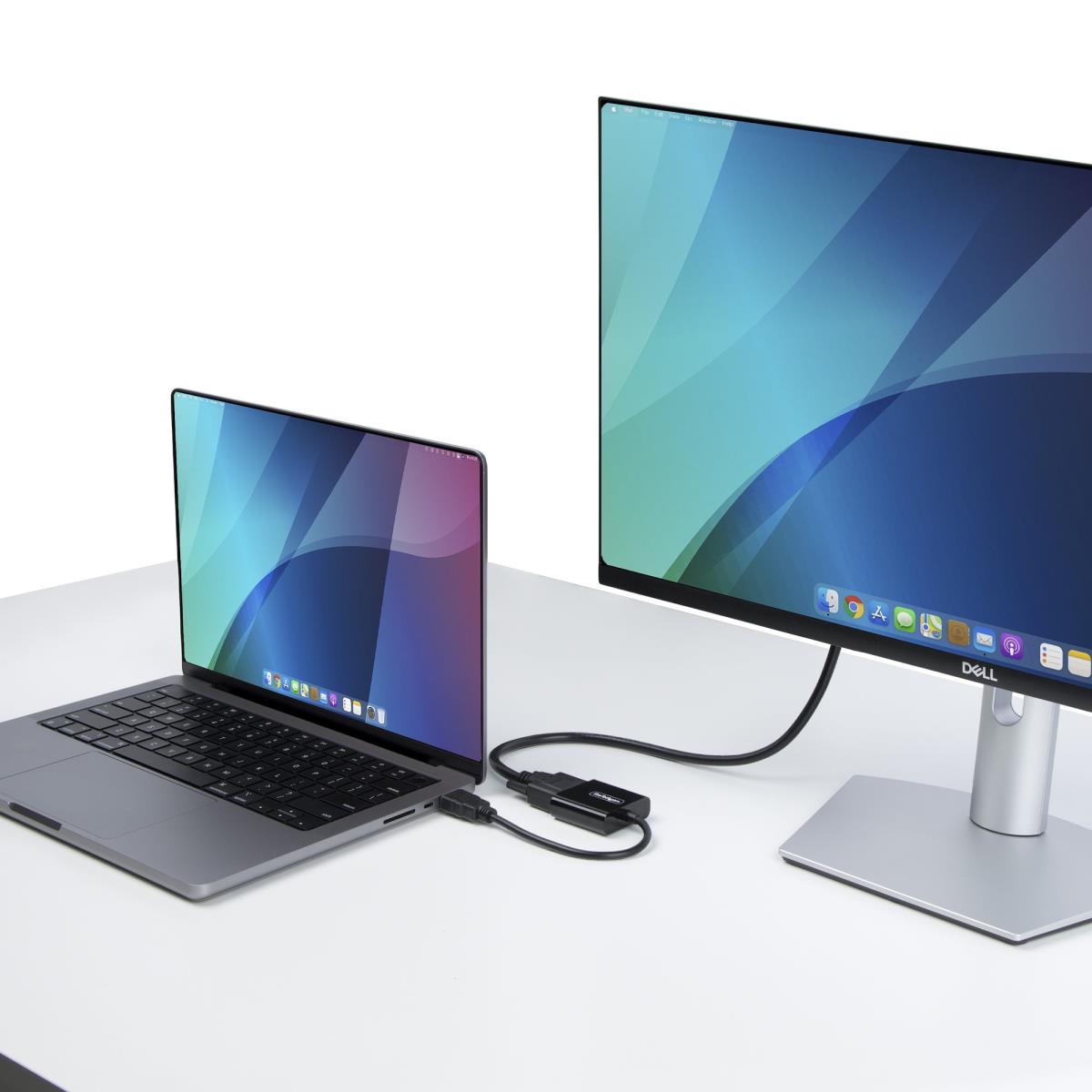

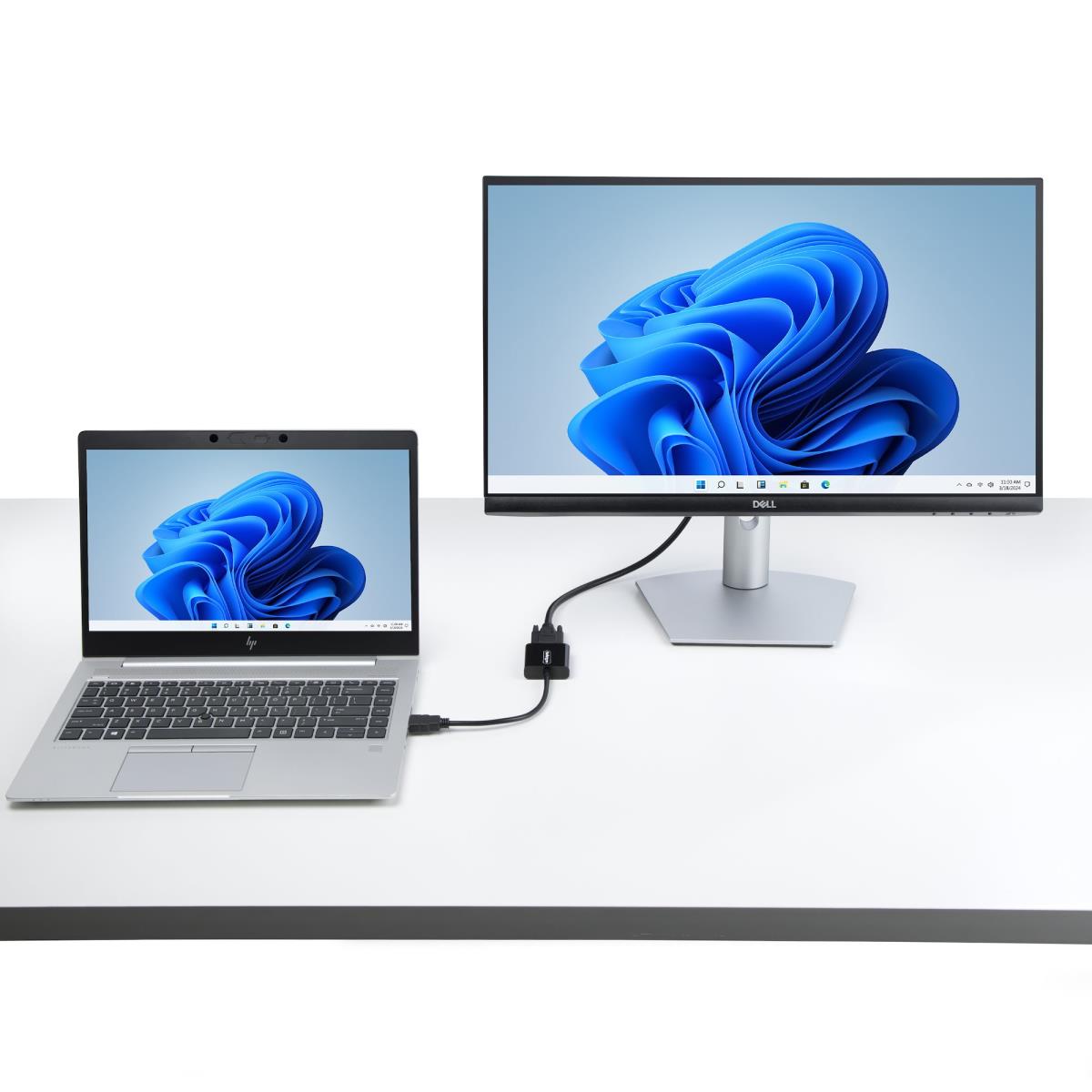

Connect an HDMI-enabled laptop or desktop to a VGA display or projector

This active HDMI to VGA adapter converts an HDMI video source to a VGA output, allowing connection to legacy VGA monitors, displays, and projectors.

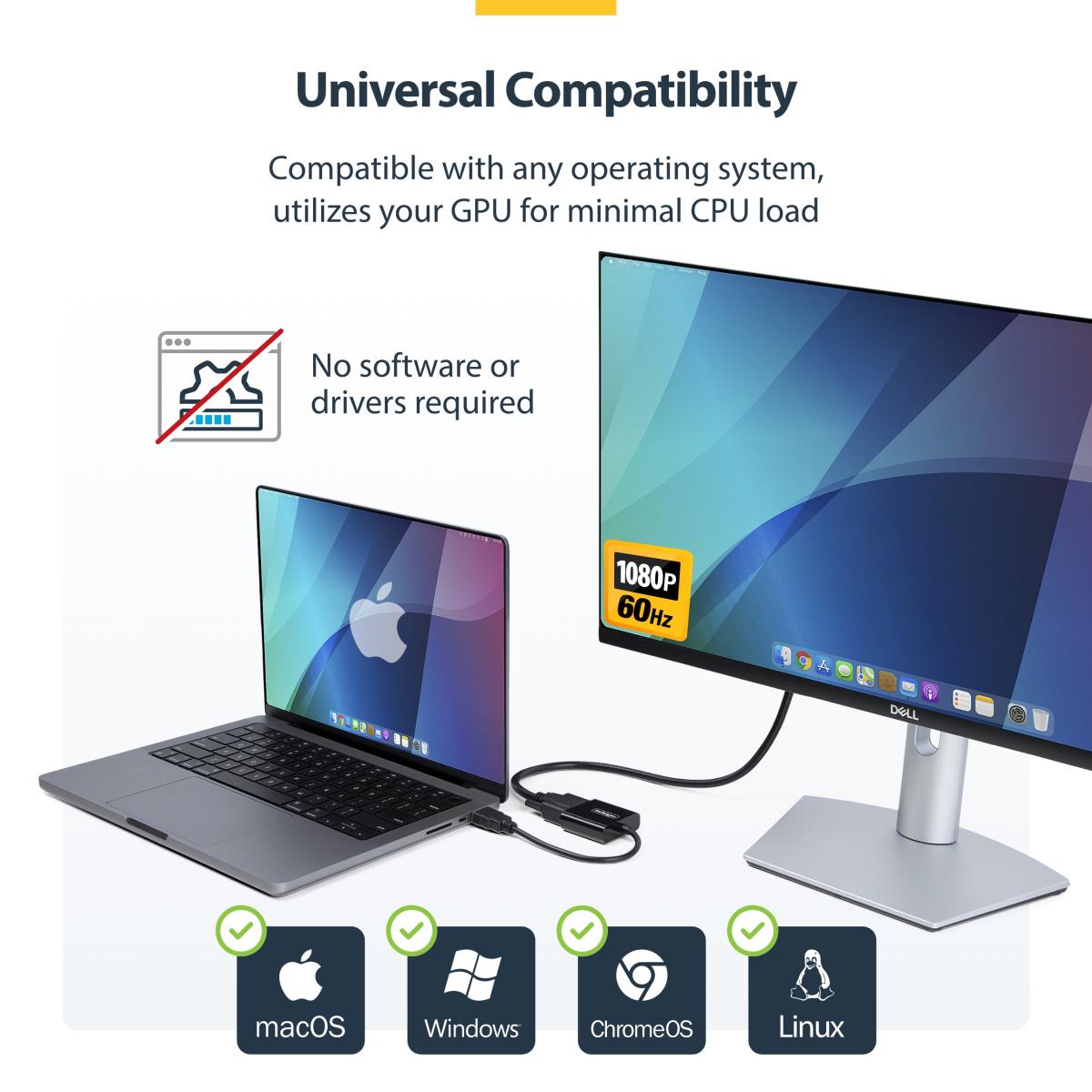

No Drivers or Software

This universal video converter requires no drivers or software and is compatible with any operating system, including Windows, macOS, ChromeOS, and Linux. It works with HDMI-enabled laptops, desktops, tablets, and Chromebooks from all hardware platforms, such as Intel, Nvidia, and AMD. It supports resolutions up to 1920x1200 or 1920x1080 at 60Hz, utilizing the integrated or dedicated GPU for minimal CPU usage.

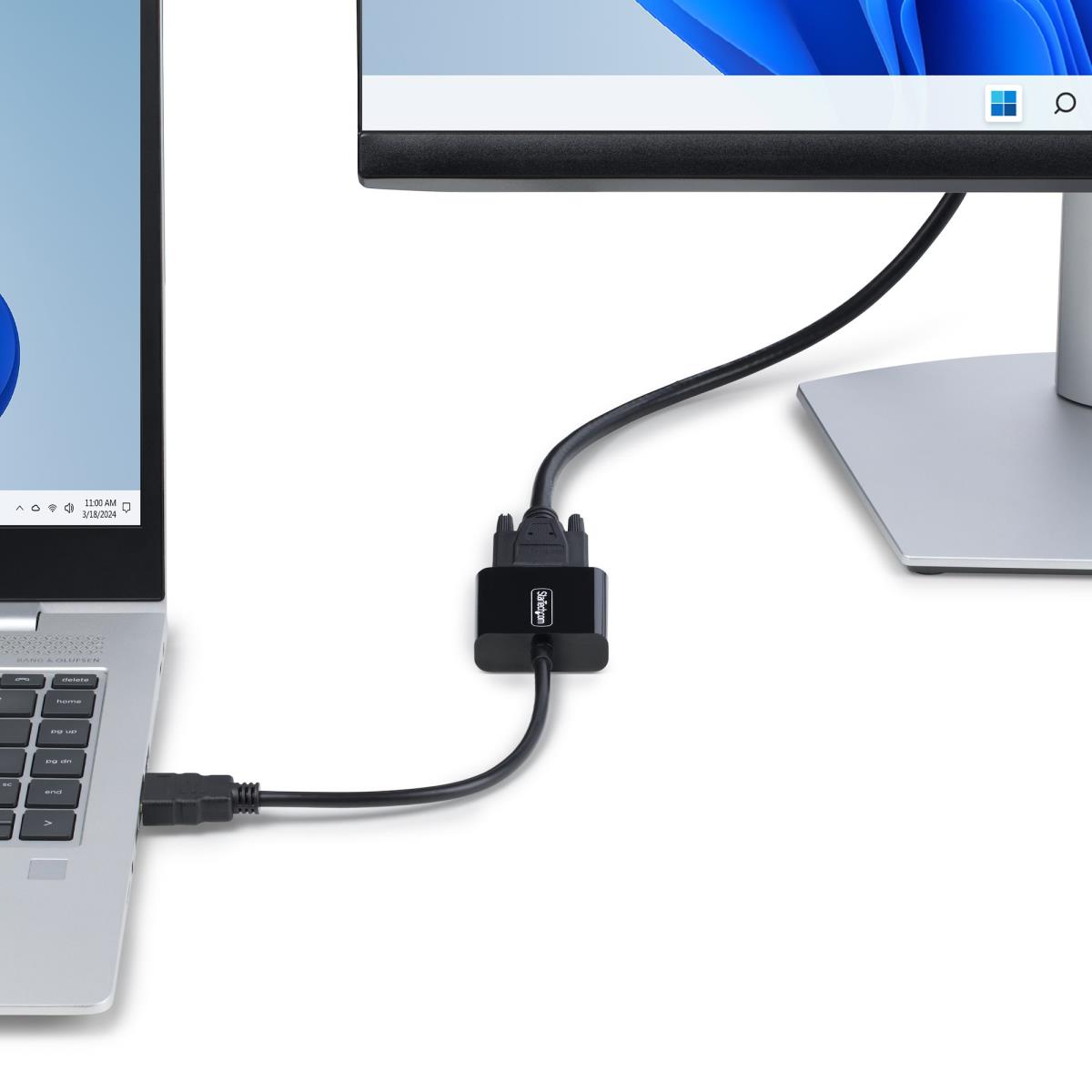

No External Power Required

The adapter reduces clutter and simplifies setup by eliminating the need for an external power adapter or USB power connection. The Adapter has a compact and lightweight design, making it ideal for travel or on-the-go use. This black video adapter features a 5mm cable outer diameter, and a cable length of 5.8 inches (14.7 cm).

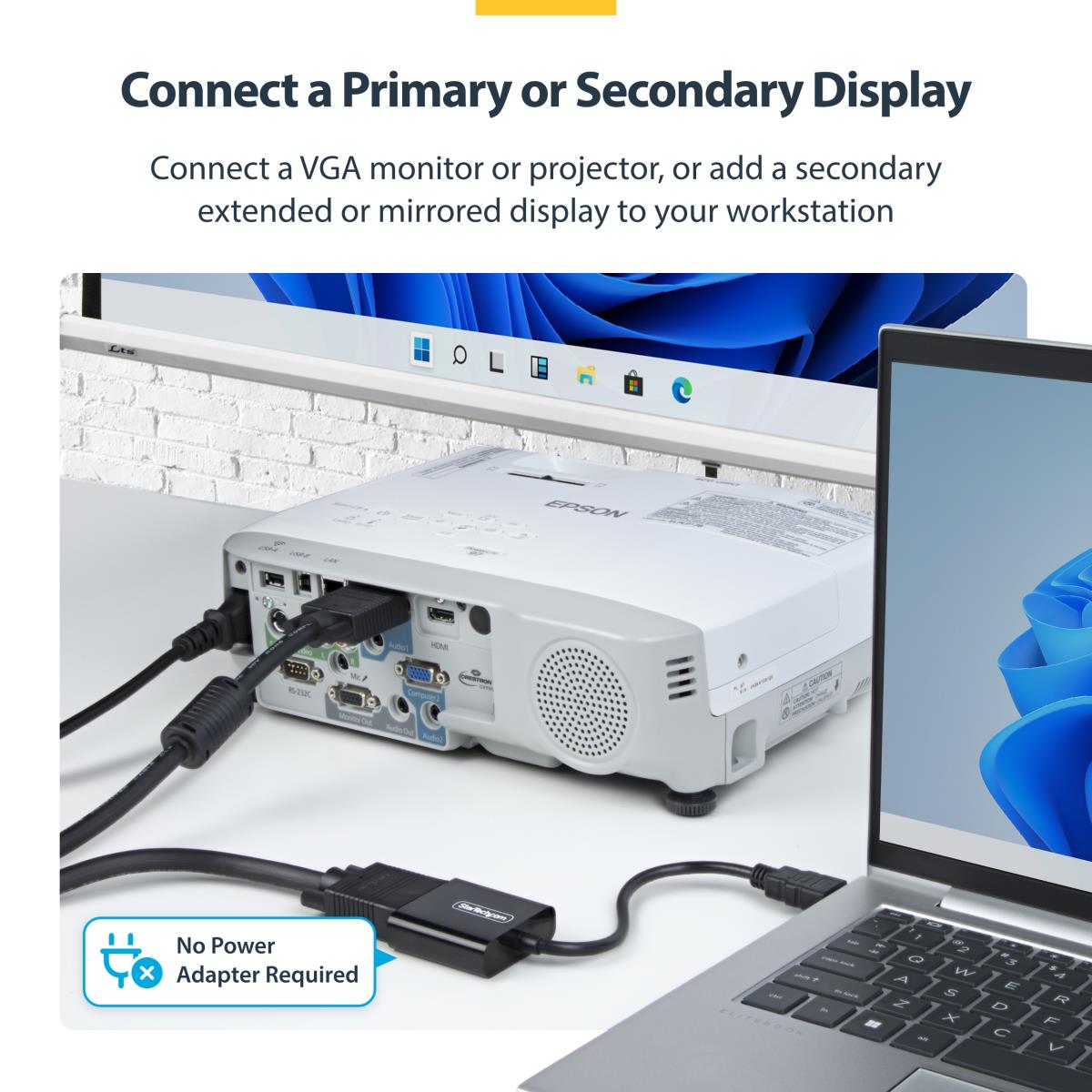

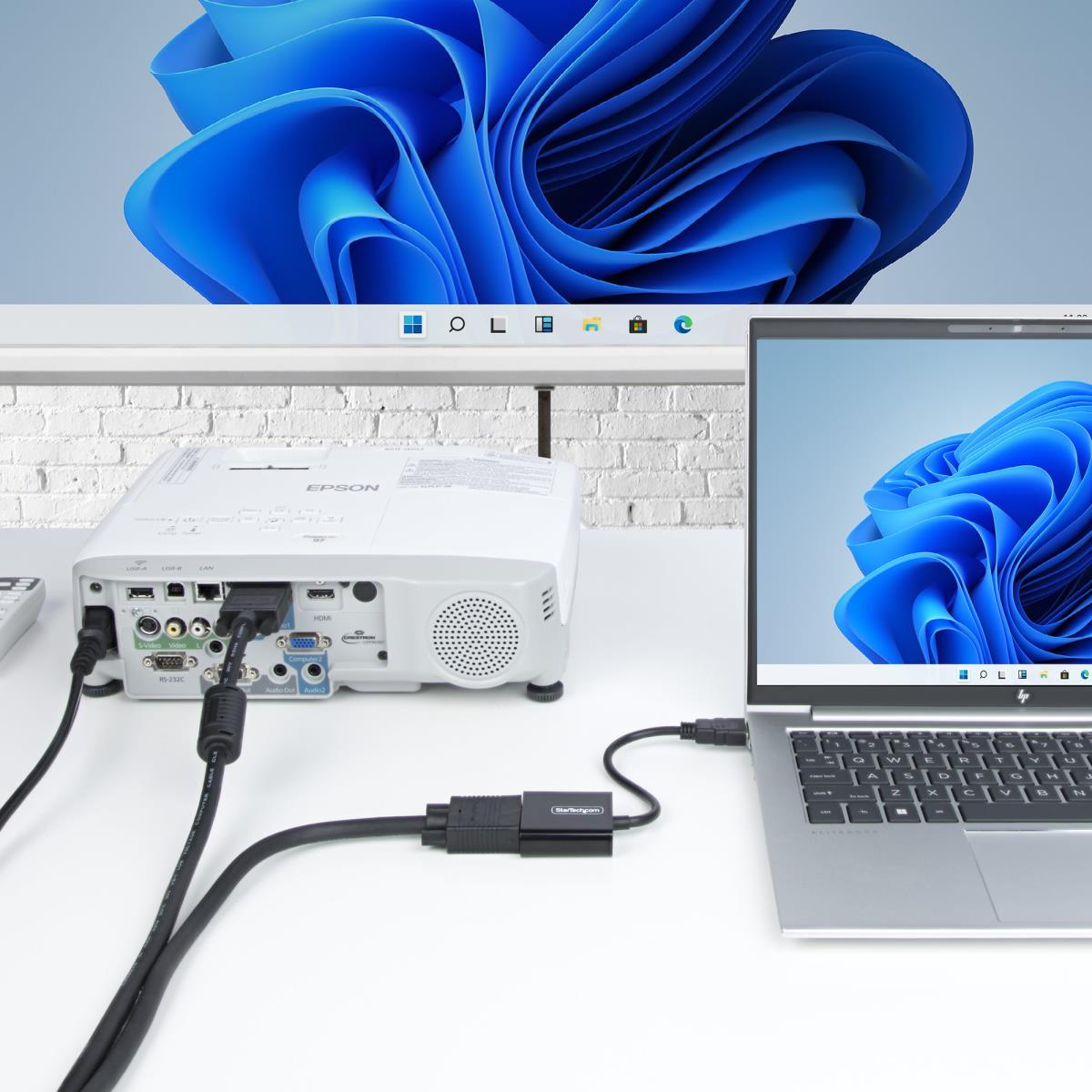

Connect a Primary or Secondary Display

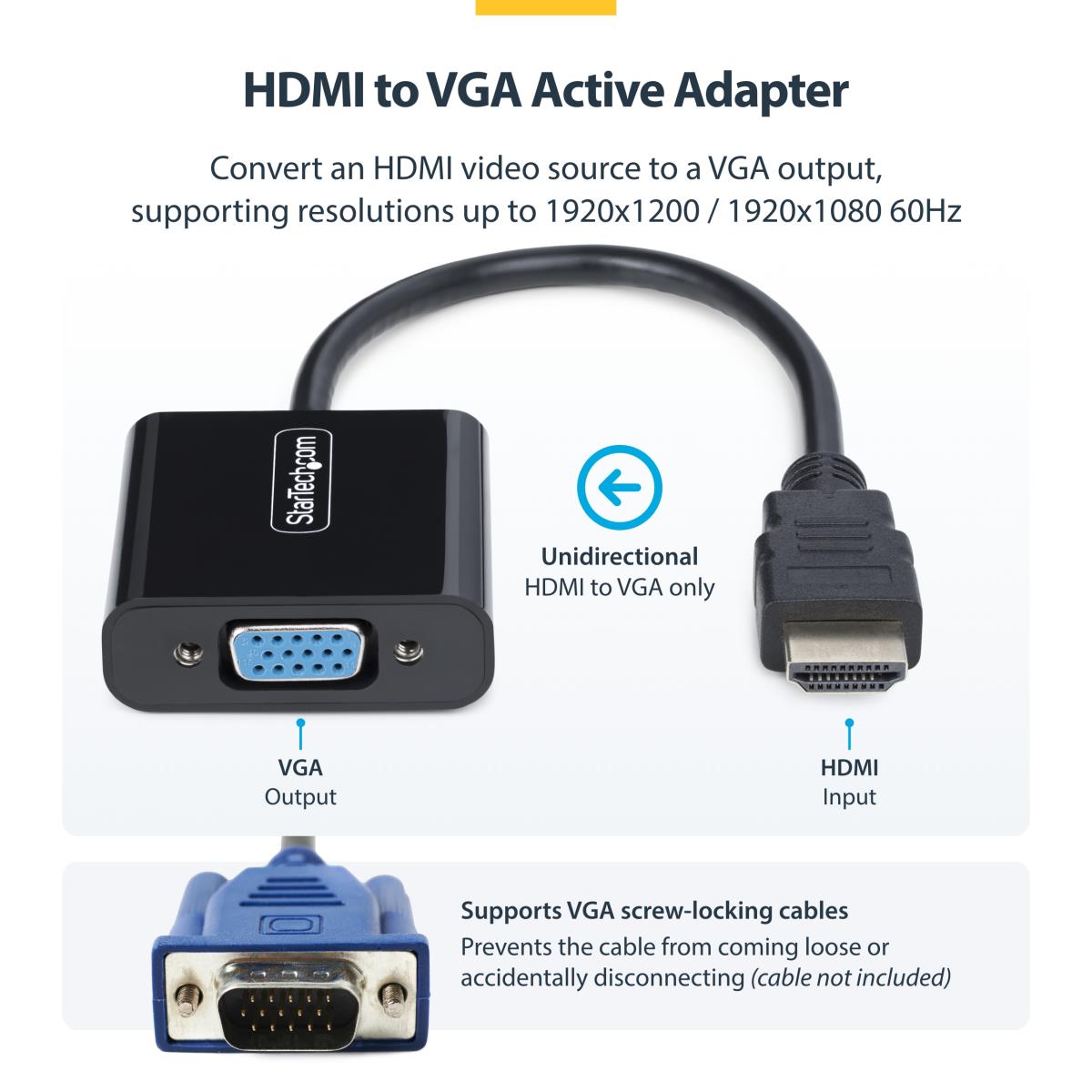

Connect a primary VGA monitor to the host, or add a secondary extended or mirrored display to a workstation. It supports VGA screw-locking cables to prevent the cable from coming loose or accidentally disconnecting.

Note: This video adapter is unidirectional, converting only from an HDMI source to a VGA monitor or display.

The StarTech.com Advantage

Features

Converter type Active video converter
Internal No
Plug and Play Yes
Housing material Plastic
Cable length 0.189 m

Video

Maximum video resolution 1920 x 1200 pixels
Video resolutions 800 x 600,1024 x 768,1280 x 720,1280 x 800,1600 x 1200,1680 x 1050,1920 x 1080,1920 x 1200
Supported video modes 1080p
Colour depth 8 bit
Maximum refresh rate 75 Hz

Ports & interfaces

Host interface HDMI
Output interface VGA

Power

External power adapter No

Technical details

Compliance certificates RoHS

Operational conditions

Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -10 - 80 °C
Operating relative humidity (H-H) 0 - 75%

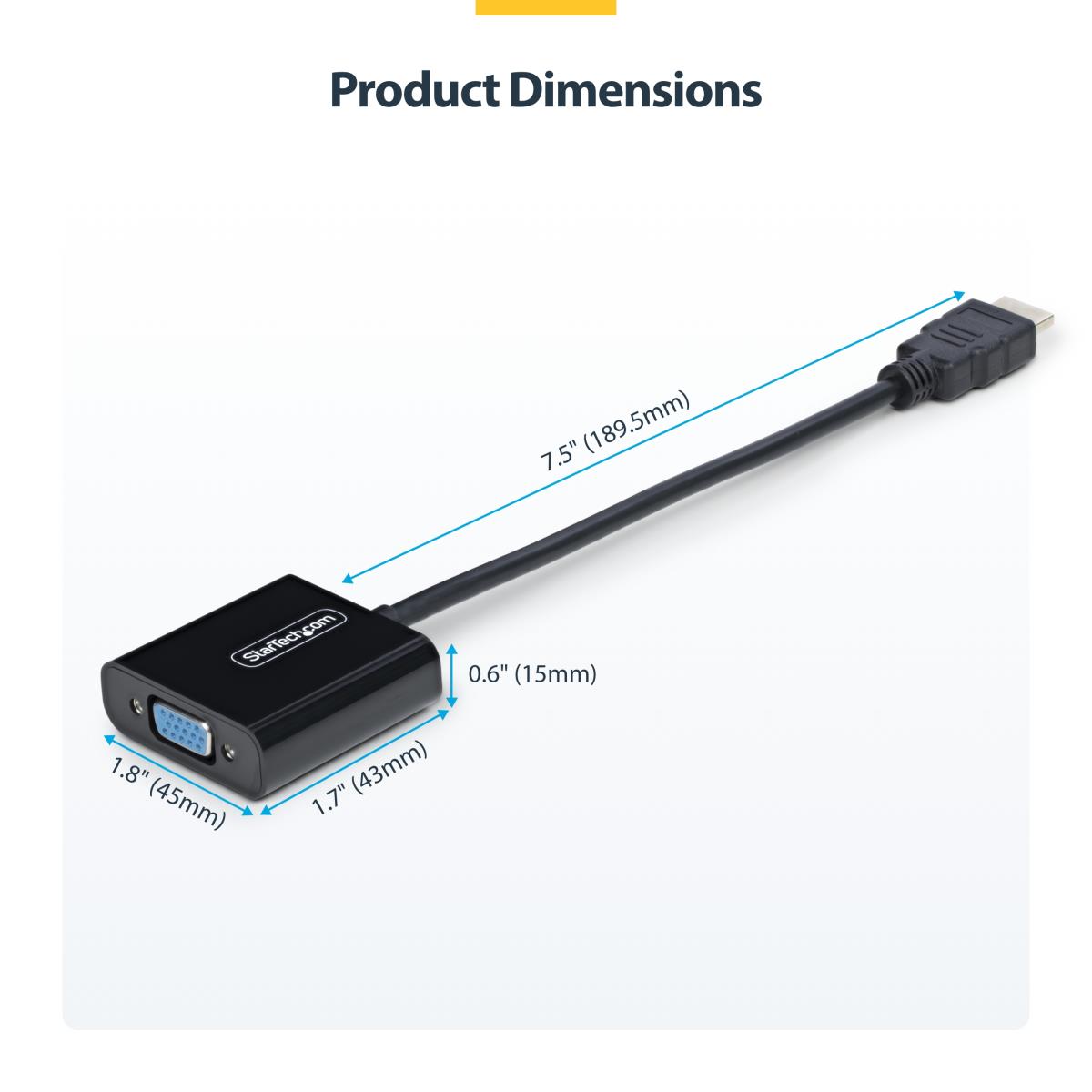

Weight & dimensions

Width 45 mm
Depth 234 mm
Height 15 mm
Weight 33 g

Packaging data

Package width 50 mm
Package depth 50 mm
Package height 18 mm
Package weight 53 g

Other features

Chipset AG6203

Logistics data

Master (outer) case width 216 mm
Master (outer) case length 110 mm
Master (outer) case height 60 mm
Products per master (outer) case 24 pc(s)

Information

Part Number: HD2VGAE3
