Product Details
Introduction

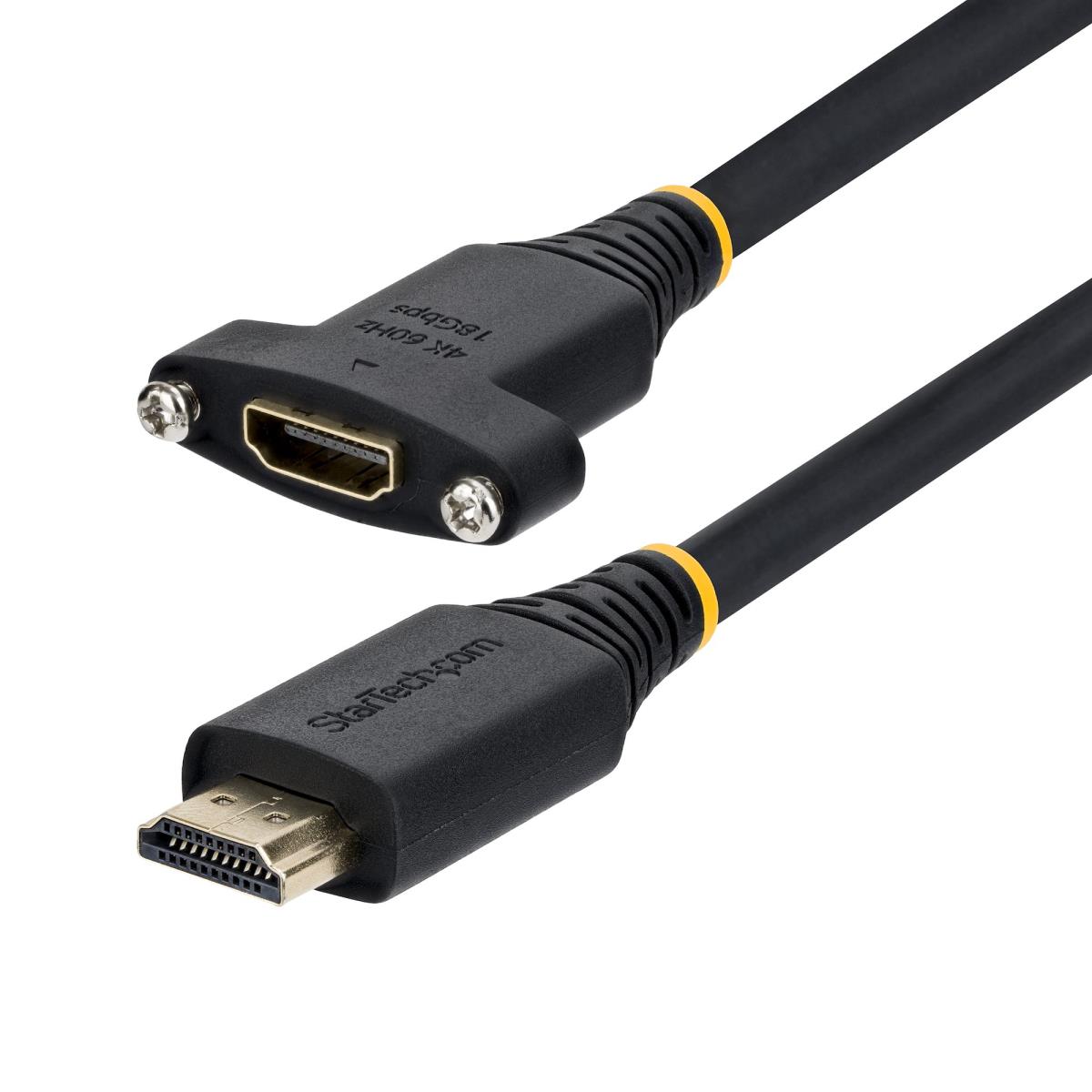

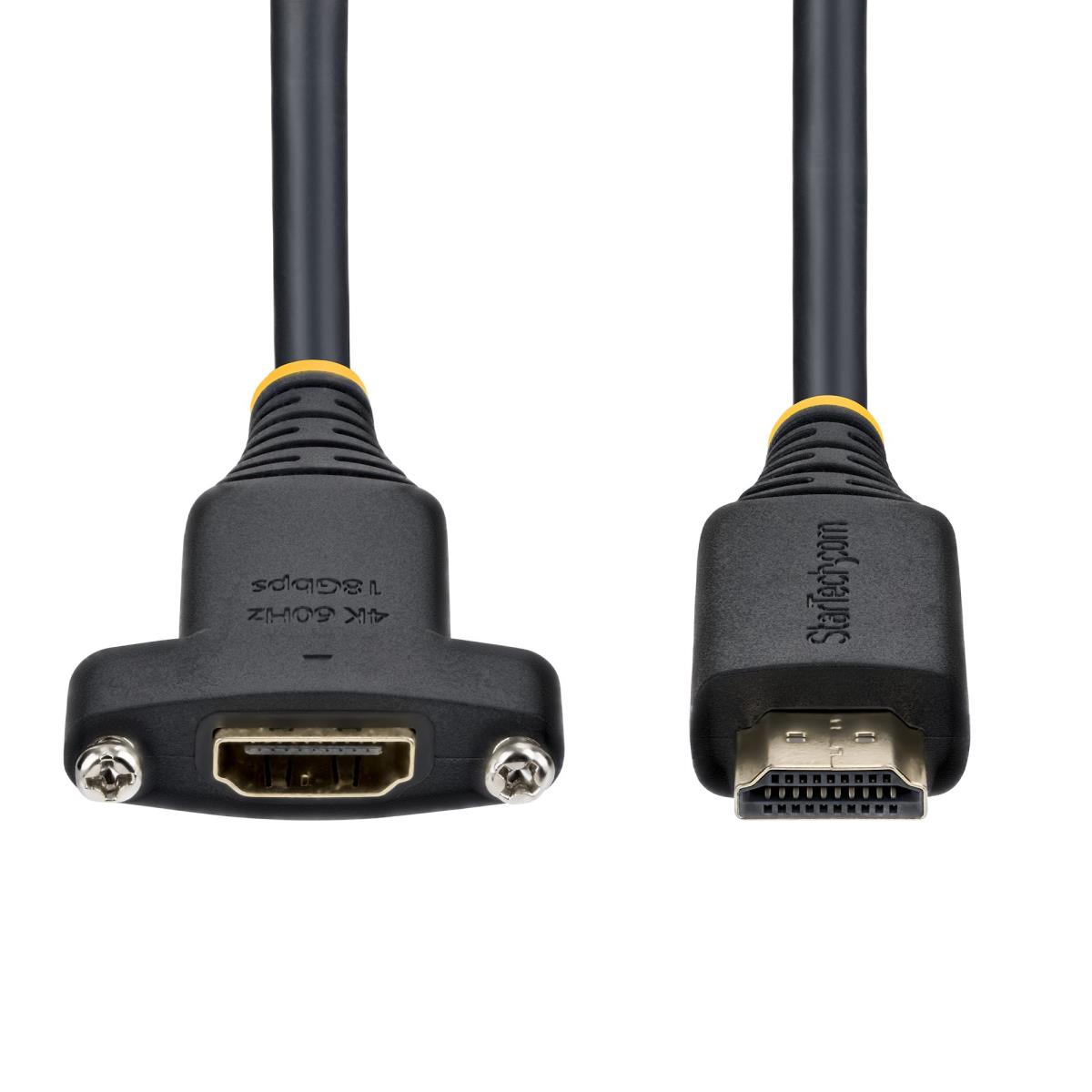

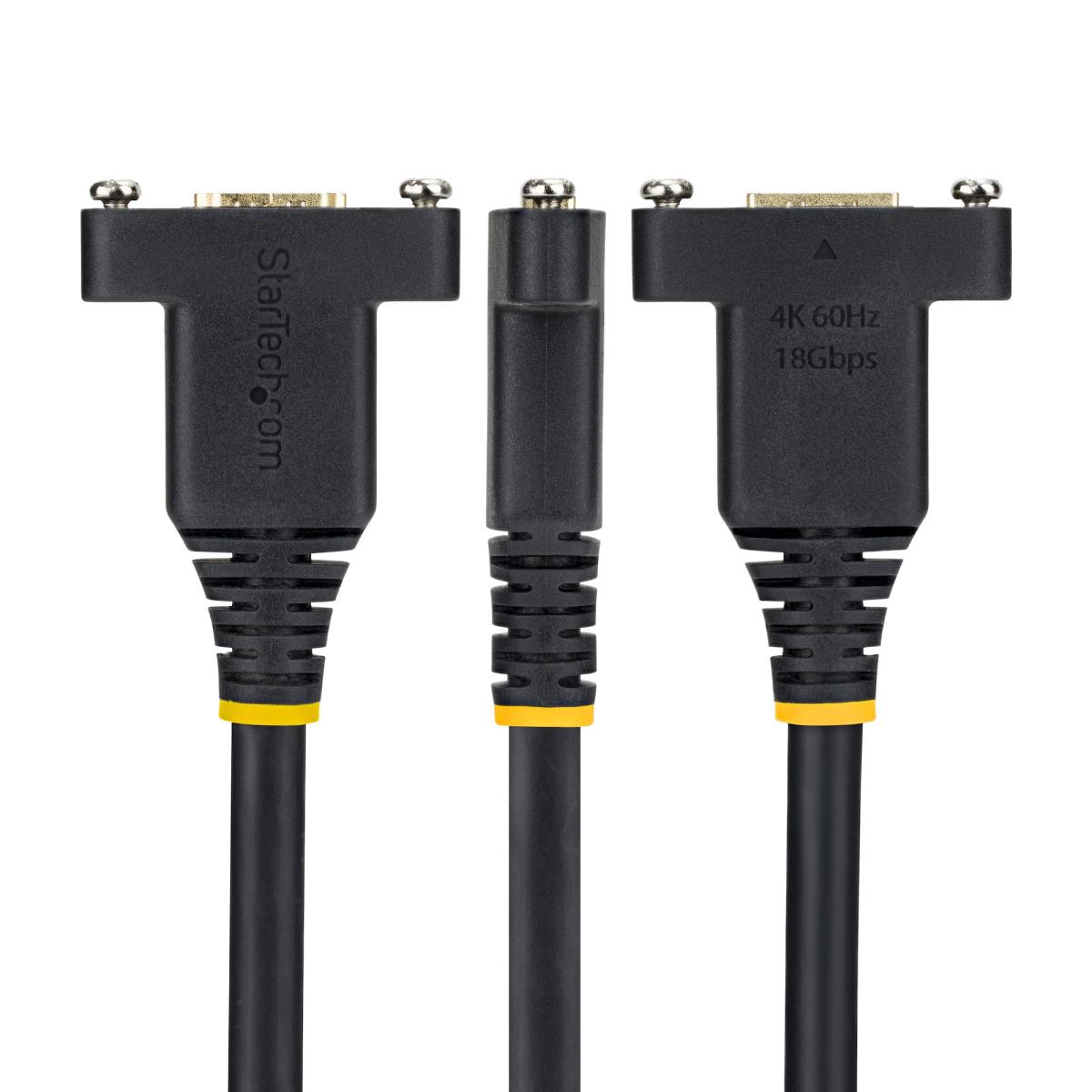

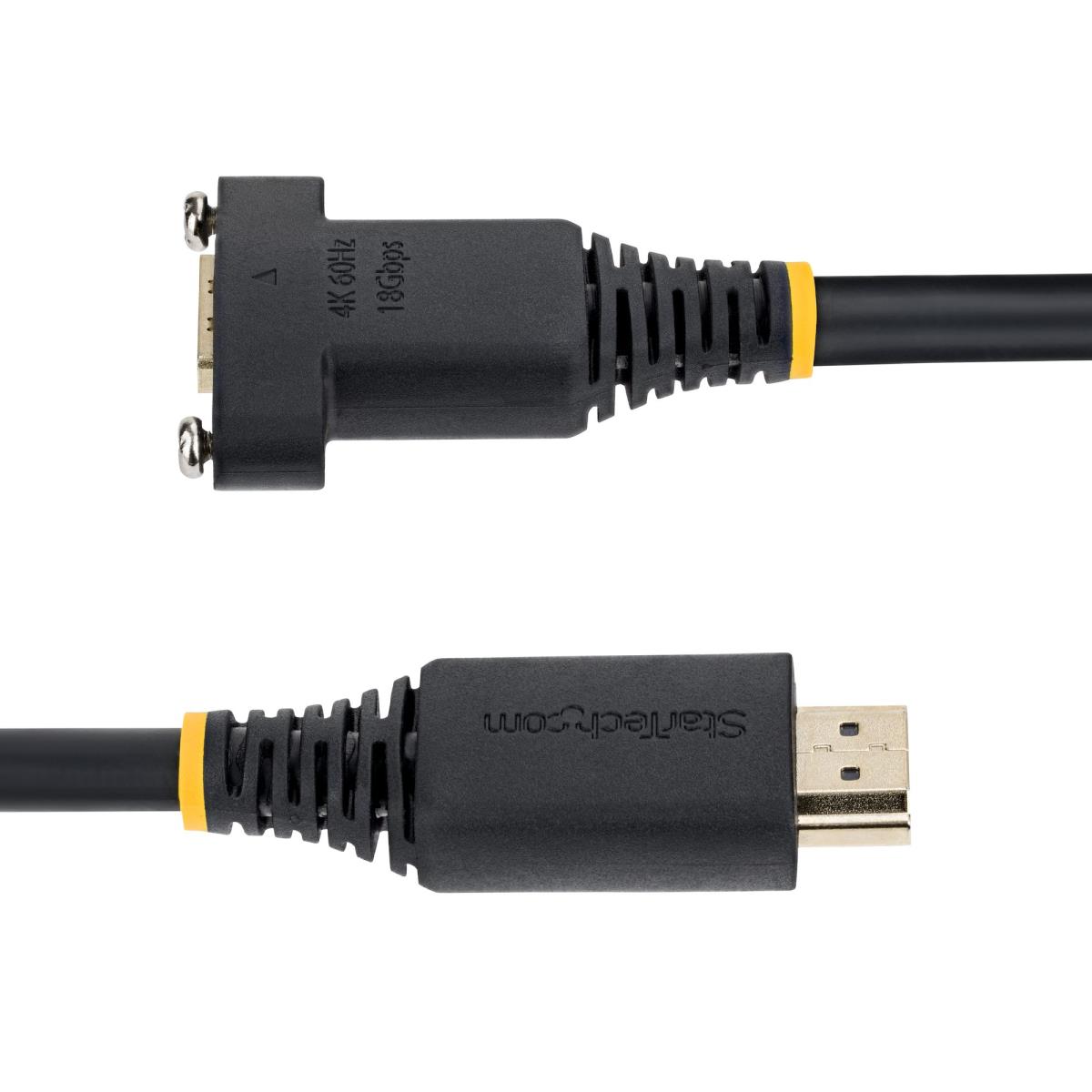

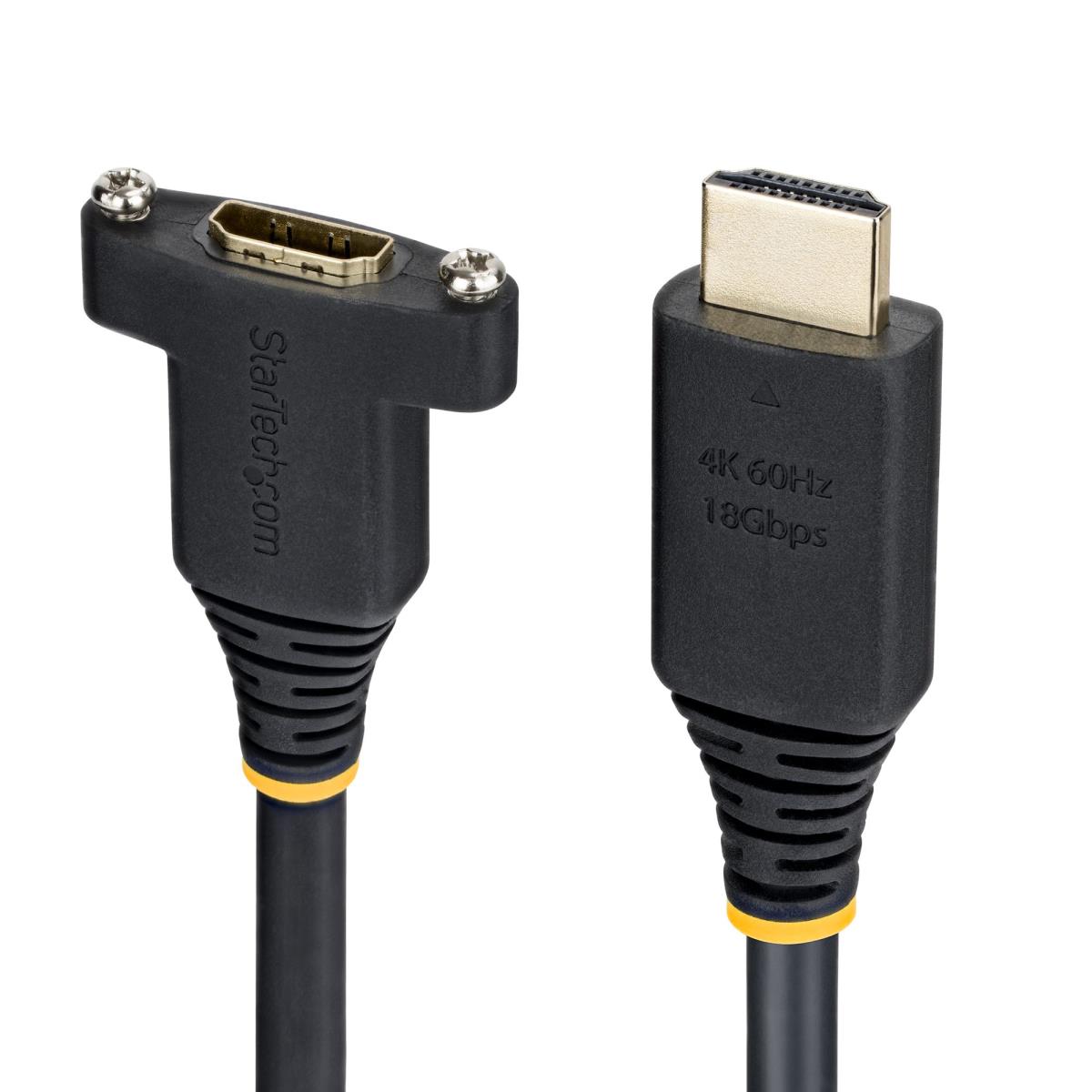

Extend an HDMI connection to an AV panel or face plate using this HDMI male to panel mount female extension cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked HDMI cables. Eliminate guesswork and always choose the appropriate cable to support full HDMI 2.0 with Ethernet capabilities.
Features
Cable length
2 m
Connector 1
HDMI Type A (Standard)
Connector 2
HDMI Type A (Standard)
Connector 1 gender
Male
Connector 2 gender
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
HDMI cable type
High Speed HDMI cable
Product colour
Black
HDMI version
2.0
Supported graphics resolutions
5120 x 2880, 3840 x 2160, 2560 x 1400, 1920 x 1080 (HD 1080)
Dolby technologies
Dolby TrueHD
HDCP
Yes
HDCP version
2.2
Data transfer rate
18 Gbit/s
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10), Dolby Vision
Supported digital audio channels (uncompressed)
32, 7.1
Connector contacts plating
Gold
Cable type
Round cable
Cable jacket material
Thermoplastic elastomer (TPE)
Cable shielding
Aluminum mylar foil
Colour depth
10 bit
Colour sampling
4:4:4
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Certificates
Compliance certificates
RoHS
Packaging data
Package width
190 mm
Package depth
110 mm
Package height
23 mm
Package weight
125 g
Quantity per pack
1 pc(s)
Logistics data
Master (outer) case width
400 mm
Master (outer) case length
350 mm
Master (outer) case height
250 mm
Products per master (outer) case
60 pc(s)
Information
| Part Number: | HDMI2PNLFM-2M |
