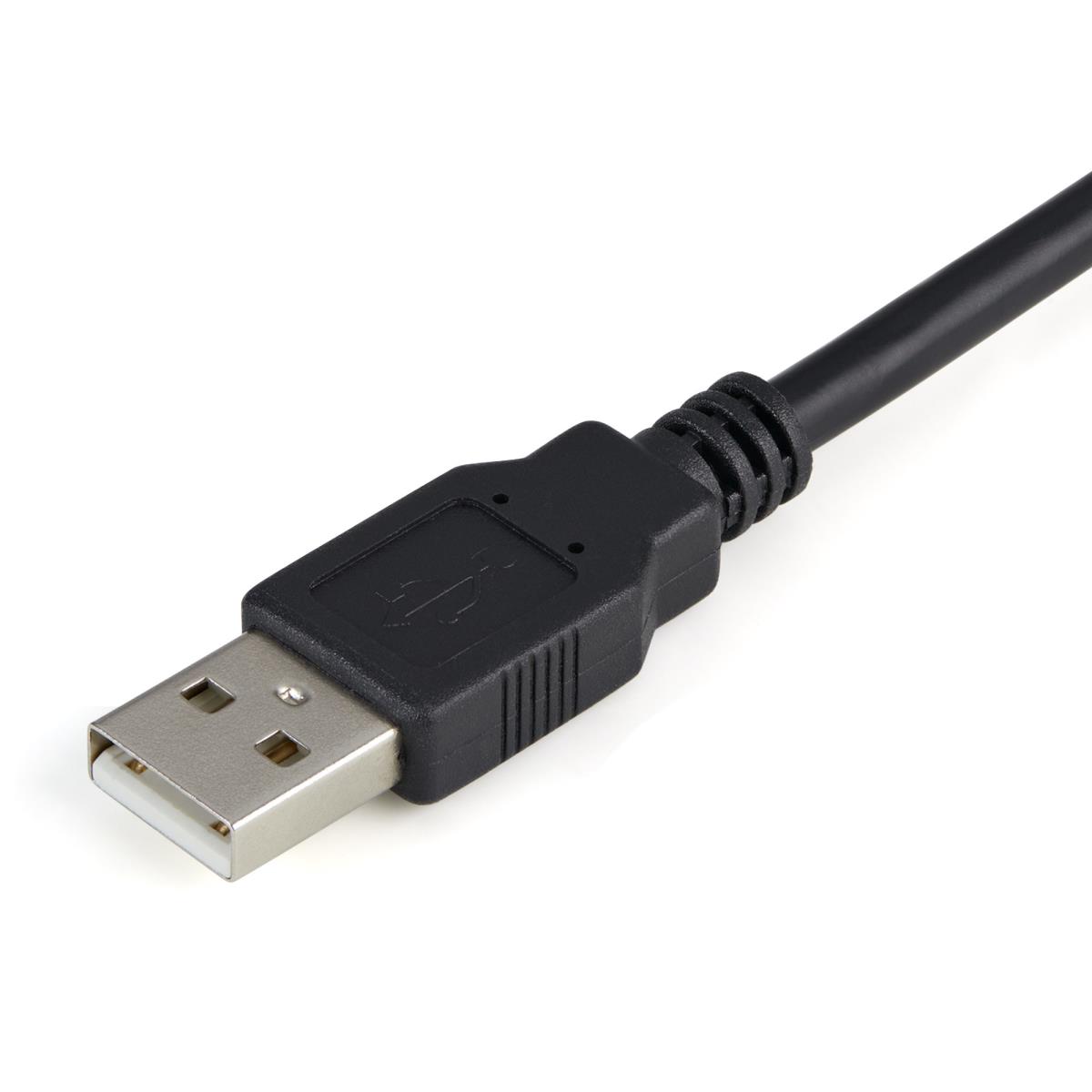

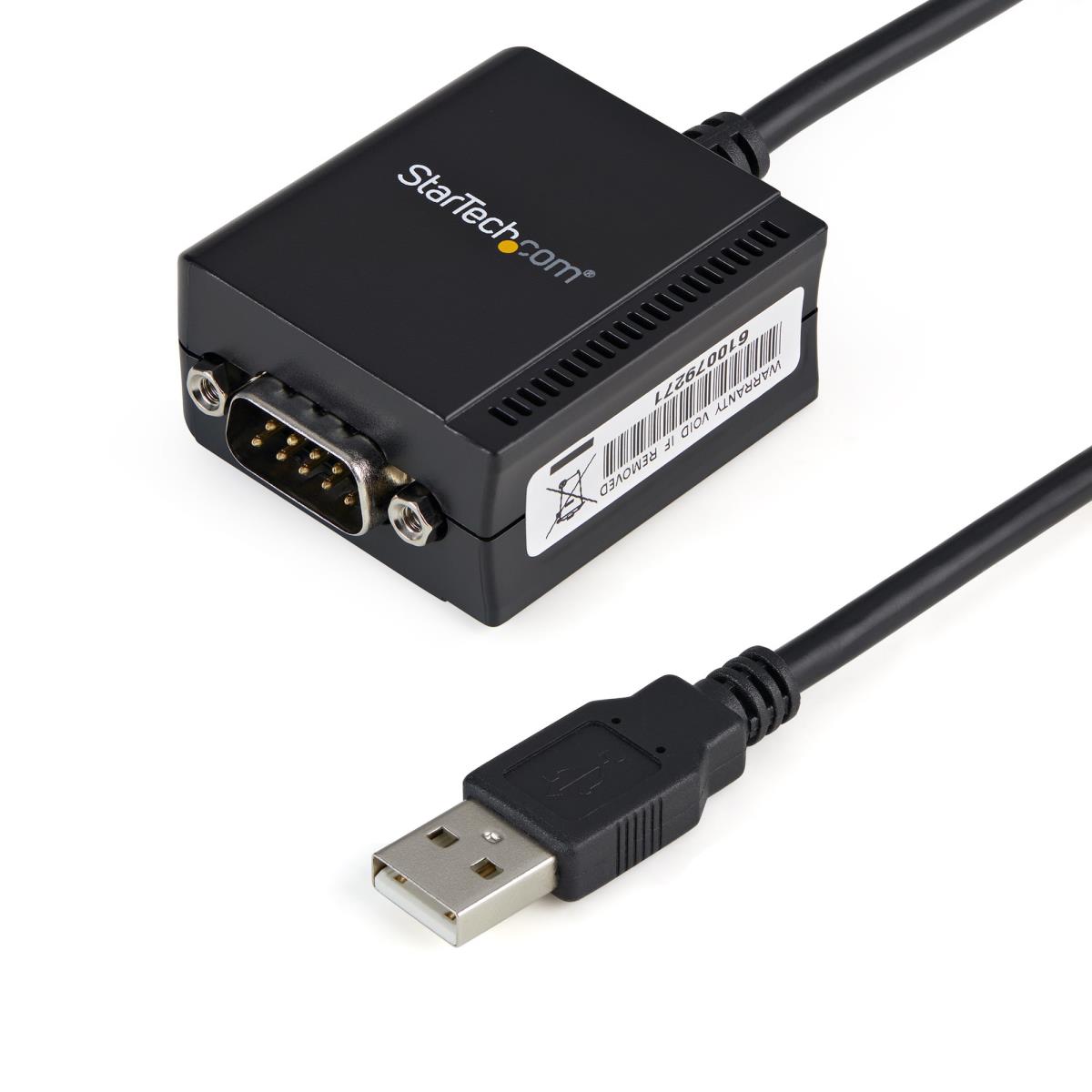

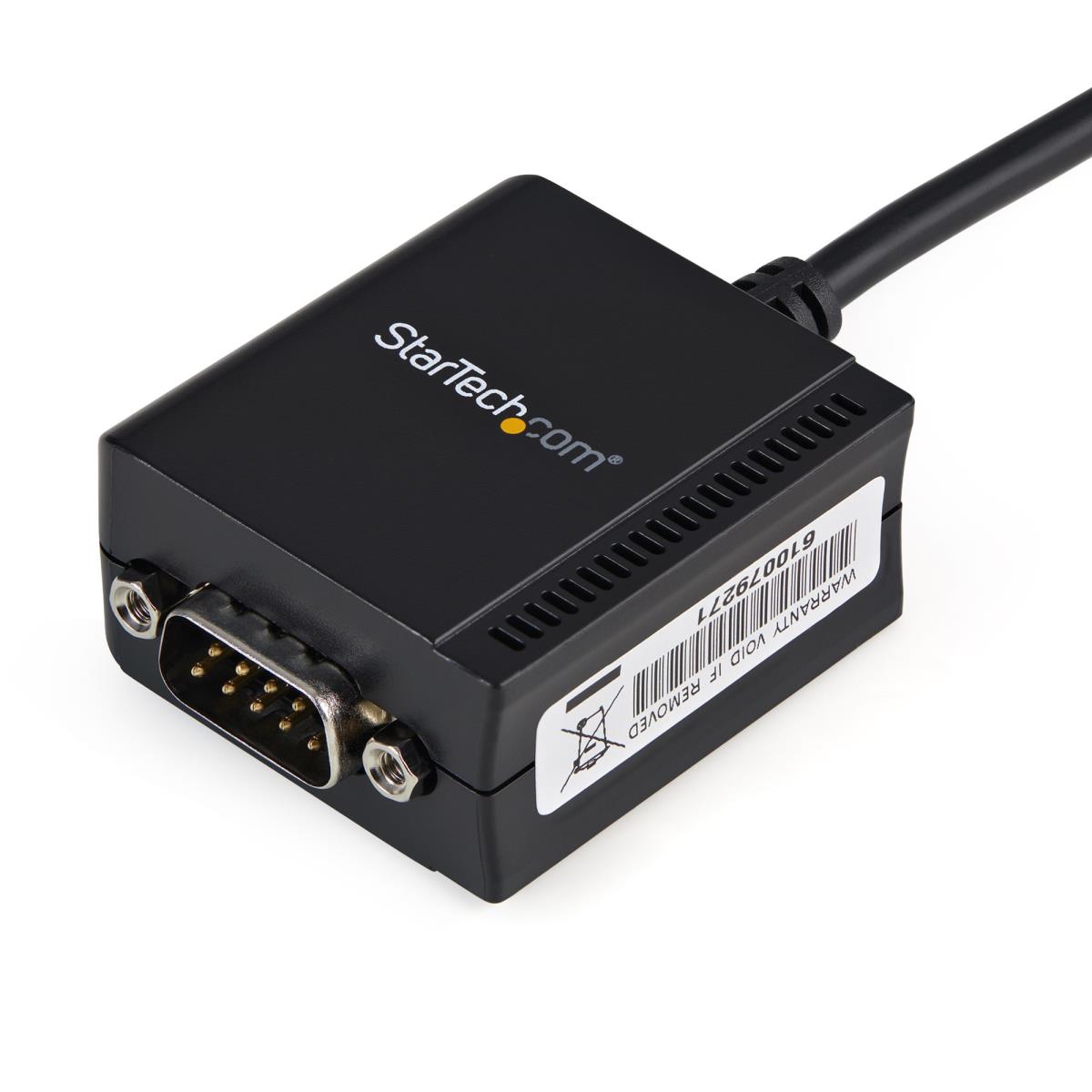

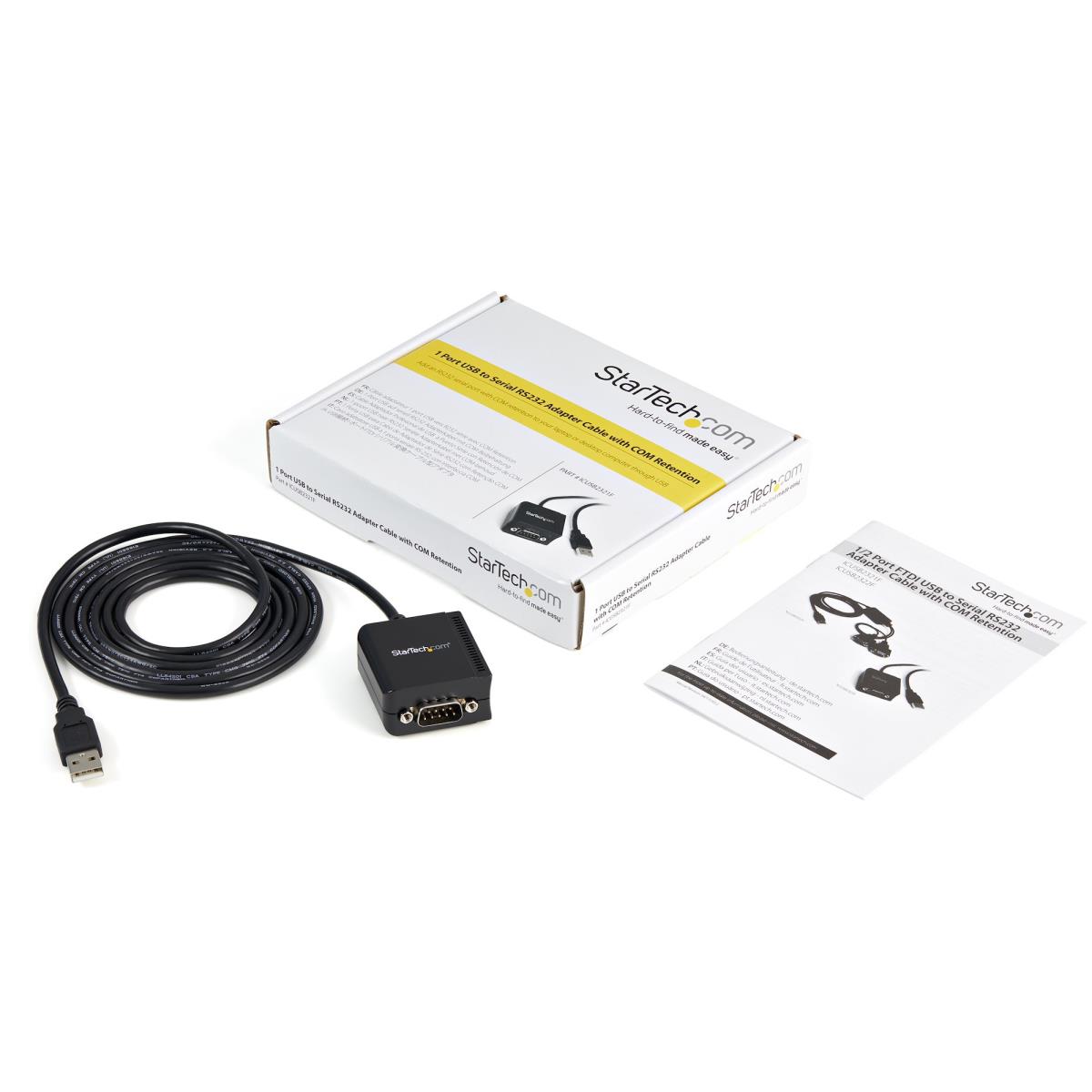

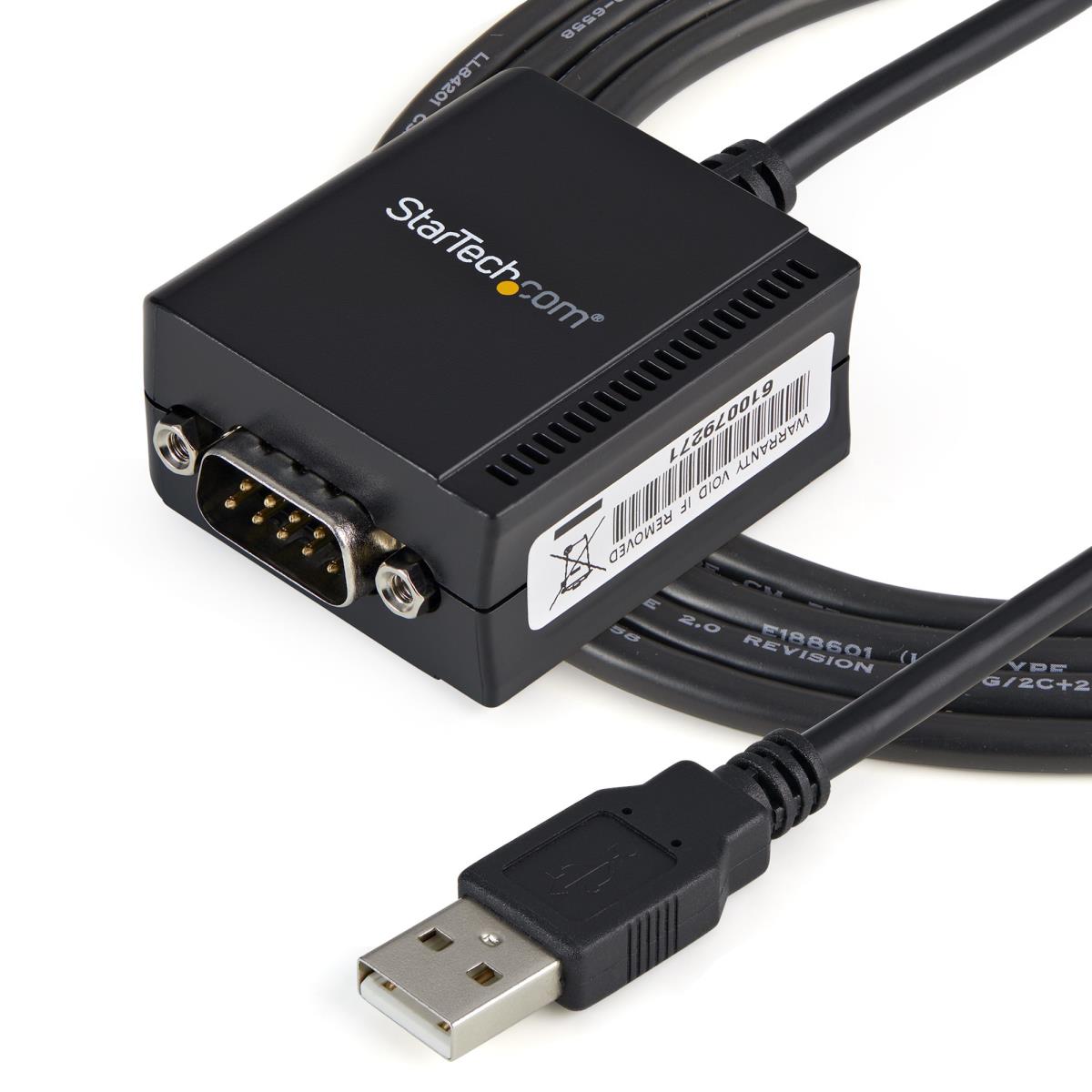

STARTECH.COM Ftdi USB To Serial Rs232 Adapter Cable With Com Retention 1 Port

£27.49

Part Number: ICUSB2321F
Delivery: 1 - 2 days

Product Details

Introduction

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices.

This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.

Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
- Portable USB-Powered design requires no bulky power adapter or outlet
- Simple installation and operation with COM port retention provides robust serial connectivity for legacy devices

Technical details

Compliance certificates RoHS

Logistics data

Products per master (outer) case 80 pc(s)
Master (outer) case width 534 mm
Master (outer) case length 453 mm
Master (outer) case height 356 mm

Ports & interfaces

Connector 1 DB-9
Connector 2 USB 2.0 A
Connector 1 gender Male
Connector 2 gender Male
Cable length 0.2 m

Performance

Product colour Black
Chipset FTDI - FT232RL
Data bits 7,8
Stop bits 1,2
Baud rate 115.2 Kbit/s
Parity bit Even, Mark, N, Odd, Space
FIFO (First In, First Out) 256 B
Certification CE, FCC
Compatible operating systems - Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 - Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 - Mac OS 10.6 to 10.14 - Linux 2.4.x to 4.11.x LTS

Operational conditions

Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -20 - 85 °C
Relative humidity 5 - 95%

Sustainability

Sustainability certificates RoHS

Weight & dimensions

Width 41.5 mm
Depth 45 mm
Height 22 mm
Weight 90 g

Packaging data

Package width 145 mm
Package depth 175 mm
Package height 32 mm
Package weight 176 g

Packaging content

Manual Y
Drivers included Y

Information

Part Number: ICUSB2321F
