STARTECH.COM Internal Motherboard USB Header To Serial Rs232 Adapter 24in

STARTECH.COM Internal Motherboard USB Header To Serial Rs232 Adapter 24in

£8.74 (incl. VAT)

Qty:

Add to basket

Part Number:	ICUSB232INT1
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

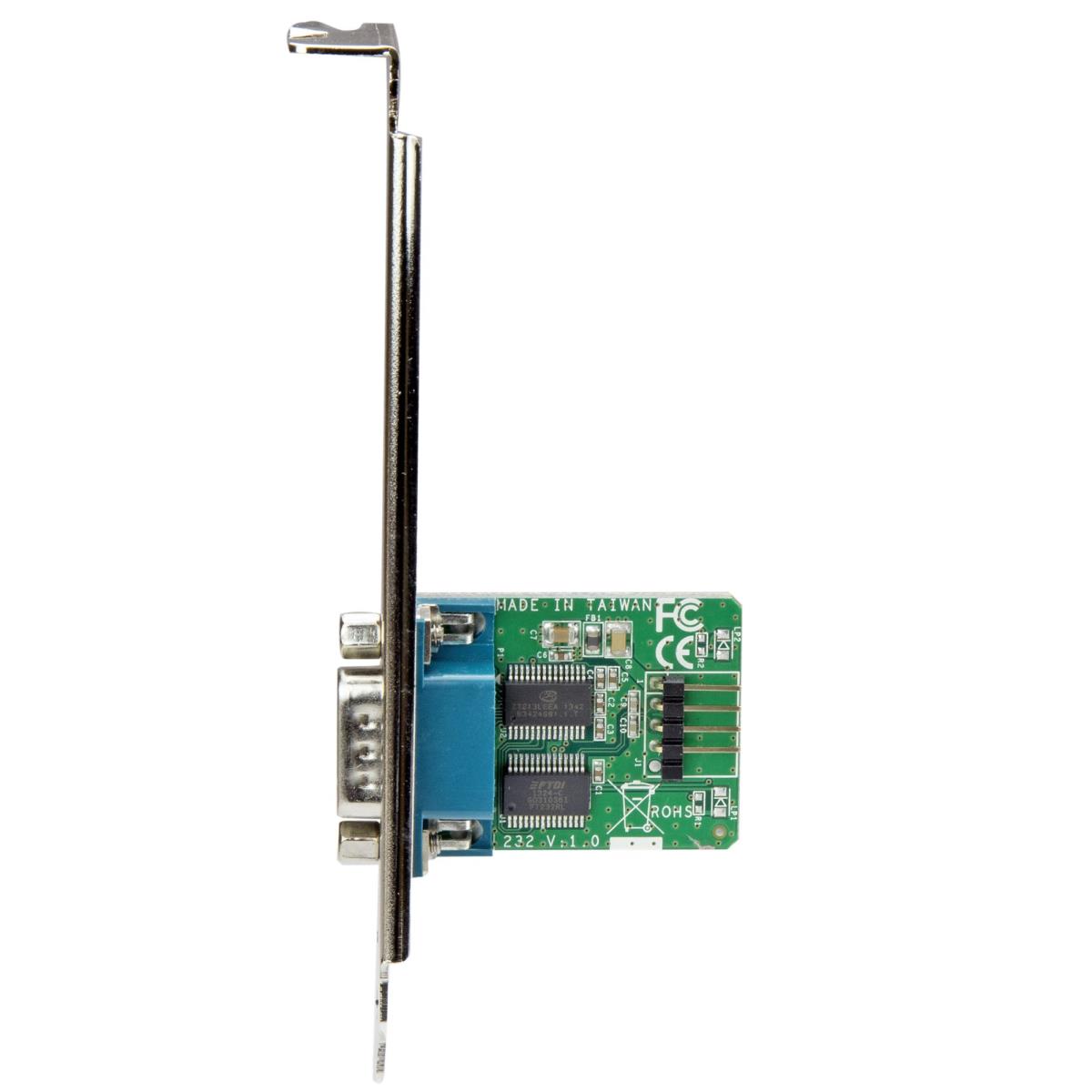

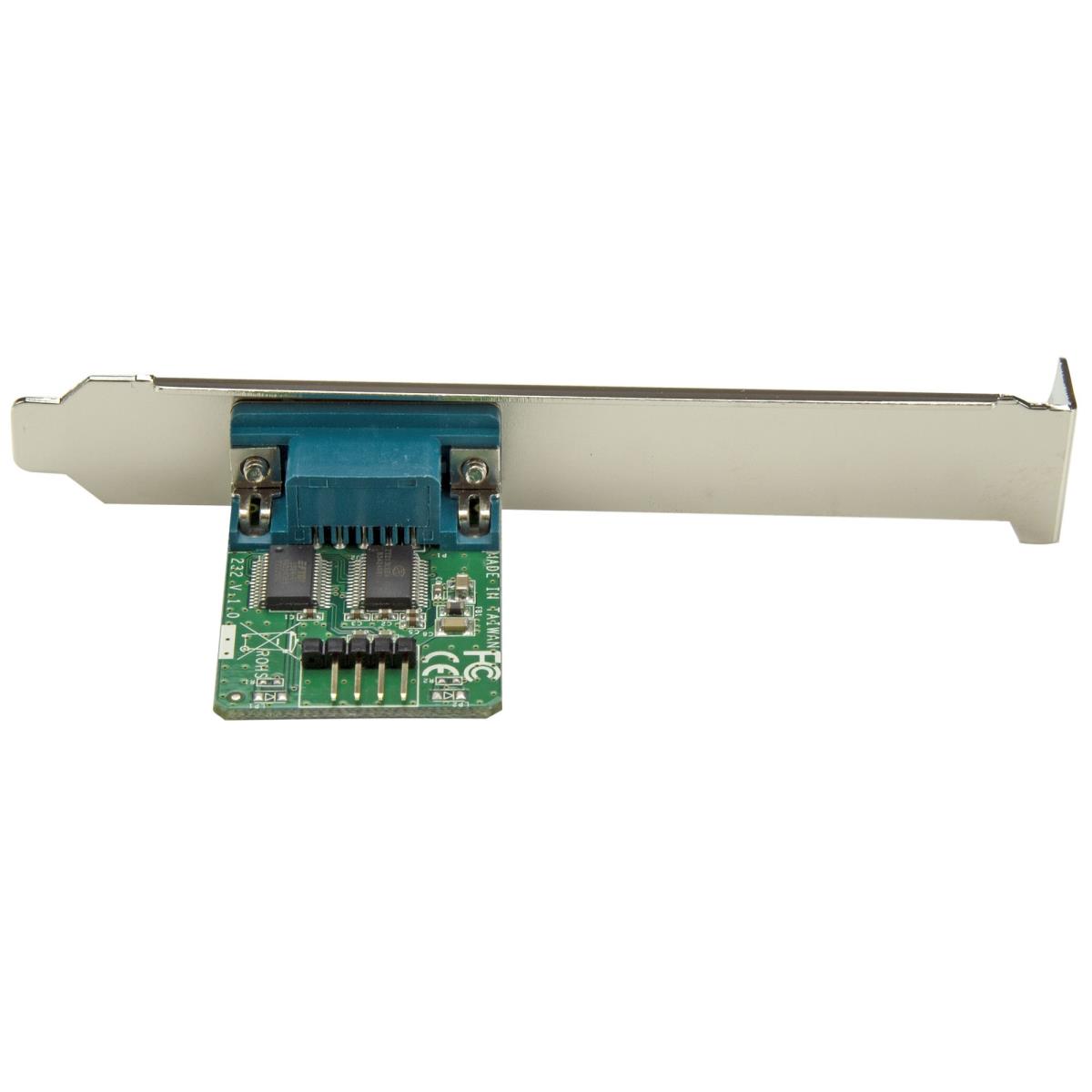

The ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any desktop system that is equipped with an available USB motherboard header.

Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed.

This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Direct connection from the motherboard header allows for a clean and completely contained setup, without taking up a PCI/PCI-Express slot in your system

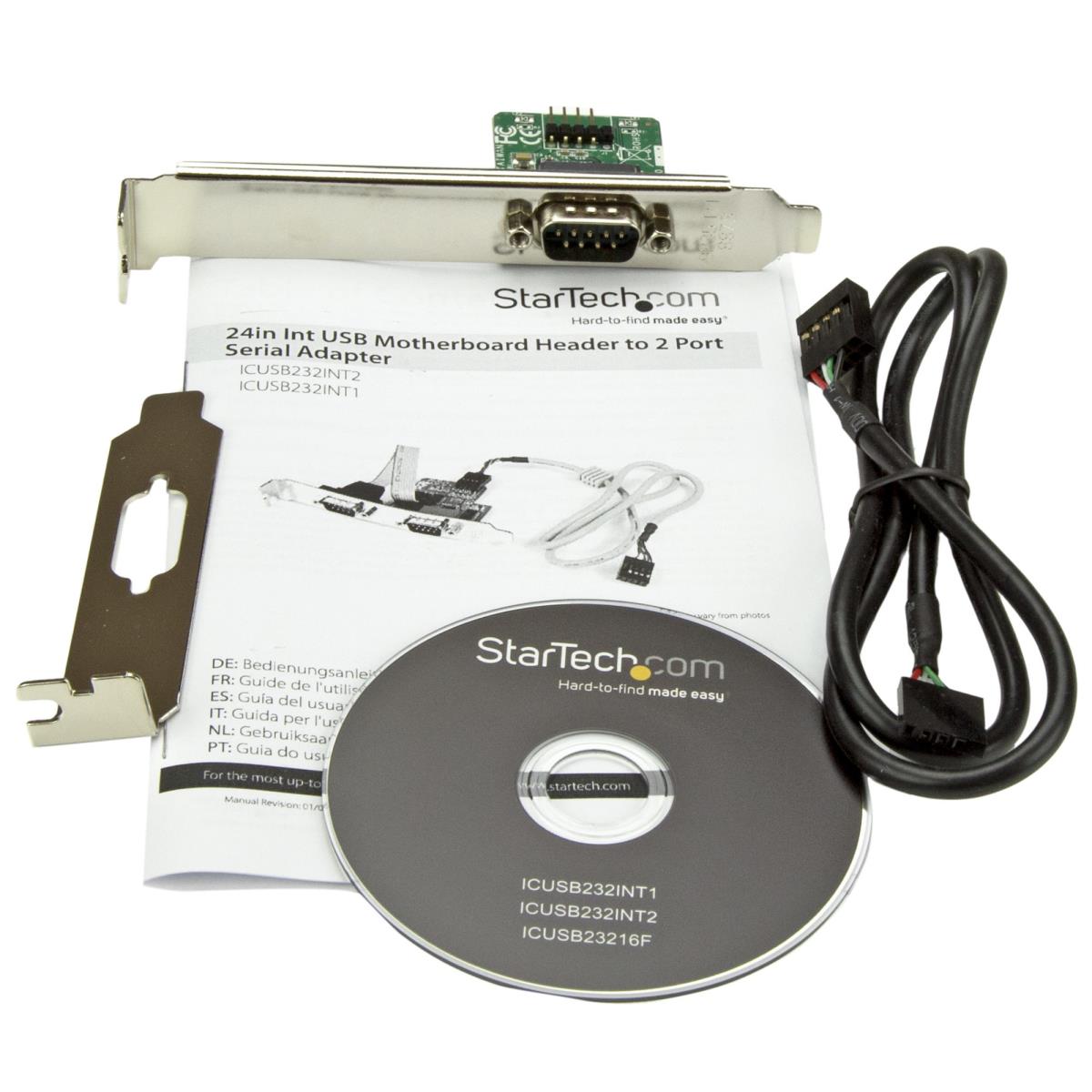

- Standard and low profile/half-height bracket included to ensure fitment in any system
- Extensive list of OS support and Microsoft WHQL certified drivers makes for maximum compatibility and simple installation

System requirements

Mac operating systems supported Mac OS X 13.0 Ventura

Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows CE,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64

Server operating systems supported Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016

Logistics data

Products per master (outer) case 75 pc(s)

Master (outer) case width 697 mm

Master (outer) case length 360 mm

Master (outer) case height 319 mm

Features

Harmonized System (HS) code 84733020

Chipset FTDI - FT232RL

Baud rate 115.2 Kbit/s

FIFO (First In, First Out) 256 B

Data bits 7,8

Stop bits 1,2

Ports & interfaces

Host interface IDC

Output interface Serial

Serial ports quantity 1

Serial interface type RS-232

Design

Internal Y

Product colour Black, Green, Silver

Certification Microsoft WHQL, CE, FCC

Operational conditions

Operating temperature (T-T) -10 - 85 °C

Storage temperature (T-T) -20 - 100 °C

Operating relative humidity (H-H) 5 - 85%

Weight & dimensions

Width 123 mm

Depth 45 mm

Height 12 mm

Weight 31 g

Packaging data

Mounting brackets included Y

Drivers included Y

Manual Y

Package width 143 mm

Package depth 173 mm

Package height 32 mm

Package weight 160 g
