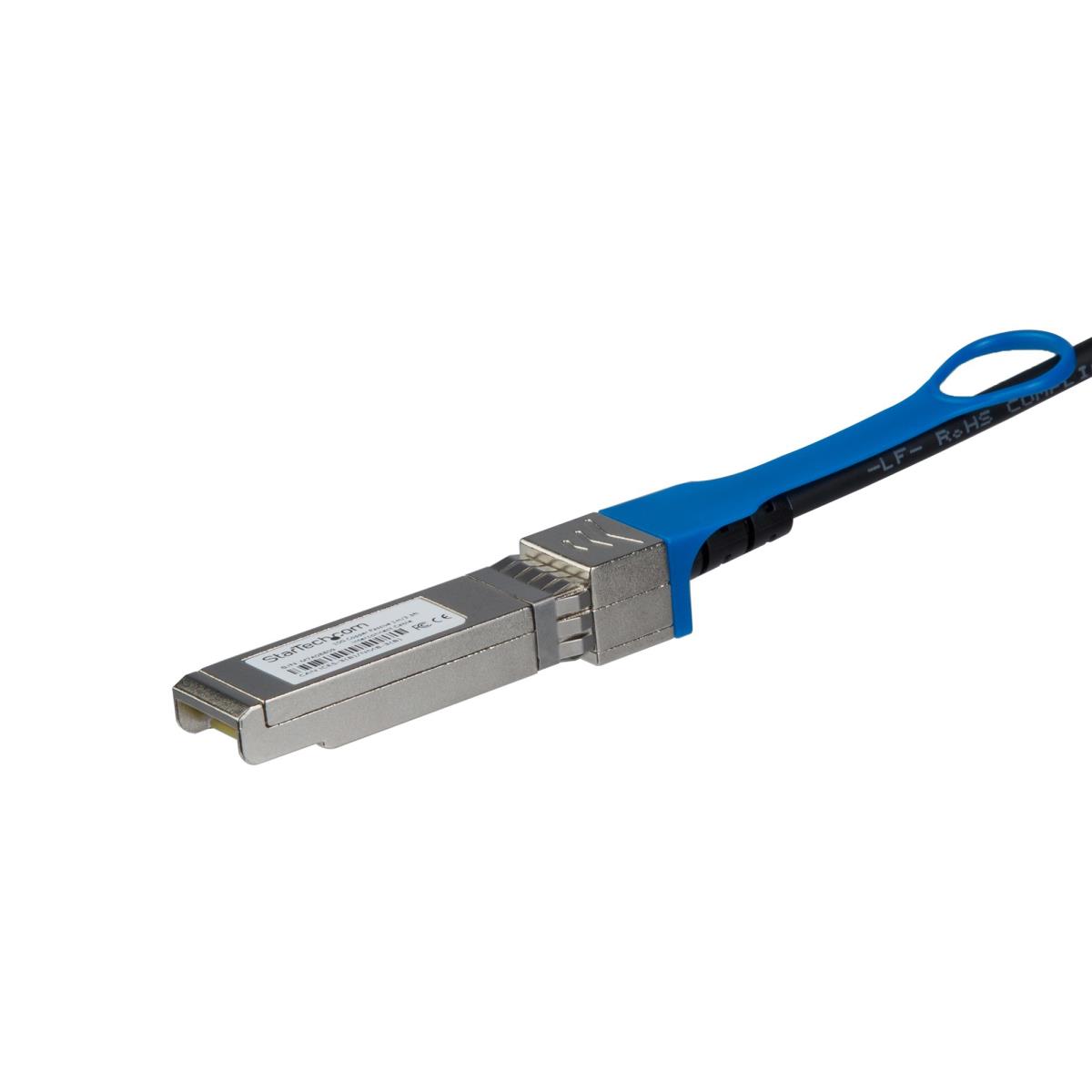

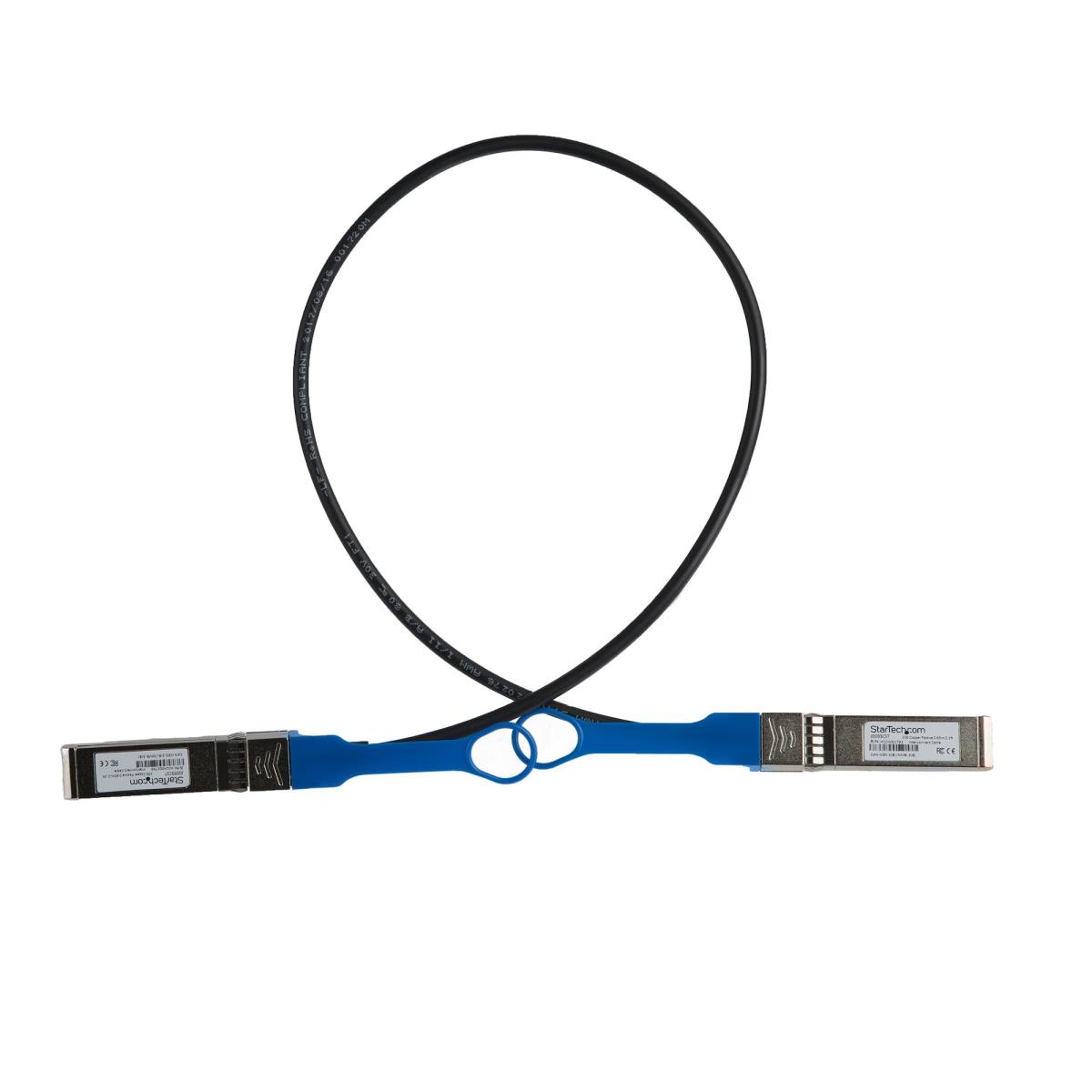

STARTECH.COM Hp Jd095c Compatible - Sfp+ Direct Attach Cable - 50cm

£24.76

Part Number: JD095CST
Delivery: 1 - 2 days

Product Details

Introduction

Copper SFP+ Cable | 10 Gbps | Passive DAC | Lifetime Warranty

The JD095CST is an HP JD095C compatible direct-attach copper SFP+ cable that's designed, programmed and tested to work with HP brand compatible switches and routers and complies with MSA industry standards.

This passive Twinax copper cable supports 10 Gigabit Ethernet applications connected through SFP+ (Mini-GBIC) ports. This copper SFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Designed for high-speed performance, this low-power, low-latency SFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.

StarTech.com SFP Cables

All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

- 100% HPE JD095C COMPATIBLE: Works with HPE switches like 5500, A5500, 5800, A5800, 5800AF and others
- TECHNICAL SPECS: .65m (2.1ft)
- 10 Gbps

Features

InfiniBand protocol Yes
Cable length 0.7 m
Connector 1 SFP+
Connector 2 SFP+
Connector 1 gender Male
Connector 2 gender Male
Product colour Black
Data transfer rate 10000 Mbit/s
Jacket material Polyvinyl chloride (PVC)
Plug and Play Yes
Certification CE, FCC, REACH
Product colour Black
Cable length 0.7 m
Connector 1 SFP+
Connector 2 SFP+
Connector 1 gender Male
Connector 2 gender Male
Jacket material Polyvinyl chloride (PVC)
AWG wire size 30
Data transfer rate 10000 Mbit/s
Plug and Play Y
Certification CE, FCC, REACH

Operational conditions

Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 80 °C
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 80 °C

Weight & dimensions

Weight 40 g
Width 14 mm
Depth 700 mm
Height 12 mm
Weight 40 g

Packaging data

Quantity per pack 1 pc(s)
Package width 200 mm
Package depth 157 mm
Package height 18 mm
Package weight 45 g
Quantity per pack 1 pc(s)
Package width 207 mm
Package depth 230 mm
Package height 15 mm
Package weight 45 g

Logistics data

Master (outer) case width 272 mm
Harmonized System (HS) code 84733080
Master (outer) case length 344 mm
Master (outer) case height 312 mm
Products per master (outer) case 10 pc(s)
Master (outer) case width 255 mm
Master (outer) case length 344 mm
Master (outer) case height 295 mm
Products per master (outer) case 10 pc(s)

Technical details

Compliance certificates RoHS
Sustainability certificates RoHS

Other features

Input impedance 100 O

Information

Part Number: JD095CST
