Product Details
Features
Product type

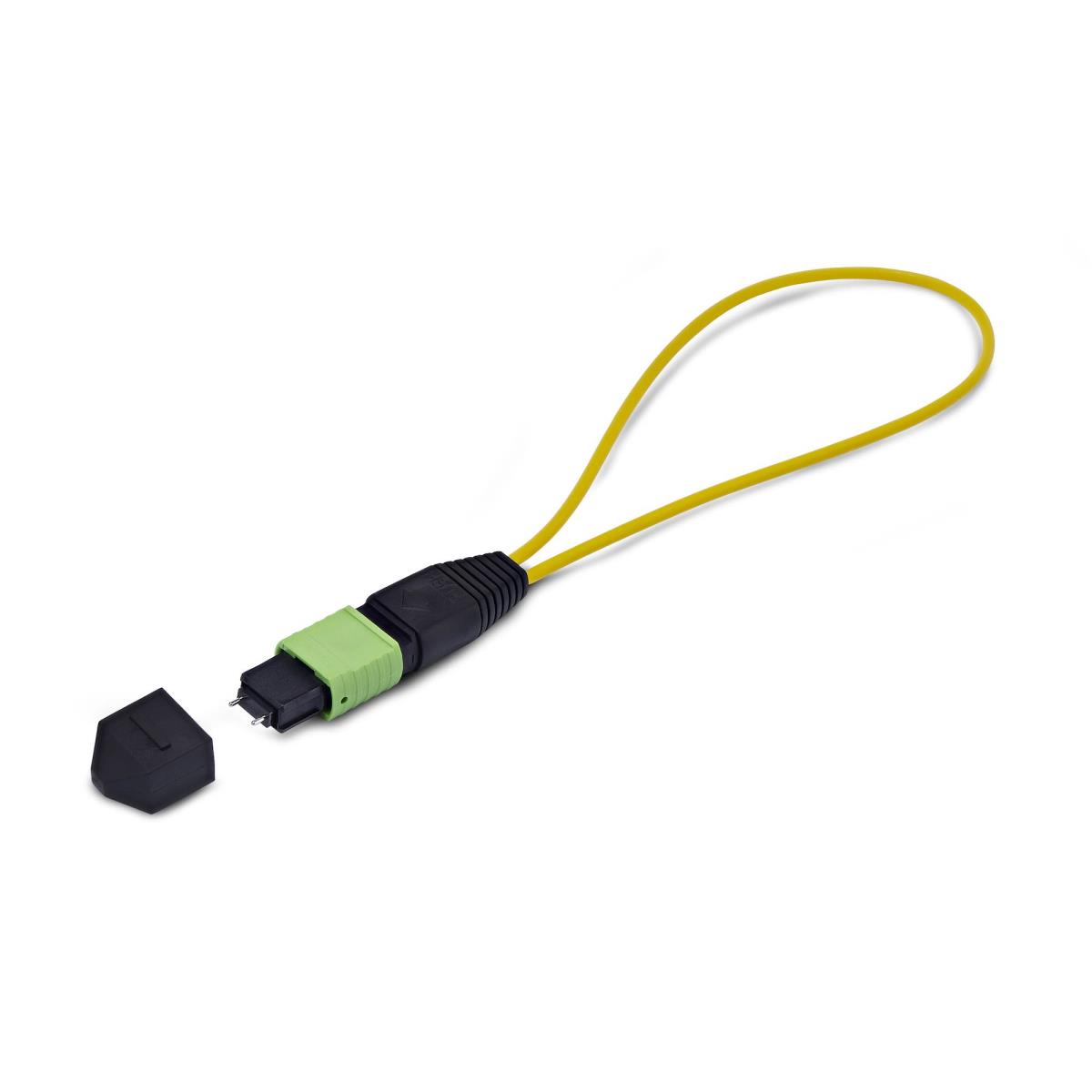

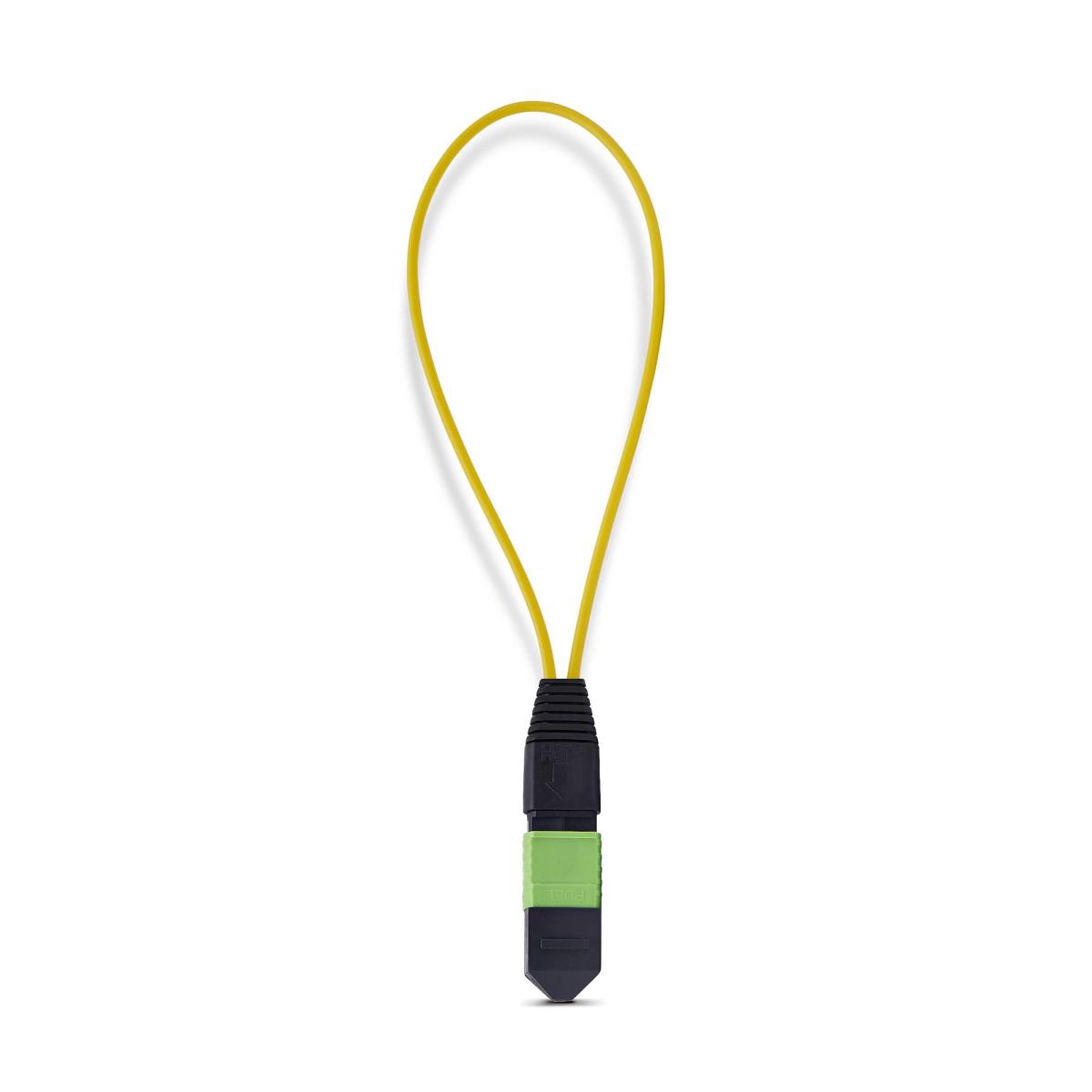

Fiber cable tester
Test type
Loopback testing
Supported connectors
MPO/MTP
Built-in display
No
Product colour
Black, Green, Yellow
Housing material
Acrylonitrile butadiene styrene (ABS)
Fiber mode structure
Single-mode
Fibre optic type
OS1/OS2
Connector gender
Male
Certificates
Compliance certificates
Trade Agreements Act (TAA), RoHS, CE
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 75 °C
Weight & dimensions
Width
11.8 mm
Depth
130 mm
Height
9.4 mm
Weight
4 g
Packaging data
Package width
220 mm
Package depth
120 mm
Package height
13 mm
Package weight
9 g
Logistics data
Master (outer) case width
430 mm
Master (outer) case length
335 mm
Master (outer) case height
400 mm
Products per master (outer) case
360 pc(s)
Information
| Part Number: | LOOPBACKMTP12OS2SMM |
