Product Details
Introduction

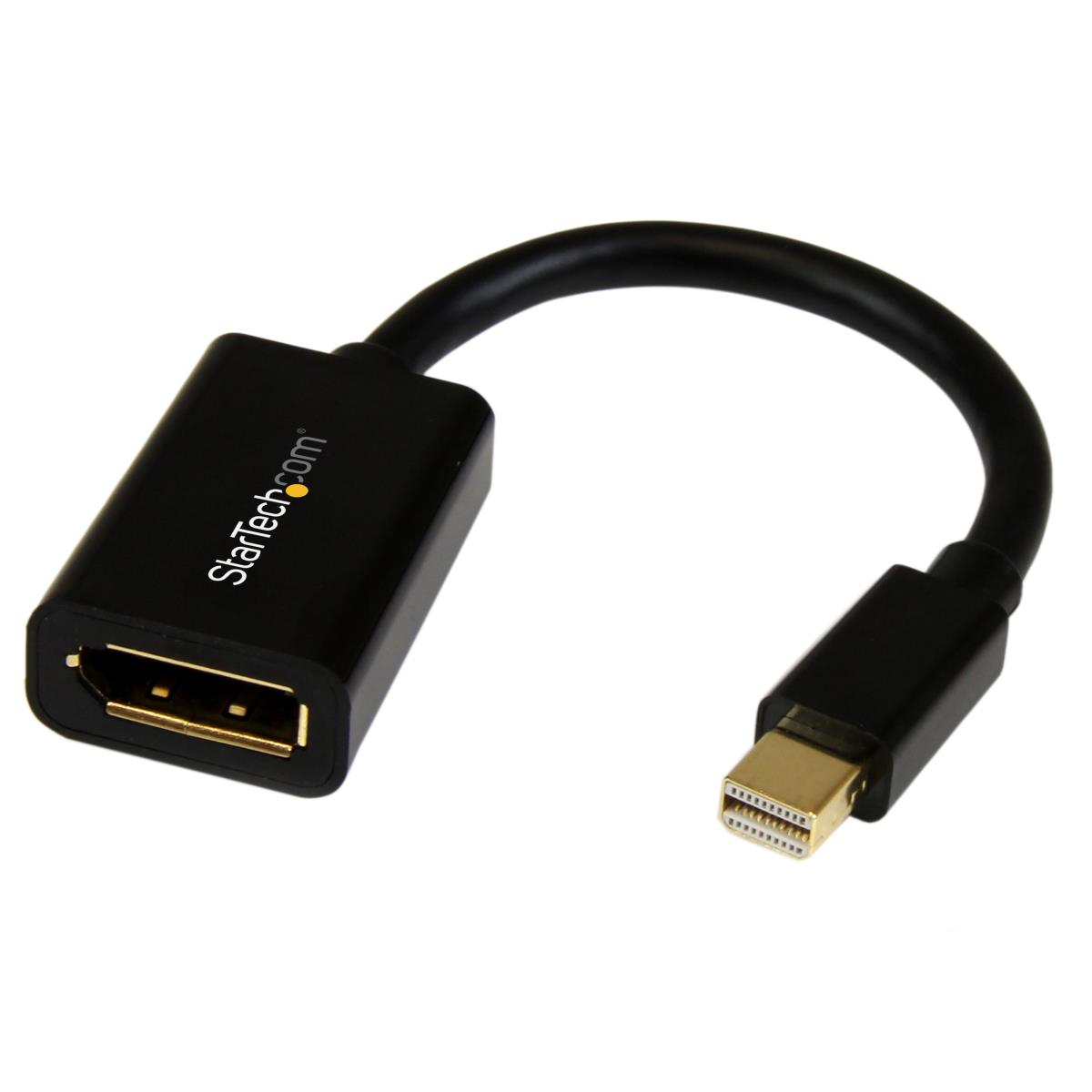

Connect your DisplayPort® monitor to a standard Mini DisplayPort sourceThe StarTech.com Advantage
Technical details
Compliance certificates
CE, RoHS
Harmonized System (HS) code
84733080
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Nickel
DisplayPort version
1.2
Maximum resolution
3840 x 2400 pixels
Supported graphics resolutions
2560 x 1600 (WQXGA),3840 x 2400
Maximum refresh rate
120 Hz
Cable length
0.1524 m

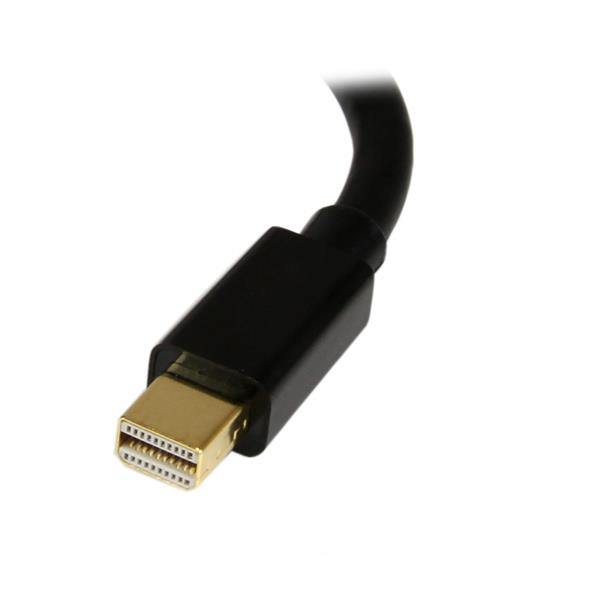

Connector 1
Mini DisplayPort

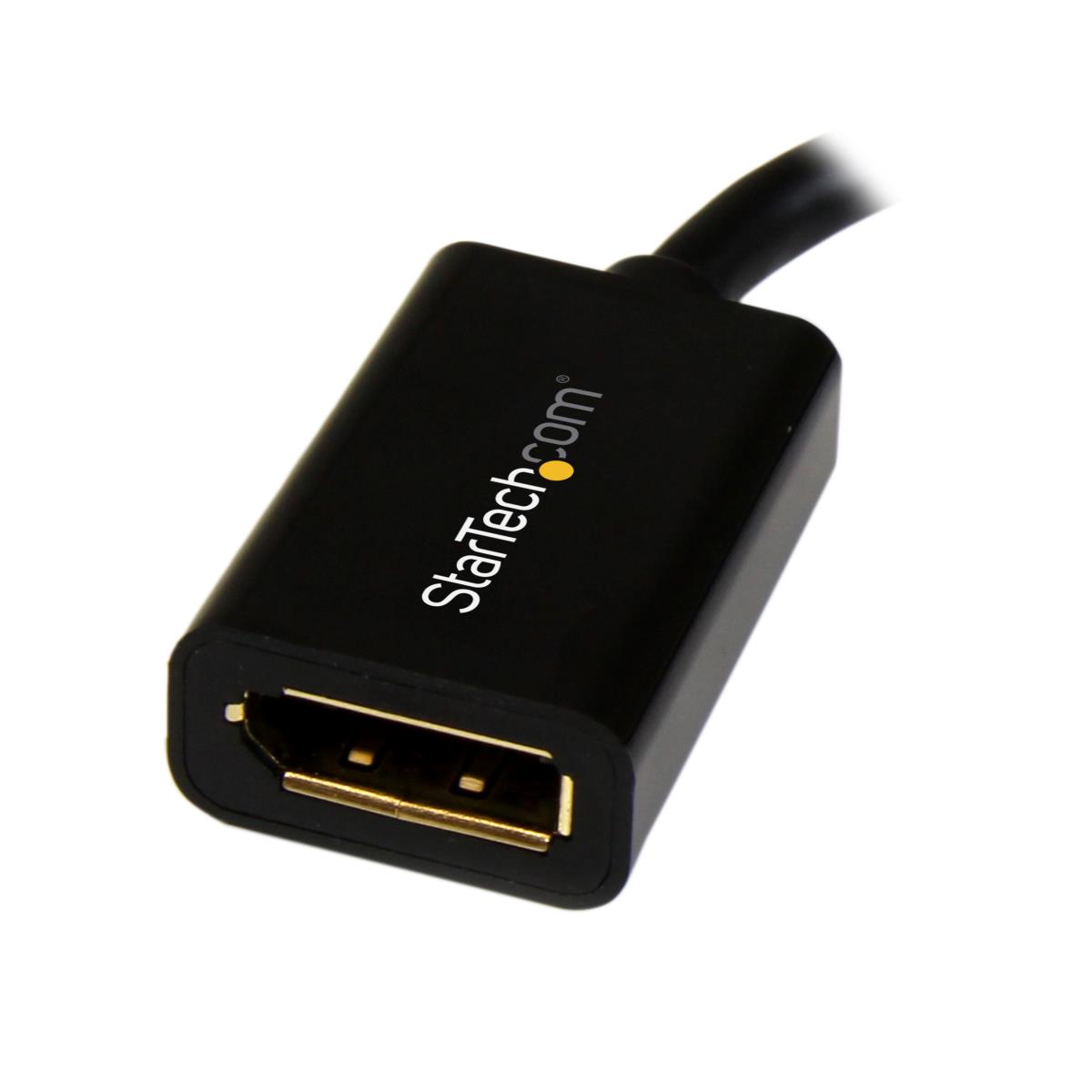

Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Female
Product colour
Black
Cable rating
CMG (CM)
Cable shielding
Aluminum mylar foil
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
32
Bandwidth
21600 MB/s
Plug and Play
Y
Multi-Stream Transport (MST)
Y
Number of conductors
20
Sustainability
Sustainability certificates
CE, RoHS
Packaging data
Cable diameter
5 mm
Weight
19 g
Quantity per pack
1 pc(s)
Package width
126 mm
Package depth
227 mm
Package height
15 mm
Package weight
24 g
Logistics data
Master (outer) case width
375 mm
Master (outer) case length
414 mm
Master (outer) case height
270 mm
Products per master (outer) case
300 pc(s)
Information
| Part Number: | MDP2DPMF6IN |
