Introduction
Make Power-over-Ethernet-capable Gigabit network connections

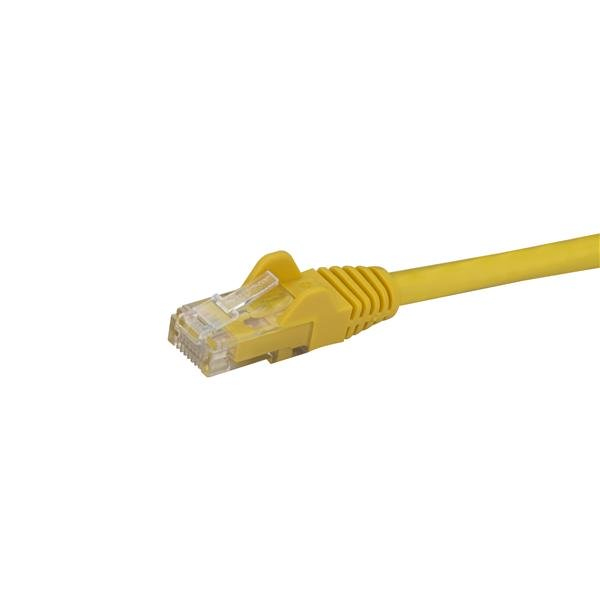

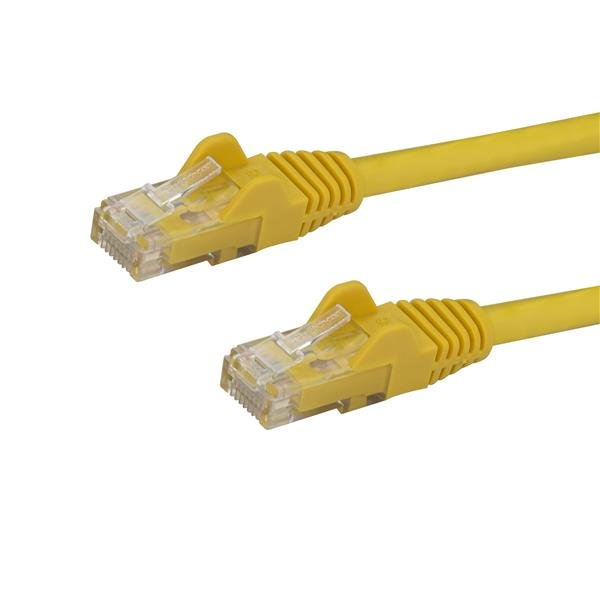

The N6PATC3MYL Cat 6 patch cable (3m) meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections, and features a durable yellow PVC jacket that enables you to color code your network cable runs as needed.
To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles, reducing the risk of cable failure.
Constructed of only top quality materials, this Cat 6 patch cord delivers reliable performance and is backed by our lifetime warranty.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.
50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The StarTech.com Advantage
- 50-micron gold connectors ensure optimum conductivity while eliminating signal loss due to oxidation or corrosion
- RJ45 connector clip protectors help keep the plugs from snagging while routing the cable, for easier Cat 6 cable runs
- Guaranteed reliability
Main Detail
Type
Network
Version
Category 6
Colour
Yellow
Length
3 m (9.84 ft)
Devices used to connect
Hubs,Workstations,Patch Panels
Wire Gauge
24 AWG
Connectors SIDE A
SIDE A Connector 1
| Interface | RJ45 |
| Technology | 8-Pin |
| Port type | Male |
| No of connectors | 1 |
Connectors SIDE B
SIDE B Connector 1
| Interface | RJ45 |
| Technology | 8-Pin |
| Port type | Male |
| No of connectors | 1 |
Features
Gold-plated plug housings/contacts
yes
Shielding construction
U/UTP (UTP)
Snagless
Yes
Jacket Material
PVC - Polyvinyl Chloride
Harmonized System (HS) code
84733080
Product colour
Yellow
Cable length
3 m
Cable standard
Cat6
Cable shielding
U/UTP (UTP)
Connector 1
RJ-45
Connector 2
RJ-45
Connector 1 gender
Male
Connector 2 gender
Male
Connector contacts plating
Gold
Jacket material
Polyvinyl chloride (PVC)
Conductor type
Stranded
Conductor material
Copper
Cable rating
CMG (CM)
Cabling technology
10/100/1000Base-T(X)
Ethernet interface type
Gigabit Ethernet
AWG wire size
24
Data transfer rate
1000 Mbit/s
Frequency
650 MHz
Snagless cable boot
Yes
Plug and Play
Yes
Power over Ethernet (PoE)
Yes
Certification
ETL, CE, REACH
Technical details
Compliance certificates
RoHS
Weight & dimensions
Packaging data
Quantity per pack
1 pc(s)
Package width
200 mm
Package depth
220 mm
Package height
16 mm
Package weight
136 g
Logistics data
Master (outer) case width
370 mm
Master (outer) case length
415 mm
Master (outer) case height
275 mm
Products per master (outer) case
80 pc(s)
