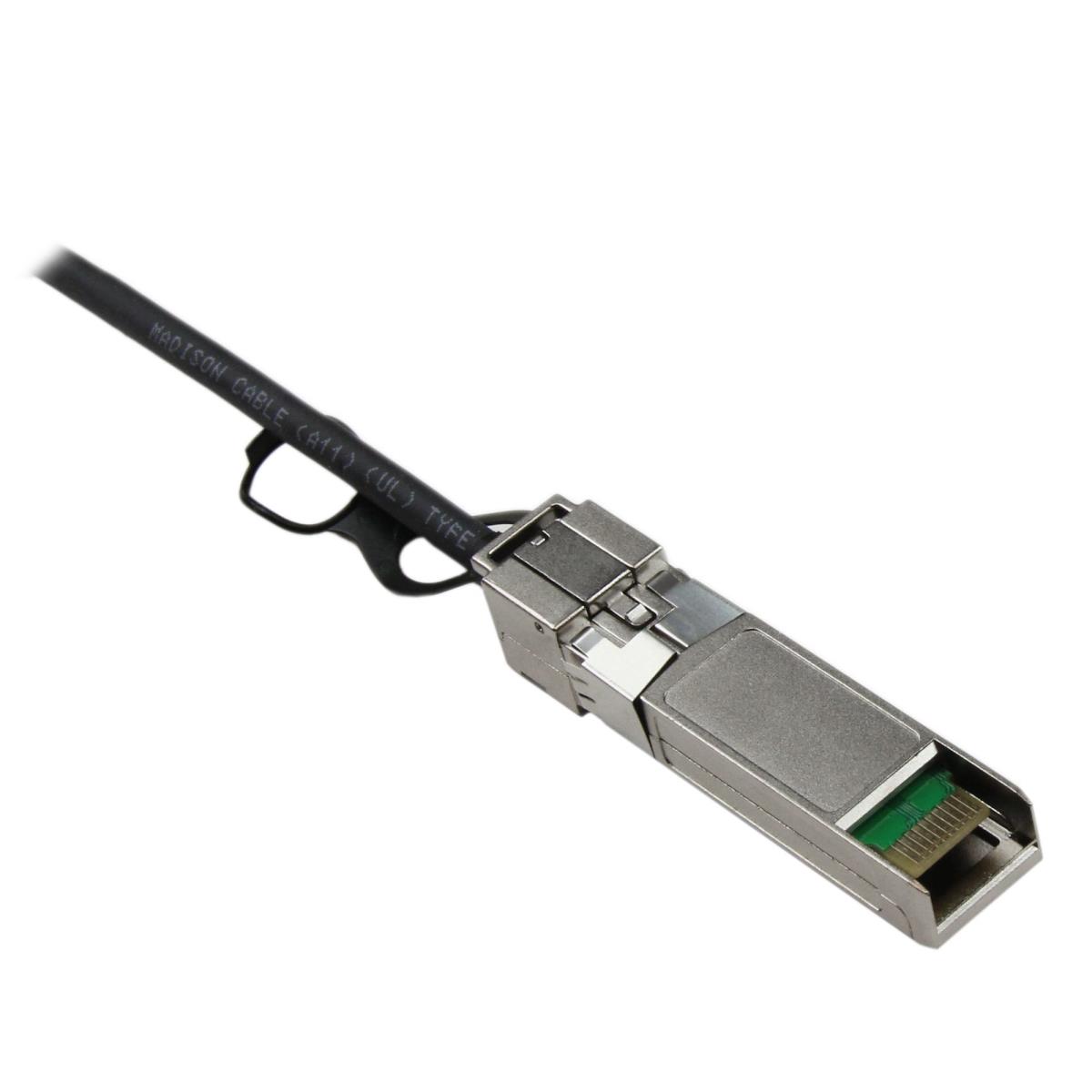

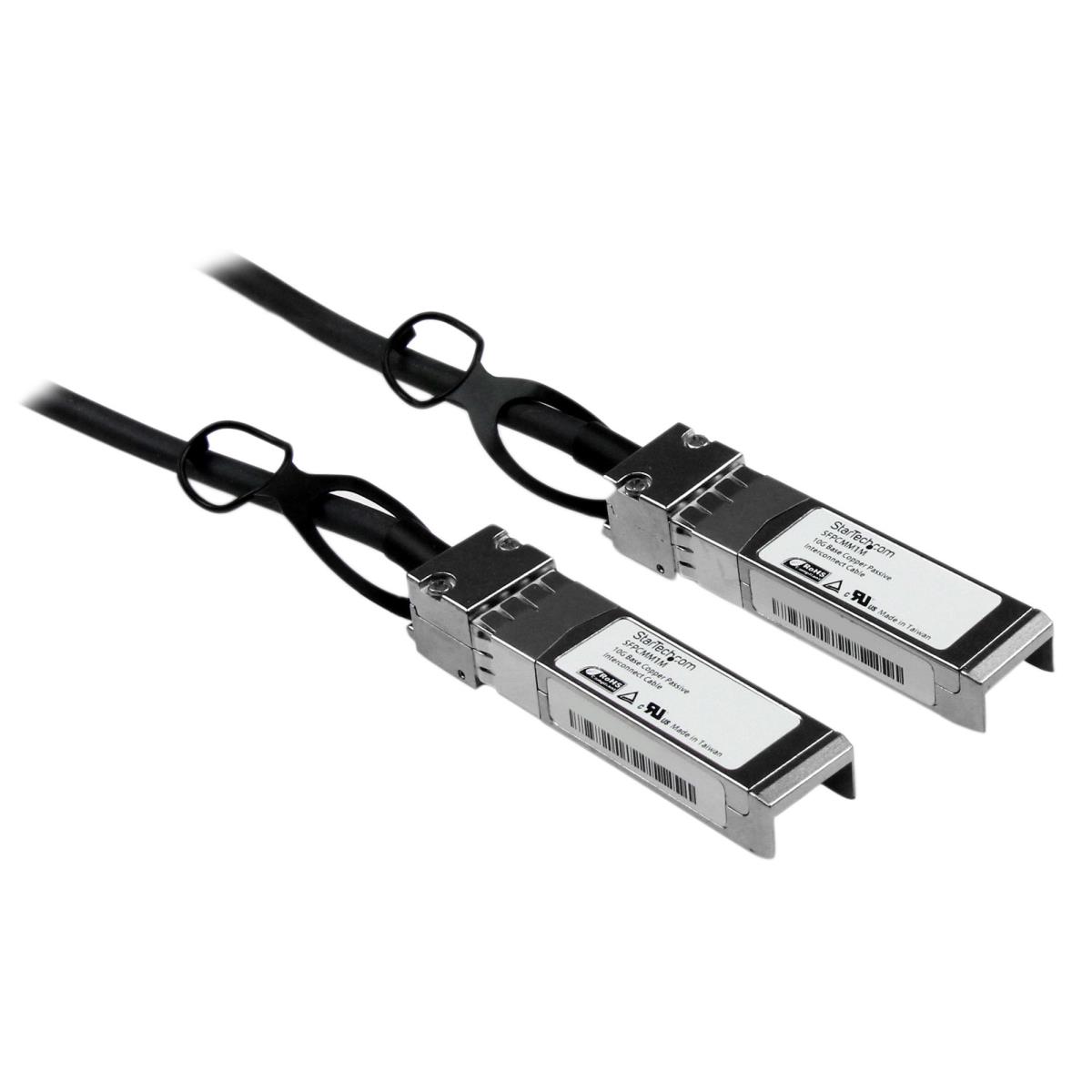

STARTECH.COM Cisco Compatible 10GBase-cu Sfp+ Twinax Direct Attach Cable - 1m

£26.02

Part Number: SFPCMM1M
Delivery: 1 - 2 days

Product Details

Introduction

Copper SFP+ Cable | 10 Gbps | Passive DAC | Lifetime Warranty

The SFPCMM1M is a Cisco SFP-H10GB-CU1M compatible direct-attach copper SFP+ cable that's designed, programmed and tested to work with Cisco brand compatible switches and routers and complies with MSA industry standards.

This passive Twinax copper cable supports 10 Gigabit Ethernet applications connected through SFP+ (Mini-GBIC) ports. This copper SFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Designed for high-speed performance, this low-power, low-latency SFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.

StarTech.com SFP Cables

All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

- 100% CISCO SFP-H10GB-CU1M COMPATIBLE: Works with Cisco switches like Firepower, ASR920, ASR9000, C9300, C3850 and others
- TECHNICAL SPECS: 1m (3.3ft)
- 10 Gbps

Features

InfiniBand protocol Yes
Cable length 1 m
Connector 1 SFP+
Connector 2 SFP+
Connector 1 gender Male
Connector 2 gender Male
Product colour Black
Data transfer rate 10000 Mbit/s
Jacket material Polyvinyl chloride (PVC)
Certification CE
ARK ID C
Product colour Black
Cable length 1 m
Connector 1 SFP+
Connector 2 SFP+
Connector 1 gender Male
Connector 2 gender Male
Jacket material Polyvinyl chloride (PVC)
AWG wire size 30
Data transfer rate 10000 Mbit/s
Certification CE
ARK ID C

Operational conditions

Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 80 °C
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 80 °C

Weight & dimensions

Weight 74 g
Width 14 mm
Depth 1000 mm
Height 12 mm
Weight 74 g

Packaging data

Quantity per pack 1 pc(s)
Package width 197 mm
Package depth 127 mm
Package height 22 mm
Package weight 83 g
Quantity per pack 1 pc(s)
Package width 200 mm
Package depth 220 mm
Package height 18 mm
Package weight 83 g

Logistics data

Master (outer) case width 353 mm
Harmonized System (HS) code 84733080
Master (outer) case length 271 mm
Master (outer) case height 309 mm
Products per master (outer) case 60 pc(s)
Master (outer) case width 358 mm
Master (outer) case length 638 mm
Master (outer) case height 290 mm
Products per master (outer) case 150 pc(s)

Technical details

Compliance certificates RoHS
Sustainability certificates RoHS

Other features

Input impedance 100 O

Information

Part Number: SFPCMM1M
